LABART NPK Sensor with RS 485 Output LNPK-101
Regular price
Rs. 12,500.00
Sale price
Rs. 7,138.00
(Incl. of all taxes)
Unit price
per
Npk Sensor
-
SPECIFICATION
-
TECHNICAL SPECIFICATIONS
-
RESOURCES
-
SHIPPING
-
REVIEW
SPECIFICATION

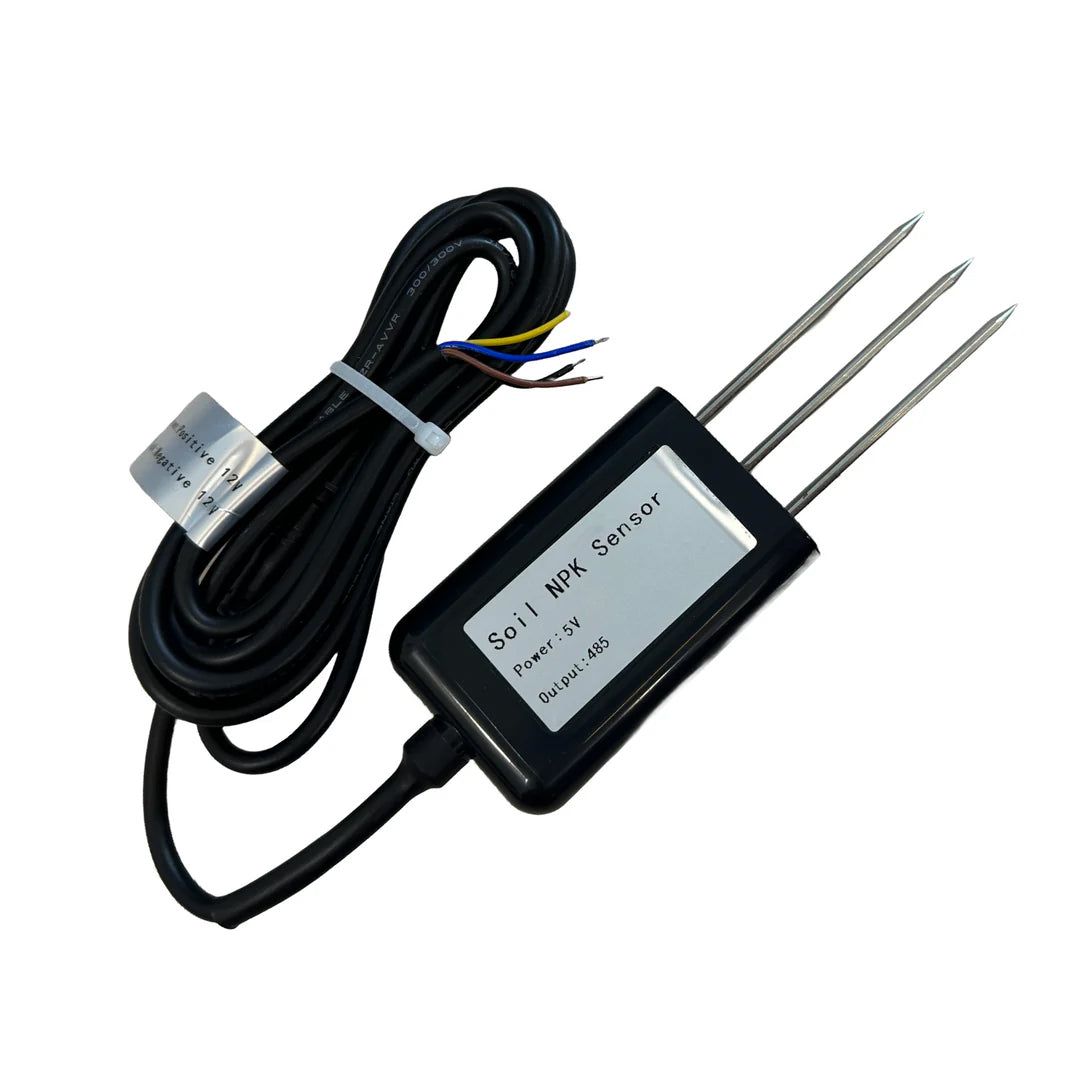

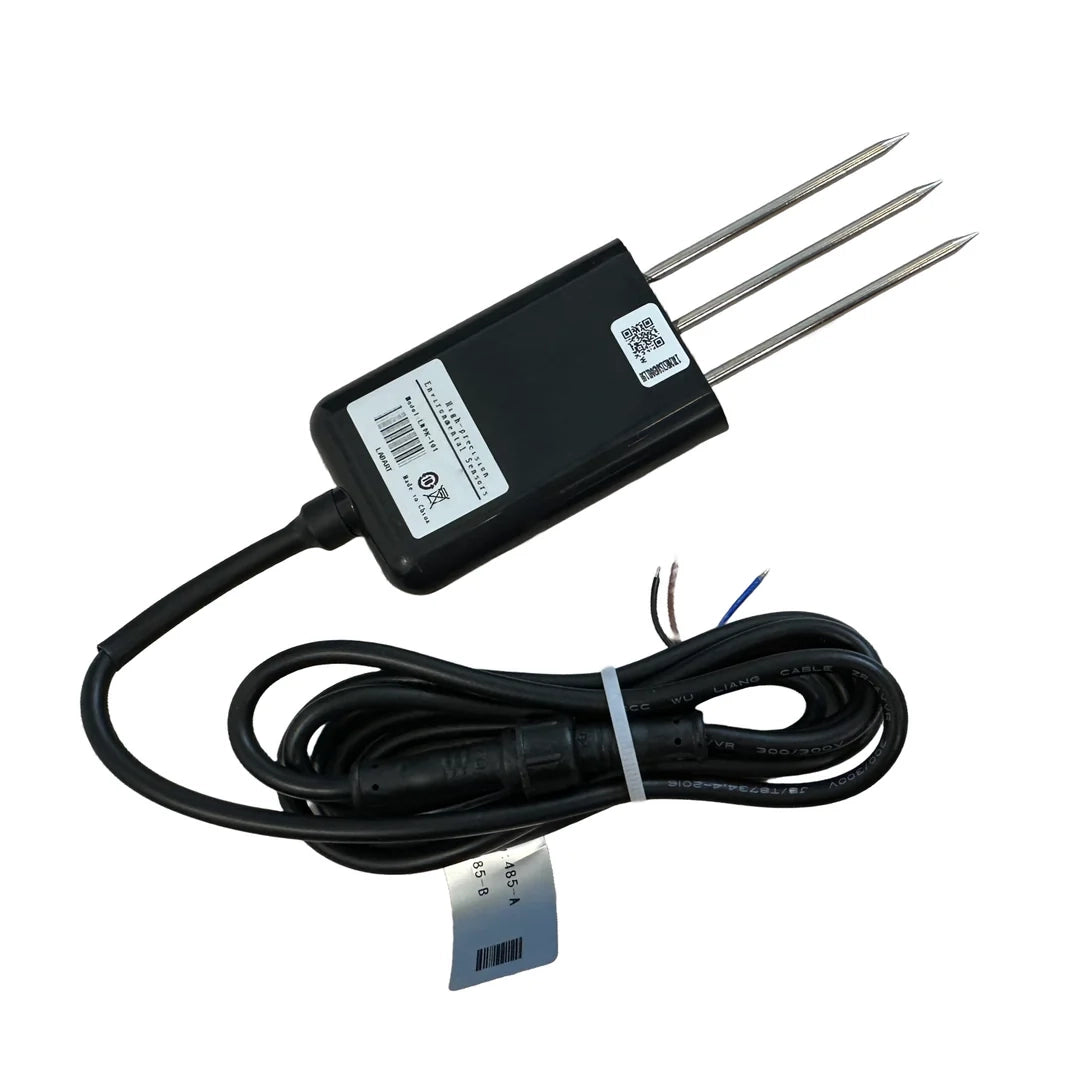

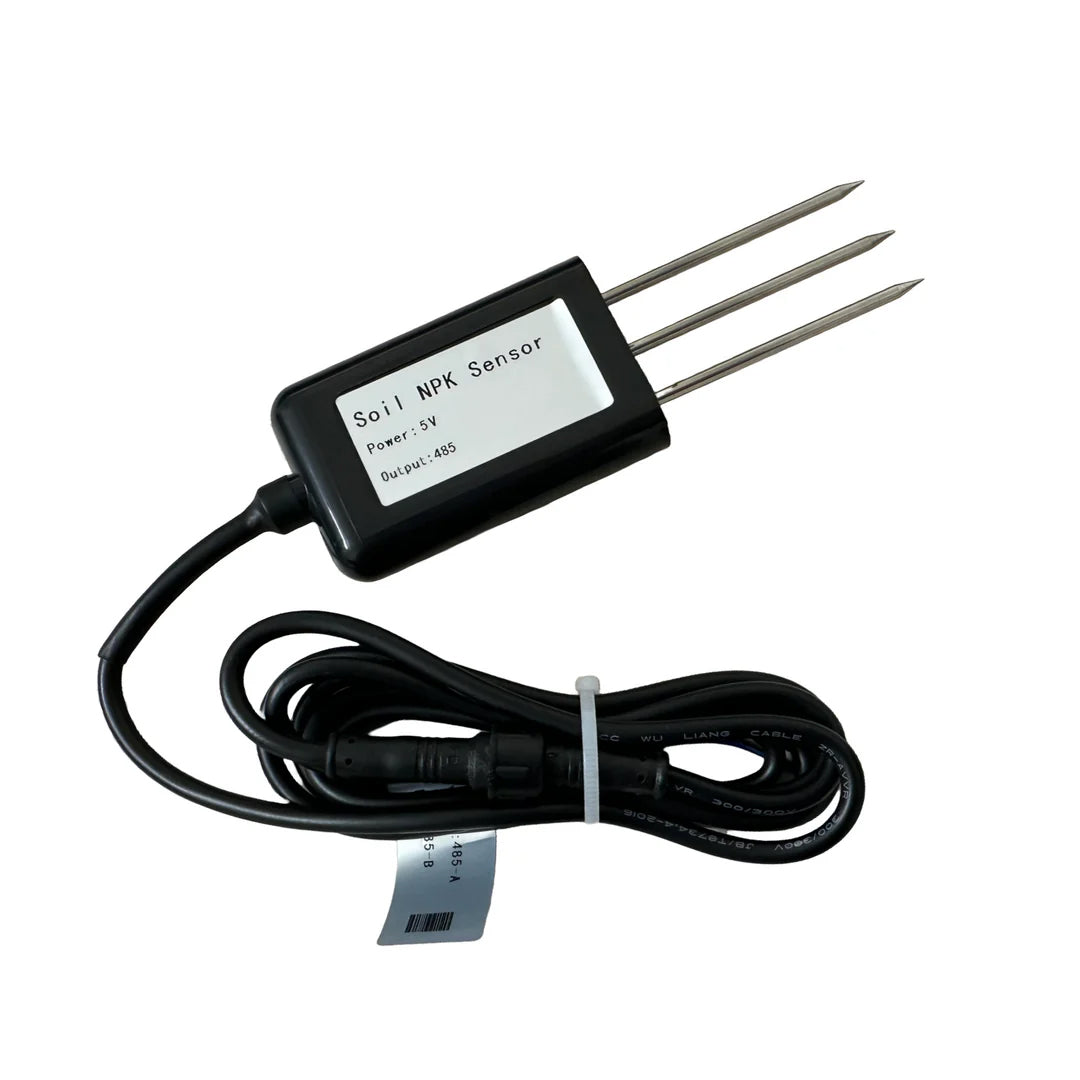

The LABART Soil NPK Sensor accurately tests for soil nitrogen, phosphorus, and potassium with precision and speed. Its durable design is waterproof and has a wide range for reliable performance. Ideal for professionals, its clear display makes it a portable and user-friendly testing tool.
SPECIFICATION
• Measurement Parameters: Soil nitrogen, phosphorus, potassium
• Measurement Unit: mg/kg (mg/L)
• Measuring Range: 0-1999mg/kg (mg/L)
• Measurement Accuracy: ±3% (mg/kg)
• Resolution: 1mg/kg (mg/L)
• Output Signal: RS485 (Standard Modbus-RTU protocol, device default address: 01)
• Supply Voltage: 12-24V DC
• Working Range: 0°C-50°C
• Stabilization Time: 1 second after power-on
• Response Time: < 10 seconds Physical Parameters
• Probe Length: 55 mm,φ 3 mm
• Probe Material: 316L stainless steel
• Sealing Material: ABS engineering plastics, epoxy resin, waterproof grade IP68
• Cable Specifications: Standard 2 metersÂ
APPLICATION
Suitable for water-saving agricultural irrigation, greenhouse, flowers and vegetables, grassland and pasture, soil speed measurement, plant cultivation, scientific experiments and other fields.
Â
We are dedicatedly involved in providing an excellent quality array of Labart Soil Sensors.
TECHNICAL SPECIFICATIONS
| Measurement Parameters | Soil nitrogen, phosphorus, potassium |
| Measurement Unit | mg/kg (mg/L) |
| Measuring Range | 0-1999mg/kg (mg/L) |
| Measurement Accuracy | ±3% (mg/kg) |
| Resolution | 1mg/kg (mg/L) |
| Output Signal | RS485 (Standard Modbus-RTU protocol, device default address: 01) |
| Supply Voltage | 12-24V DC |
| Working Range | 0°C-50°C |
| Stabilization Time | 1 second after power-on |
| Response Time | < 10 seconds |
| Physical Parameters |
Probe Length: 55 mm,φ 3 mm Probe Material: 316L stainless steel Sealing Material: ABS engineering plastics, epoxy resin, waterproof grade IP68 Cable Specifications: Standard 2 meters |
| Application | Suitable for water-saving agricultural irrigation, greenhouse, flowers and vegetables, grassland and pasture, soil speed measurement, plant cultivation, scientific experiments, and other fields. |
| Order Code | LNPK-101 |
RESOURCES
https://www.youtube.com/watch?v=jZVPKDVmT2I
SHIPPING
For orders placed before 4PM IST, we endeavour to process the same business day. Orders placed after 4PM IST will be processed the next business day.
During sale events and new collection launches, there may be a slighly longer processing time.
REVIEW
How to use soil npk sensors?
1. Quick Test Method

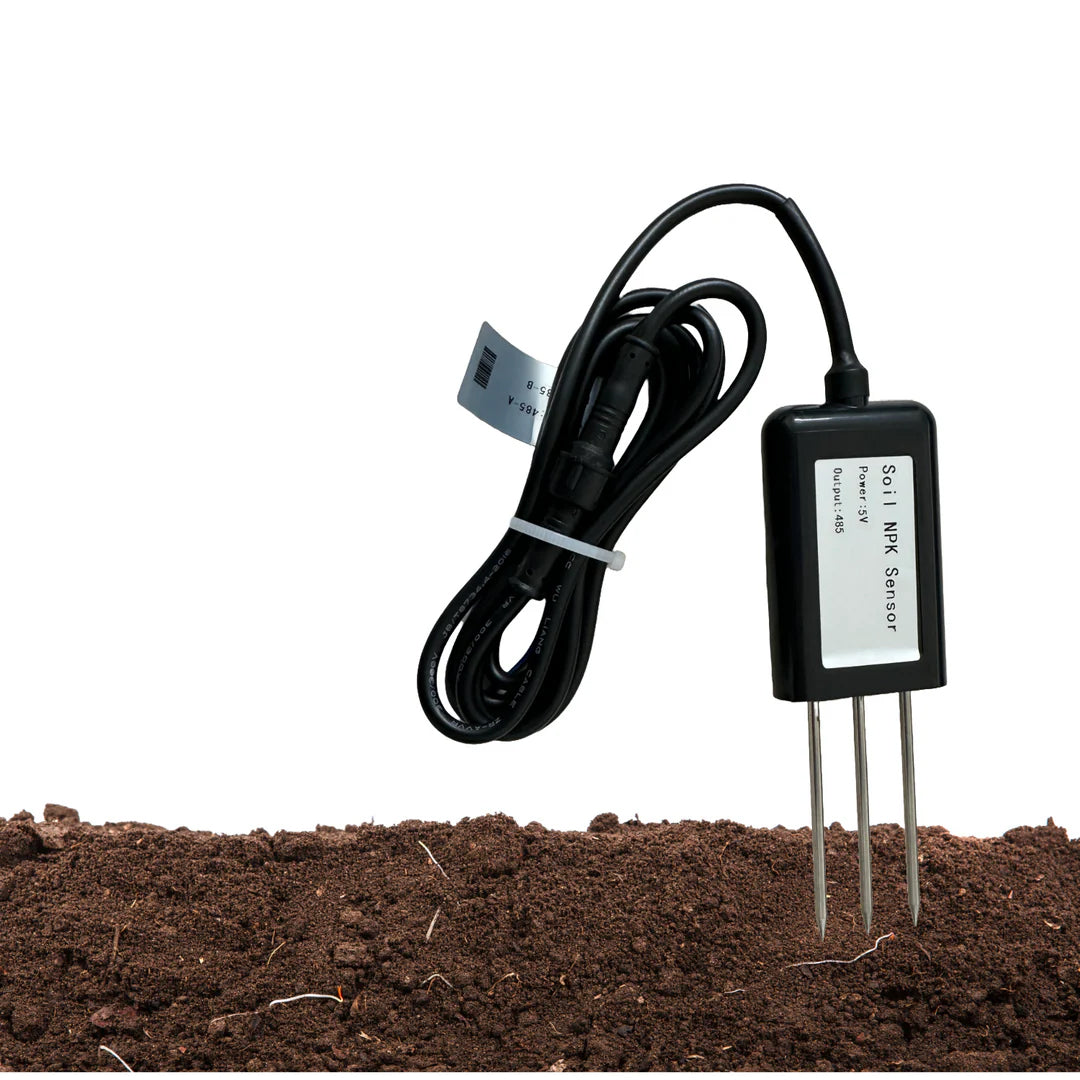

Select a suitable measurement location, avoid rocks, ensure that the steel needle does not touch hard objects, throw away the surface soil according to the required measurement depth, maintain the original tightness of the soil below, hold the sensor vertically and insert it into the soil. Do not shake left and right. It is recommended to measure multiple times for average value within a small range of a measuring point.
2. Buried measurement method
Dig a pit with a diameter> 20cm vertically, insert the sensor needle horizontally into the pit wall at a predetermined depth, and fill the pit tightly. After a period of stability, measurement and recording can be carried out for several days, months, or even longer
Precautions
1. All steel needles must be inserted into the soil during measurement.
2. Avoid strong sunlight directly shining on the sensor to cause excessive temperature. Pay attention to lightning protection in the field.
3. Do not bend the steel needle violently, pull the lead wire of the sensor forcefully, and do not hit or hit the sensor violently.
4. The sensor’s protection grade is IP68, so the whole sensor can be soaked in water.
5. Due to the presence of radiofrequency electromagnetic radiation in the air, it is not suitable to stay in the air for a long time with electricity.
Why to choose LABART?
We're all about making life in the science world better. We're constantly improving and working together to bring you the best solutions. Our products is top-notch quality and super precise. We're on a mission to make labs and industries easier to handle, all while spreading good vibes. When you choose LABART, you're choosing innovation that makes your scientific journey smoother and happier. Join us and experience the difference LABART products can make.
