FEATURE

• USAGE: Used for Absolute and Relative angle measurement in automotive, woodwork, building, drilling machinery etc. Magnet at the base of the device will help to mount it on the machinery.
• Battery: AAA*2 battery. Magnet on one side(BOTTOM ONLY) to mount on the Iron object to work conveniently hands free.
• Measuring range: 4*90 Degrees. Resolution: 0.05 Degrees. Accuracy: Plus/Minus 0.2 Degrees. Repeatability: 0.1 Degrees.
• FUNCTION: HOLD/Tilt%- Press it for long time, the unit can be changed from degree to tilt%. Press it for short time, the data will be held for convenient reading. ZERO- Data reset, to proceed with relative measurement. Long press to switch on LCD backlight. Portable size ,convenient to co-work with other measuring tools and enlarge measuring range.
• Power: With on-off power switch & Auto power-off option. Quick display of the measured value on big LCD screen.

SPECIFICATIONS

• Measurement range: 4*90°
• Accuracy: ±0.2 °
• Resolution: 0.05°
• Battery type: 2x1.5V “AAA” batteries
• Material type: Plastic

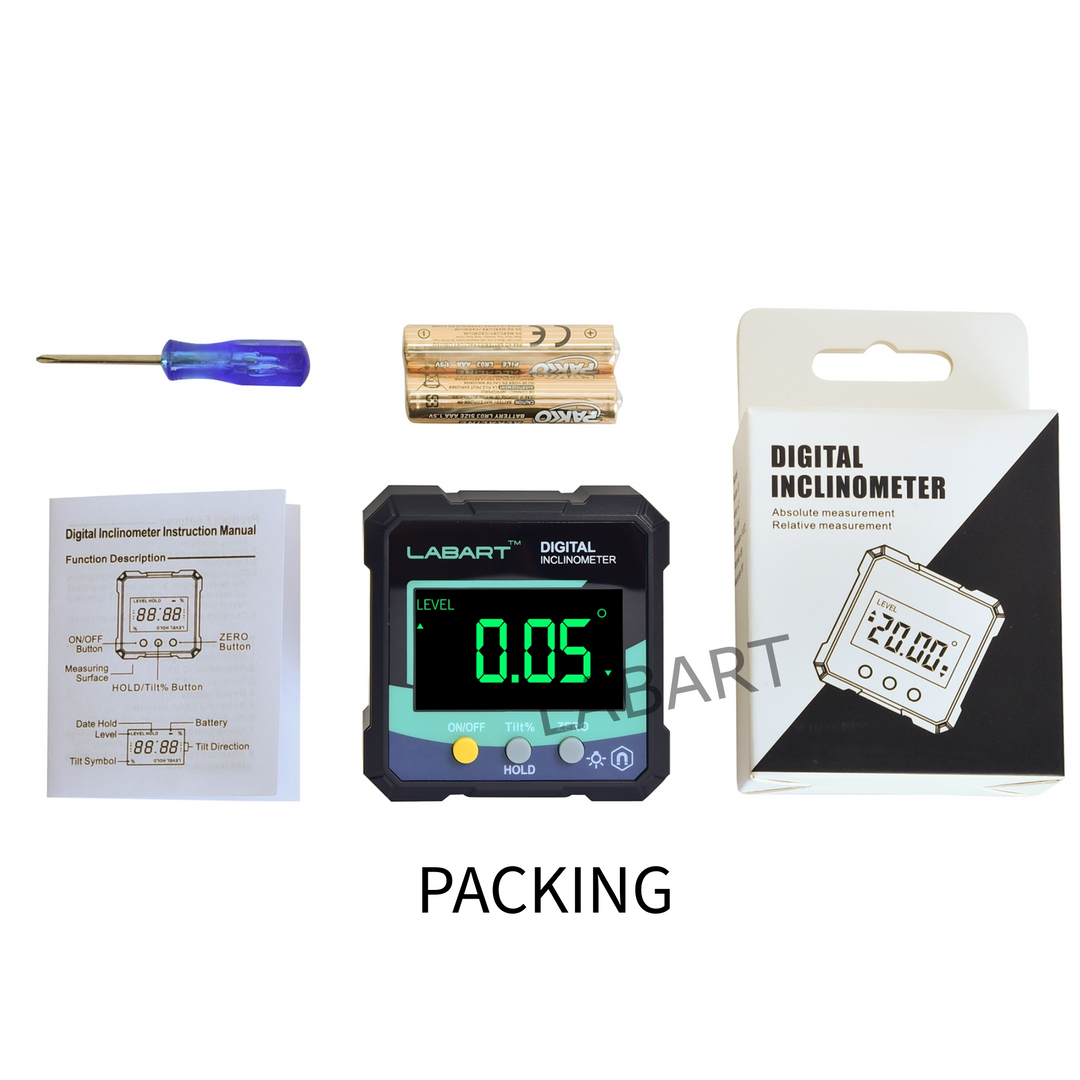

• Package include: Digital Inclinometer*1,1.5V “AAA” batteries*2,Screwdriver×1 , Instruction*1×1 ,Package Box*1
• Standard: CE, RoHS
• Working temperature: 0℃ ~ 50℃/32℉ - 122℉
• Storage temperature: -10℃ ~ 50℃
• Dimensions: 57*55*26mm/2.5*2.1*1in
• Weight: 80g/0.17lb
