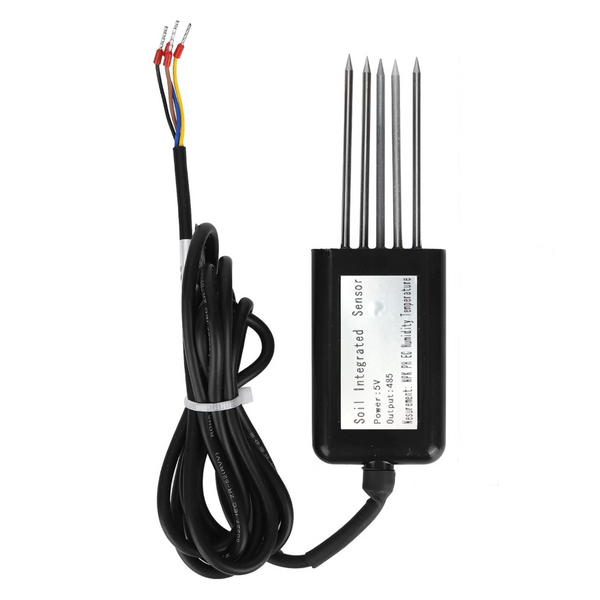

Our soil sensors are used for soil npk, temperature, ec, ph, soil moisture measurement with high accuracy, fast response speed and stable output. Long-term buried in the soil, resistant to long-term electrolysis, corrosion resistance, vacuum potting, completely waterproof.

ADVANTAGES

• High precision agriculture sensors, rapid response, good exchange ability
•  Good tightness, corrosion resistance, the soil tester can be used in the soil for a long time.
•  Flame retardant epoxy resin curing, completely waterproof, the soil tester can withstand strong external impact.
• Steel needles are made of high quality materials that can with stand long-term electrolysis , acid and alkali corrosion in soil.

SOIL TESTER APPLICATIONS

Agricultural Irrigation, Greenhouse, Grass Farm, Environmental Monitoring, Soil testing, Water Conservation

TECHNICAL SPECIFICATIONS

• Power Supply: 12-24V DC
• Output Signal:  RS485/4G/NB-IoT/LORA
• Protection level:  IP68
• Temperature measuring range:  -45℃-115℃
• Moisture measuring range:  0-100%RH
• PH measuring range:  3-9PH
• NPK measuring range:  0-1999mg/kg
• EC measuring range:  0-10000us/cm
• Temperature precision: ±0.5℃
• Moisture precision: ±3% in 0-53% range;
•                                 ±5% in 53-100% range
• PH precision ±0.3PH
• NPK precision 2% F.s
• EC Resolution 10us/cm
• Response time ＜1s

 We are dedicatedly involved in providing an excellent quality array of Labart Soil Sensors
