Digital UREA Adblue Refractometer LB-DR-605
Regular price
Rs. 21,500.00
Sale price
Rs. 15,299.00
(Incl. of all taxes)
Unit price
per
-
SPECIFICATION
-
TECHNICAL SPECIFICATIONS
-
RESOURCES
-
SHIPPING
-
REVIEW
SPECIFICATION

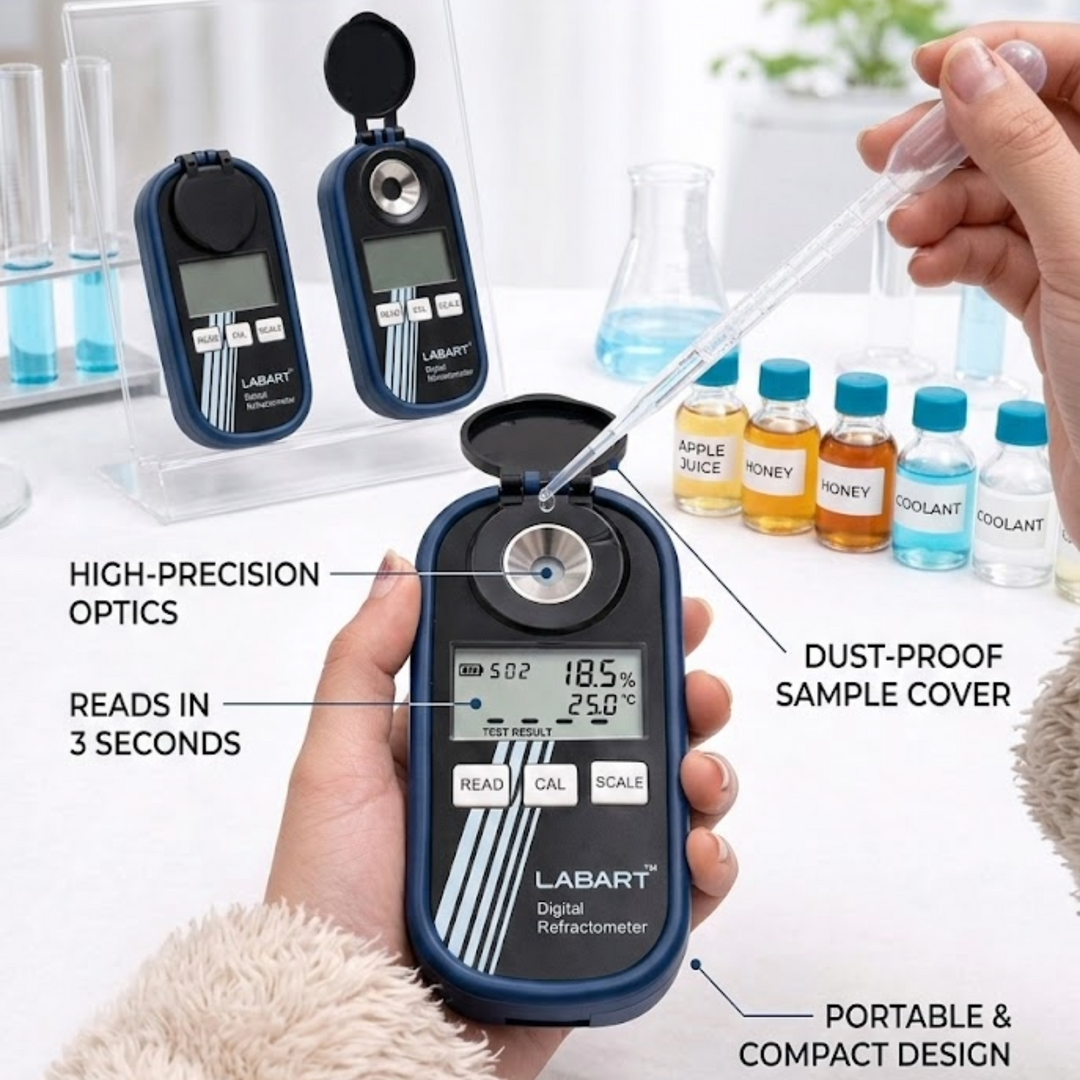

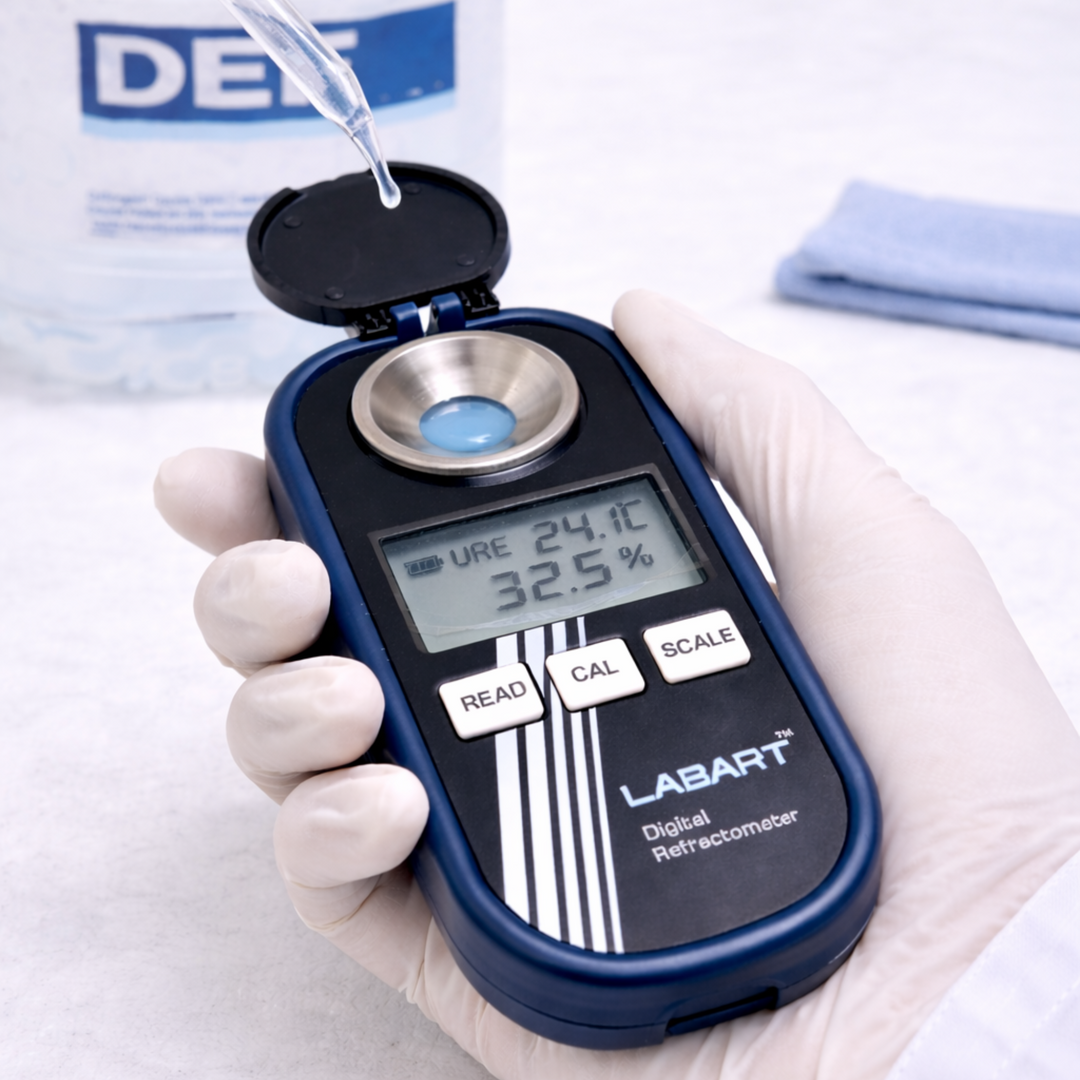

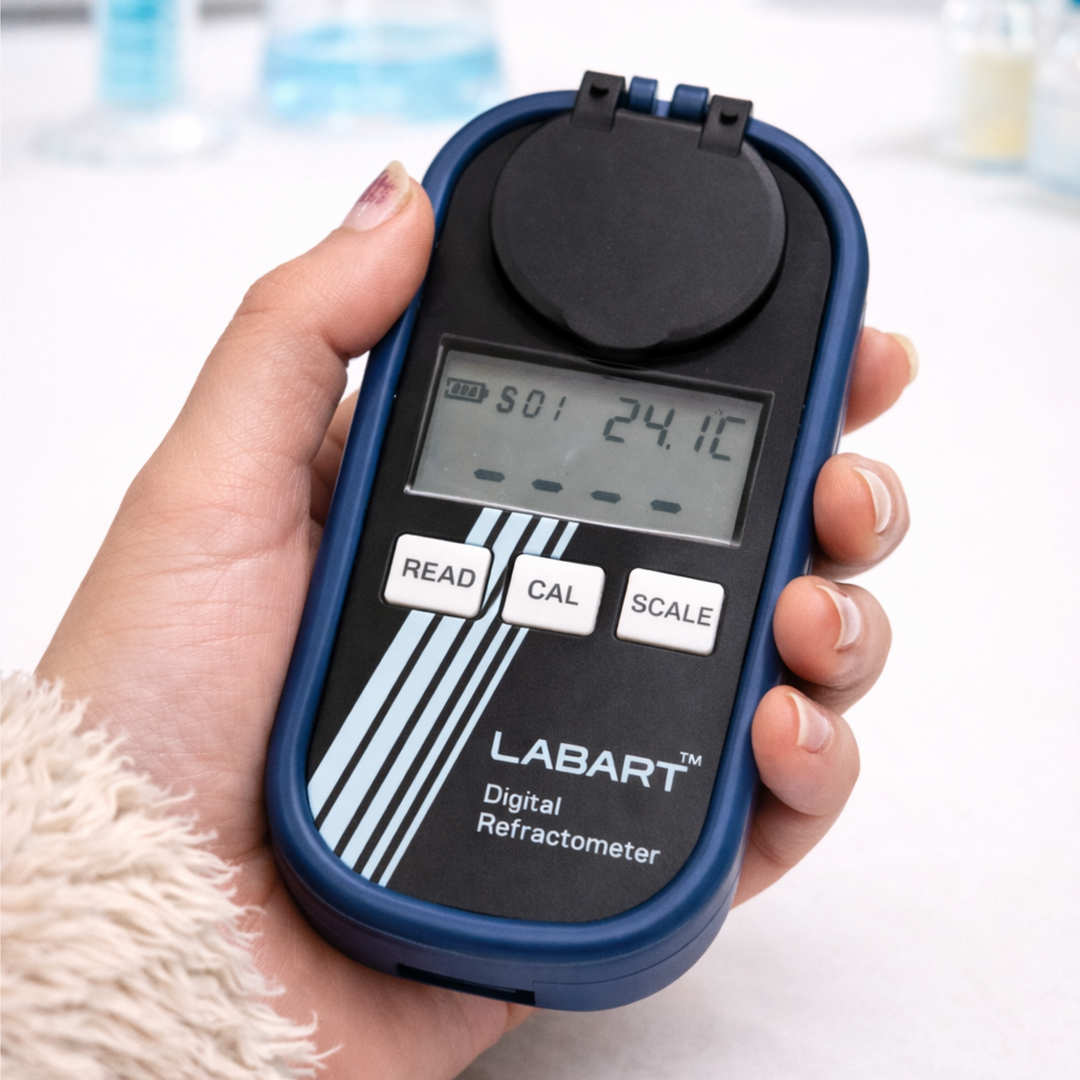

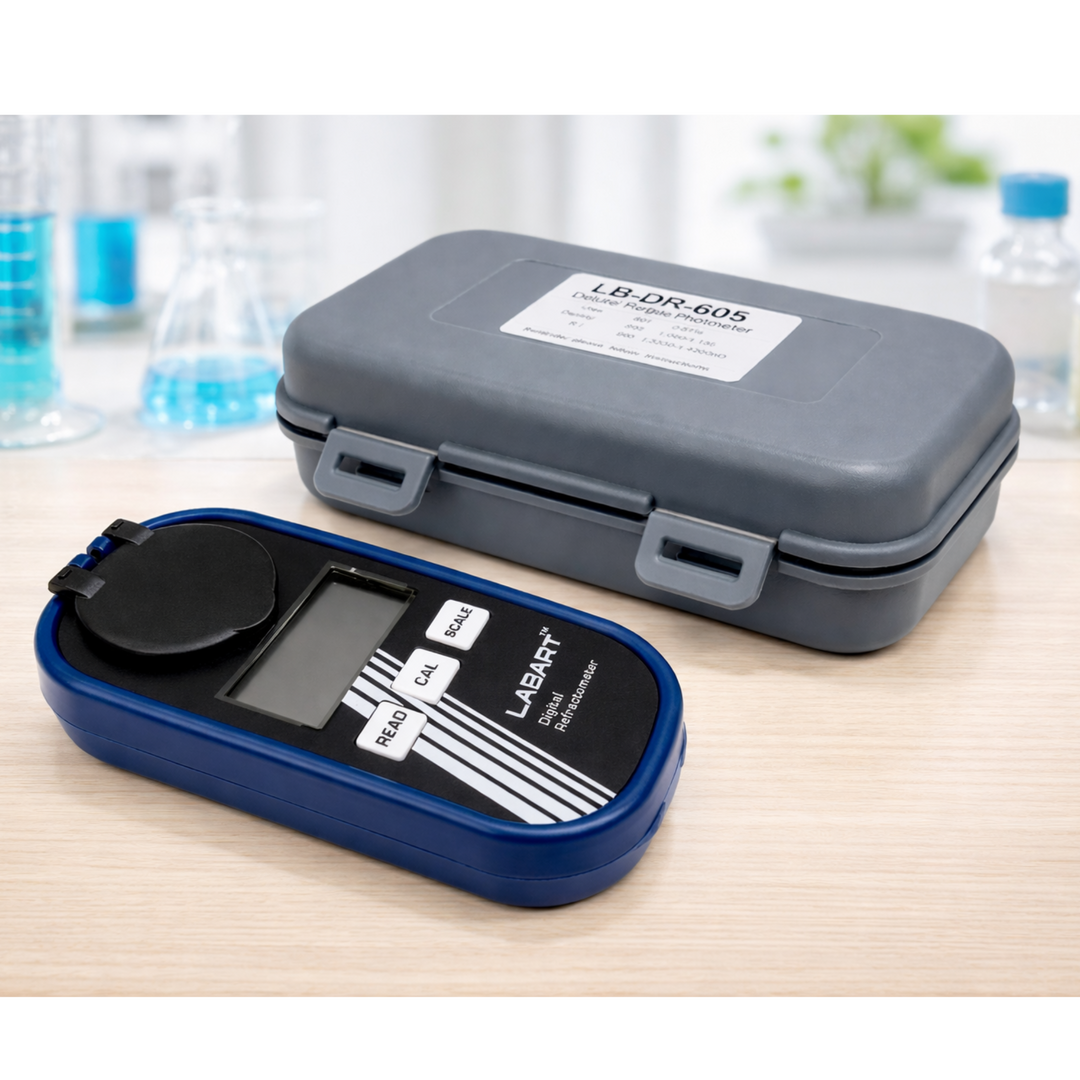

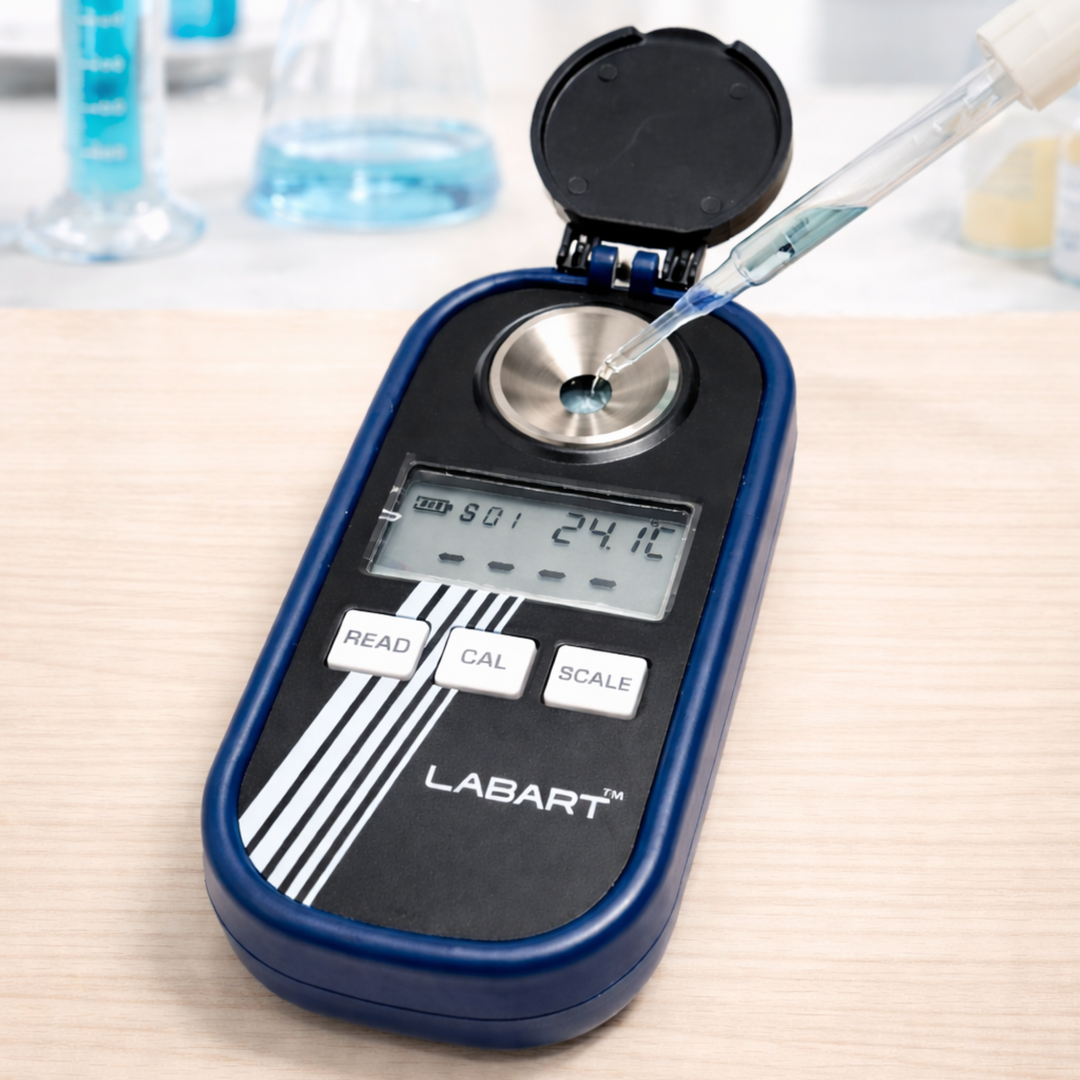

The LABART LB-DR-605 digital refractometer accurately measures the concentration of urea-based Diesel Exhaust Fluid (DEF or AdBlue) for diesel engines equipped with Selective Catalytic Reduction (SCR) technology. It has three scales for DEF concentration %, Refractive Index, and Specific Gravity, making it the go-to instrument for easy and reliable checks. Used in the automotive industry, this versatile device is a must-have for Adblue/DEF measurement in diesel emissions.
MEASURING RANGE
- Urea 0 ... 51 %
- Refractive index 1.3330 ... 1.4200 nD
- Density: 0.997 ~ 1.131
RESOLUTION
- 0.1 % / 0.0001 nD / 0.1 °
ACCURACY
- ±0.2 % / ±0.0003 nD / ±0.5 °C
SPECIFICATION
- Automatic temperature compensation (ATC) range: +10 ... +4+40 °C / +50 ... +104 °F
- Measurement speed: Approx. 1 sec.
- Sample size: 4 to 5 drops of liquid
- Sample well: Stainless steel ring over glass prism
- Housing: ABS plastic, IP65 ingress protection rating against water and dust
- Power supply: 1 x 1.5V AAA battery
- Dimensions: Approx. 121 x 58 x 25 mm / 4.76 x 2.28 x 0.98''
- Weight: Approx. 90 g / 0.2 lb
FEATURE
- Fast and precise results
- Large LCD (reading and temperature)
- Waterproof ABS housing IP 65
- Automatic temperature compensation
- Small amount of sample
- Simple calibration with distilled water
- Stainless steel sample tray with glass prism
- Easy operation with three buttons
- Battery control system
- Automatic shutdown after 1 min. of no-operation
We are dedicatedly involved in providing an excellent quality array of Labart Refractometers.
TECHNICAL SPECIFICATIONS
| Measuring Range | "Urea 0 ... 51% Refractive index 1.3330 ... 1.4200 nD Density: 0.997 ~1.131" |
| Resolution | "0.1% 0.0001 nD 0.1 °" |
| Accuracy | "±0.2% ±0.0003 nD ±0.5 °C" |
| ATC Range | +10 ... +40 °C / +50 ... +104 °F |
| Measurement Speed | Approx. 1 sec |
| Sample Size | 4 to 5 drops of liquid |
| Sample Well | Stainless steel ring over glass prism |
| Housing | ABS plastic, IP65 ingress protection rating against water and dust |
| Power Supply | 1 x 1.5V AAA battery |
| Order Code | LB-DR-605 |
