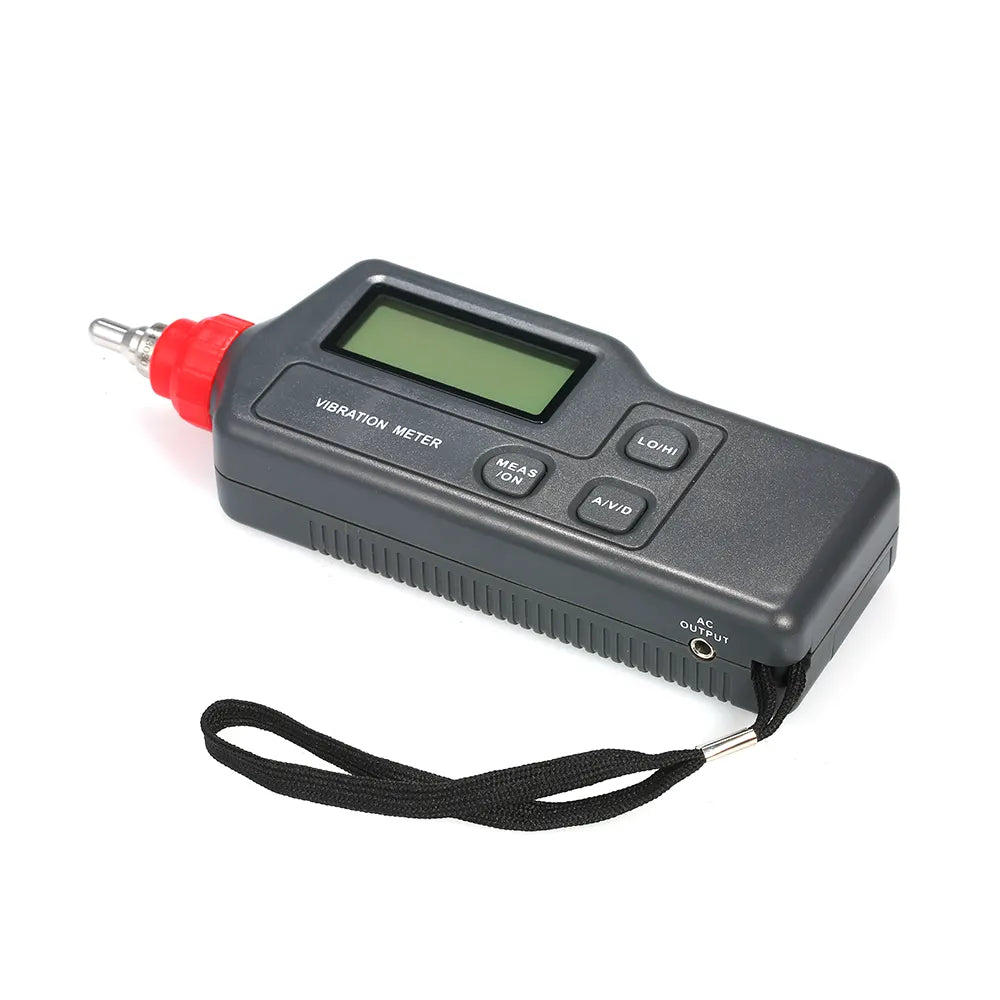

LABART Digital Vibration Meter WT63A
Regular price
Rs. 18,400.00
Sale price
Rs. 14,144.00
(Incl. of all taxes)
Unit price
per
-
SPECIFICATION
-
TECHNICAL SPECIFICATIONS
-
RESOURCES
-
SHIPPING
-
REVIEW
SPECIFICATION
This product utilizes the piezoelectric effect of artificial polarized ceramic in its design. It is ideal for monitoring the vibrations of various mechanical facilities, particularly in rotating and reciprocating machinery. The device can accurately measure acceleration, velocity, and displacement, making it a versatile tool for mechanical manufacturing, electric power, metallurgy, and general aviation industries.

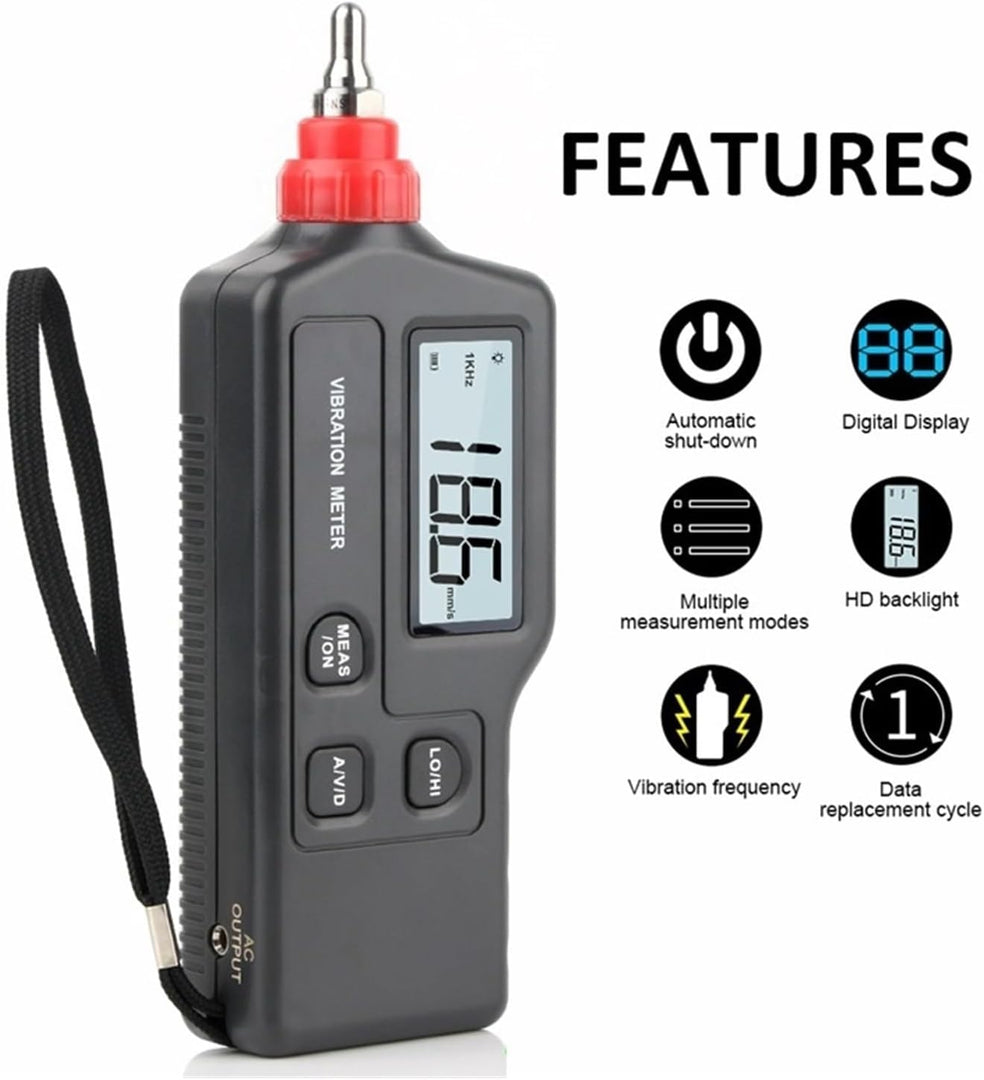

FEATURE

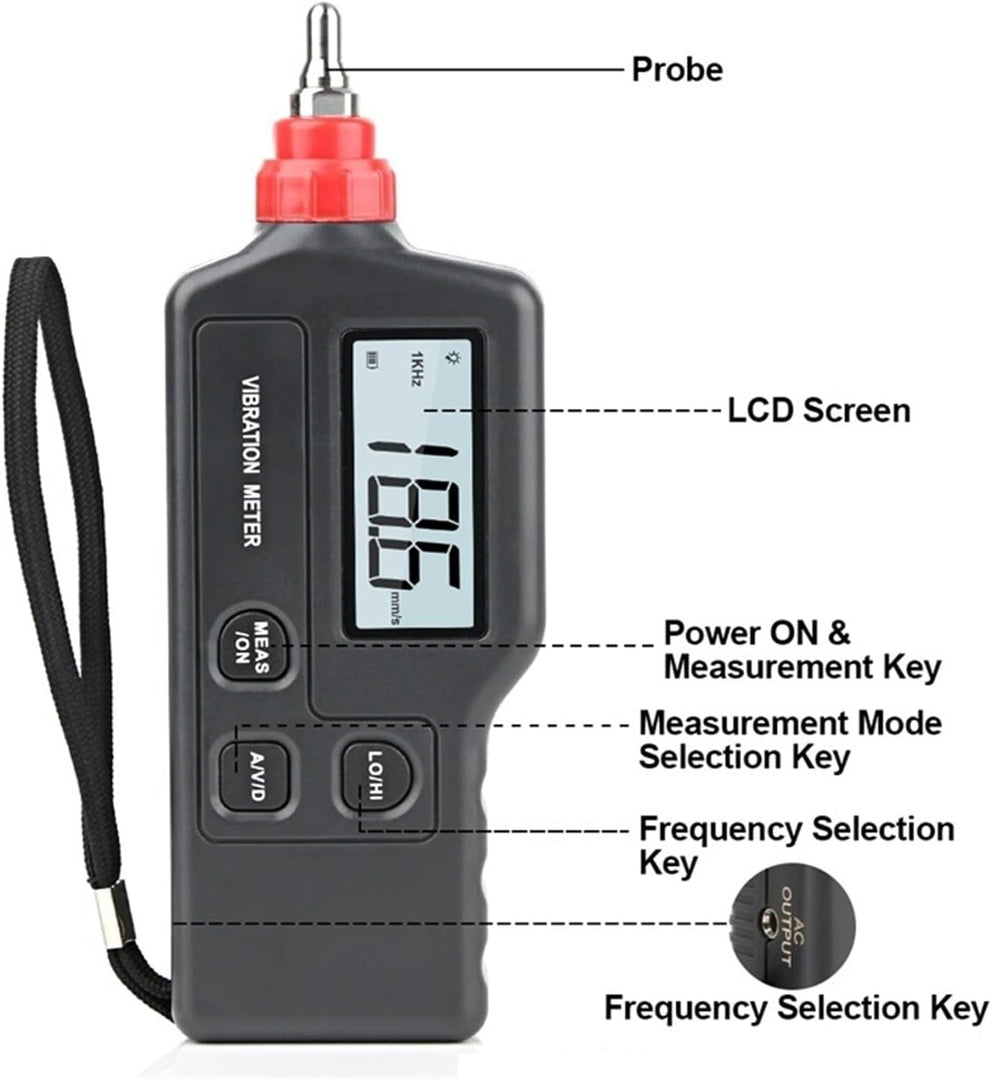

- Simple to use, the structure is compact, portable for carrying along with measurement.
- Visually display measurement value and state.
- Acceleration, velocity and displacement measurement.
- Different vibration frequency selection.

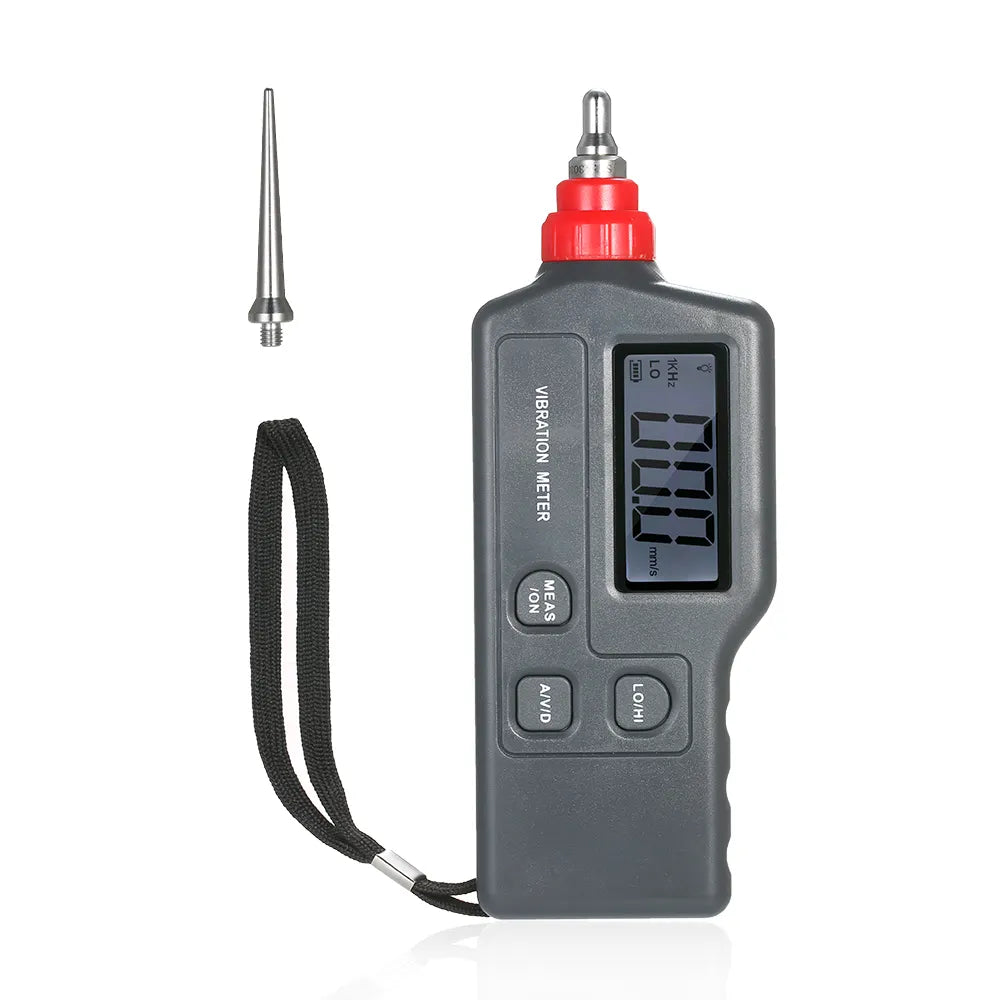

- High sensitivity probe for accurate measurement Pro-vides long and short probe head, each one is suitable for different situation measurement.
- Equipped with AC signal output interface.
- Low power indication.
- Auto power-off.
- LCD backlight.
SPECIFICATION
|
Technical parameter
|
Technical specification
|
|
Vibration pickup
|
Piezoelectric ceramic accelerometer (shear-type)
|
|
Measurement range
of acceleration
|
0.1~199.9m/s² peak
|
|
Measurement range
of velocity
|
0.1~199.9mm/s rms
|
|
Measurement range
of displacement
|
0.001~1.999mm p-p
Velocity and displacement range is limited by
2 acceleration199.9m/s²
|
|
Measurement accuracy
|
±5%±2digits
|
|
Measurement frequency
range of acceleration
|
10Hz～1KHz (LO) 1KHz～15KHz (HI)
|
|
Measurement frequency
range of velocity
|
10Hz～1KHz (LO)
|
|
Measurement frequency
range of displacement
|
10Hz～1KHz (LO)
|
|
Displays update cycle
|
1 second
|
|
LCD display
|
3 1/2 digits display
|
|
Single output
|
AC output 2 V peak (display full scale)
Load impedance 10KΩor more earphones
can be connected
|
|
Power supply
|
9V Alkaline battery
|
|
Static current
|
≤20μA
|
|
Operating current
|
≤25mA
|
|
Battery life
|
20 hours continuous use
|
|
Auto power-off
|
Turns off automatically in 60 seconds
|
|
LCD backlight
|
7 seconds
|
|
Operating temperature range
|
0~40℃
|
|
Operating humidity range
|
30~90%RH
|
|
Low battery indication
|
6.9V±0.2V
|
|
Dimensions
|
67x30x183mm
|
|
Weight
|
182g ( including battery)
|
Â
We are dedicatedly involved in providing an excellent quality array of Labart Measuring Instrument
TECHNICAL SPECIFICATIONS
| Technical specification | Vibration pickup |
| Sensor type | Piezoelectric ceramic accelerometer (shear-type) |
| Acceleration range | 0.1~199.9 m/s² peak |
| Velocity range | 0.1~199.9 mm/s rms |
| Displacement range | 0.001~1.999 mm p-p |
| Note | Velocity and displacement range is limited by acceleration ≤ 199.9 m/s² |
| Measurement accuracy | ±5% ±2 digits |
| Frequency range (acceleration) | 10 Hz～1 KHz (LO), 1 KHz～15 KHz (HI) |
| Frequency range (velocity) | 10 Hz～1 KHz (LO) |
| Frequency range (displacement) | 10 Hz～1 KHz (LO) |
| Display update cycle | 1 second |
| LCD display | 3 1/2 digits display |
| Output | AC output 2 V peak (at full scale), Load impedance ≥10 KΩ, earphones can be connected |
| Power supply | 9V Alkaline battery |
| Static current | ≤20 μA |
| Operating current | ≤25 mA |
| Battery life | 20 hours (continuous use) |
| Auto power-off | Automatically turns off after 60 seconds |
| LCD backlight | 7 seconds |
| Operating temperature | 0~40°C |
| Operating humidity | 30~90%RH |
| Low battery indication | 6.9V ±0.2V |
| Dimensions | 67 × 30 × 183 mm |
| Weight | 182 g (including battery) |
