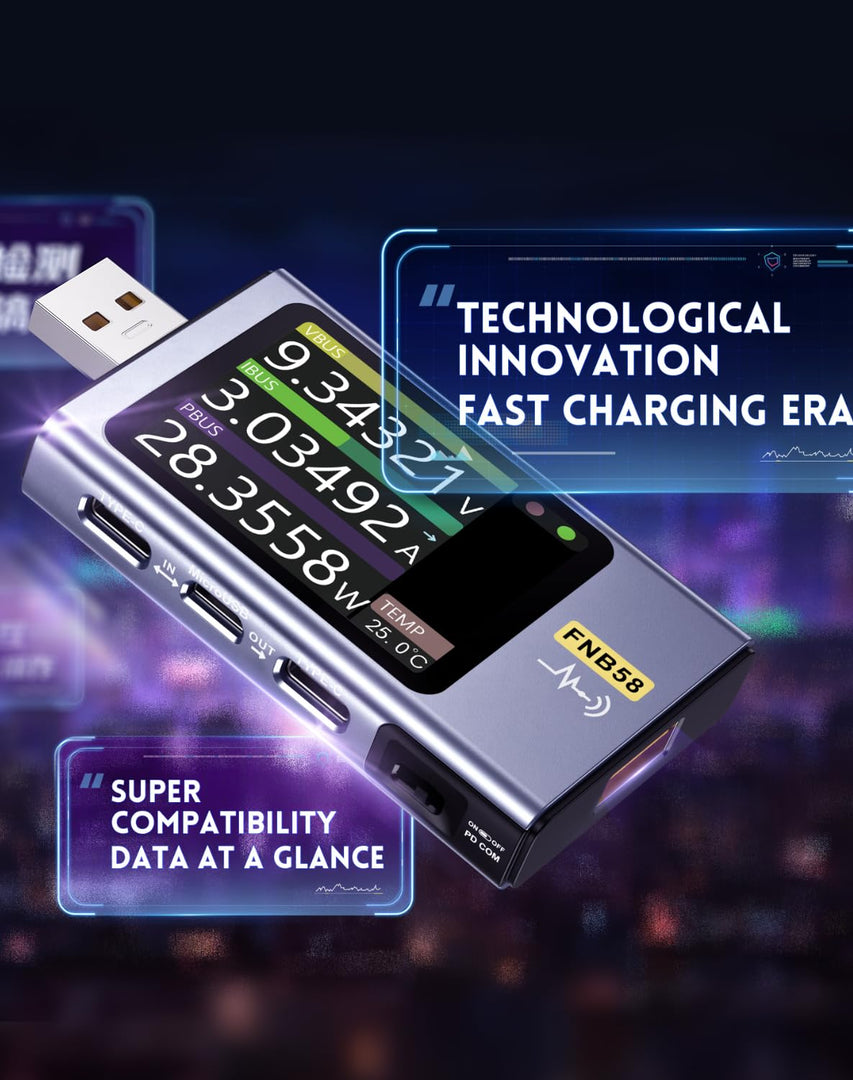

The LABART Bluetooth USB Power Tester is a multifunction digital USB meter designed to measure voltage, current, power, energy, capacity, and charging performance. Featuring USB-A, Micro-USB, and USB Type-C interfaces, it supports fast charging protocol detection, waveform analysis, Bluetooth connectivity, and real-time data recording. With a 2.0-inch TFT color display, it is ideal for testing USB chargers, power banks, cables, mobile devices, and other USB-powered electronics.

FEATURE

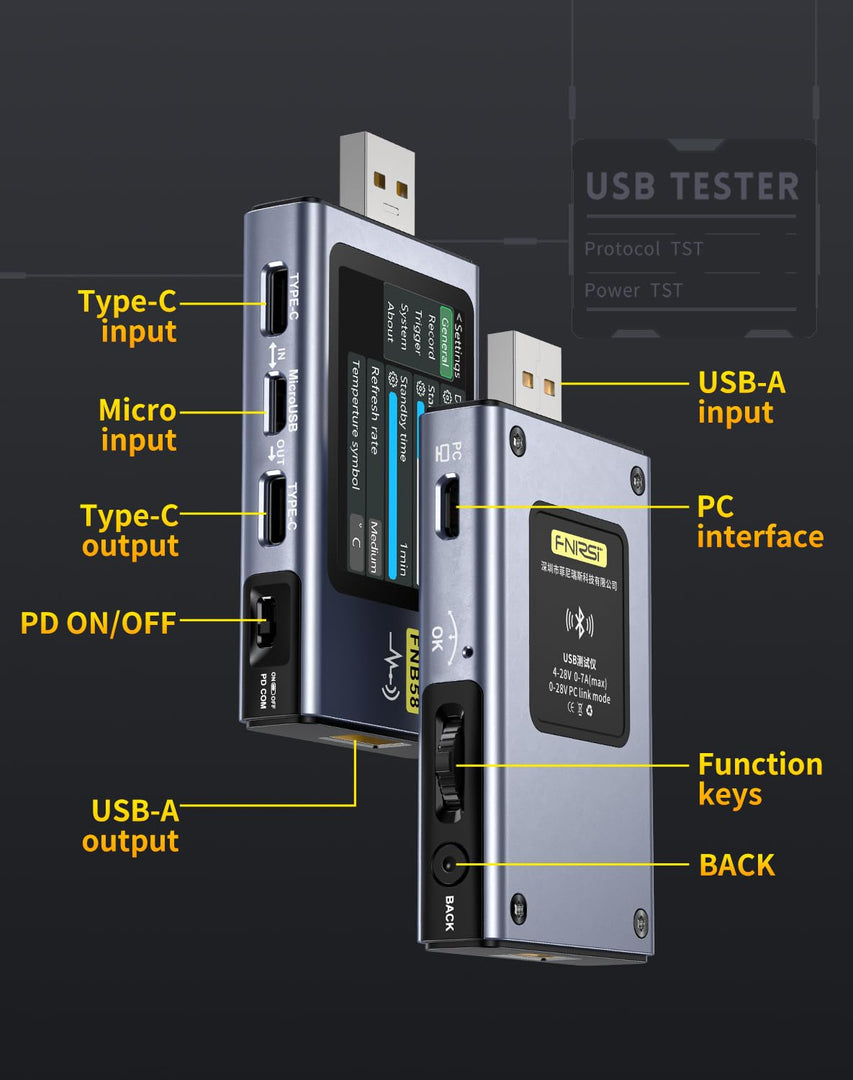

• Multi-Port USB Tester: Supports USB-A, Micro-USB, and USB Type-C interfaces.

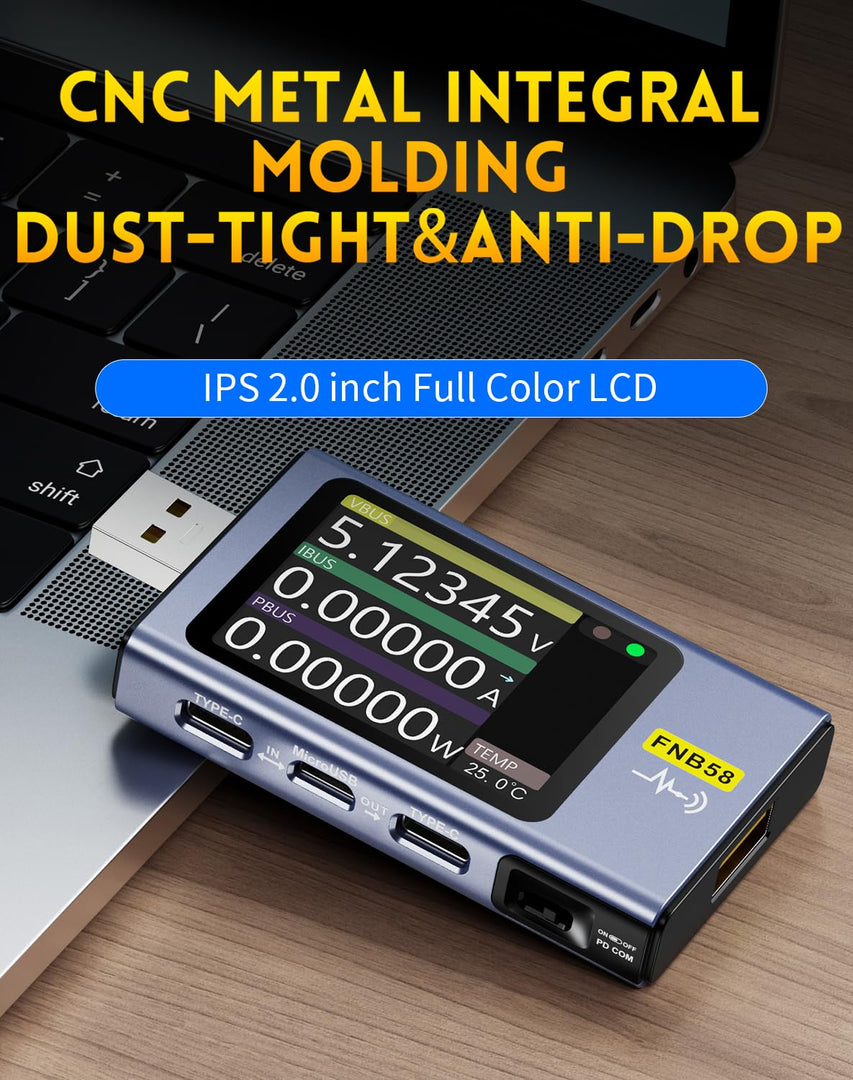

• 2.0-inch TFT Color Display: Clear, real-time display of measurement data.
• Comprehensive Measurements: Measures Voltage, Current, Power, Capacity, Energy, and Charging Performance.

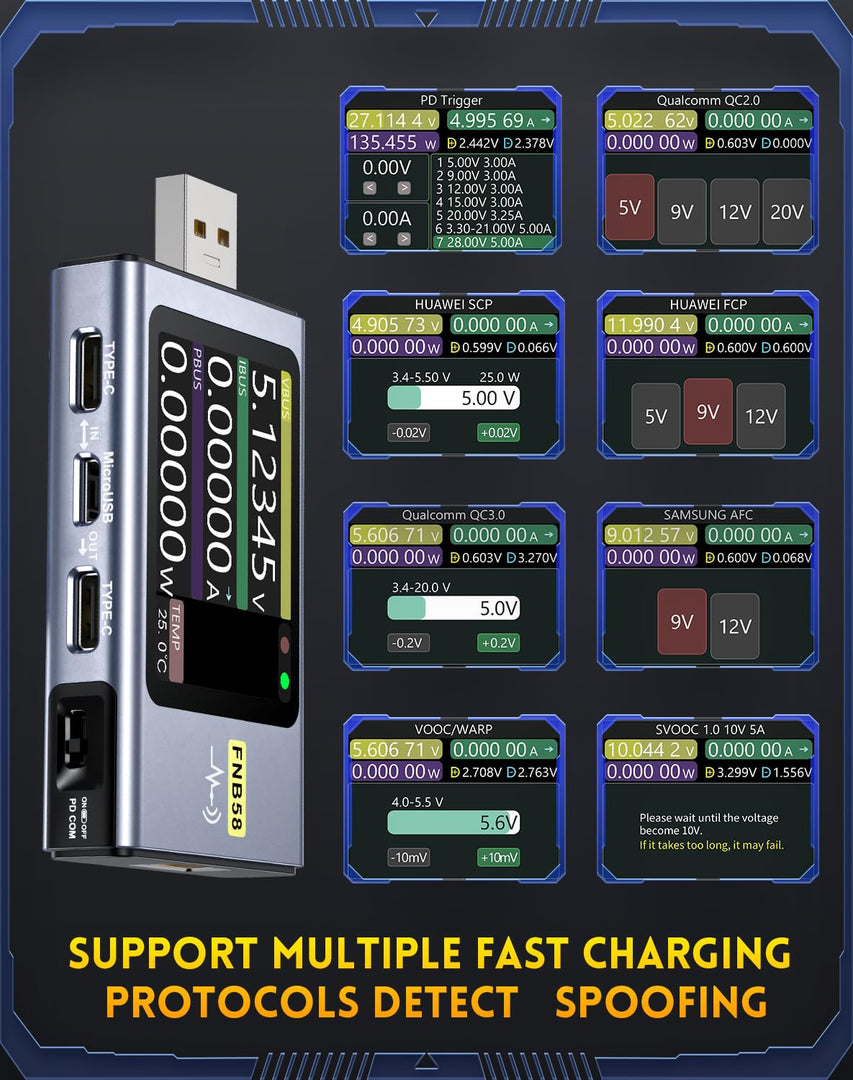

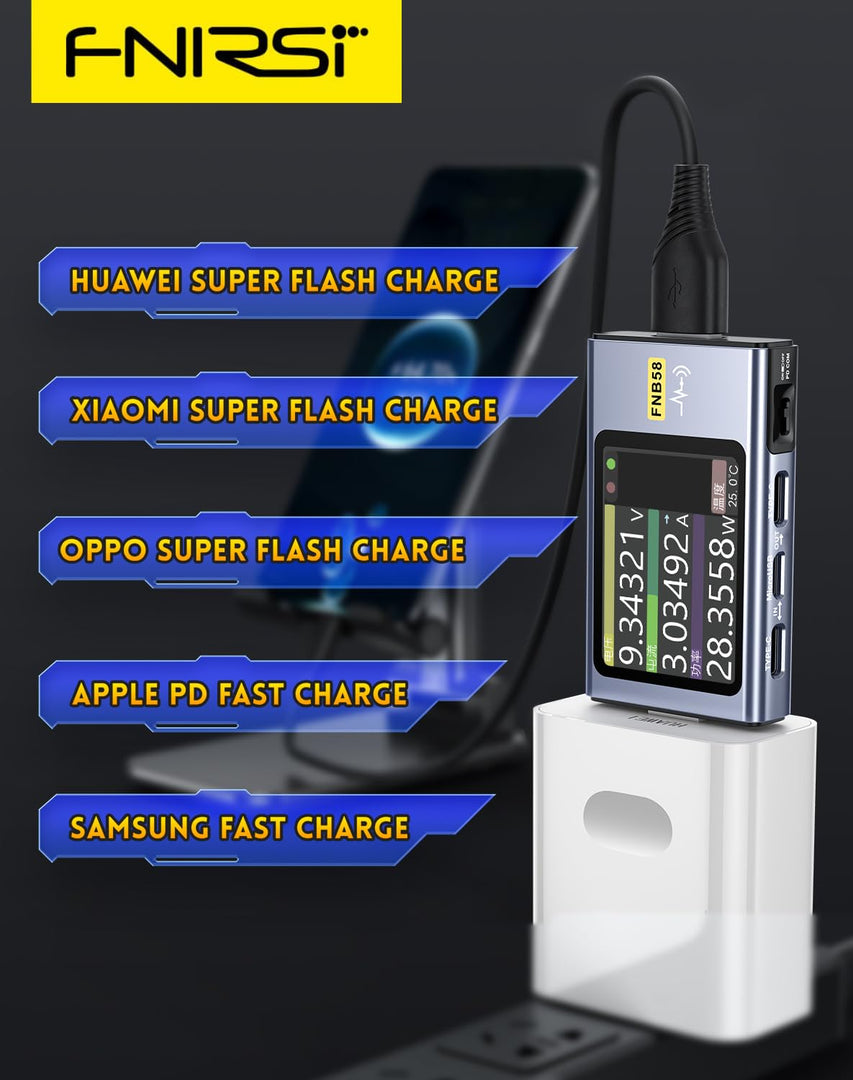

• Fast Charge Protocol Detection: Supports QC2.0, QC3.0, PD2.0/3.0, AFC, FCP, SCP, VOOC, WARP, and Super VOOC protocols.

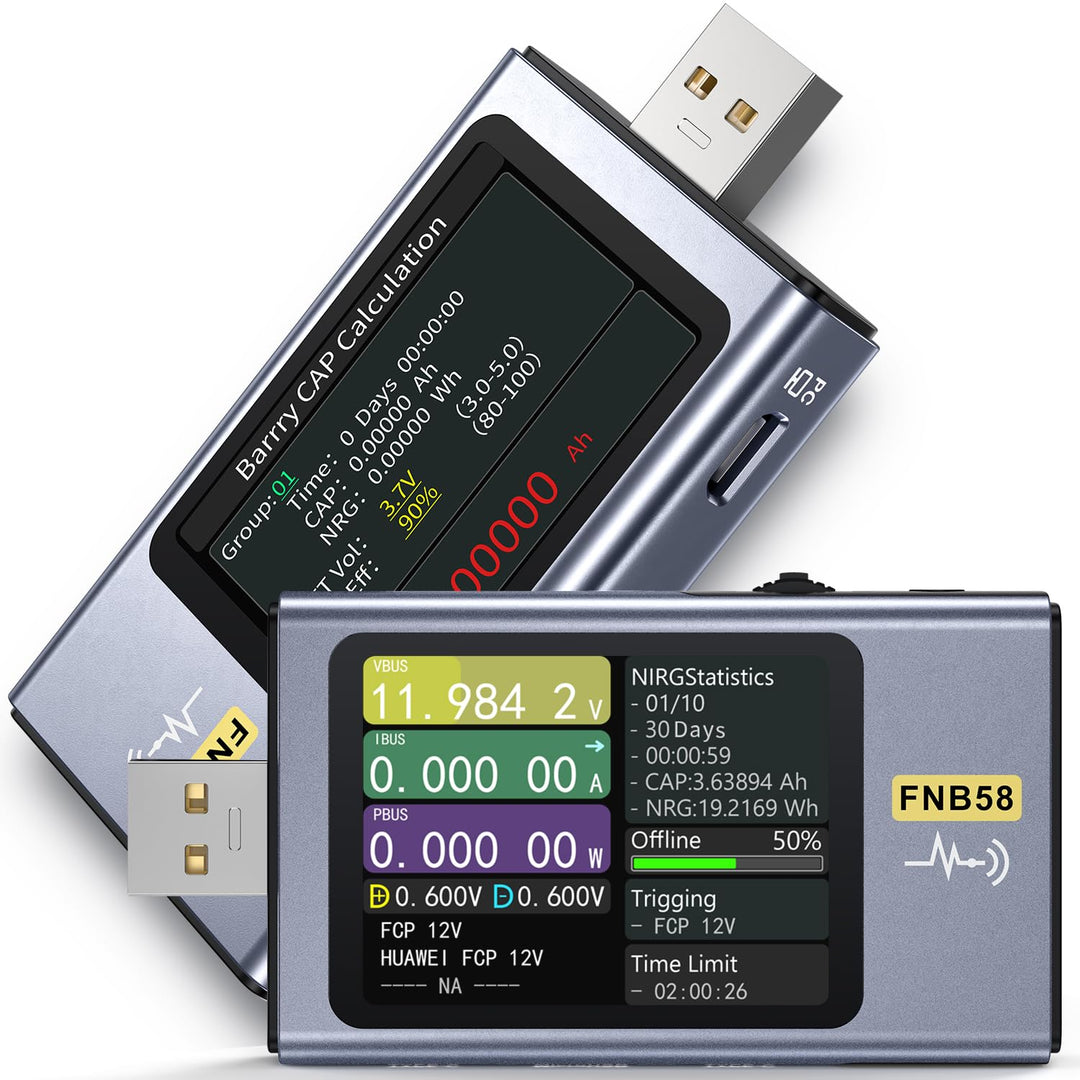

• Data Recording: Stores up to 10 sets of charging and discharging records with capacity calculation.
• Waveform & Ripple Analysis: Displays voltage, current, D+/D- curves, and charger ripple for detailed analysis.
• Bluetooth App Support: Connects to Android devices for real-time monitoring, data synchronization, and over-voltage/over-current alerts.
• Wide Measurement Range: Supports 4–28V voltage and up to 7A current measurement.
• Firmware Upgrade Support: Easy software updates for enhanced performance.
• Ideal for USB Testing: Perfect for chargers, power banks, USB cables, smartphones, tablets, and electronics repair.

SPECIFICATION

• Model No.: FNB58 BT
• Product Type: Bluetooth USB Power Tester
• Display: 2.0-inch TFT LCD Color Display
• Voltage Range: 4V–28V
• Current Range: 0–7A
• Interfaces: USB-A, Micro-USB, USB Type-C
• Measured Parameters: Voltage, Current, Power, Capacity, Energy
• Fast Charge Protocols: QC2.0, QC3.0, PD2.0/3.0, AFC, FCP, SCP, VOOC, WARP, Super VOOC
• Fast Charge Trigger: Supported
• Data Recording: Up to 10 Sets
• Waveform Display: Voltage, Current, D+/D-, Ripple Analysis
• Bluetooth Connectivity: Android App Supported
• Alarm Function: Over-Voltage & Over-Current Alerts
• Firmware Upgrade: Supported
• Application: USB Chargers, Power Banks, USB Cables, Mobile Devices, Electronics Testing
