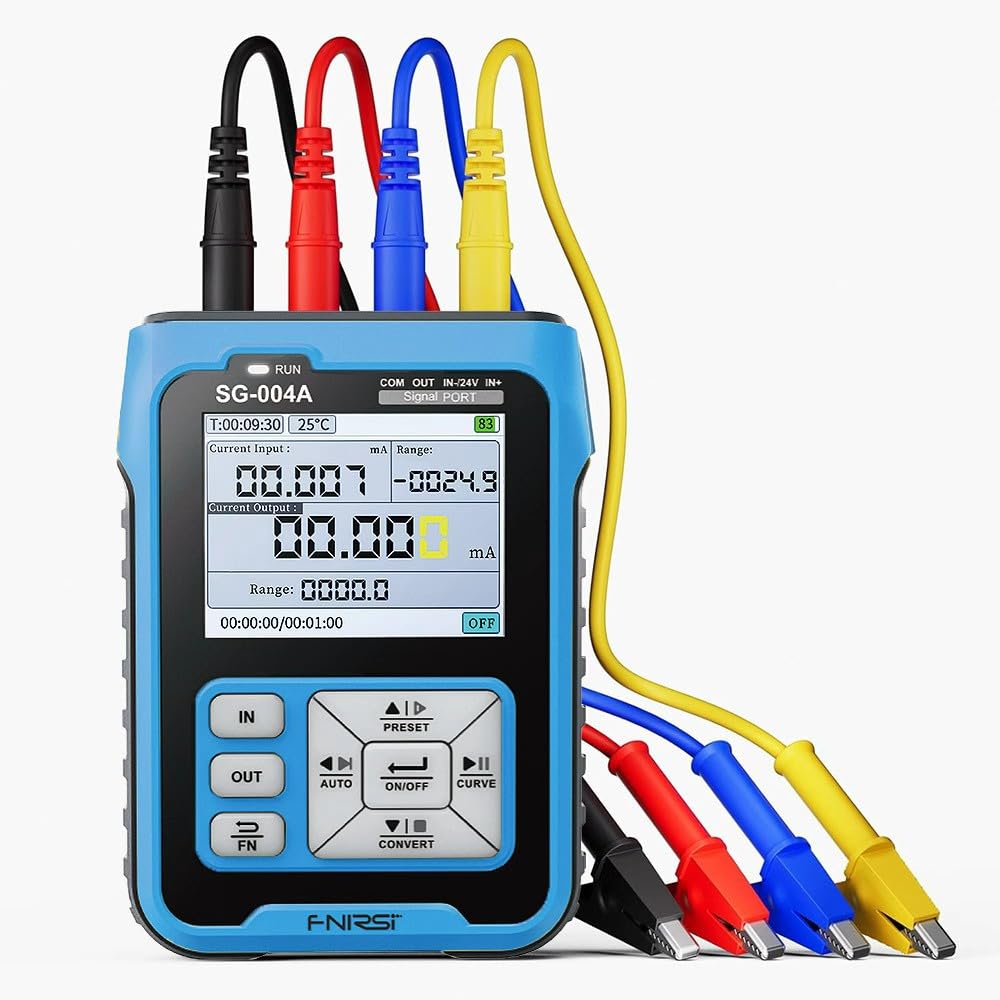

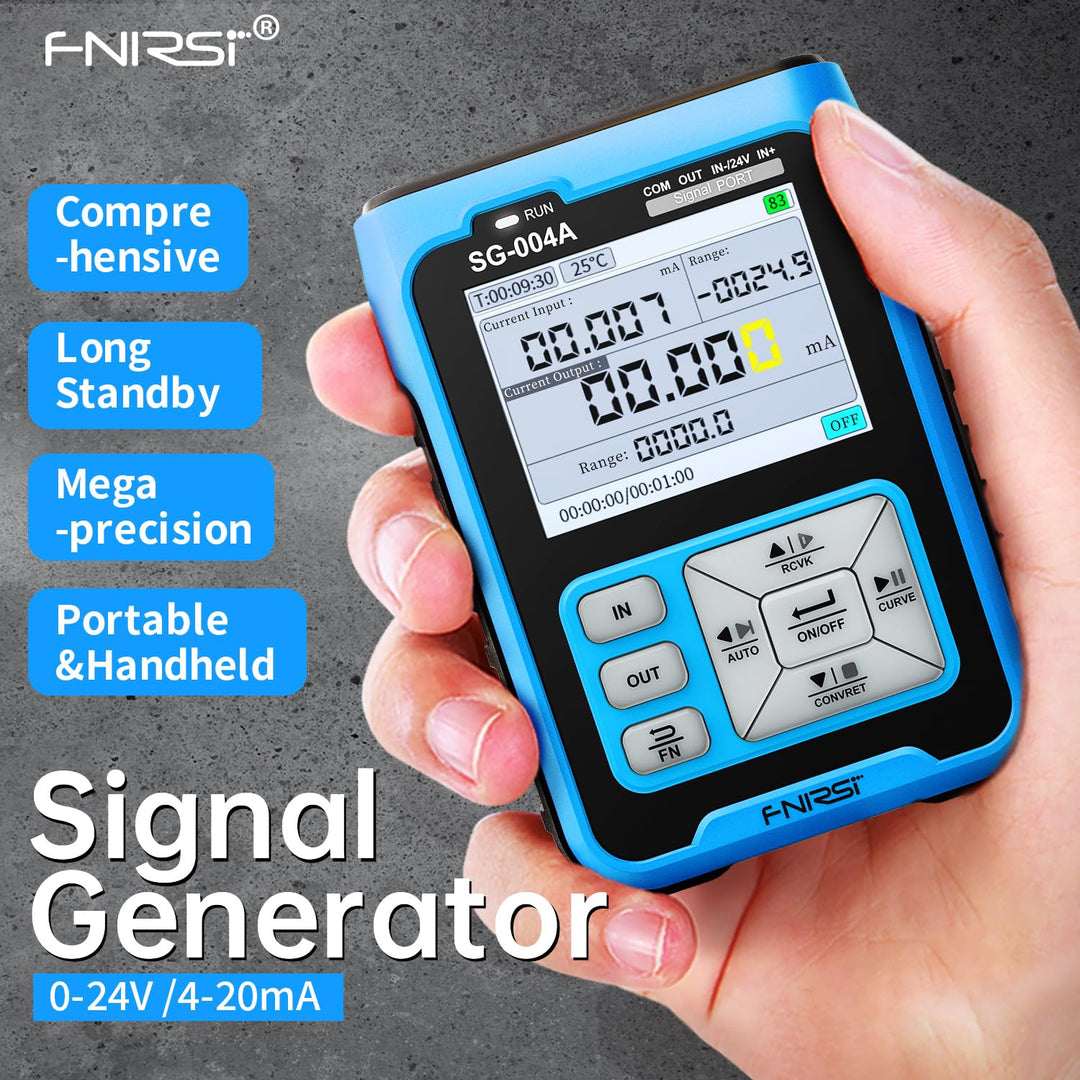

The LABART SG-004A Signal Generator is a high-performance multifunction calibrator designed for industrial automation, process control, and instrumentation testing. It supports voltage, current, frequency, and thermocouple signal input/output with high accuracy, making it ideal for PLC debugging, sensor simulation, and equipment calibration. Featuring a 24V loop power supply, programmable output, real-time curve display, historical data recording, MODBUS communication, and USB firmware upgrades, the SG-004A is a reliable solution for field maintenance, industrial testing, and laboratory applications.

FEATURE

• ≤0.2% Error
• Engineering quantity / signal value

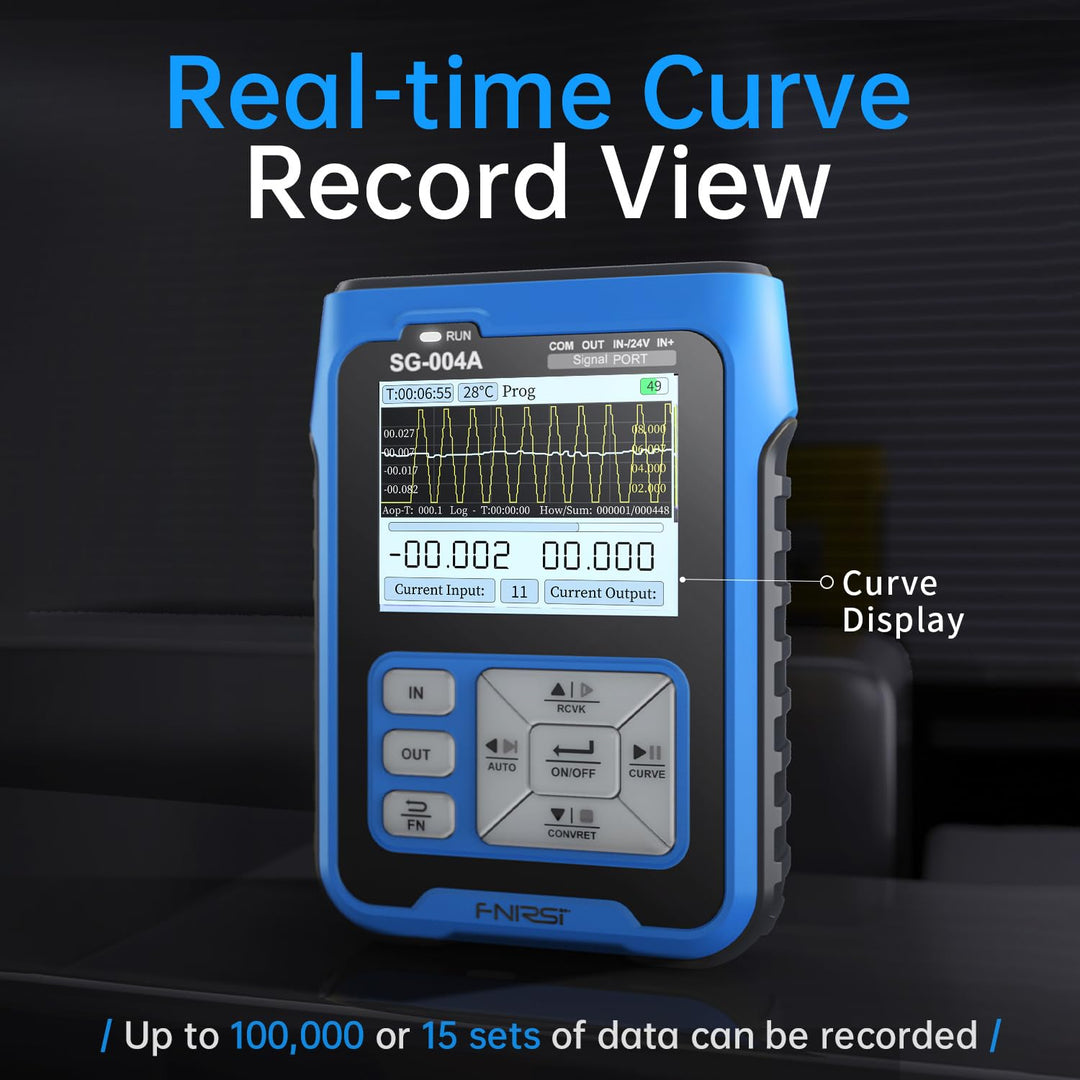

• Real-Time curve record view

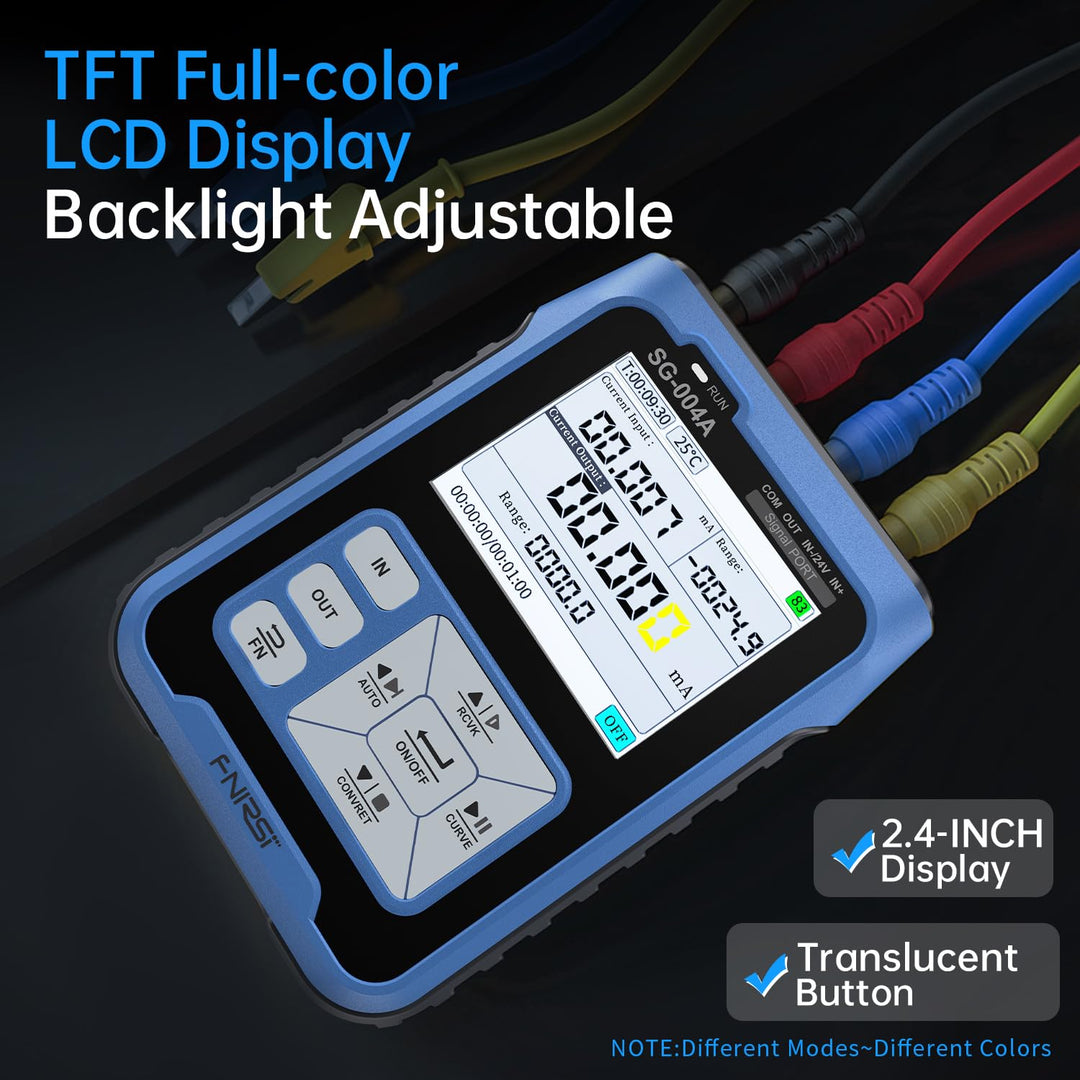

• 2.4"TFT Full Color HD display with backlight
• Designed for industrial control industry
• stable appearance design.
• Supports voltage, current, frequency, thermocouple, and other signal modes for both output and input.
• Provides support for independent 24V power supply
• Offers programming mode for customization
• Facilitates real-time curve visualization
• Allows for historical data recording
• Supports MODBUS communication protocol
• Enables seamless firmware upgrades
• Incorporates other powerful functions for enhanced functionality

SPECIFICATION

• Model: SG-004A
• Product Type: Multifunction Signal Generator / Calibrator
• Display: 2.4-inch TFT Full Color HD Display
• Battery: 3000mAh Rechargeable Lithium Battery
• Charging Interface: USB Type-C (5V–12V, 10W Max)
• Standby Time: Up to 24 Hours
• Product Dimensions: 82 × 27 × 112 mm
• Weight: Approx. 50 g

Output Signals

• Active Current Output: 0–24mA
• Passive Current Output: 0–24mA
• Voltage Output: 0–24V
• Frequency / PWM Output: 0–9999Hz
• 24V Loop Output: 0–24mA
• Thermocouple Output: -10mV to 100mV
• Resistance / RTD Output: 0–390Ω

Input Signals

• Active Current Input: 0–24mA
• Voltage Input: 0–24V
• Frequency / PWM Input: 0–9999Hz
• Thermocouple Input: -10mV to 100mV
• Resistance / RTD Input: 0–400Ω
• Additional Functions: 24V Loop Power, Programmable Output, Real-Time Curve Display, Historical Records, MODBUS Communication, USB Firmware Upgrade
• Applications: PLC Debugging, Process Instrumentation, Sensor Simulation, Industrial Automation, Equipment Calibration, Laboratory Testing
