The LABART P4100 High Voltage Oscilloscope Probe is a professional 100:1 attenuation probe designed for safe and accurate high-voltage signal measurement. With a 100MHz bandwidth, 2KV maximum input voltage, and standard BNC connector, it delivers reliable waveform analysis for oscilloscopes. Its adjustable compensation and durable construction make it ideal for electronics laboratories, industrial maintenance, power electronics, and educational applications.

FEATURE

• 100:1 High Voltage Probe: Safely measures high-voltage signals up to 2KV.
• 100MHz Bandwidth: Provides accurate waveform measurements for high-frequency circuits.
• Standard BNC Connector: Compatible with most digital and analog oscilloscopes.
• Adjustable Compensation: Ensures accurate signal calibration and stable waveforms.
• High Input Resistance: Minimizes circuit loading for precise measurements.
• Excellent Signal Performance: Fast response with low signal distortion.
• Durable Construction: High-quality insulated cable and probe for long service life.
• Safe & Reliable: Designed for high-voltage testing with enhanced operator safety.
• Easy to Use: Lightweight design with secure probe tip and grounding clip.
• Wide Applications: Suitable for power electronics, industrial maintenance, laboratory testing, electronic repair, and education.

SPECIFICATION

• Model: P4100
• Product Type: High Voltage Oscilloscope Probe
• Attenuation Ratio: 100:1
• Bandwidth: 100MHz
• Maximum Input Voltage: 2000V (2KV)
• Rise Time: 3.5ns
• Input Resistance: 100MΩ
• Input Capacitance: 6pF
• Compensation Range: 10pF–35pF

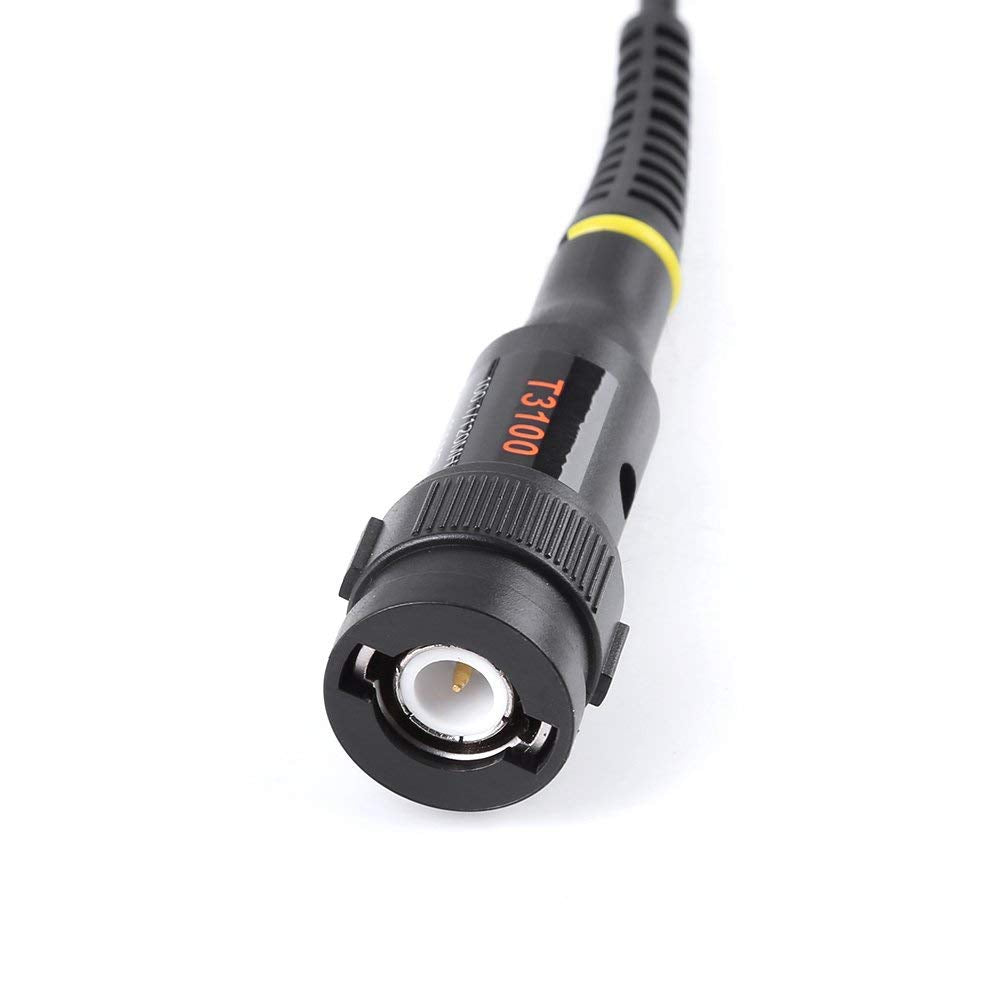

• Connector: Standard BNC

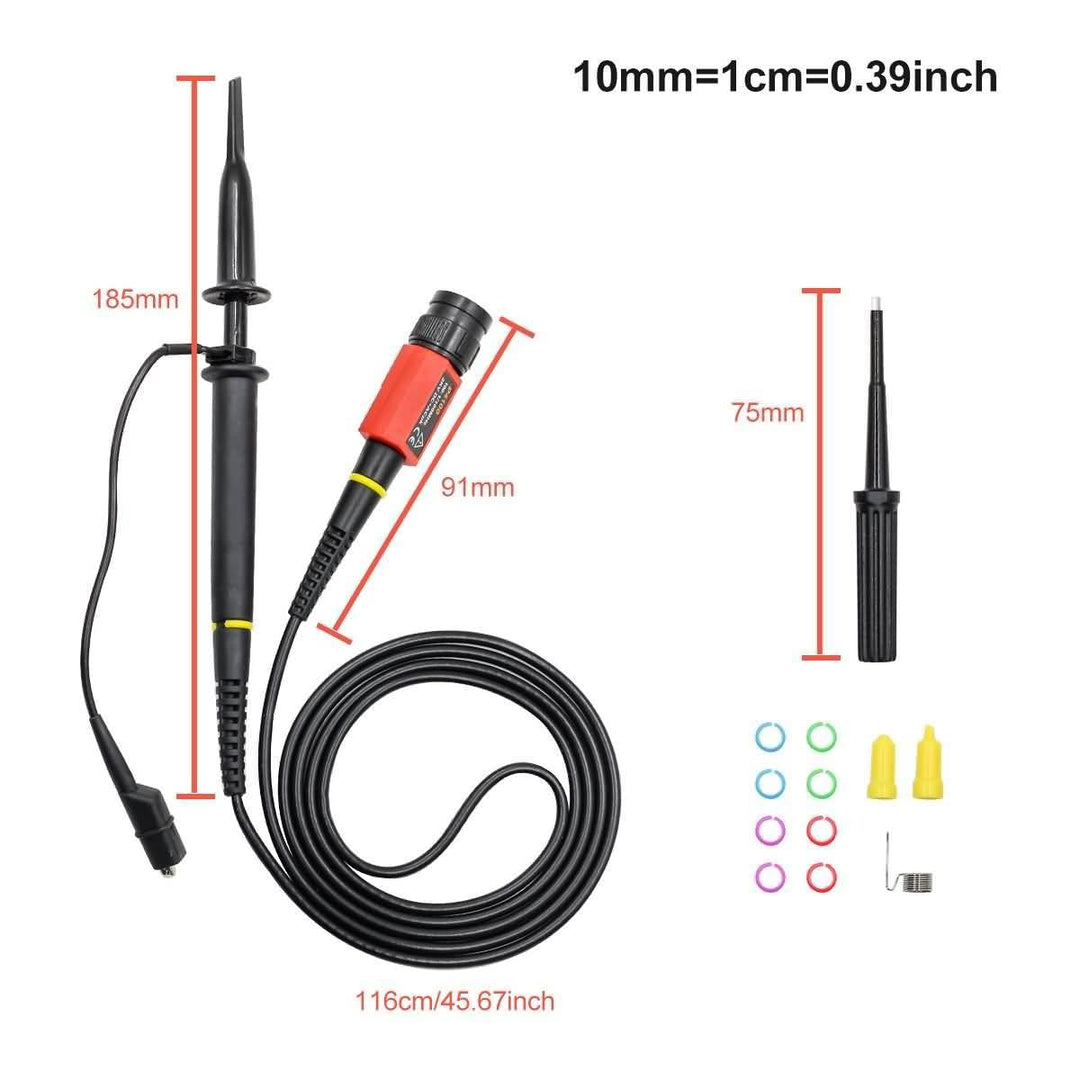

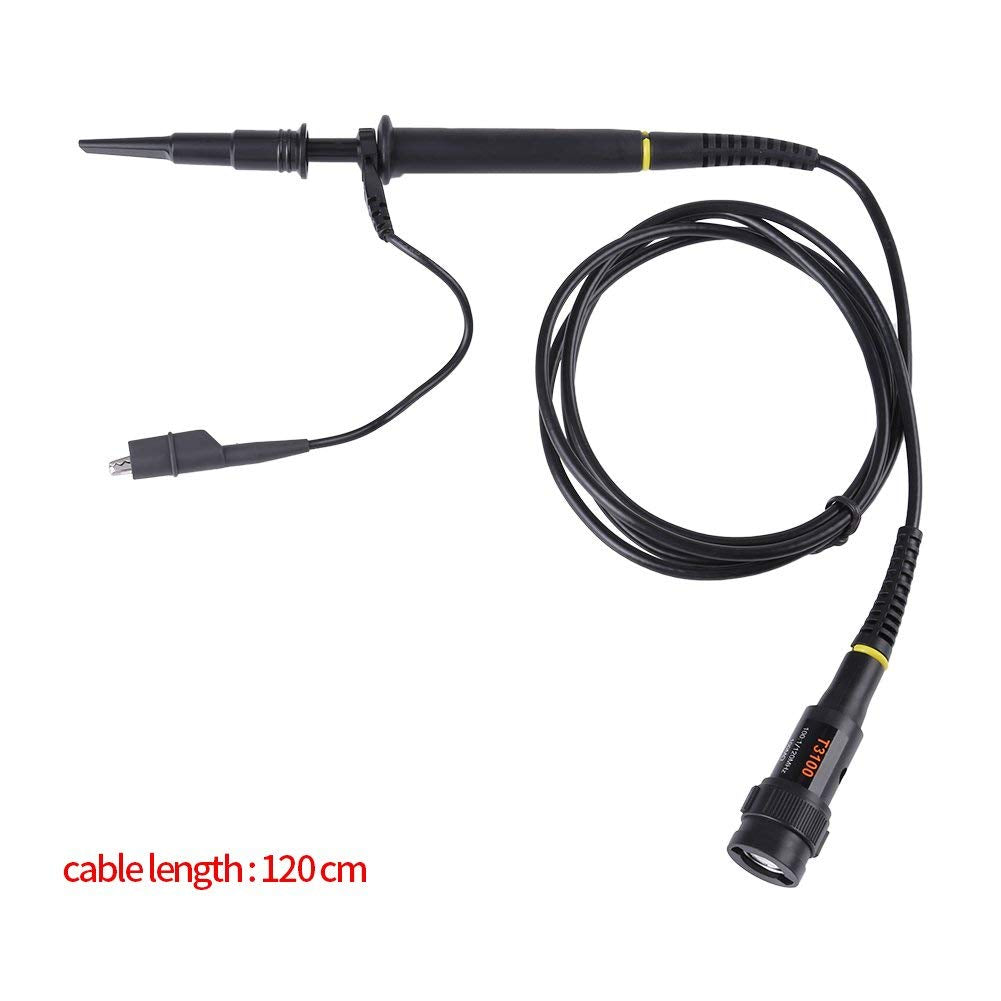

• Cable Length: 1.1m
• Color: Black
• Material: ABS
• Applications: Oscilloscope Testing, High Voltage Measurement, Electronics Repair, Industrial Maintenance, Laboratory Testing, Education
