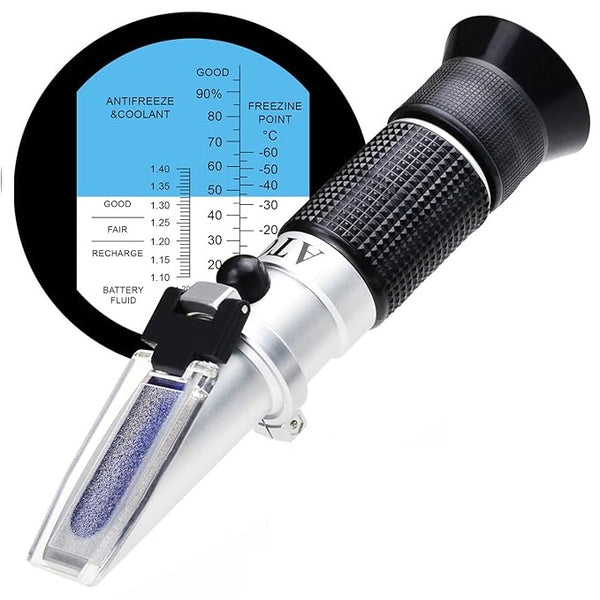

This LABART optical refractometer is designed for measuring coolant and antifreeze based on ethylene glycol or propylene glycol ,battery fluid condition and screenwash antifreeze (windshield washer fluid) based on ethanol as well as on isopropyl alcohol.

COMMON FEATURES ON OUR REFRACTOMETERS

• Auto Temperature Compensation (ATC), increase accuracy & eliminates concerns on temperature
• 2 scales for Ethylene glycol: -60 to 0°C (freezing Point) and 0 to 100% ; Battery fluid: 1.10 to 1.40 kg/l in 5°C ; 5% and 0.01 kg/l divisions
• Easy to use and calibrate
• Cushioned with soft & comfortable non-slip rubber grip, insulate test solution from body heat
• Adjustable focus, clearly defined scale, large easy-to-read measurements
• Approved by strict quality & safety standards
• Accurate results guaranteed

TECHNICAL PARAMETER

Measuring Range:
Ethylene glycol: -60 to 0°C
Ethylene glycol: 0 to 100%
Battery fluid: 1.10 to 1.40 kg/l

Division:
Ethylene glycol: 5°C
Ethylene glycol: 5%
Battery fluid: 0.01 kg/l

Accuracy:
Ethylene glycol: ±5°C
Ethylene glycol: ±5%
Battery fluid: ±0.01 kg/l

Reference Temperature: 20°C
ATC range: 10 – 30°C
Material composition: Aluminum & Rubber
Item Length: 15.2cm
Item weight: 92g

We are dedicatedly involved in providing an excellent quality array of Labart Refractometers.
