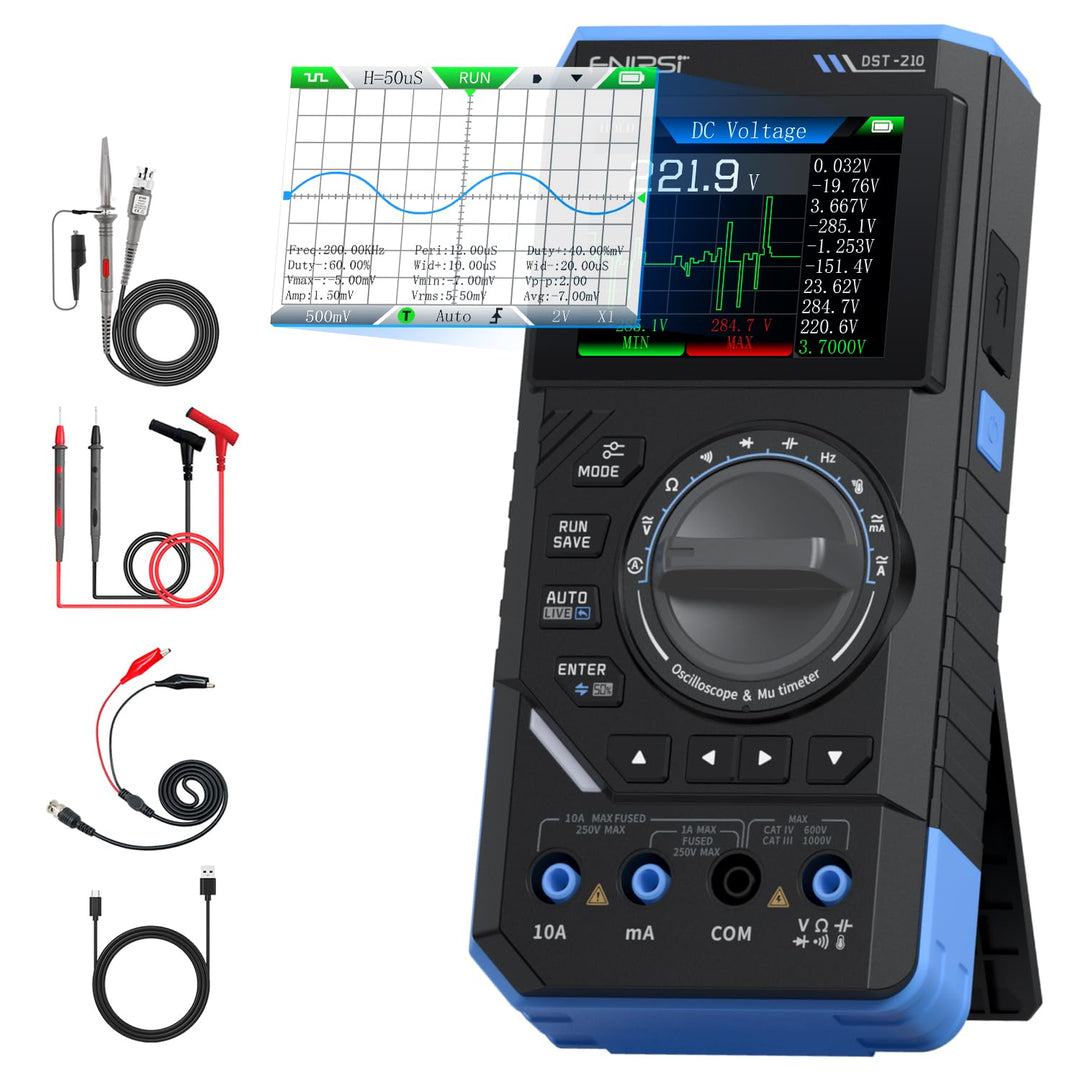

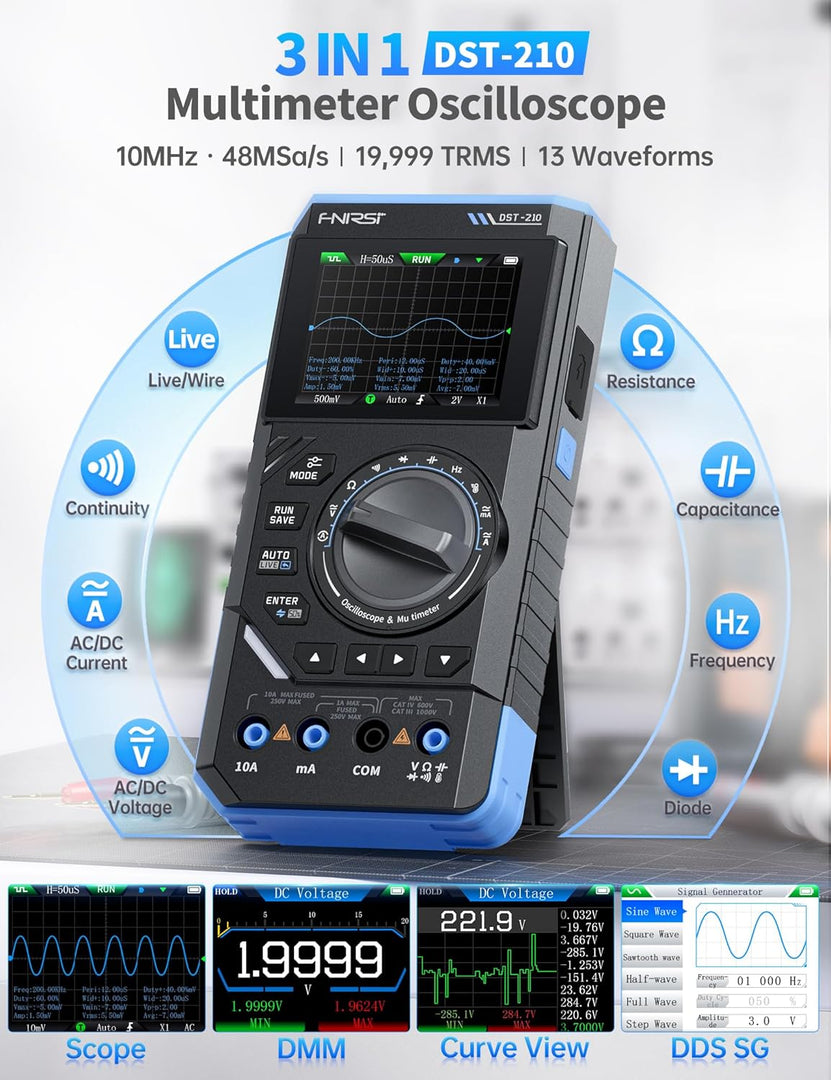

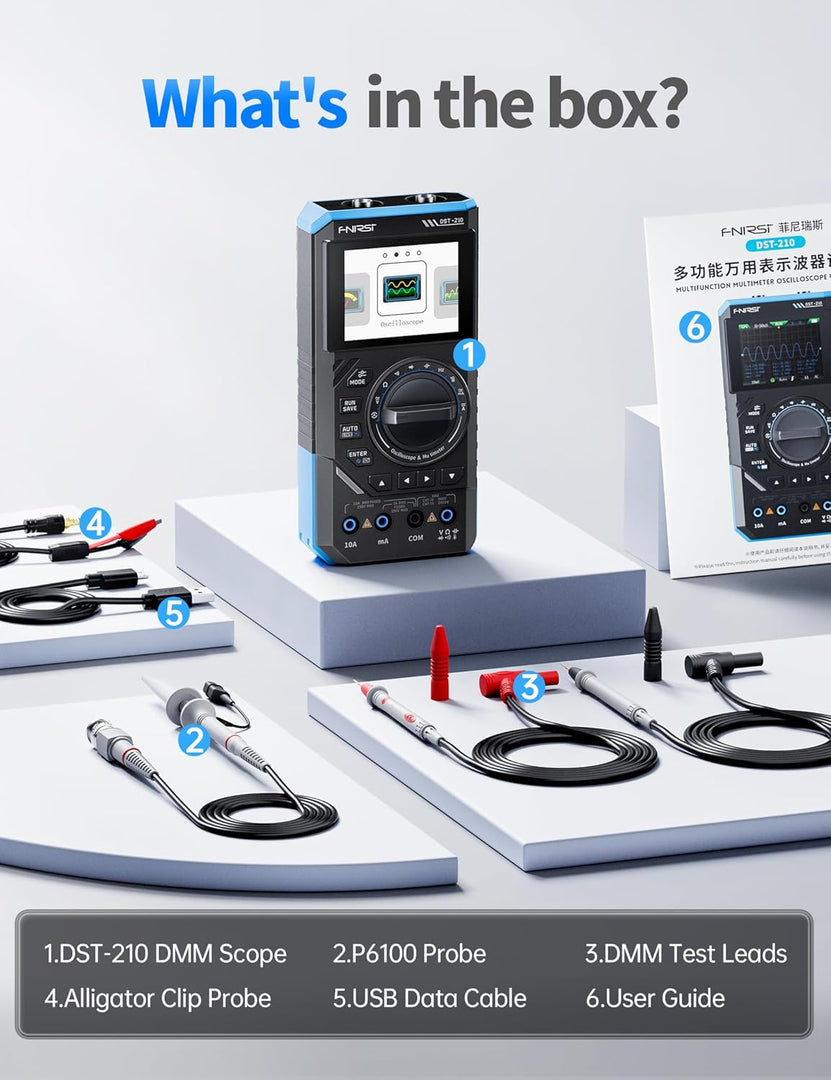

The LABART DST-210 is a multifunction handheld tester that combines a 10MHz digital oscilloscope, digital multimeter, and signal generator in one compact device. Featuring a 48MSa/s sampling rate, 2.8-inch TFT color display, 13 built-in waveforms, automatic measurements, and a rechargeable 3000mAh battery, it is ideal for electronics repair, circuit analysis, industrial maintenance, laboratory testing, education, and R&D applications.

FEATURE

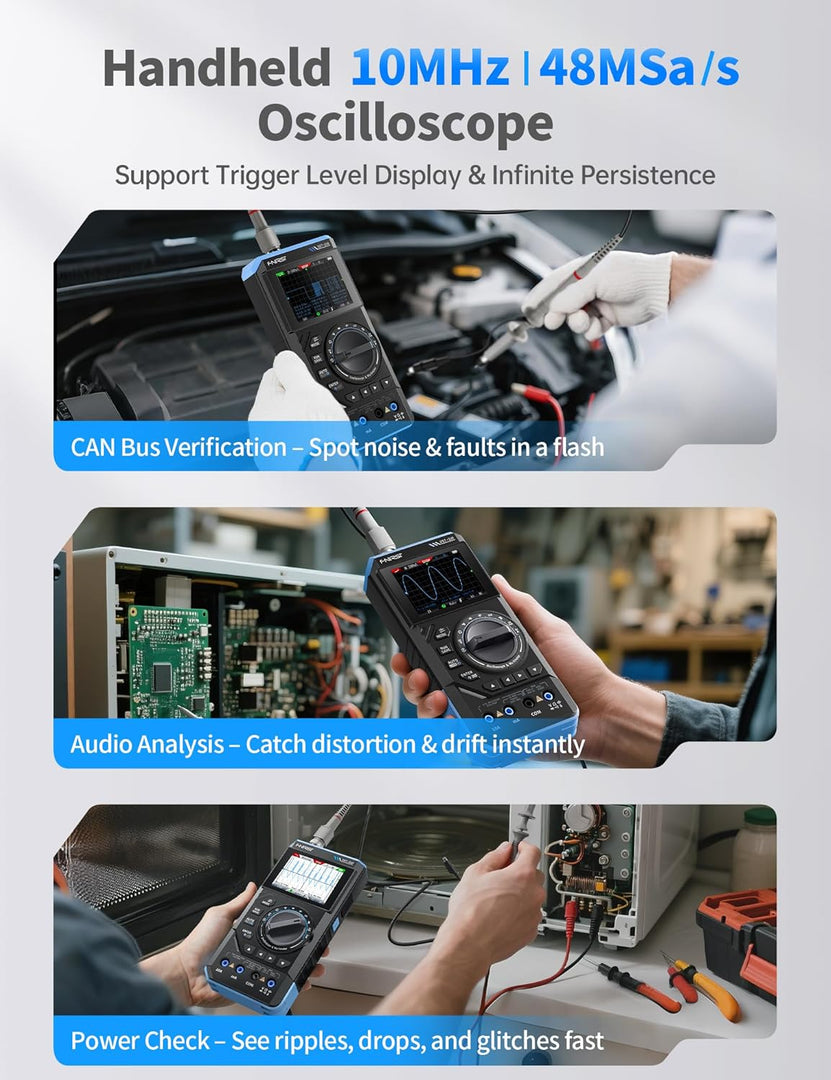

• High-Performance Oscilloscope: 48MSa/s sampling rate with 10MHz bandwidth for accurate waveform analysis.
• Built-in Signal Generator: Supports 13 waveform types with output frequency up to 50kHz and adjustable amplitude up to 3V.

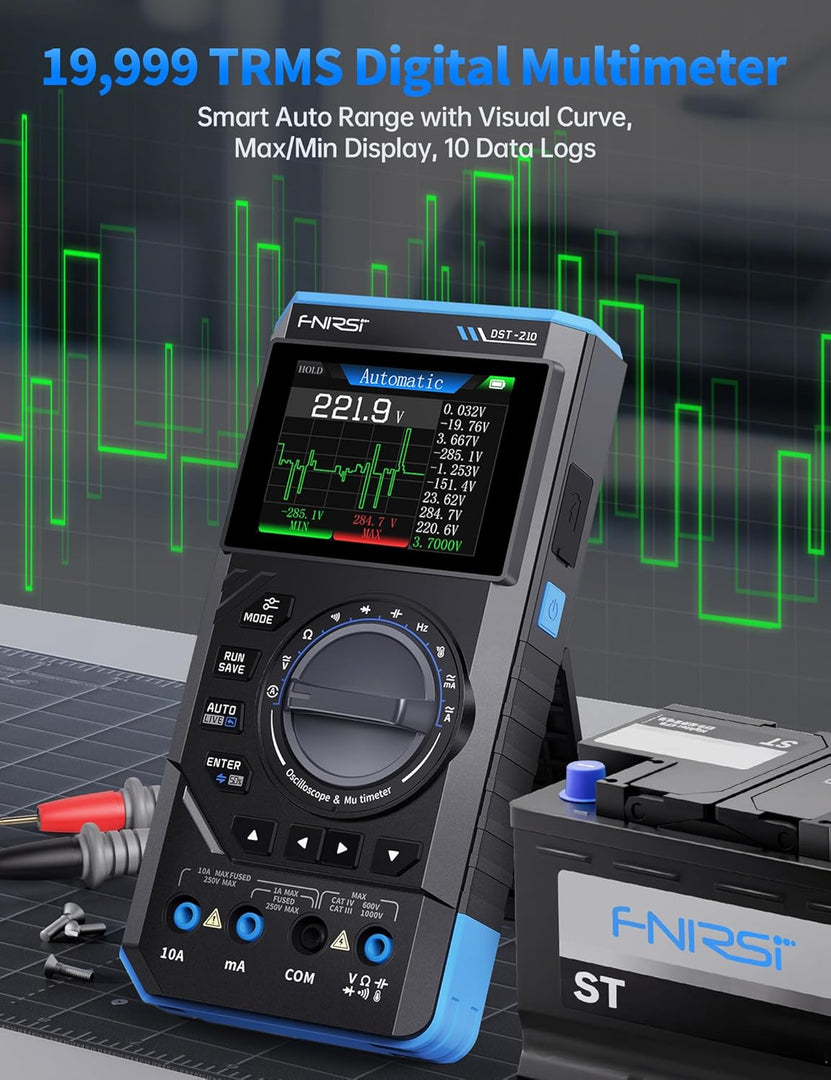

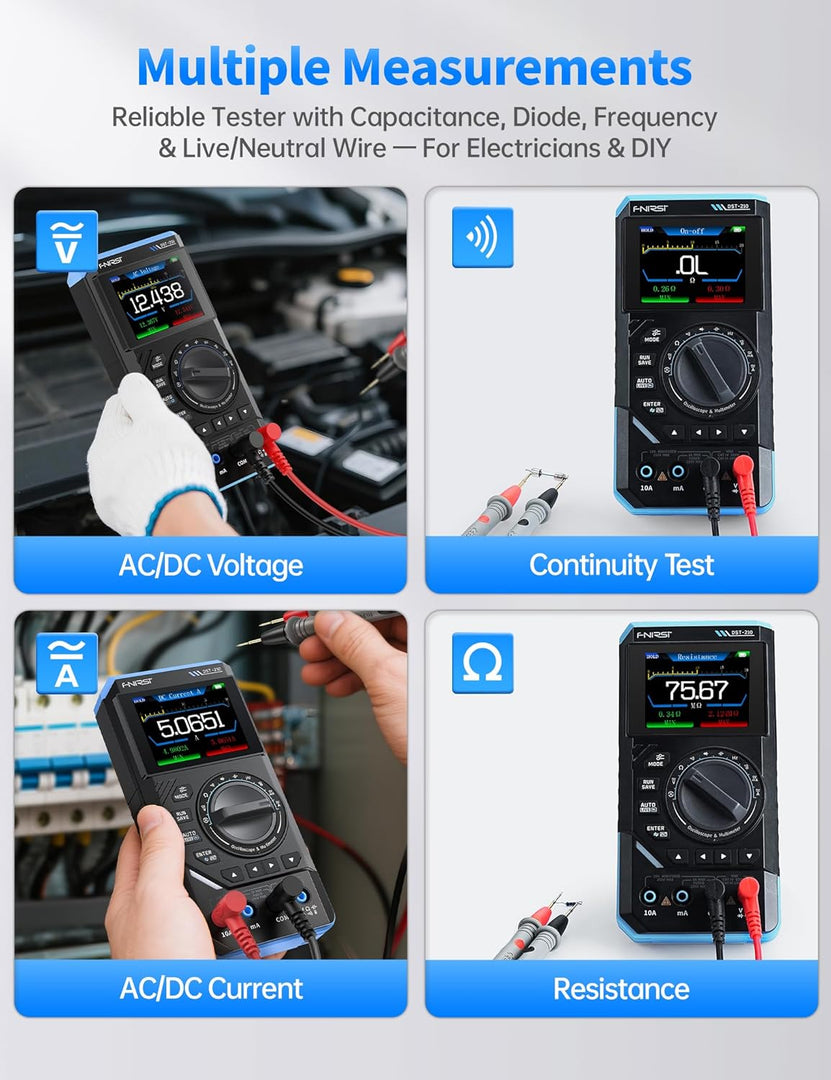

• Comprehensive Digital Multimeter: Measures AC/DC voltage, AC/DC current, resistance, capacitance, frequency, temperature, diode, continuity, and LIVE wire detection.
• Automatic Measurements: Displays Max, Min, Average, RMS, Vpp, Frequency, Period, and Duty Cycle automatically.
• Adjustable Trigger Modes: Supports Auto, Normal, and Single trigger modes with rising and falling edge triggering.
• Waveform Hold Function: Freeze and analyze captured waveforms with the HOLD function.

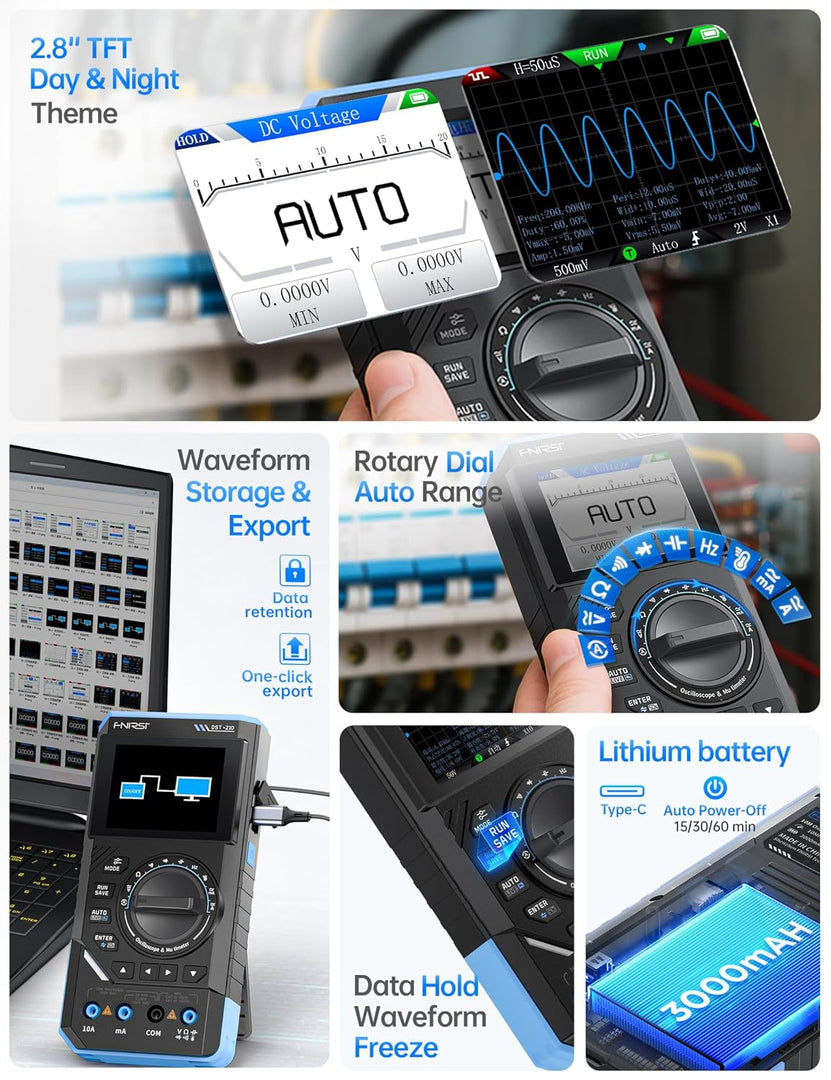

• 2.8-inch TFT Color Display: Bright, high-resolution screen with adjustable brightness for clear viewing.
• Rechargeable Battery: Built-in 3000mAh lithium battery with USB Type-C charging and up to 15 hours standby time.
• Safe & Reliable: Built-in overload protection and low battery warning for safe operation.
• Wide Applications: Ideal for electronics repair, circuit debugging, laboratory testing, industrial maintenance, education, and field service.

SPECIFICATION

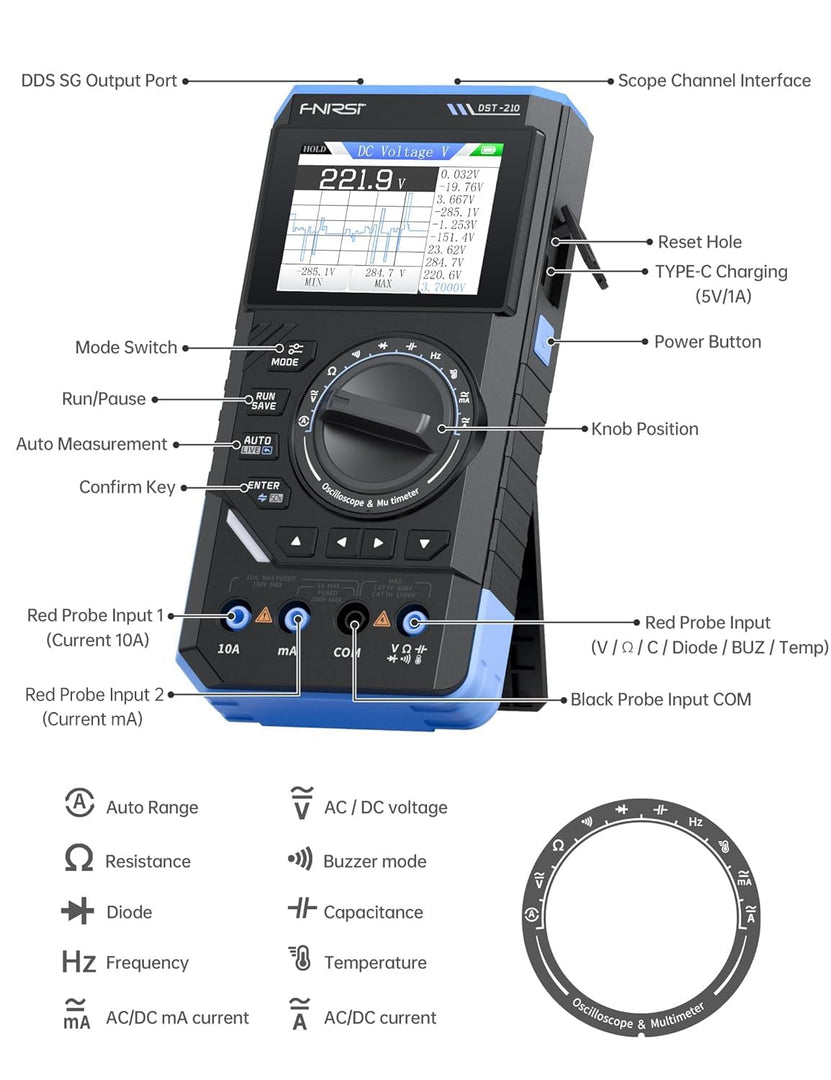

• Model: DST-210
• Product Type: Handheld Oscilloscope, Digital Multimeter & Signal Generator
• Display: 2.8-inch TFT Color Display
• Backlight: Adjustable Brightness
• Battery: 3000mAh Rechargeable Lithium Battery
• Charging Interface: USB Type-C (5V/1A)
• Languages: English, Chinese
• Product Dimensions: Approx. 177.43 × 87.47 × 34.5 mm
• Weight: Approx. 300 g
• Oscilloscope Bandwidth: 10MHz
• Sampling Rate: 48MSa/s
• Input Impedance: 1MΩ
• Coupling Mode: AC/DC
• Input Voltage Range: 80Vpp (1X Probe), 800Vpp (10X Probe)
• Vertical Sensitivity: 10mV/div – 10V/div
• Horizontal Time Base: 50ns – 20s
• Trigger Modes: Auto / Normal / Single
• Trigger Type: Rising Edge / Falling Edge
• Trigger Level: Adjustable
• Waveform Hold: Supported
• Auto Measurements: Max, Min, Average (Vavg), RMS, Vpp, Frequency, Period, Duty Cycle
• DC Voltage: Up to 1000V
• AC Voltage: Up to 750V
• DC Current: Up to 9.999A
• AC Current: Up to 9.999A
• Resistance: Up to 19.999MΩ
• Capacitance: Up to 99.99mF
• Frequency Measurement: Up to 9.999MHz
• Temperature Measurement: -55°C to 1300°C (-67°F to 2372°F)
• Diode Test: Supported
• Continuity Test: Supported
• Live Wire Detection: Supported

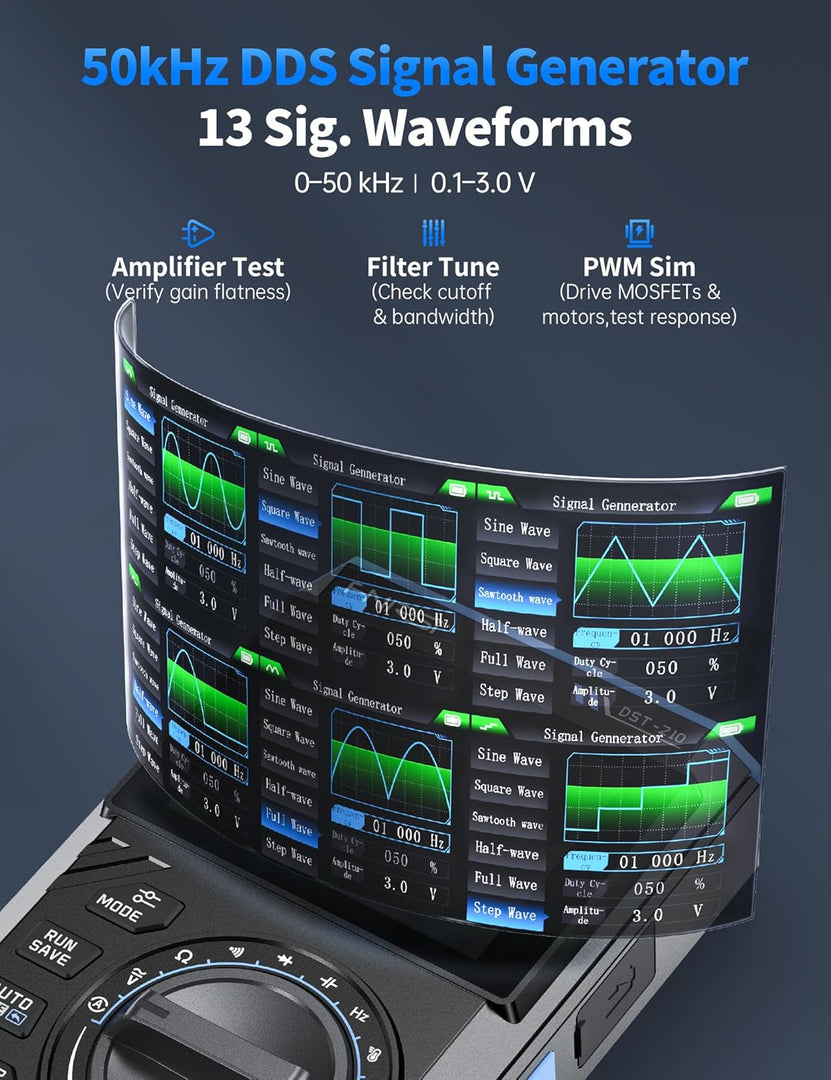

• Signal Generator: 13 Built-in Waveforms
• Output Frequency: 0–50kHz
• Square Wave Duty Cycle: 0–100% Adjustable
• Output Amplitude: 0.1V–3.0V
• Applications: Electronics Repair, Circuit Analysis, Laboratory Testing, Industrial Maintenance, Education, R&D
