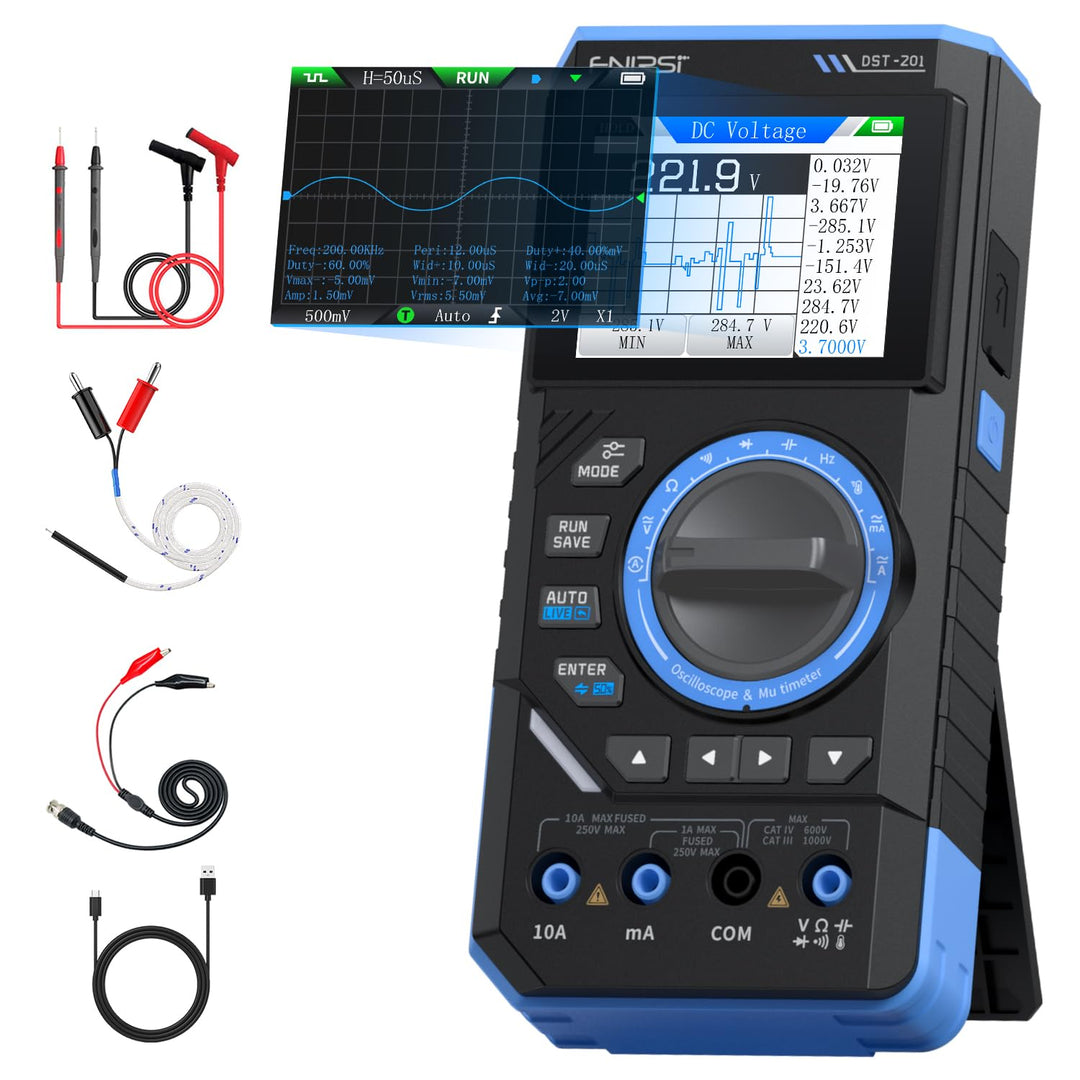

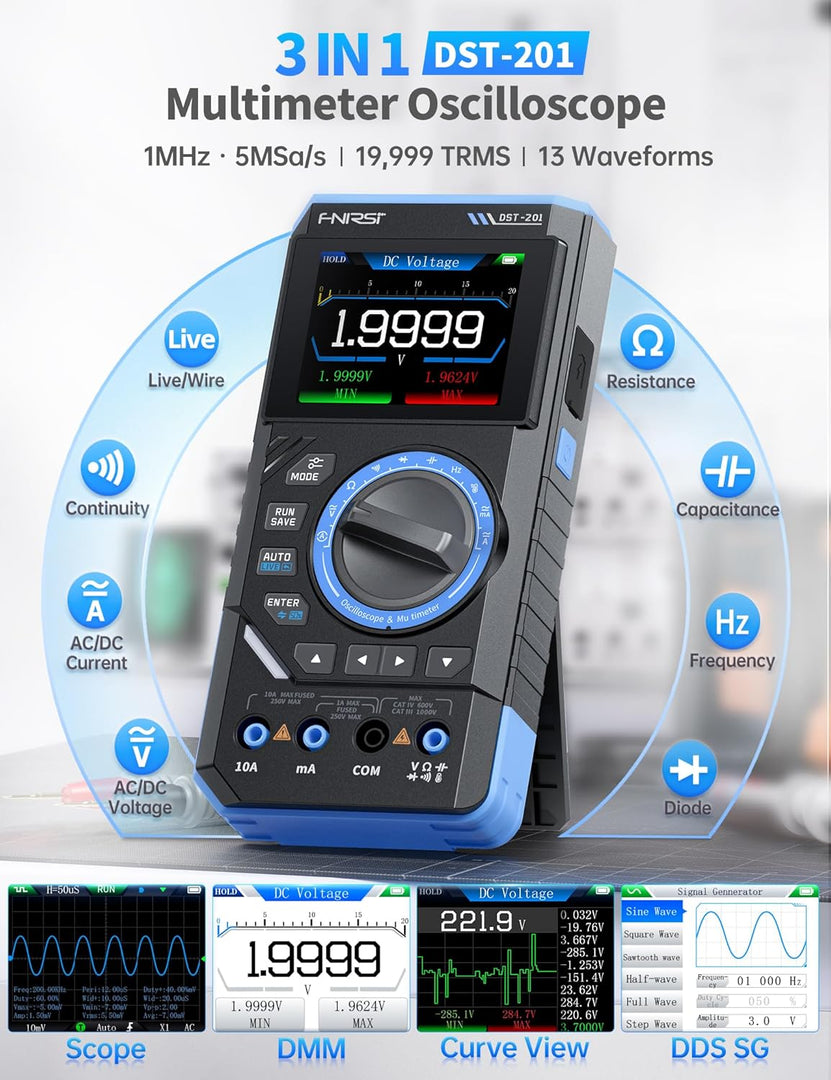

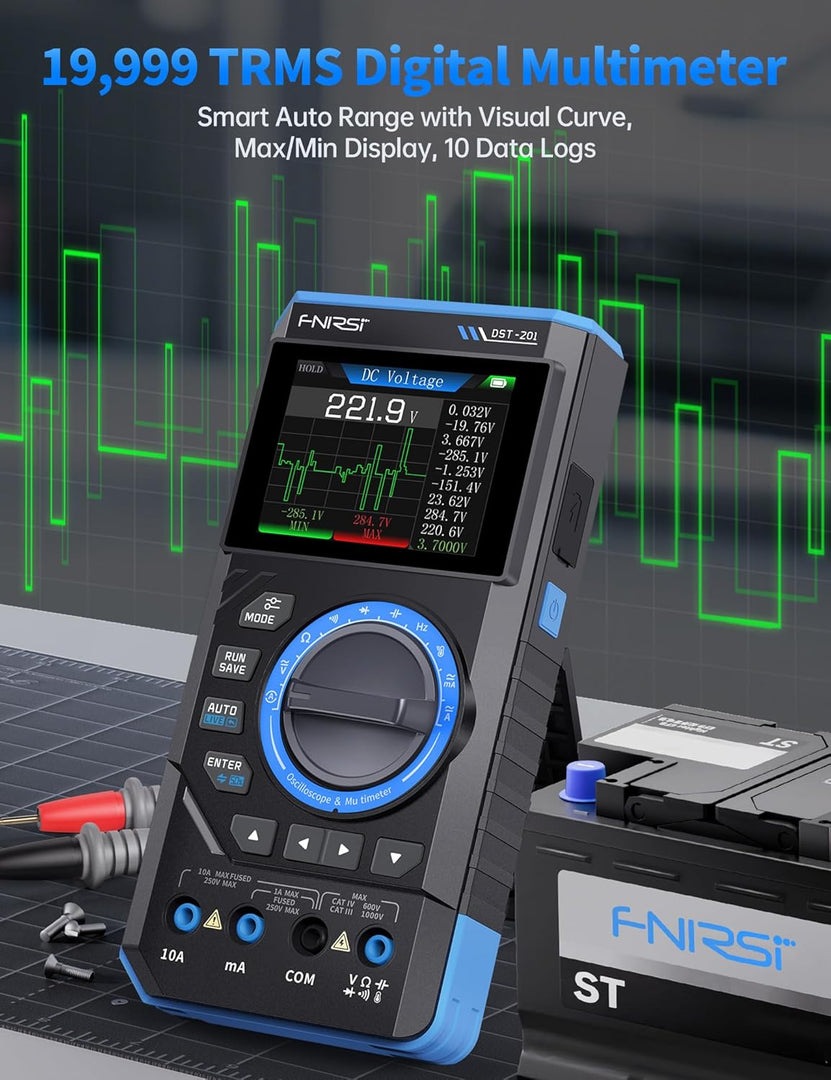

The DST-201 is a versatile multifunction tester developed by FNIRSI, tailored for electronics repair and R&D. This all-in-one device integrates multiple essential testing functions, addressing a broad spectrum of measurement requirements.

FEATURE

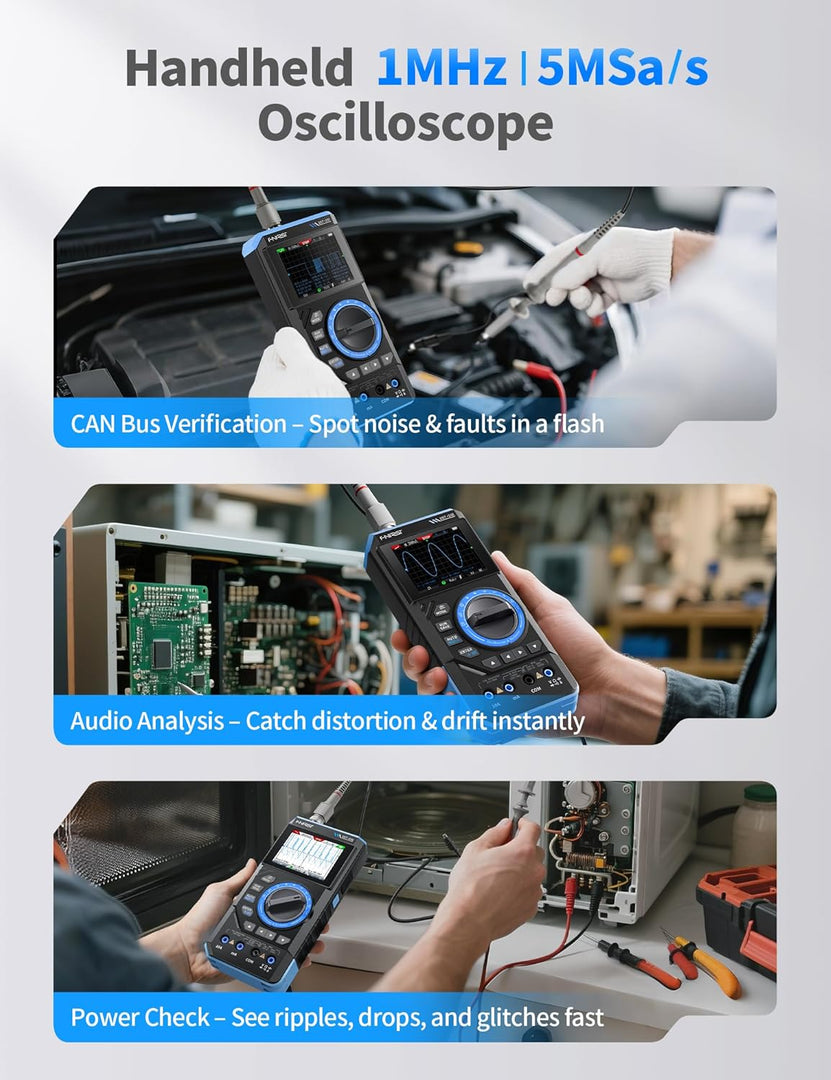

• High-Precision Oscilloscope: 5MSa/s sampling rate with 1MHz bandwidth for accurate waveform analysis and signal testing.

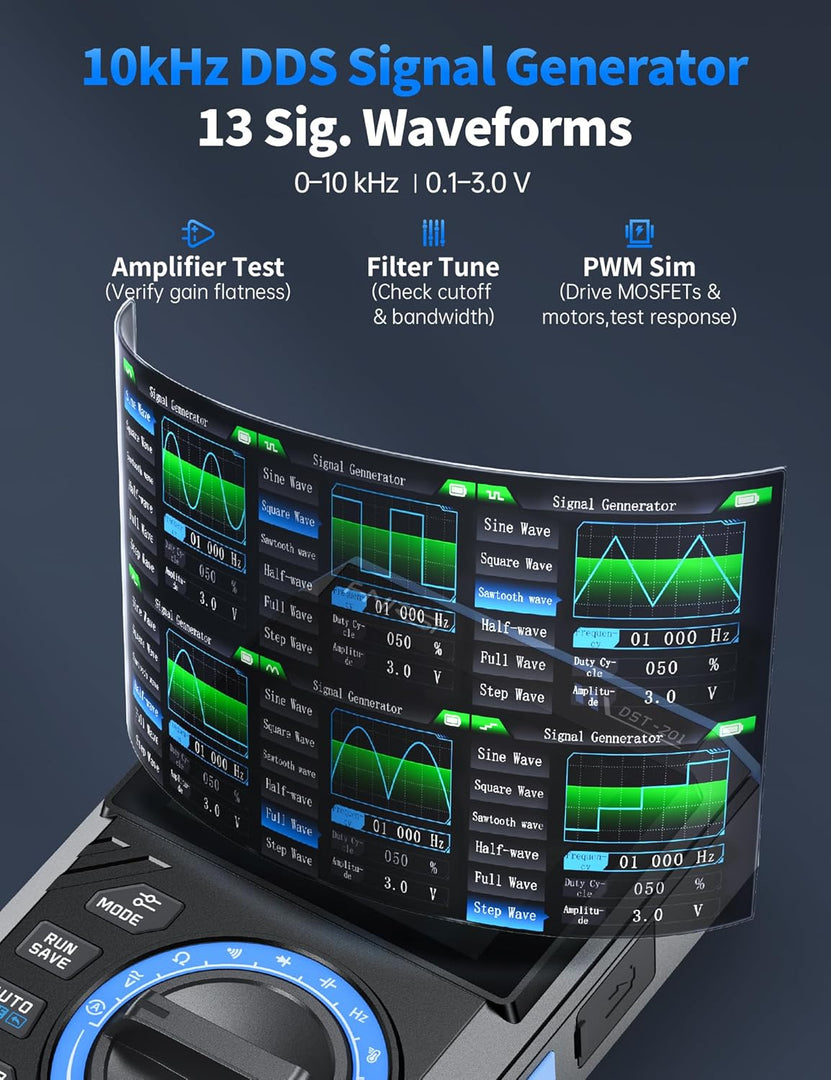

• Built-in Signal Generator: Supports 13 waveform types, 0–10kHz output frequency, adjustable amplitude up to 3V, and adjustable duty cycle.

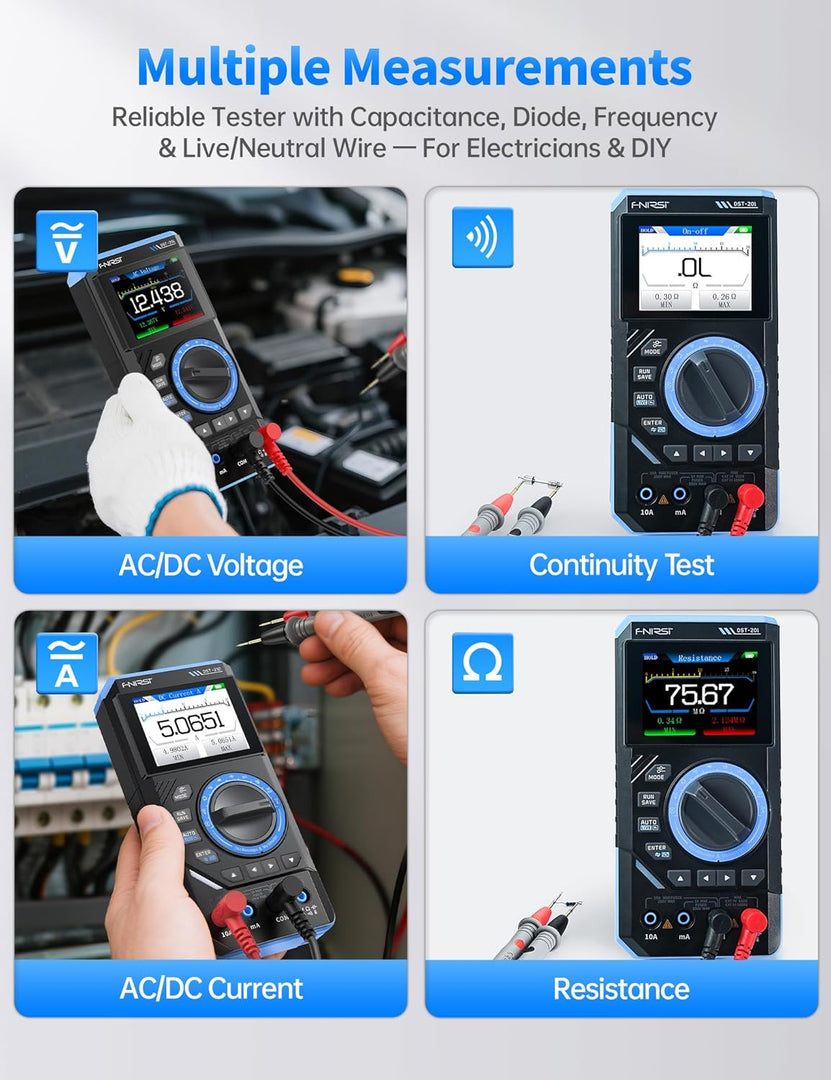

• Comprehensive Multimeter: Measures AC/DC voltage, AC/DC current, resistance, capacitance, frequency, temperature, diode, continuity, and LIVE wire detection.
• Automatic Measurement: Supports waveform recording, data hold, and automatic parameter measurement for efficient testing.
• Overload Protection: Built-in overload protection and low battery warning for safe and reliable operation.

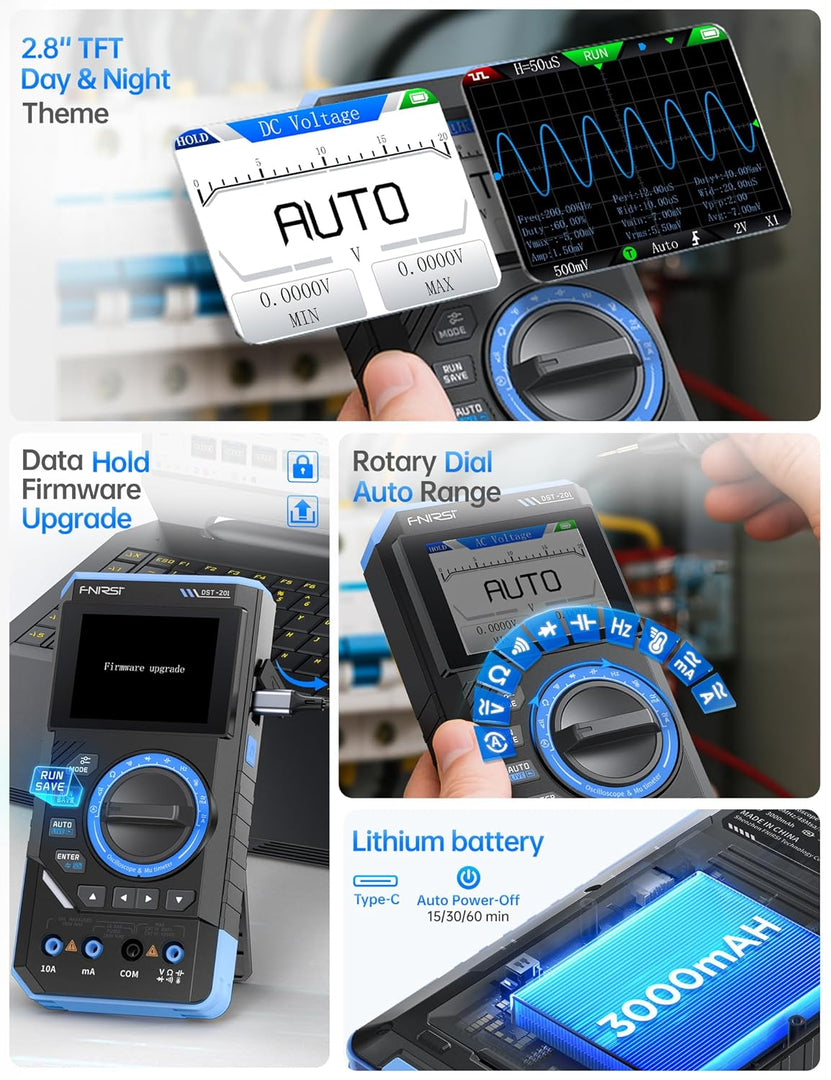

• 2.8-inch TFT Color Display: Bright, clear color screen with an intuitive user interface for easy reading.
• Rechargeable Battery: Built-in 3000mAh lithium battery with up to 15 hours standby time and USB Type-C charging.
• Compact & Portable: Lightweight handheld design for convenient field, workshop, and laboratory use.
• Easy to Operate: User-friendly interface suitable for professionals, students, hobbyists, and home users.
• Wide Applications: Ideal for electronics repair, circuit analysis, industrial maintenance, education, and electrical troubleshooting.

SPECIFICATION

• Model: DST-201
• Product Type: Handheld Oscilloscope, Digital Multimeter & Signal Generator
• Display: 2.8-inch TFT Color Display
• Backlight: Adjustable Brightness
• Battery: 3000mAh Rechargeable Lithium Battery
• Charging Interface: USB Type-C (5V/1A)
• Languages: English, Chinese
• Product Dimensions: Approx. 177.43 × 87.47 × 34.5 mm
• Weight: Approx. 300 g
• Oscilloscope Bandwidth: 1MHz
• Sampling Rate: 5MSa/s
• Input Impedance: 1MΩ
• Coupling Mode: AC/DC
• Input Voltage Range: 80Vpp (1X Probe), 800Vpp (10X Probe)
• Vertical Sensitivity: 10mV/div – 10V/div
• Horizontal Time Base: 500ns – 20s
• Trigger Modes: Auto / Normal / Single
• Trigger Type: Rising Edge / Falling Edge
• Waveform Hold: Supported
• Auto Measurements: Max, Min, Average (Vavg), RMS, Vpp, Frequency, Period, Duty Cycle
• DC Voltage: Up to 1000V
• AC Voltage: Up to 750V
• DC Current: Up to 9.999A
• AC Current: Up to 9.999A
• Resistance: Up to 19.999MΩ
• Capacitance: Up to 99.99mF
• Frequency Measurement: Up to 9.999MHz
• Temperature Measurement: -55°C to 1300°C (-67°F to 2372°F)
• Diode Test: Supported
• Continuity Test: Supported
• Live Wire Detection: Supported
• Signal Generator: 13 Built-in Waveforms
• Output Frequency: 0–10kHz
• Square Wave Duty Cycle: 0–100% Adjustable
• Output Amplitude: 0.1V–3.0V
• Applications: Electronics Repair, Circuit Analysis, Laboratory Testing, Industrial Maintenance, Education
