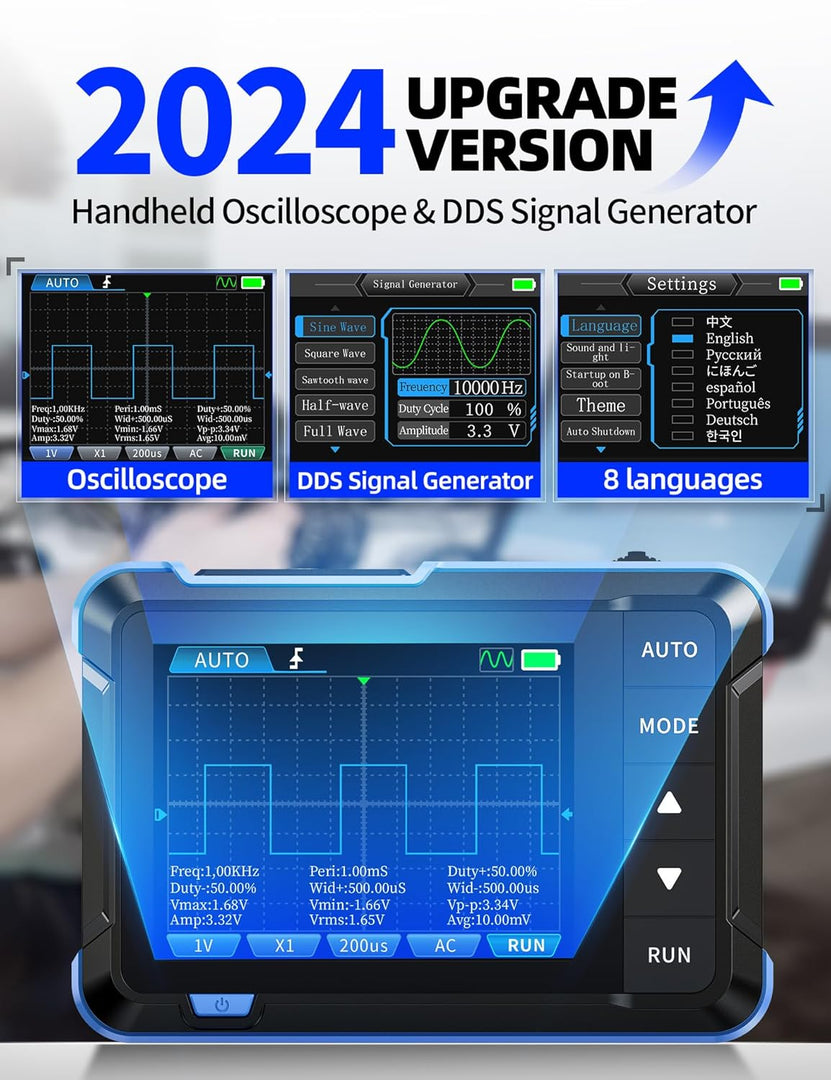

The DSO153 combines performance and portability, making it an excellent tool for routine maintenance and educational use. It offers a well-rounded feature set suitable for general signal testing. This oscilloscope has a real-time sampling rate of 5MS/s, 1MHz bandwidth, and complete triggering function (single, normal, auto). It can be used freely for both periodic analog signals and non-periodic digital signals, and can measure up to ±400V voltage with an efficient one-click AUTO, which can display the measured waveform without complicated adjustments. Additionally, it features a function signal generator capable of outputting 14 types of signals (10KHz). Equipped with a 2.8-inch 320*240 resolution HD LCD screen and a built-in 1000mAh high-quality lithium battery, it can be used for about 4 hours when fully charged.

FEATURE

• Portable 2.8" TFT Handheld Oscilloscope for beginners, hobbyist
• DSO oscilloscope: 5MS/s, 1MHz bandwidth, ±400V voltage range.
• Signal Generator: 10KHz
• High-definition 320*240 LCD, Type-C interface.
• Finished assembly, lightweight, perfect for maintenance.
• Versatile trigger functions: single, normal, automatic.
• Signal Type Support: Periodic analog signals and non-periodic digital signals.
• 8 different languages: Chinese, English, Russian, Japanese, Spanish, Portuguese, German, Korean.
• One-Click AUTO Mode: Effortlessly display waveforms with minimal input.

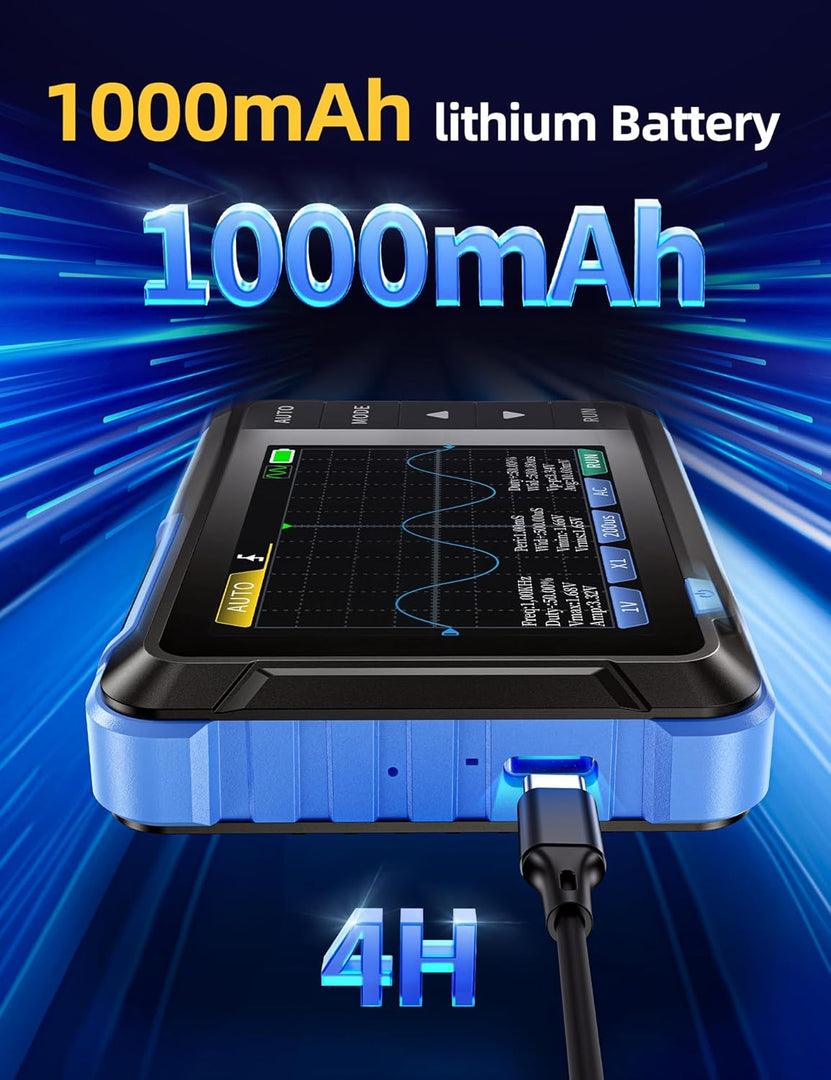

• Battery Life: Built-in 1000mAh lithium battery with 4 hours of use per charge.
• Recommended Use: Suitable for routine equipment maintenance and educational signal demonstrations.


SPECIFICATION

• Model: DSO-153
• Product Type: Handheld Digital Oscilloscope with Signal Generator
• Display: 2.8-inch TFT LCD (320 × 240 Pixels)
• Battery: 1000mAh Rechargeable Lithium Battery
• Charging Interface: USB Type-C (5V/1A)
• Product Dimensions: 99 × 68.3 × 19.5 mm
• Weight: Approx. 100 g
• Oscilloscope Channels: 1
• Real-Time Sampling Rate: 5MSa/s
• Analog Bandwidth: 1MHz
• Vertical Sensitivity:10mV/div – 10V/div
• Time Base Range: 500ns/div – 20s/div
• Input Voltage Range: X1: ±40V (80Vpp), X10: ±400V (800Vpp)

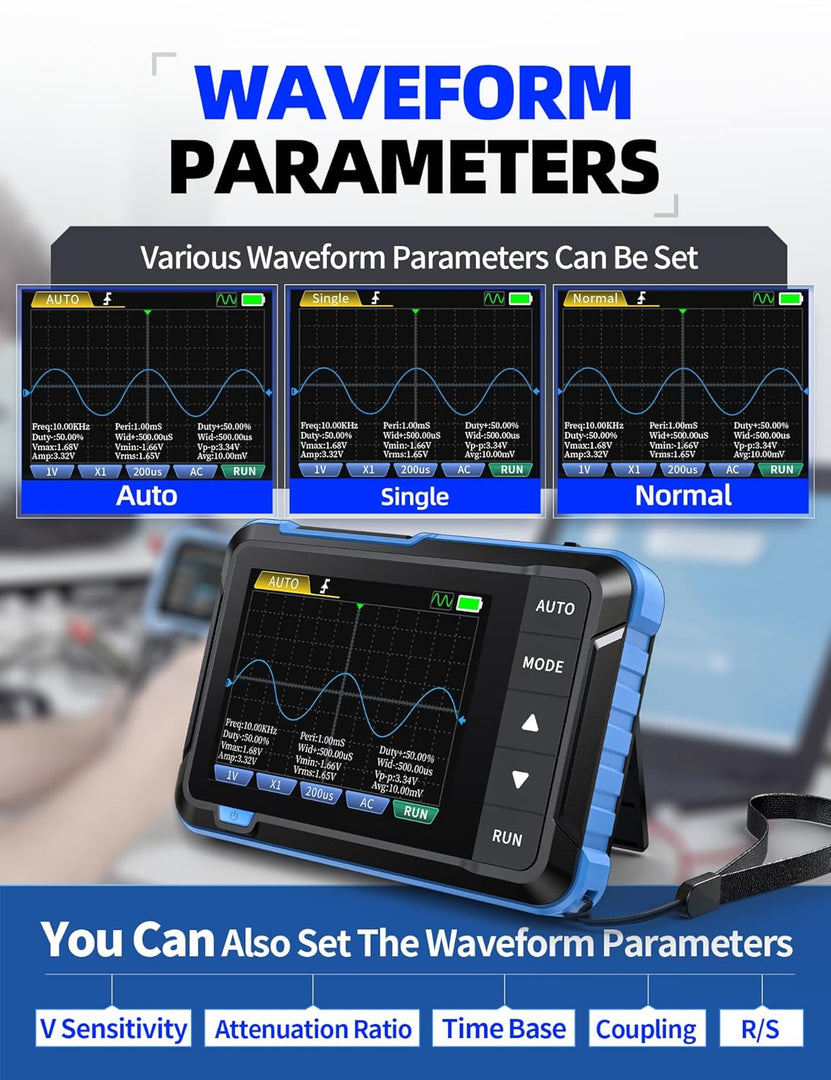

• Trigger Modes: Auto / Normal / Single
• Trigger Type: Rising Edge / Falling Edge
• Coupling Mode: AC / DC
• Signal Generator Frequency: 0–10kHz
• Output Amplitude: 0.1V–3.3V
• Duty Cycle: 0–100% (Square & Sawtooth Wave)

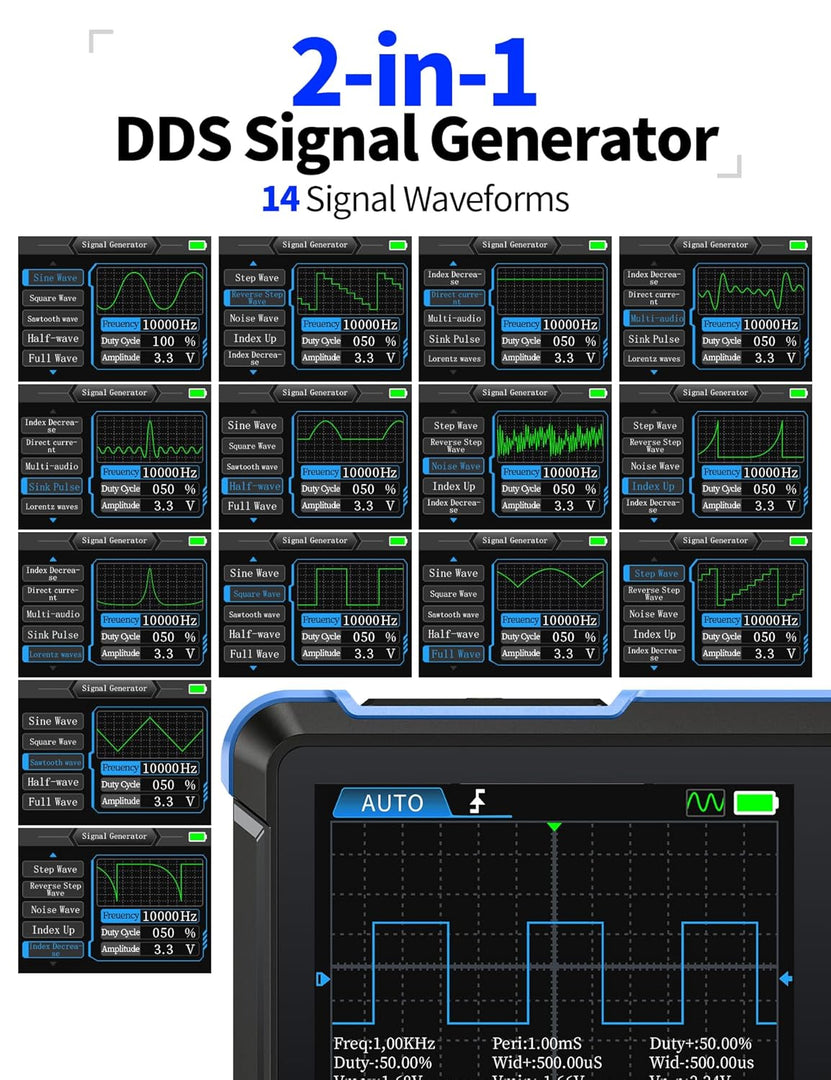

• Built-in Waveforms: Sine, Square, Sawtooth, Half Wave, Full Wave, Step, Anti Step, Noise, Exponential Rise, Exponential Drop, DC, Multi-Tone, Sync Pulse, Lorentz
• Applications: Electronics Repair, Circuit Analysis, Signal Testing, Laboratory Testing, Industrial Maintenance, Education, DIY Electronics
