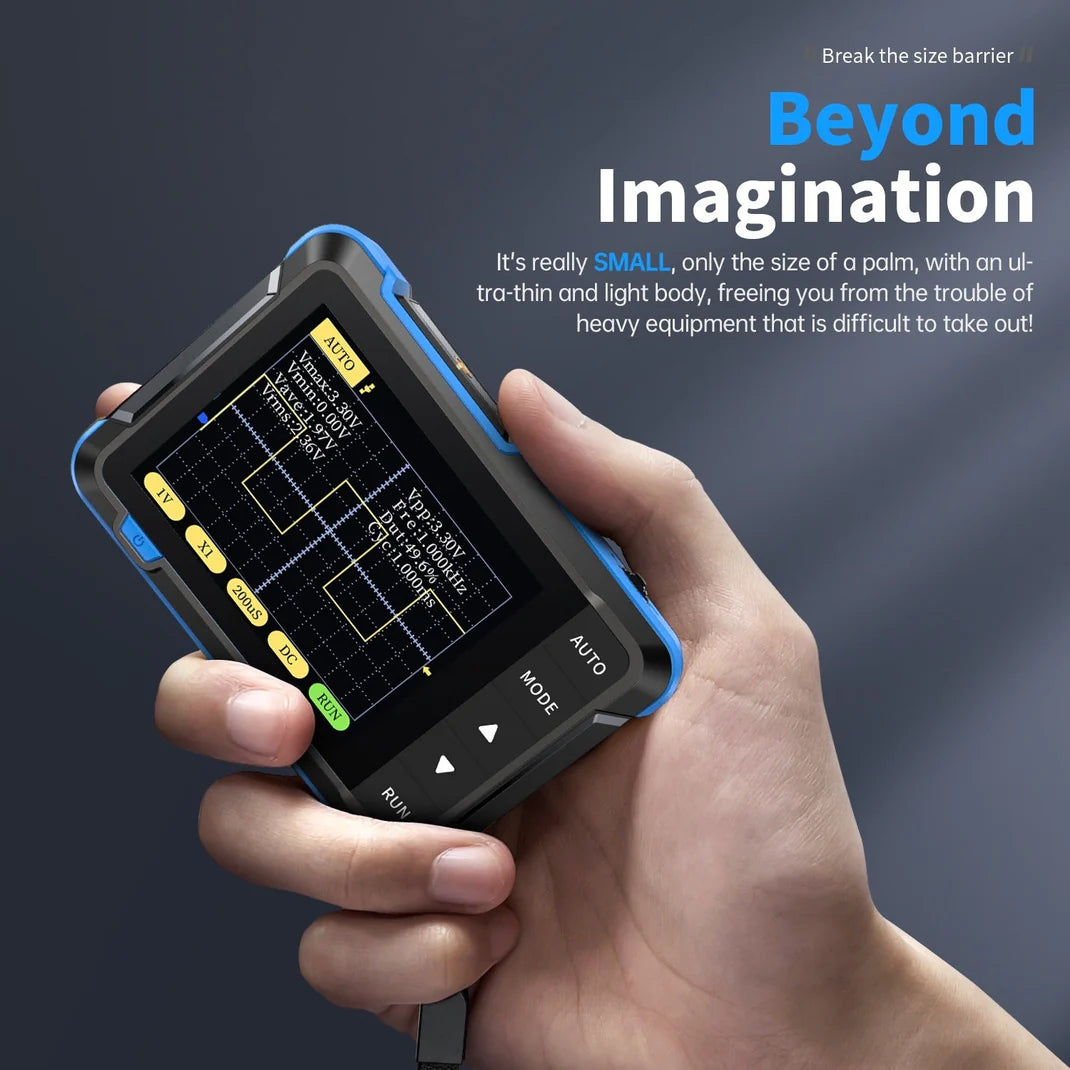

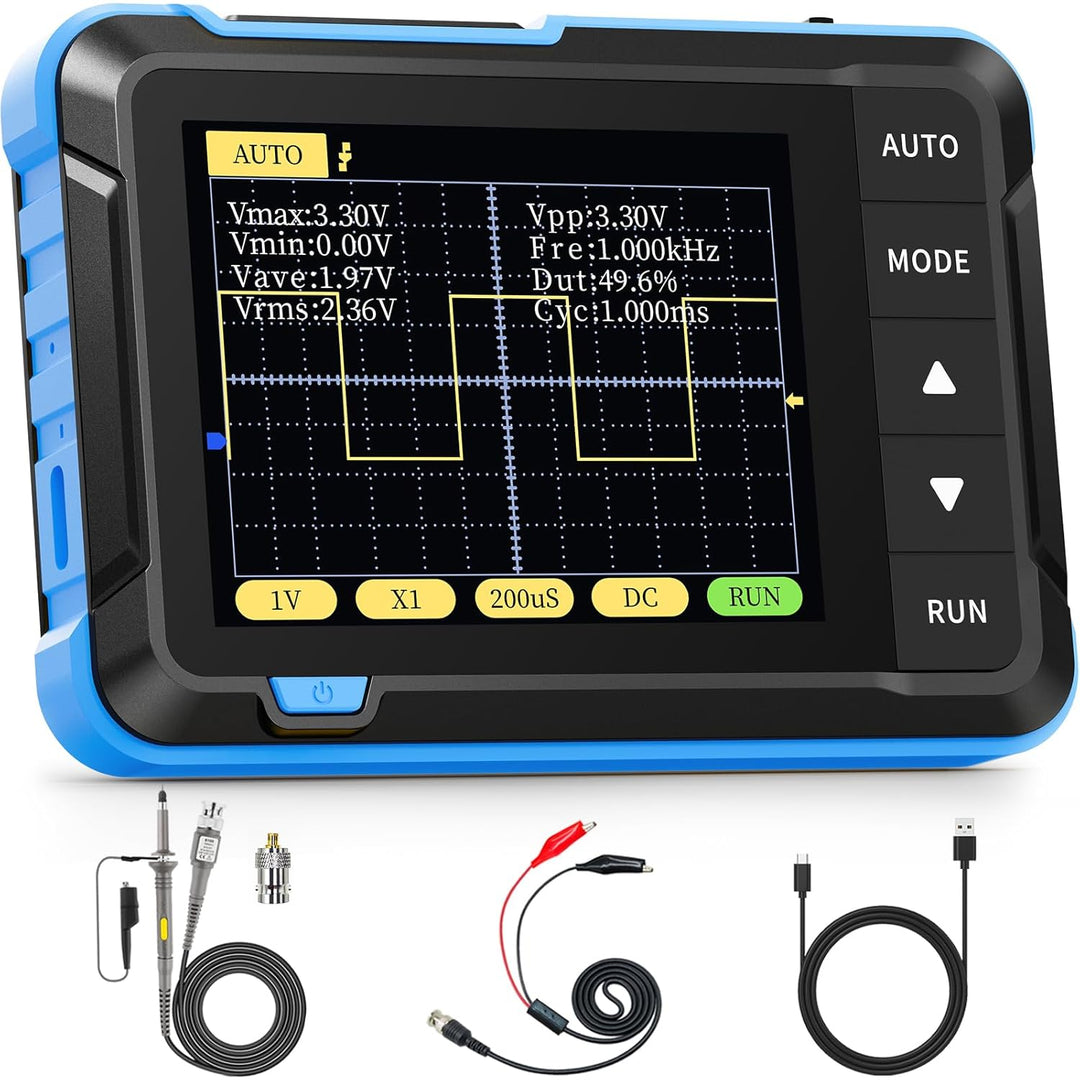

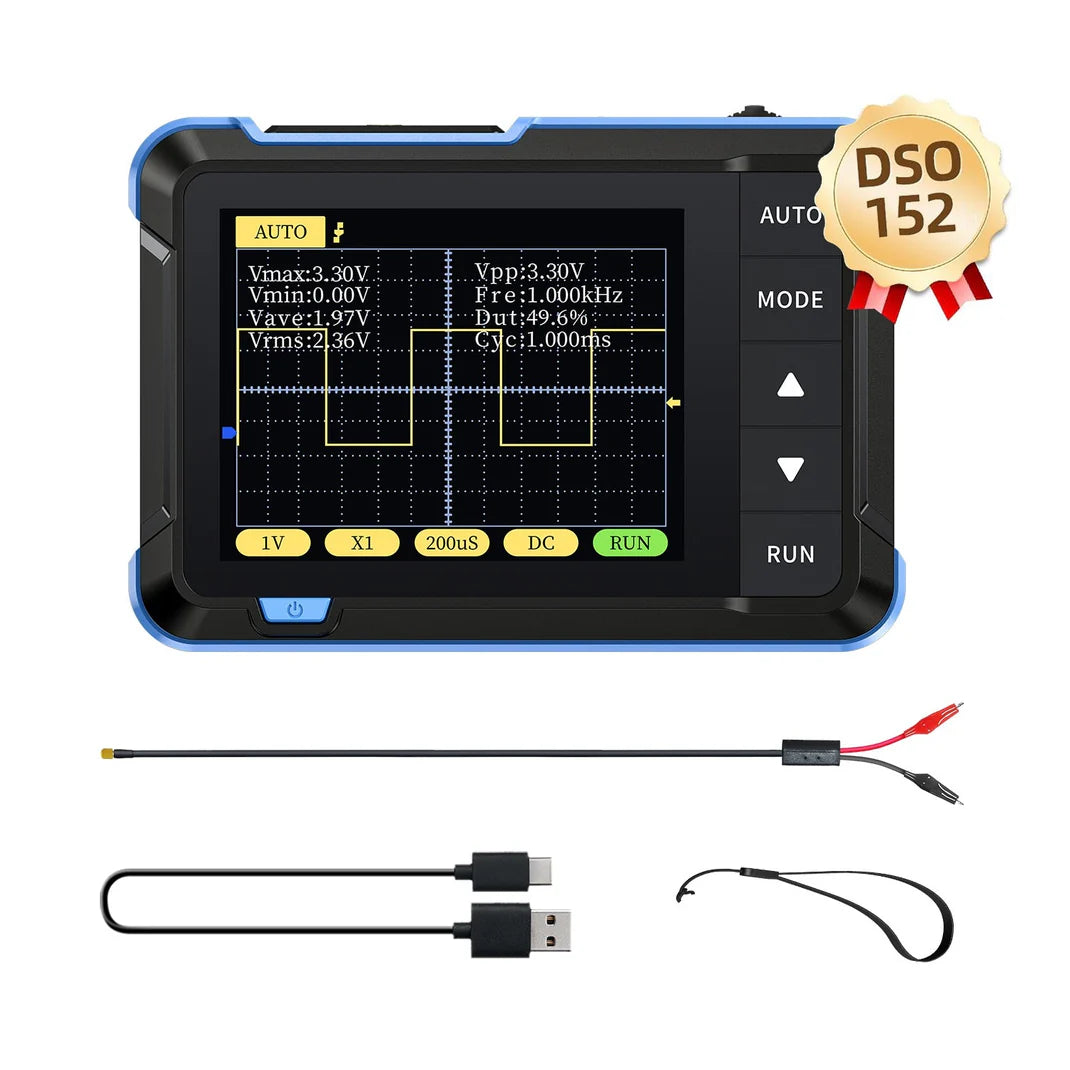

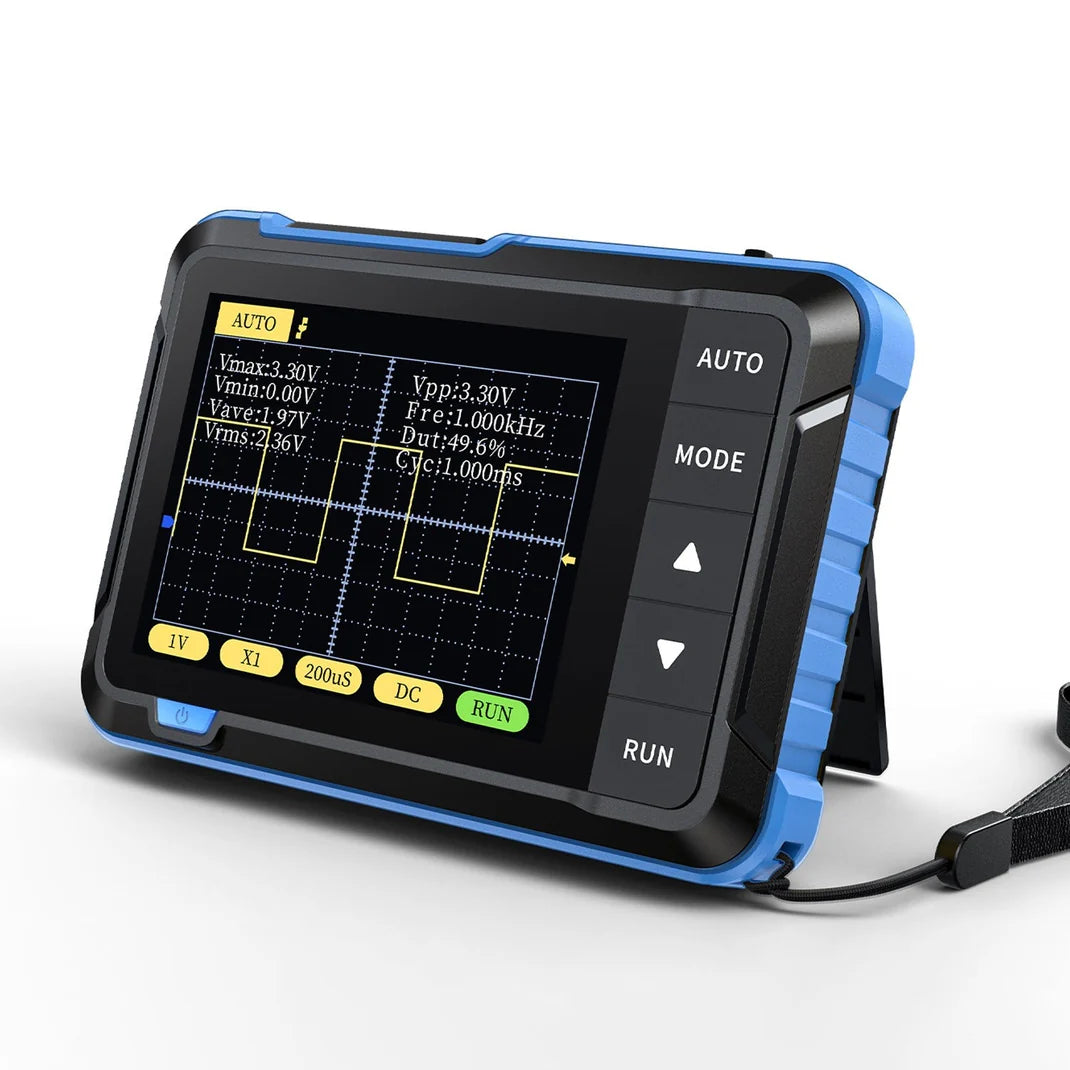

The LABART DSO-152 is a compact handheld digital oscilloscope designed for basic signal analysis, electronics repair, and educational use. It features a 2.5MSa/s sampling rate, 200kHz bandwidth, 2.8-inch TFT color display, one-key AUTO waveform capture, and a built-in 1000mAh rechargeable battery. Lightweight and portable, it is ideal for circuit testing, troubleshooting, and DIY electronics.

FEATURE

• Portable 2.8" TFT Handheld Oscilloscope for beginners, hobbyist
• DSO oscilloscope: 2.5MS/s, 200KHz bandwidth, ±400V voltage range.

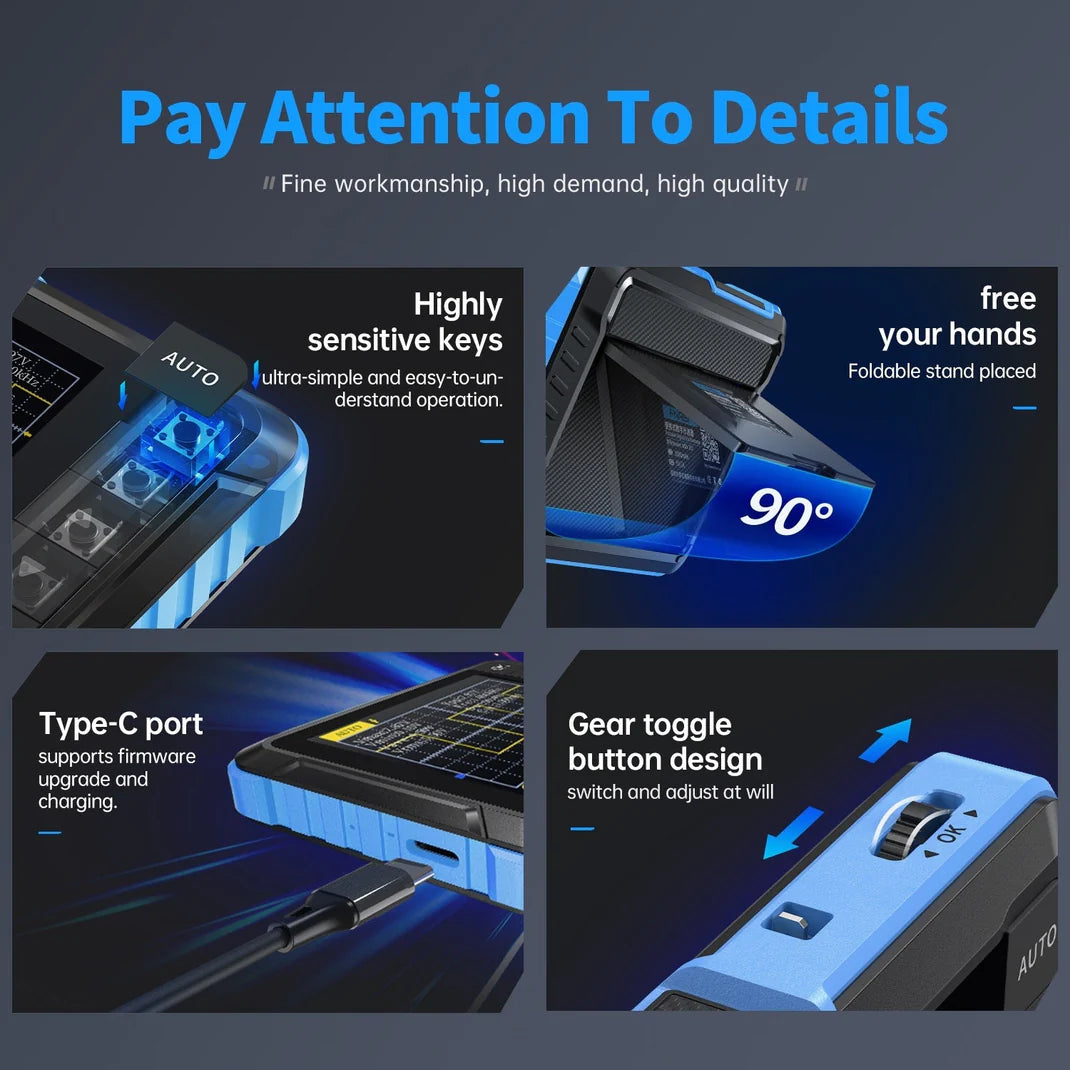

• High-definition 320*240 LCD, Type-C interface.
• Finished assembly, lightweight, perfect for maintenance.
• Versatile trigger functions: single, normal, automatic.
• Suitable for analog and digital signals.

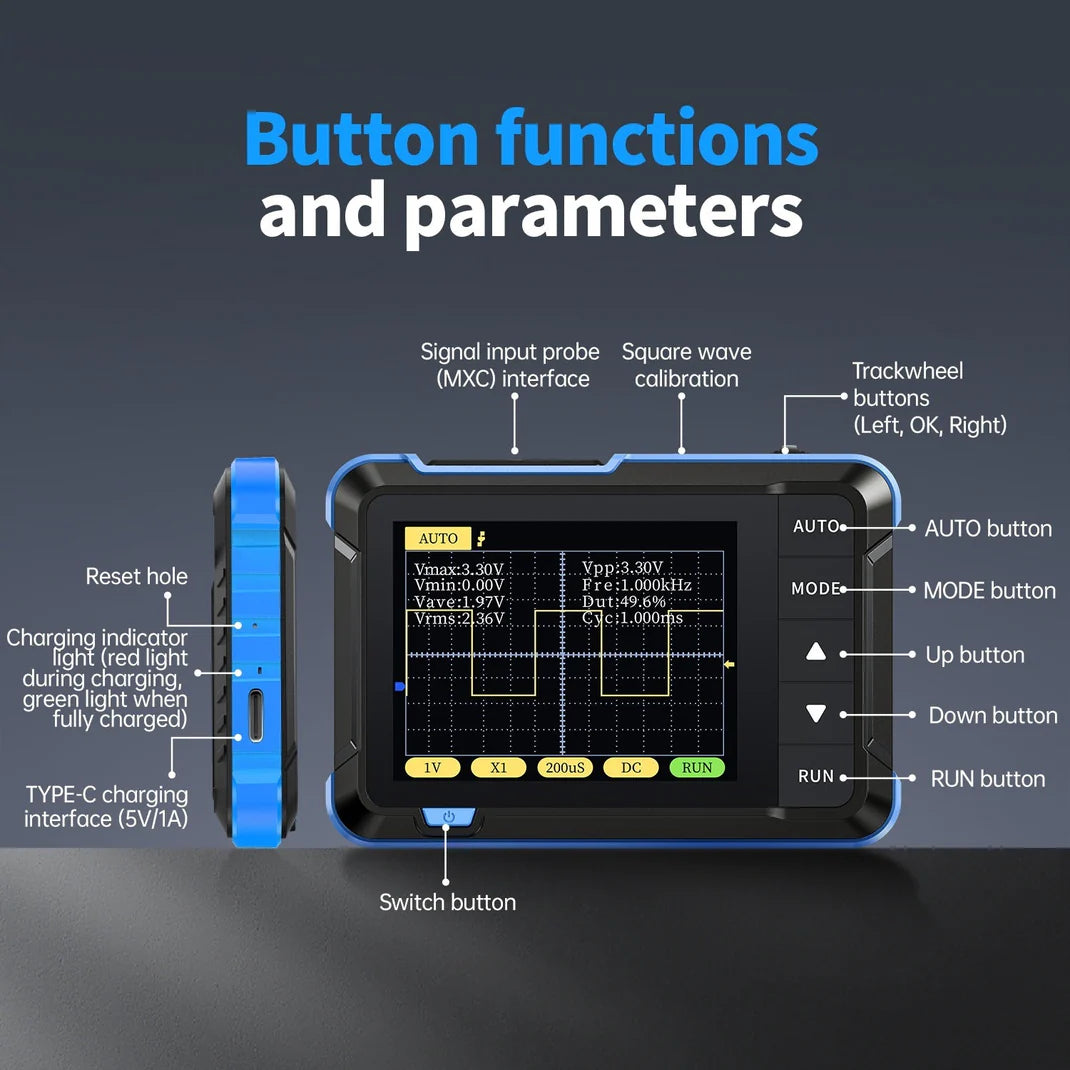

• Convenient one-key AUTO adjustment, quickly generate waveforms with ease.
• Displays waveform without complex setup.

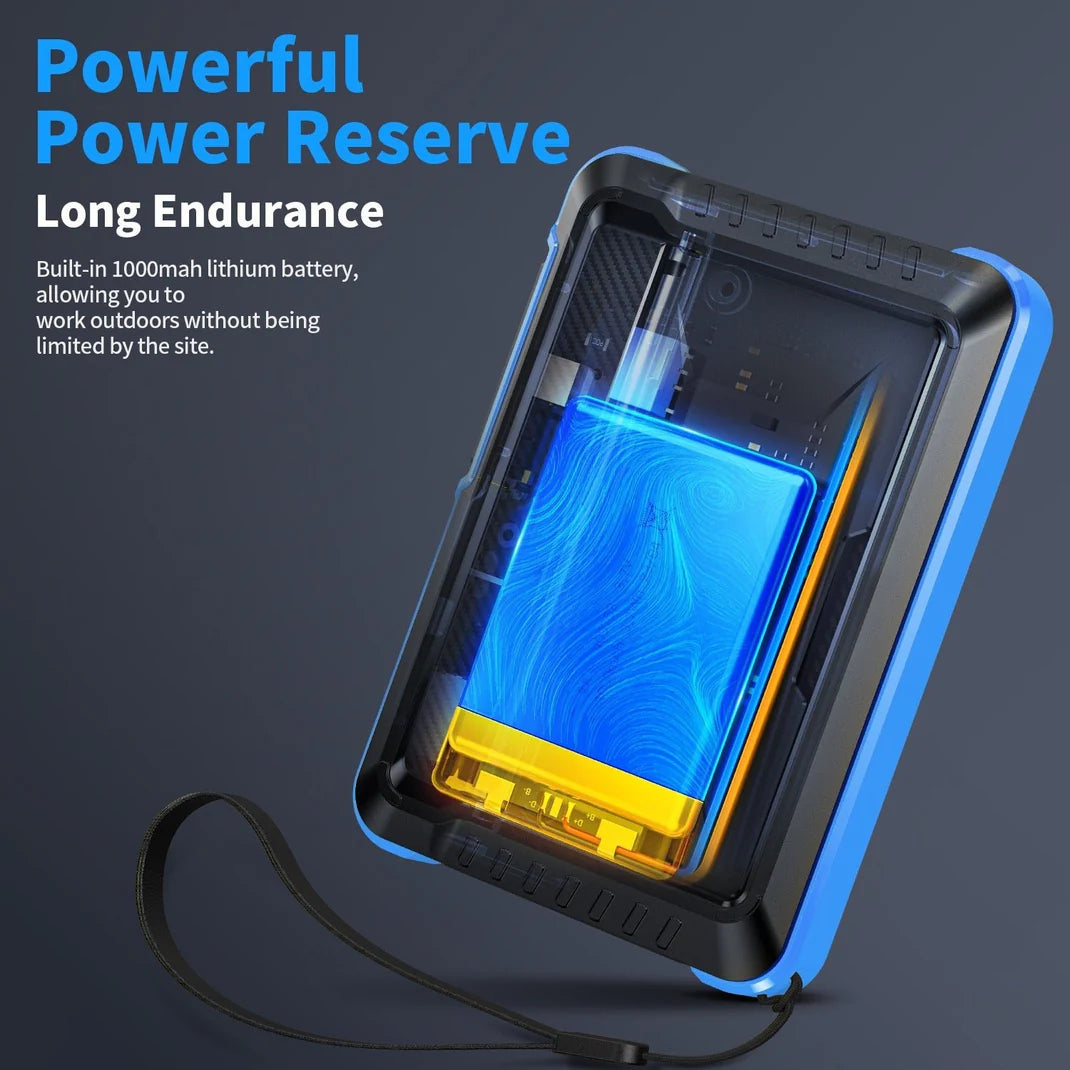

• Battery Life: Built-in 1000mAh lithium battery with 4 hours of use per charge.
• Long press AUTO for baseline calibration.
• Recommended Use: Perfect for basic maintenance and educational labs requiring fundamental signal analysis.

SPECIFICATION

• Model: DSO-152
• Product Type: Handheld Digital Oscilloscope
• Display: 2.8-inch TFT LCD (320 × 240 Pixels)
• Battery: 1000mAh Rechargeable Lithium Battery
• Charging Interface: USB Type-C (5V/1A)
• Product Dimensions: 99 × 68.3 × 19.5 mm
• Weight: Approx. 100 g
• Oscilloscope Channels: 1
• Real-Time Sampling Rate: 2.5MSa/s
• Analog Bandwidth: 200kHz
• Vertical Sensitivity: 10mV/div – 20V/div
• Time Base Range: 10µs/div – 50s/div
• Input Voltage Range: X1: ±40V (80Vpp), X10: ±400V (800Vpp)
• Trigger Modes: Auto / Normal / Single
• Coupling Mode: AC / DC
• Square Wave Calibration: 1kHz, 50% Duty Cycle
• Applications: Electronics Repair, Circuit Analysis, Educational Training, Signal Testing, Laboratory Testing, DIY Electronics
