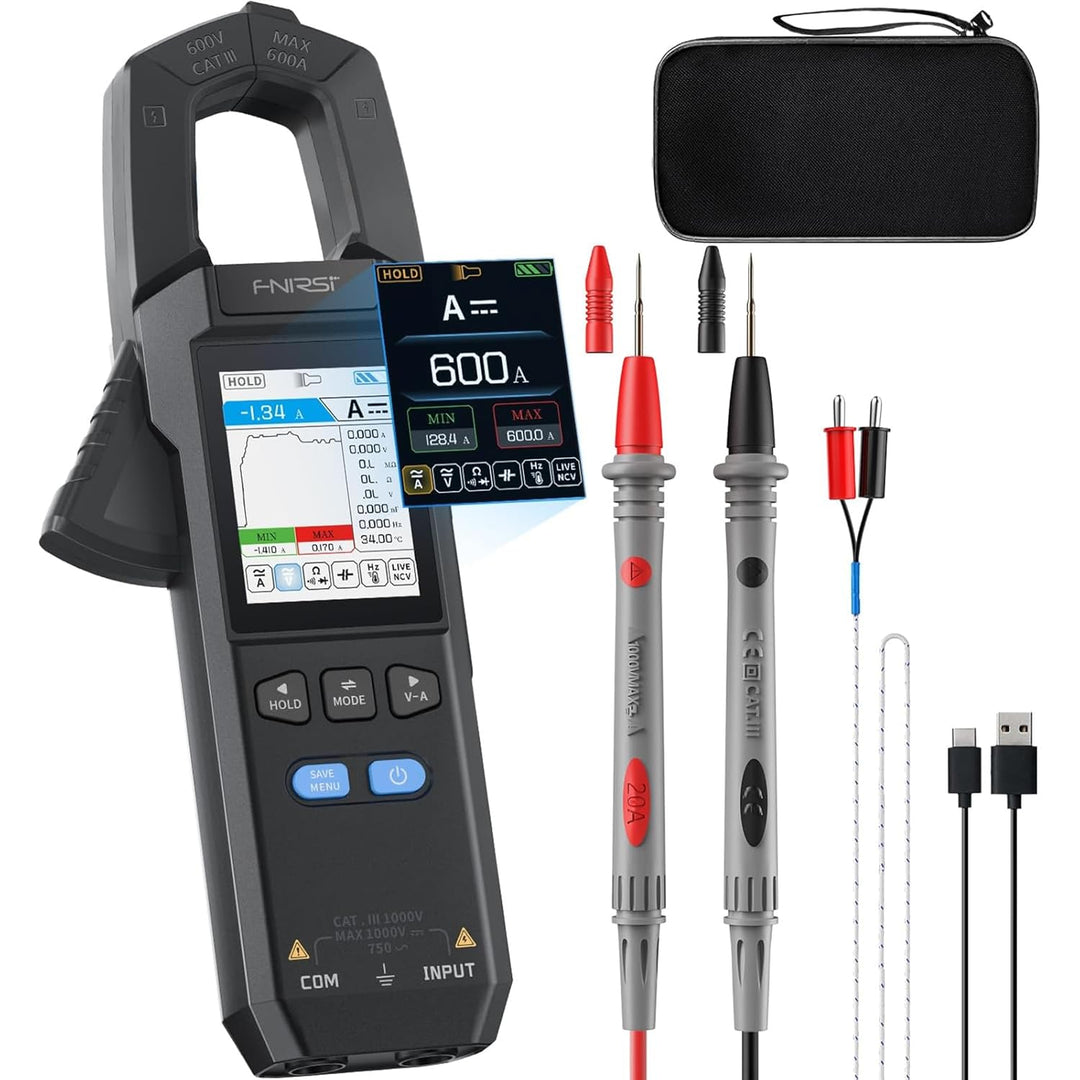

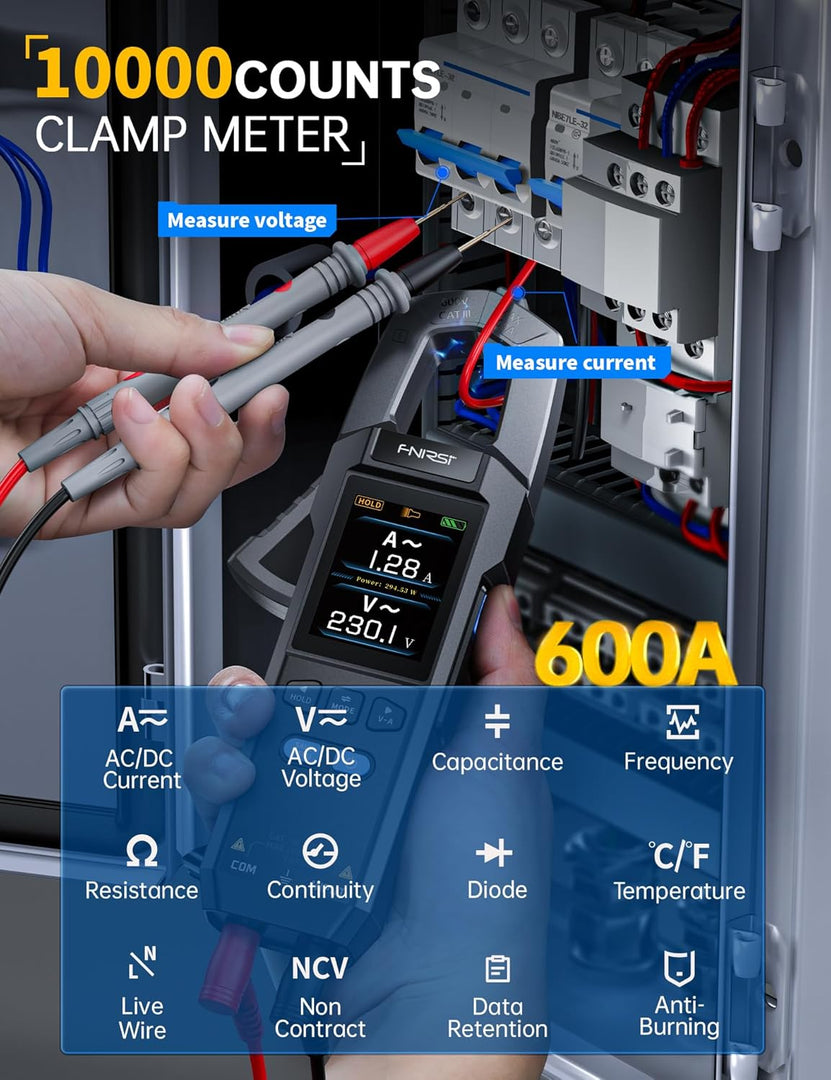

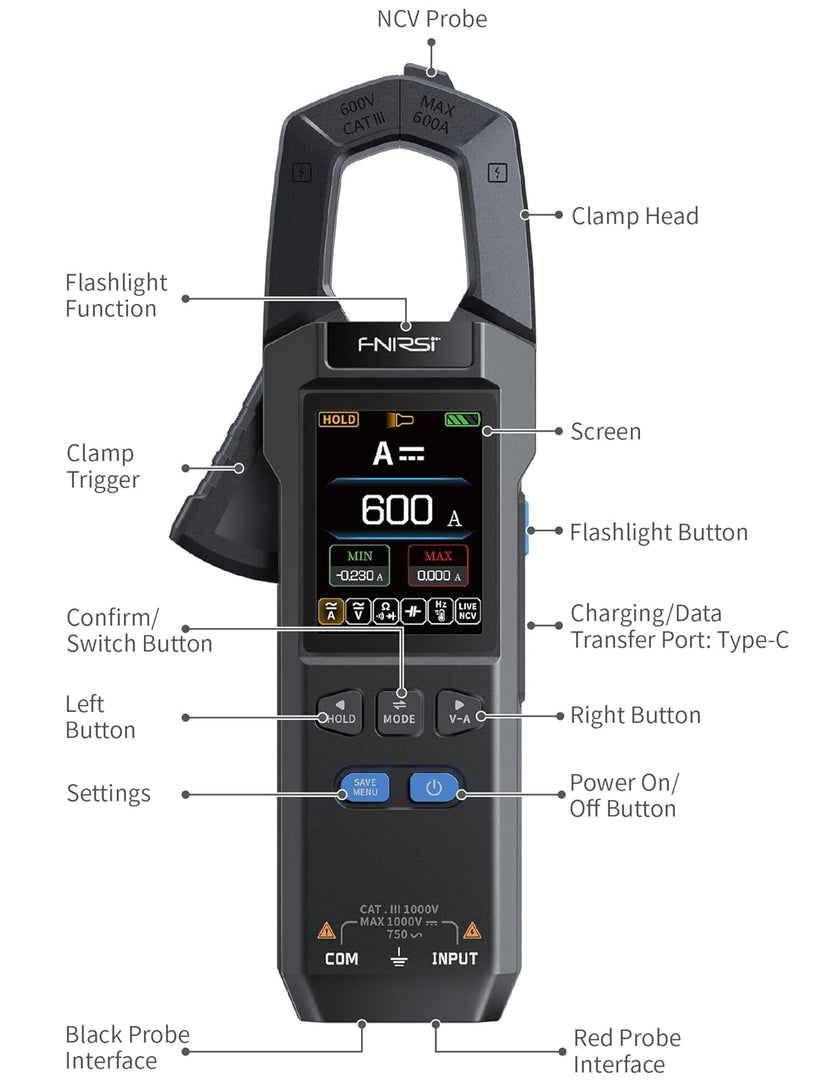

DMC-100 is a 10,000-count high-precision intelligent clamp meter, covering 750V voltage and 600A current ultra-wide range, whether it is engineering maintenance, laboratory research, or vehicle overhaul, home electrical diagnostics, can be easy to handle.

FEATURE

• High-Precision Measurement: 10,000-count True RMS intelligent clamp meter for accurate readings.
• Wide Measurement Range: Supports up to 750V voltage and 600A current.
• High-Quality Display: 2.0-inch 240 × 320 full-color TFT screen for clear visuals.

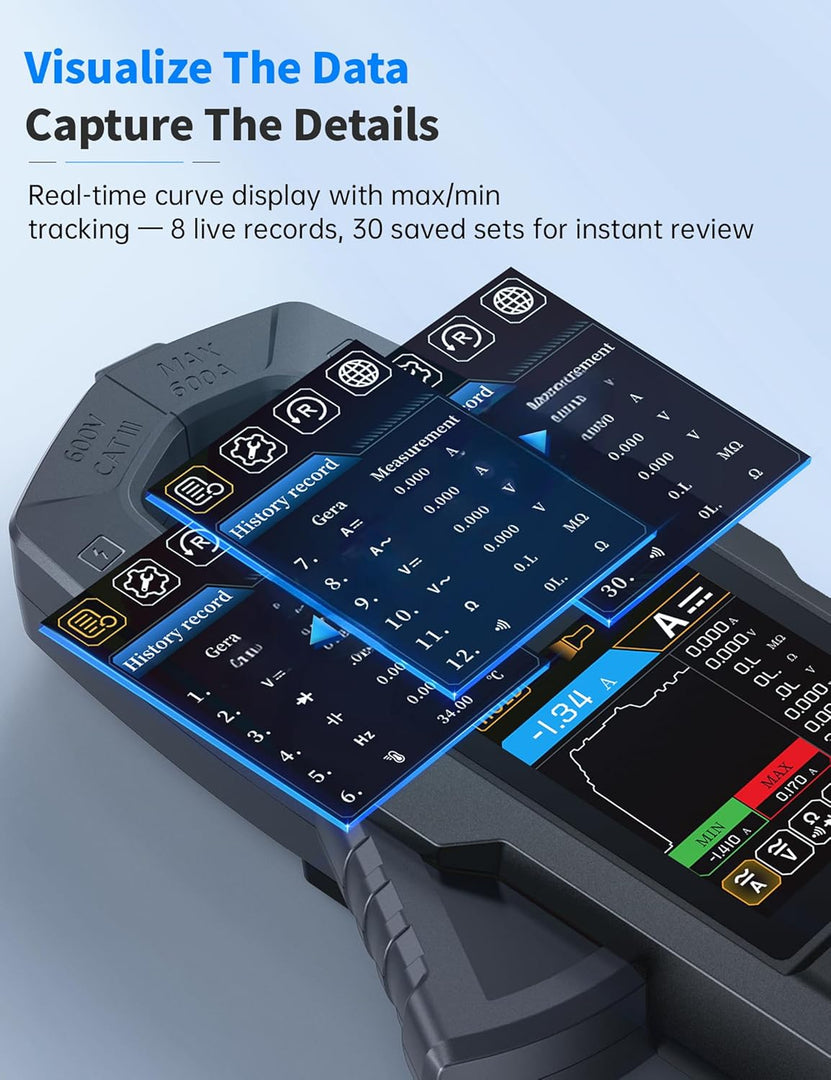

• Intuitive Interface: New UI with data curve display for easy reading at a glance.

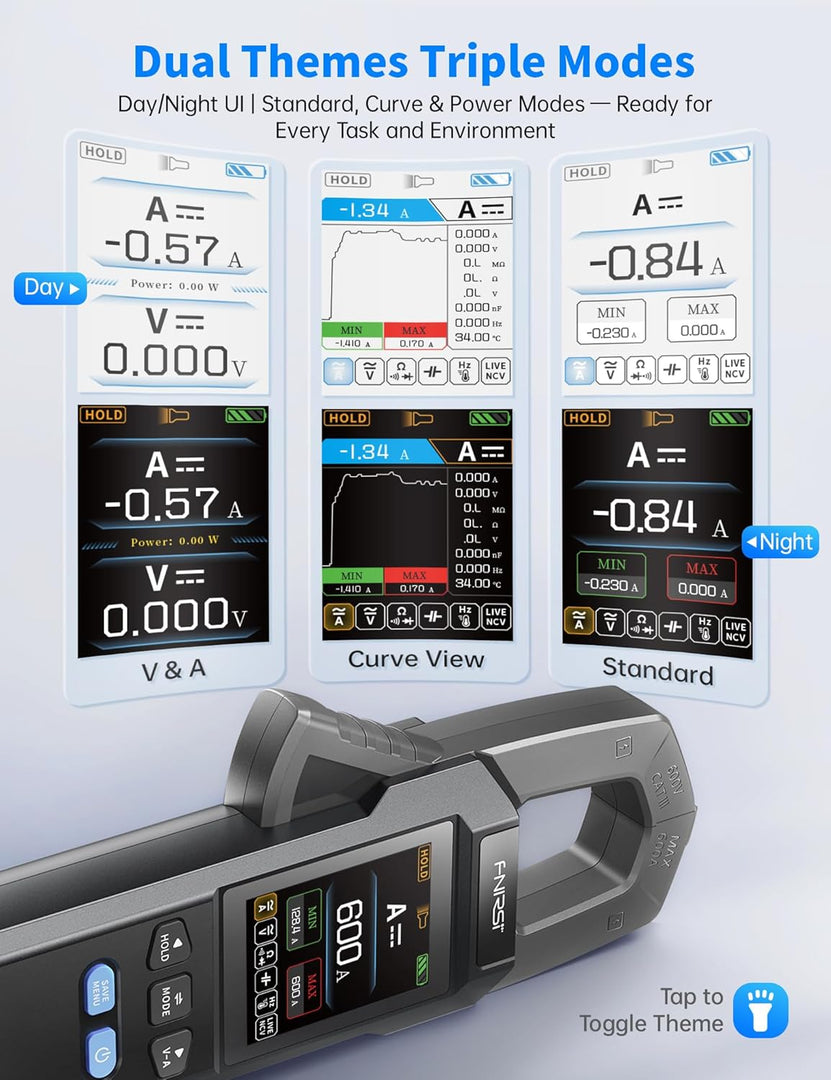

• Three Measurement Modes: Switch freely between general measurement, waveform display, and power measurement modes.

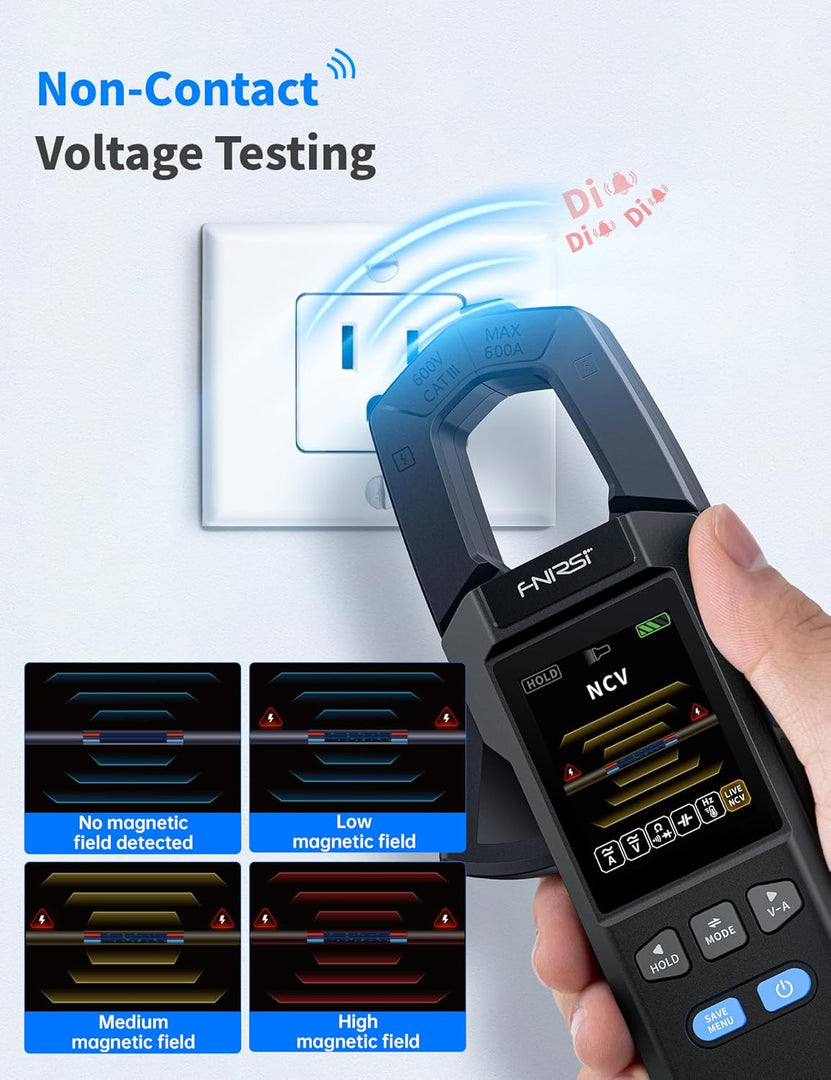

• NCV Function: Non-contact voltage measurement and zero/fire line identification.
• Wide Temperature Range: Measures temperatures from -55°C to 1300°C.

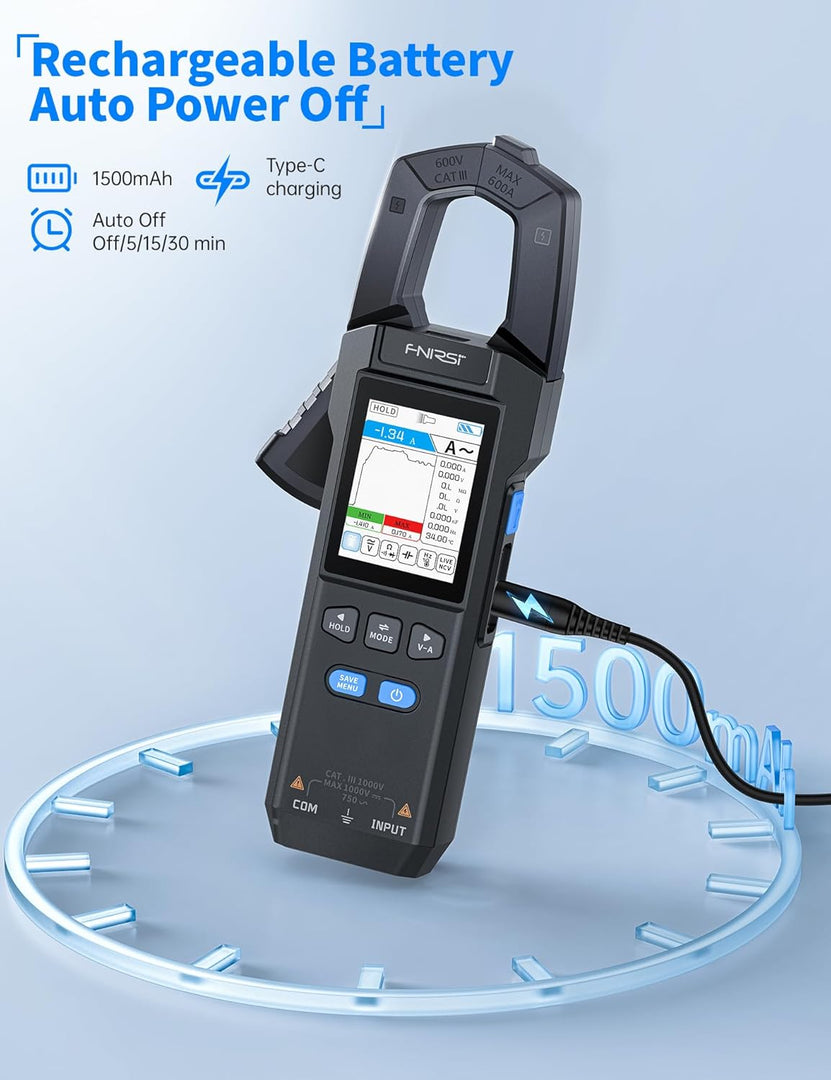

• Long-Lasting Battery: Built-in 3.7V 1500mAh battery for extended usage.
• Type-C Interface: Convenient charging and data transmission via Type-C port (only for firmware transmission).
• Additional Functions: Includes a flashlight, screen backlight, and data-saving capabilities.
• Auto Power-Off: Intelligent automatic shutdown to conserve battery life.
• Temperature Unit Switching: Easily switch between temperature units (℃/℉).
• Adjustable Brightness: Screen brightness is adjustable for various environments.
• Firmware Upgradeable: Supports firmware updates to enhance functionality.


SPECIFICATION

• Model: DMC-100
• Product Type: Digital Clamp Meter
• Display: 2.0-inch TFT Color Display
• Screen Resolution: 240 × 320 Pixels
• Battery: 3.7V 1500mAh Rechargeable Lithium Battery
• Charging Interface: USB Type-C (5V/1A)
• Maximum Jaw Opening: 25 mm
• Temperature Units: °C / °F
• Product Dimensions: 193 × 74 × 32 mm
• Weight: Approx. 194 g
• DC Voltage: 9.999V / 99.99V / 999.9V
• AC Voltage: 9.999V / 99.99V / 750V
• DC Current: 99.99A / 600A
• AC Current: 4A / 40A / 600A
• Resistance: 400Ω / 4kΩ / 40kΩ / 400kΩ / 4MΩ / 40MΩ (Max Display: 99.99MΩ)
• Capacitance: 9.999nF – 99.99mF
• Frequency: 9.999Hz – 9.999MHz
• Temperature Range: -55°C to 1300°C (-67°F to 2372°F)
• Diode Test: Supported
• Continuity Test: Supported
• Non-Contact Voltage (NCV): Supported
• Live/Neutral Wire Detection: Supported
• Measurement Modes: General Measurement, Waveform Display, Power Measurement
• Range Selection: Manual
• Flashlight: Supported
• Data Zeroing: Supported
• MAX/MIN Measurement: Supported
• Waveform Display: Supported
• Power Calculation: Supported
• Data Hold: Supported
• Data Storage: Up to 30 Measurement Records
• Languages: English / Chinese
• Brightness Adjustment: 10 Levels
• Auto Power-Off: Off / 5 min / 15 min / 30 min
• Firmware Upgrade: Supported
• Applications: Electrical Maintenance, Industrial Testing, HVAC, Automotive, Home Electrical Inspection, Electronics Repair
