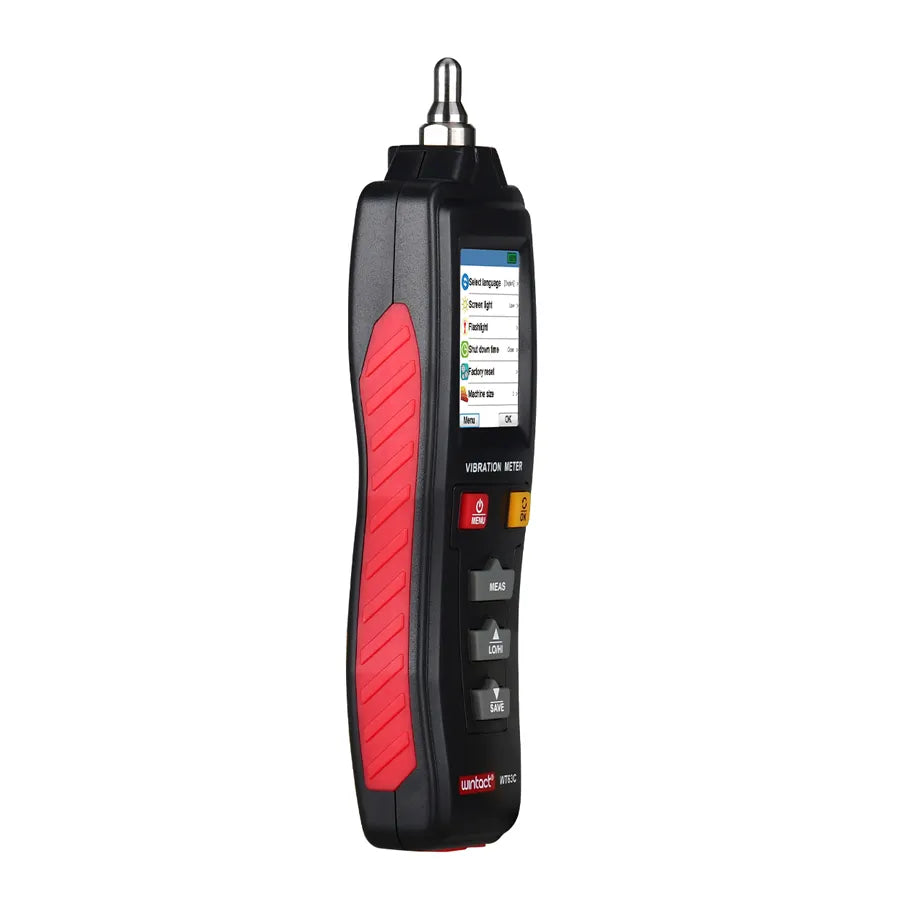

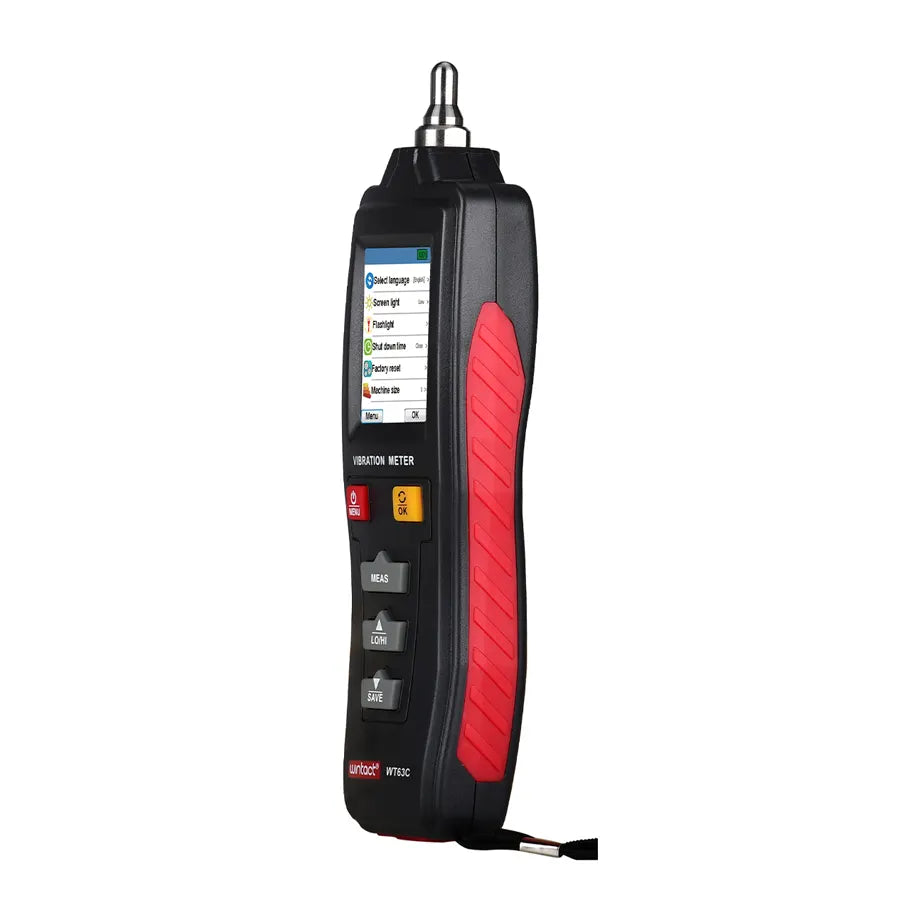

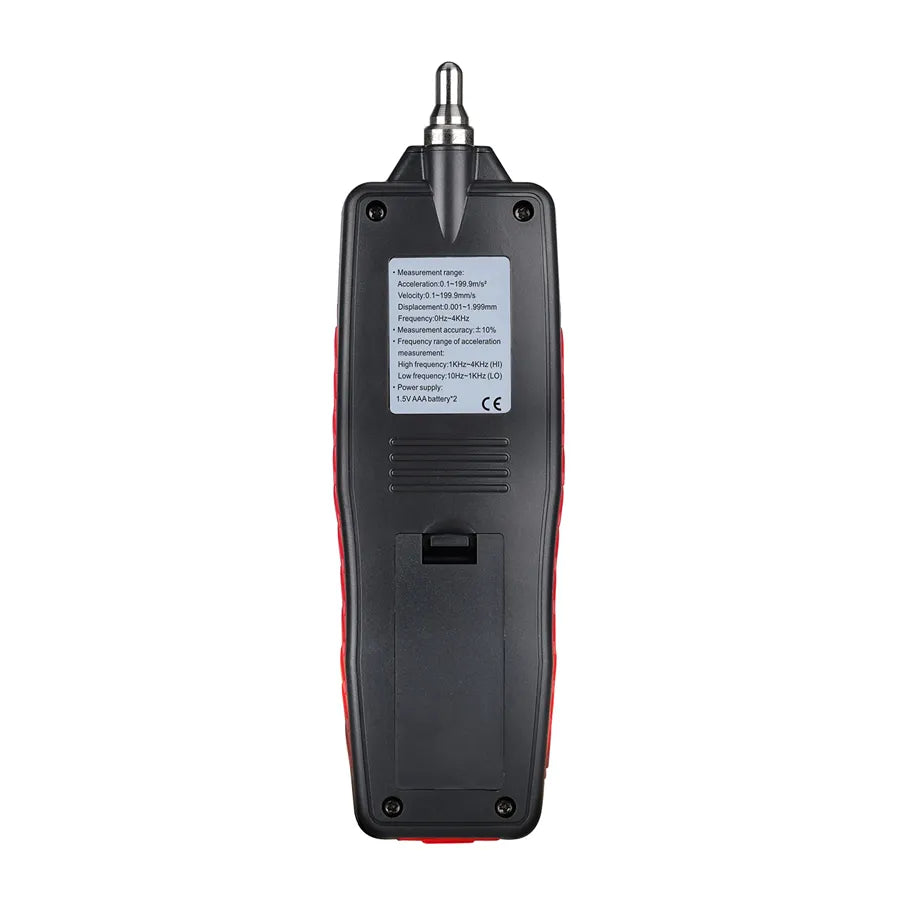

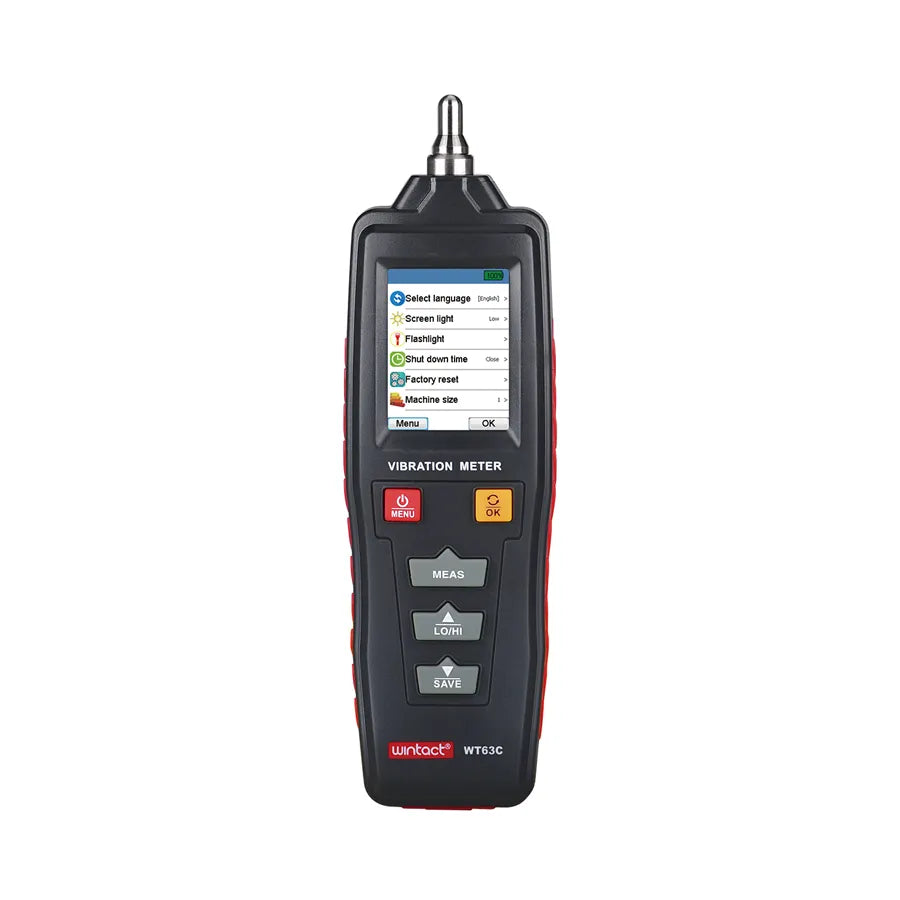

LABART Digital Vibration Meter WT63C
Regular price
Rs. 30,200.00
Sale price
Rs. 23,392.00
(Incl. of all taxes)
Unit price
per
-
SPECIFICATION
-
TECHNICAL SPECIFICATIONS
-
RESOURCES
-
SHIPPING
-
REVIEW
SPECIFICATION
Experience accurate vibration measurement with our LABART Digital Vibration Meter WT63C, utilizing the piezoelectric effect of artificially polarized ceramics. Perfect for traditional measurement of mechanical equipment, particularly for rotating and reciprocating machinery. Measure acceleration, velocity, displacement, and frequency with ease, making it indispensable in industries such as machinery manufacturing, electric metallurgy, and general aerospace. Luxurious and exclusive, this premium product elevates vibration measurement to a sophisticated level.
FEATURE
- Acceleration/Velocity/Displacement.

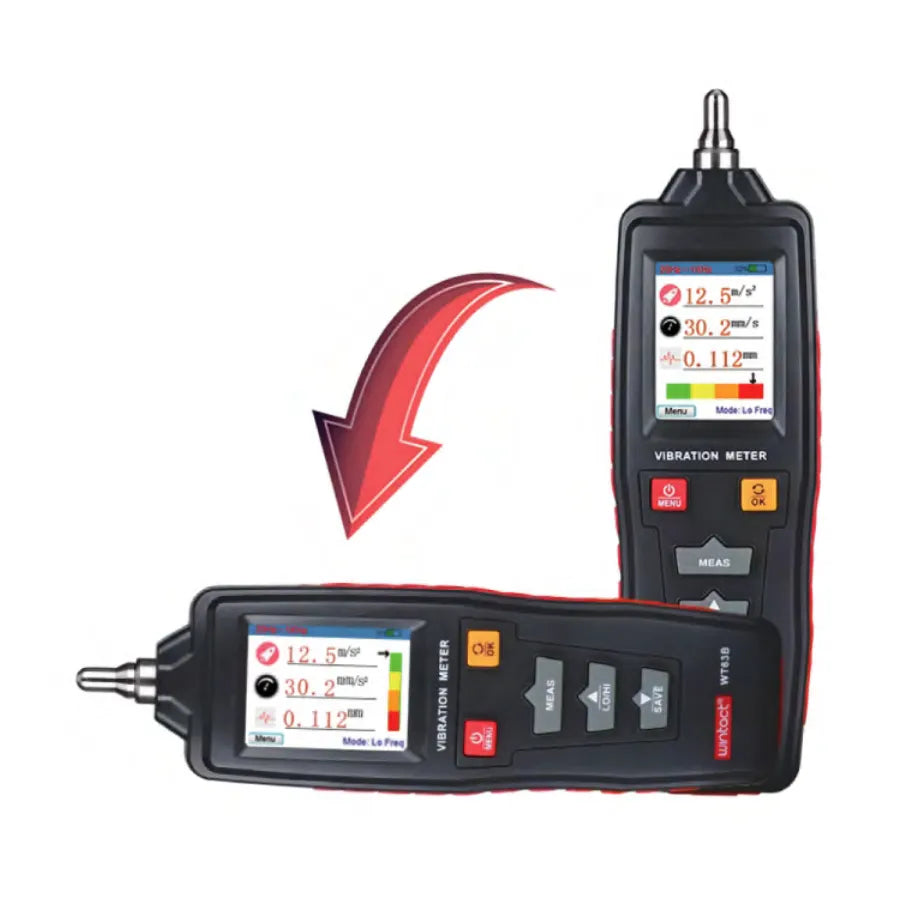

- Screen flipping.
- Switch acceleration measurement between high and low frequency.
- high frequency (1KHz~4KHz) /low frequency (10Hz~1KHz).
- Curve display.
- Store and view files.
- Power indicator.
- Double measurement button.
- Flashlight.
- Brightness control.
- Select Chinese/English.
- Shutdown time setting.
- Selection of machine level.
- Measurement of vibration frequency.
SPECIFICATION
|
Technical parameters
|
Technical indicators
|
|
Vibration acquisition
|
Piezoelectric ceramic accelerometer (shear type)
|
|
Measurement range
|
Acceleration：0.1~199.9m/s2 Velocity：0.1~199.9mm/s Displacement：0.001~1.999mm Frequency:0Hz~4KHz
|
|
Measurement accuracy
|
±10%
|
|
Frequency range of acceleration measurement
|
High frequency：1KHz～4KHz (HI)  Low frequency：10Hz～1KHz ( LO)
|
|
Frequency range of speed measurement
|
10Hz～1KHz (LO)
|
|
Frequency range of displacement measurement
|
10Hz～1KHz (LO)
|
|
Maximum groups of data storage
|
500 pieces (5 groups * 100 pieces/group)
|
|
Power supply
|
1.5V AAA battery*2
|
|
Temperature range for operation
|
0~40℃
|
|
Humidity range for operation
|
30~90%RH
|
|
Size
|
180x54x30mm
|
|
Weight
|
>150g(with batteries)
|
We are dedicatedly involved in providing an excellent quality array of Labart Measuring Instrument
TECHNICAL SPECIFICATIONS
| Technical indicators | Vibration acquisition |
| Sensor type | Piezoelectric ceramic accelerometer (shear type) |
| Measurement range |
Acceleration: 0.1~199.9 m/s² Velocity: 0.1~199.9 mm/s Displacement: 0.001~1.999 mm Frequency: 0 Hz~4 KHz |
| Measurement accuracy | ±10% |
| Frequency range (acceleration) | High frequency: 1 KHz~4 KHz (HI) Low frequency: 10 Hz~1 KHz (LO) |
| Frequency range (velocity) | 10 Hz~1 KHz (LO) |
| Frequency range (displacement) | 10 Hz~1 KHz (LO) |
| Data storage capacity | 500 pieces (5 groups × 100 pieces/group) |
| Power supply | 1.5V AAA battery × 2 |
| Operating temperature | 0~40°C |
| Operating humidity | 30~90%RH |
| Size | 180 × 54 × 30 mm |
| Weight | >150 g (with batteries) |
RESOURCES
SHIPPING
For orders placed before 4PM IST, we endeavour to process the same business day. Orders placed after 4PM IST will be processed the next business day.
During sale events and new collection launches, there may be a slighly longer processing time.
