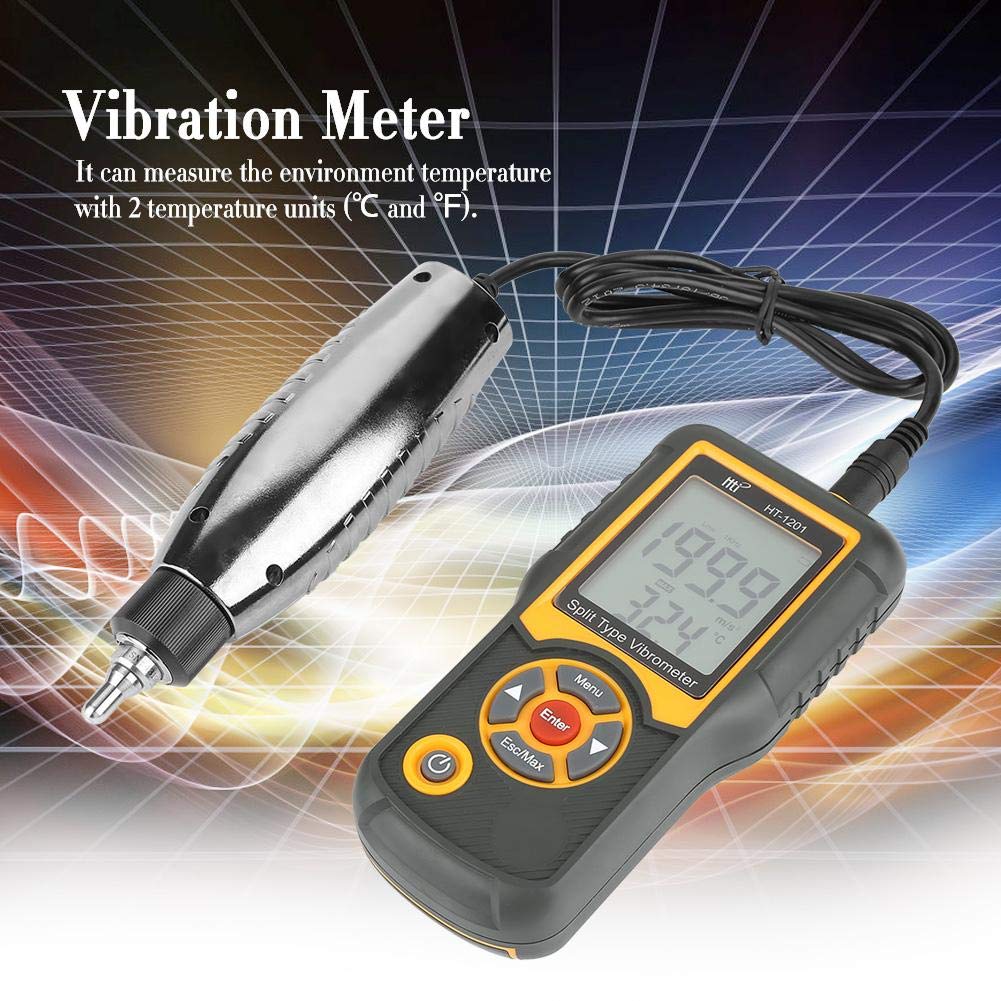

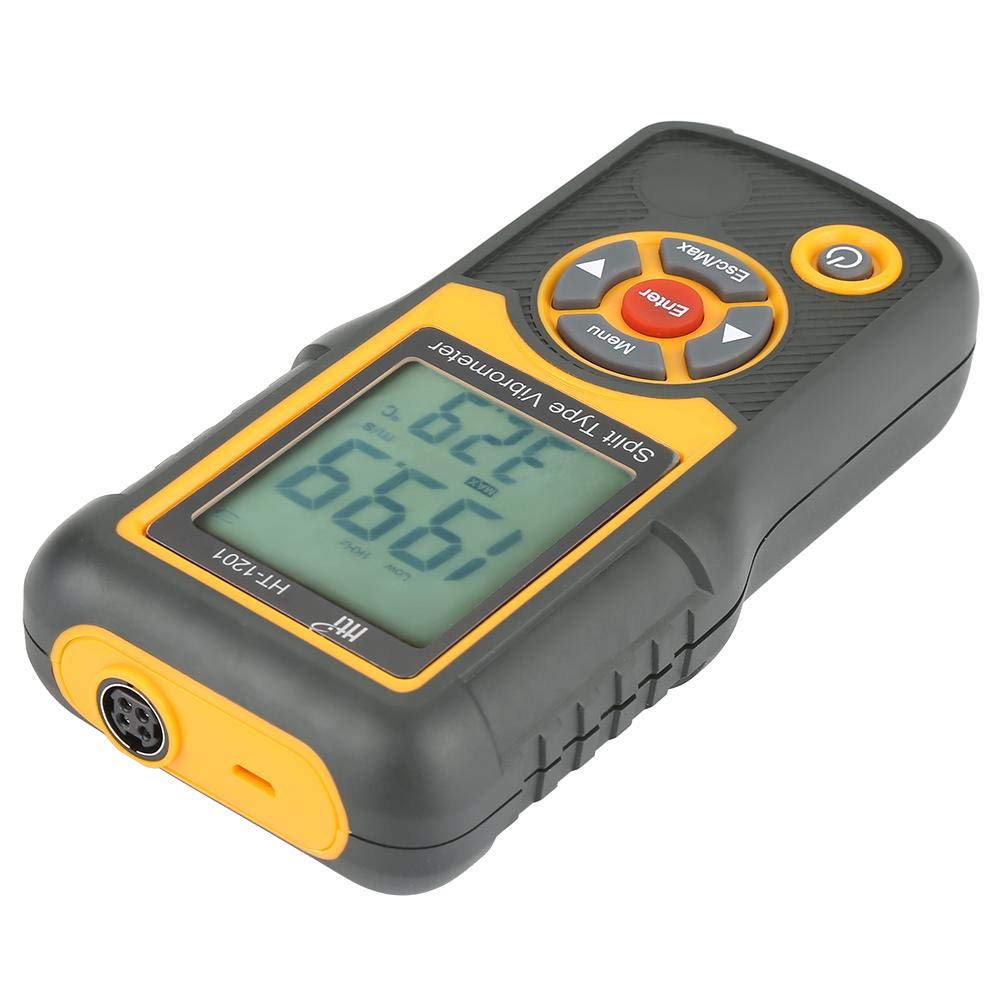

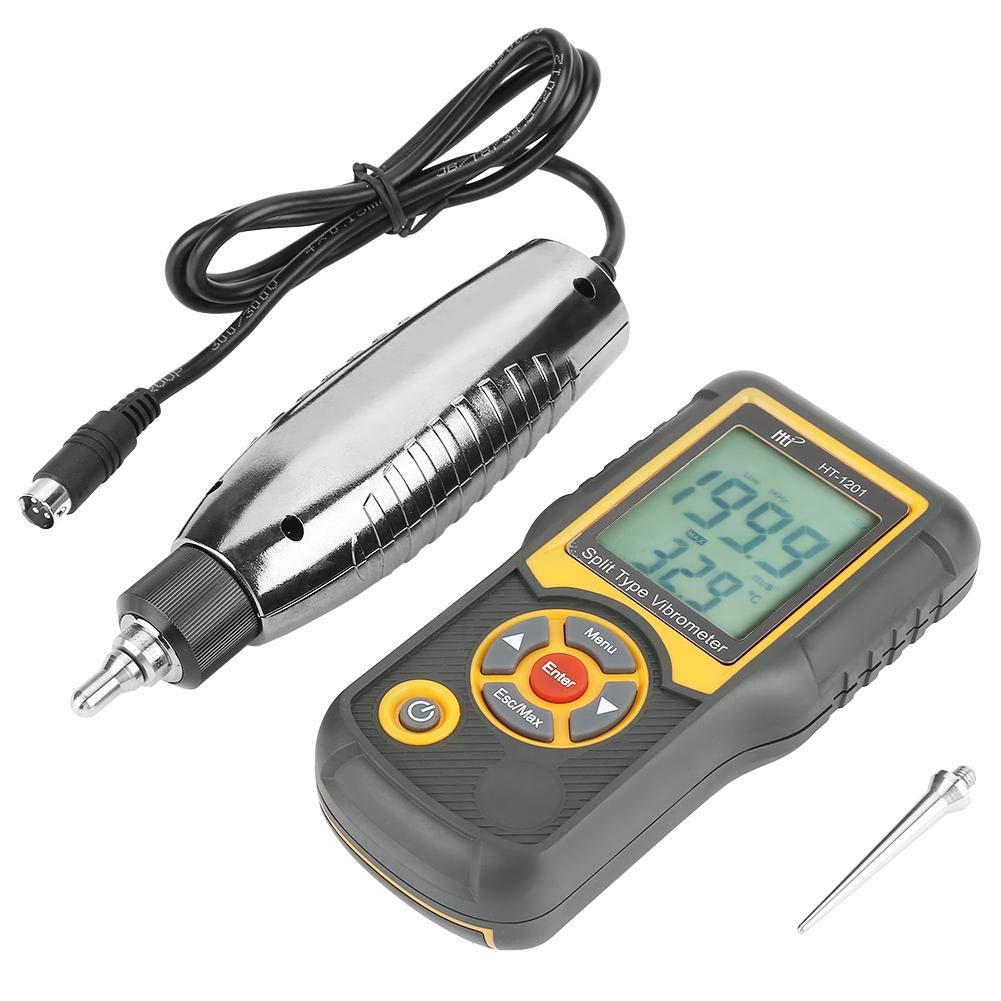

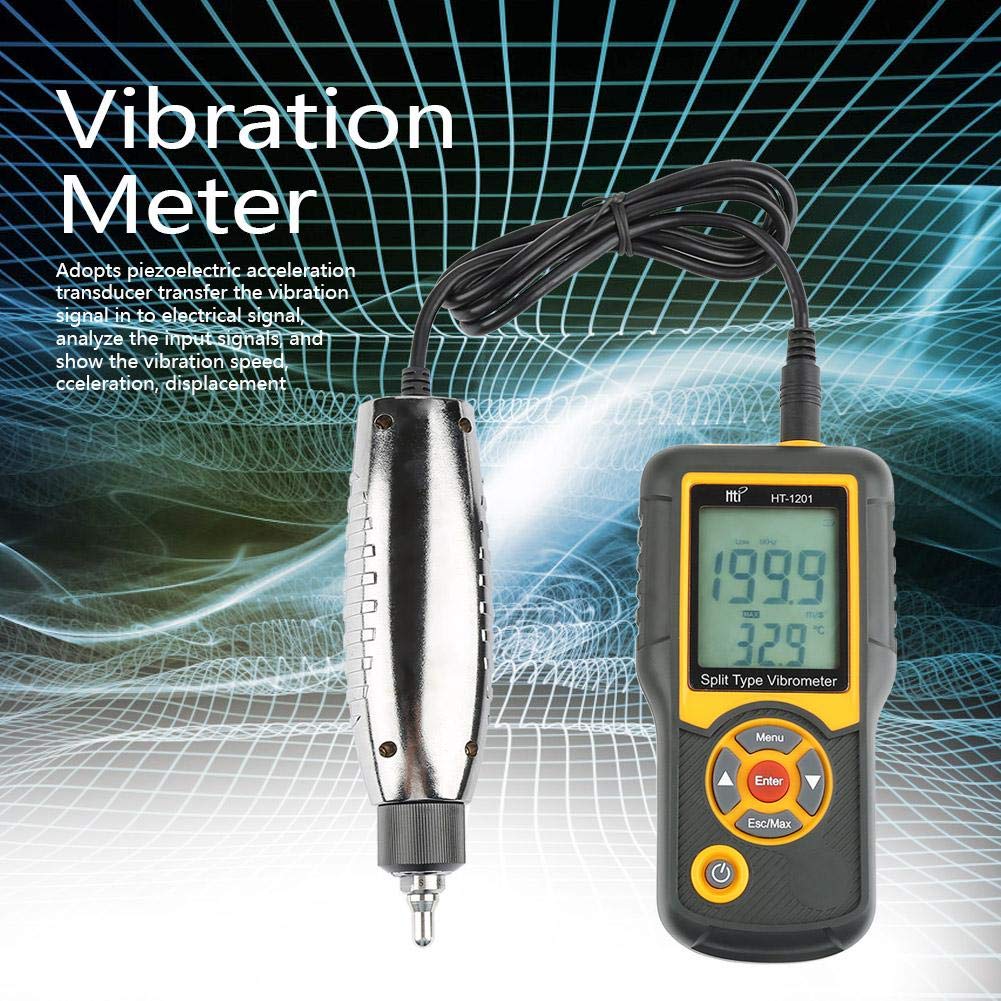

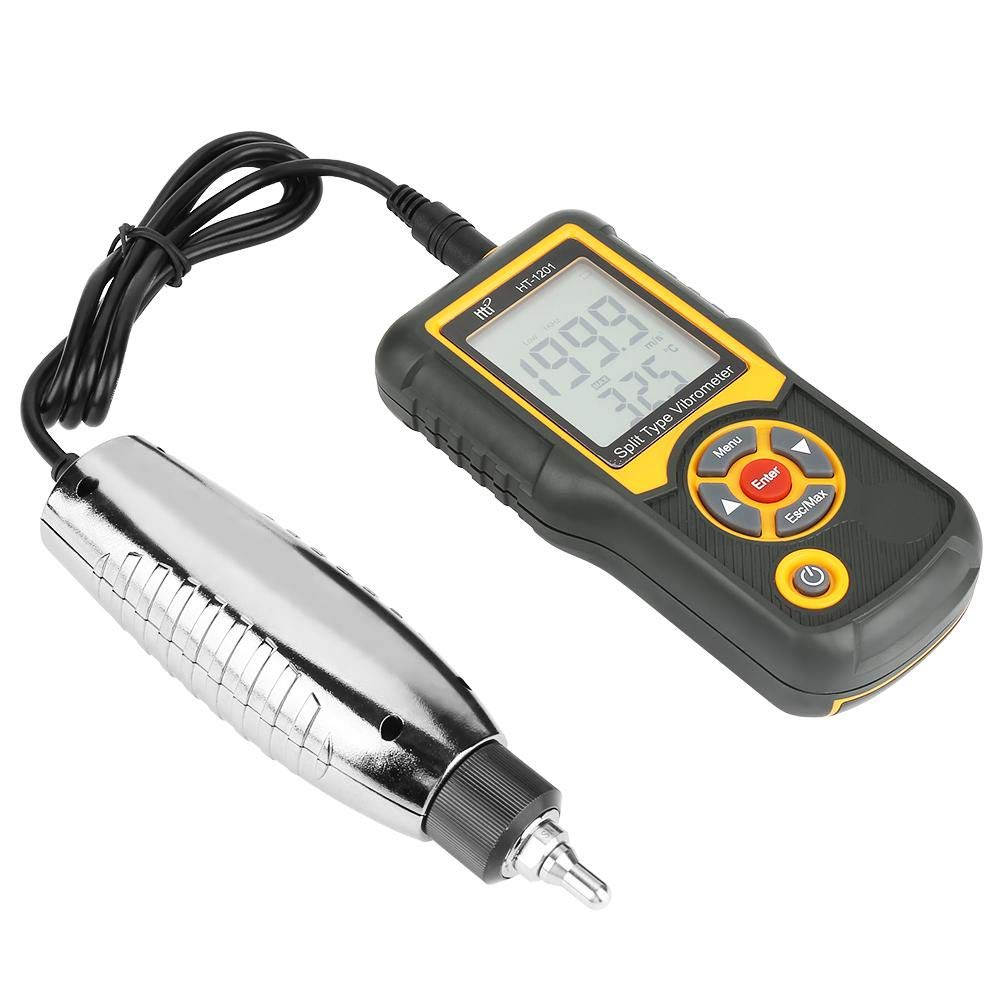

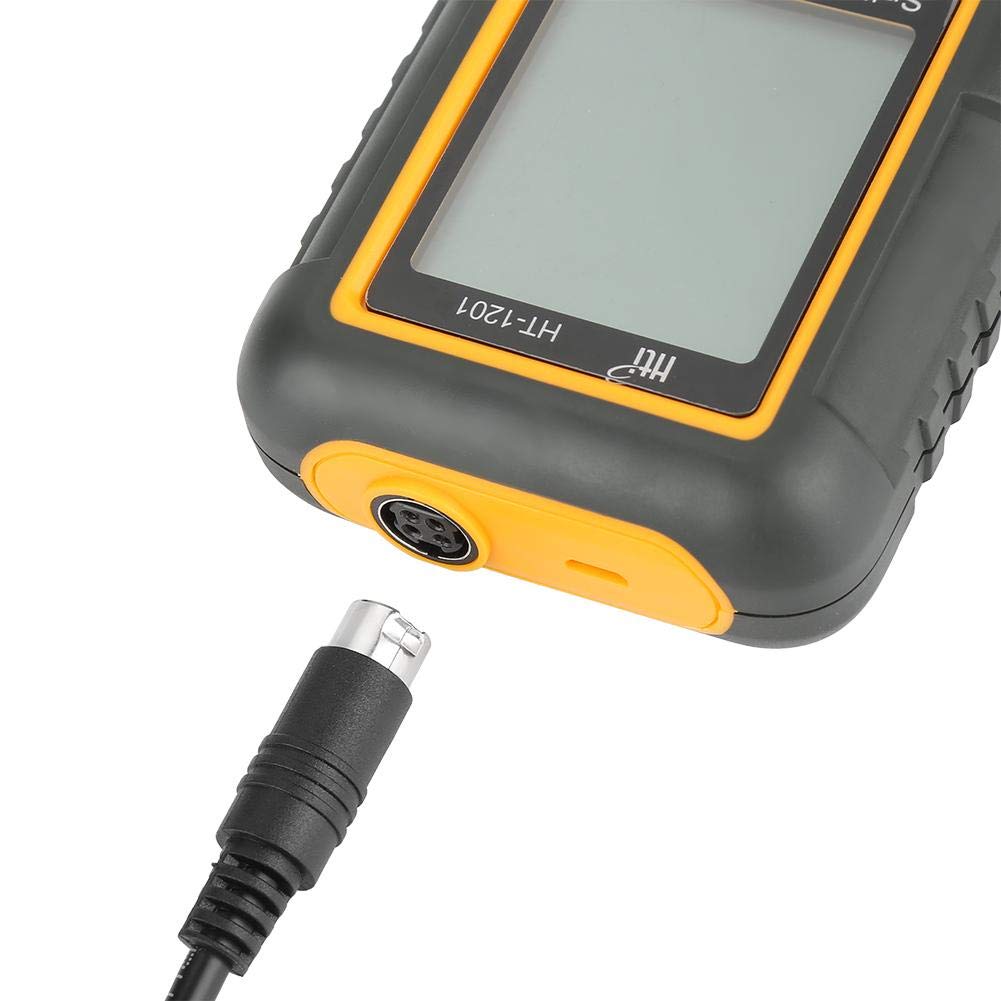

LABART Digital Vibration Meter HT1201
Regular price
Rs. 11,500.00
Sale price
Rs. 10,200.00
(Incl. of all taxes)
Unit price
per
-
SPECIFICATION
-
TECHNICAL SPECIFICATIONS
-
RESOURCES
-
SHIPPING
-
REVIEW
SPECIFICATION
The LABART HT1201 Digital Vibration Meter utilizes a piezoelectric acceleration sensor to accurately measure traditional vibrations in mechanical equipment. It can quantify speed, acceleration, and displacement, making it a versatile tool for use in mechanical manufacturing, electric power, chemical engineering, and even aerospace industries.
FEATURE
- RANGE: Wide measurement range of acceleration: 0.1~199.9m/s2 peak; Speed: 0.1-199.9mm/s (effective value); Displacement: 0.001-1.999mm (effective value)
- HIGH QUALITY: The product adopts piezoelectric type acceleration sensor and is suitable for measurement of conventional vibration of mechanical equipment.
- DUAL UNITS DESIGN: It can measure the environment temperature with 2 temperature units (and), you can choose a suitable one for your need, convenient and easy to operate.
- MULTI-FUNCTION: It can measure the vibration speed, acceleration, displacement and is widely used in mechanical manufacturing, electric power, chemical engineering, space flight and aviation and other fields.
-
WIDE APPLICATION: Widely used in mechanical manufacturing, electric power, chemical engineering, space flight and aviation and other fields
SPECIFICATION
- Vibration acquisition: piezoceramic accelerometer (shearing type )
- LCD display: three and a half digit display
- Measurement range Acceleration: 0.1 – 199.9m/s2( peak value) Speed: 0.1 –199.9mm/s(effective value) Displacement: 0.001 – 1.999mm (effective value)
- Measurement accuracy: ±(5%+2digits)
- Frequency range: Acceleration: 15Hz – 1KHz (LO)；1KHz – 10KHz (HI) Speed: 15Hz – 1KHz (LO) Displacement: 15Hz – 1KHz (LO)
- Temperature measurement 0℃ – 60℃
- Temperature accuracy: ±2℃
- Automatic power-off time: 4 minutes
- Power supply: 3 AA batteries
- Operation temperature: 0℃ – 45℃
- Operation humidity: 20%RH – 90%RH(No condensation)
- Storage temperature: -20℃ – 60℃
We are dedicatedly involved in providing an excellent quality array of Labart Measuring Instrument
TECHNICAL SPECIFICATIONS
| Vibration acquisition | Piezoceramic accelerometer (shearing type) |
| LCD display | Three and a half digit display |
| Measurement range |
Acceleration: 0.1 – 199.9 m/s² (peak) Speed: 0.1 – 199.9 mm/s (effective value) Displacement: 0.001 – 1.999 mm (effective value) |
| Measurement accuracy | ±(5% + 2 digits) |
| Frequency range |
Acceleration: 15 Hz – 1 KHz (LO); 1 KHz – 10 KHz (HI) Speed: 15 Hz – 1 KHz (LO) Displacement: 15 Hz – 1 KHz (LO) |
| Temperature measurement | 0℃ – 60℃ |
| Temperature accuracy | ±2℃ |
| Auto power-off | 4 minutes |
| Power supply | 3 × AA batteries |
| Operating temperature | 0℃ – 45℃ |
| Operating humidity | 20%RH – 90%RH (No condensation) |
| Storage temperature | -20℃ – 60℃ |
