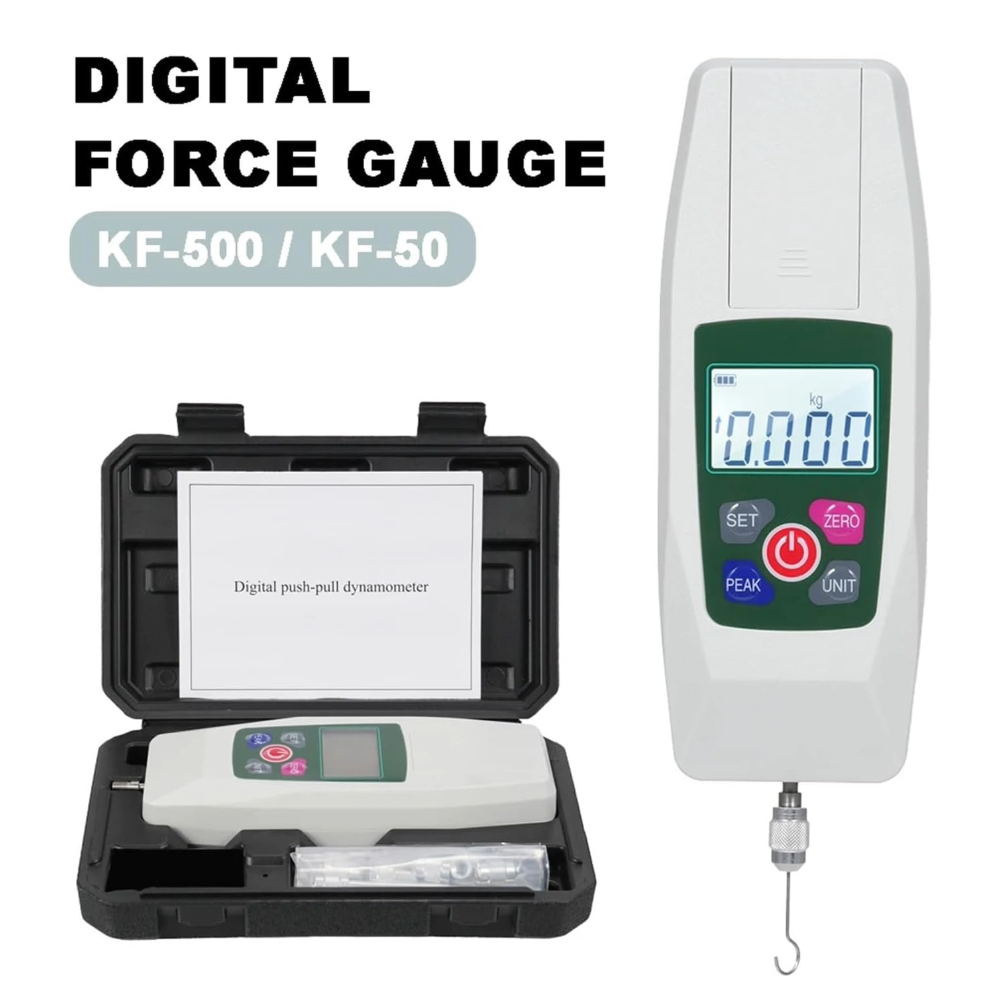

LABART Digital Push Pull Force Gauge Dynamometer KF-500
Regular price
Rs. 15,000.00
Sale price
Rs. 9,999.00
(Incl. of all taxes)
Unit price
per
-
SPECIFICATION
-
TECHNICAL SPECIFICATIONS
-
RESOURCES
-
SHIPPING
-
REVIEW
SPECIFICATION

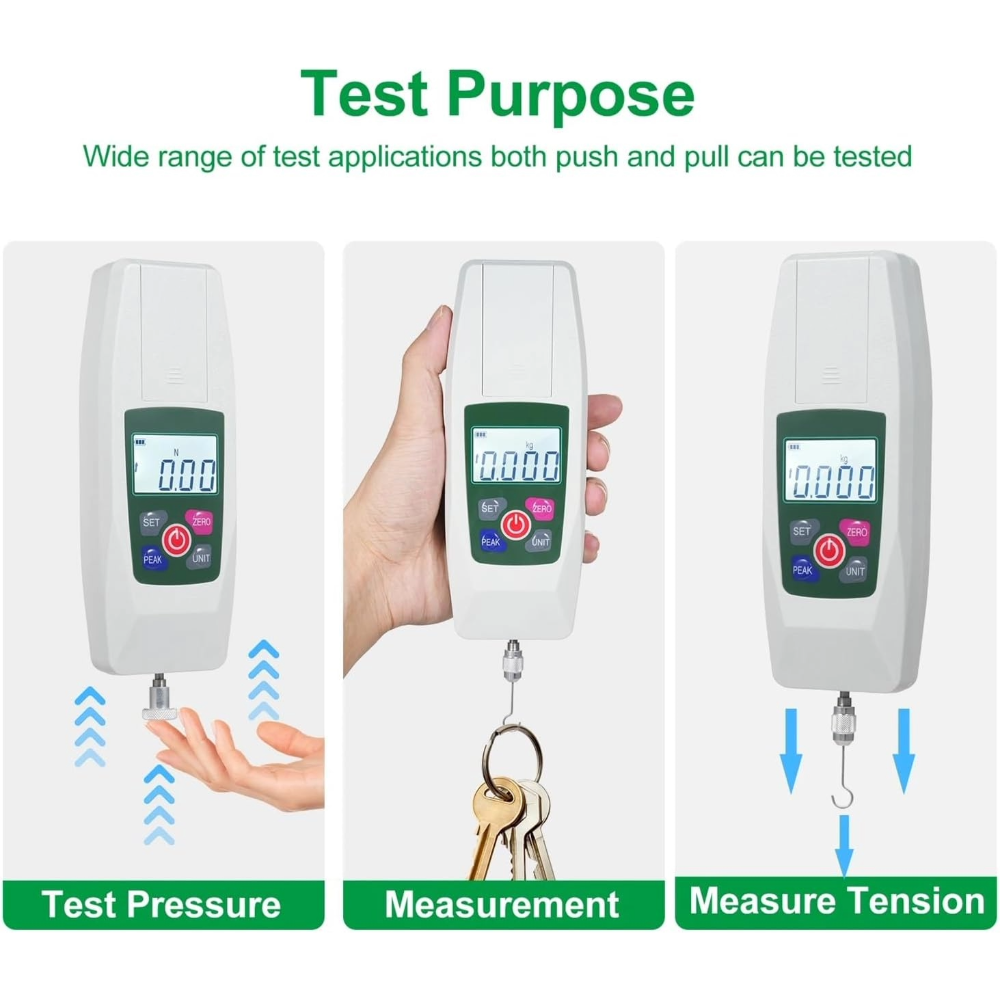

The LABART Digital Push Pull Force Gauge Dynamometer KF-500 is a sophisticated and exclusive instrument, designed for precise push-pull force testing. With its compact size, fast sampling speed, and user-friendly features, this high-precision device is ideal for use in various industries such as electronics, hardware, automotive, textiles, and scientific research. It provides real-time, peak, and first-peak measurements in multiple units, making it a reliable tool for quality control and force measurement tasks.
FEATURE

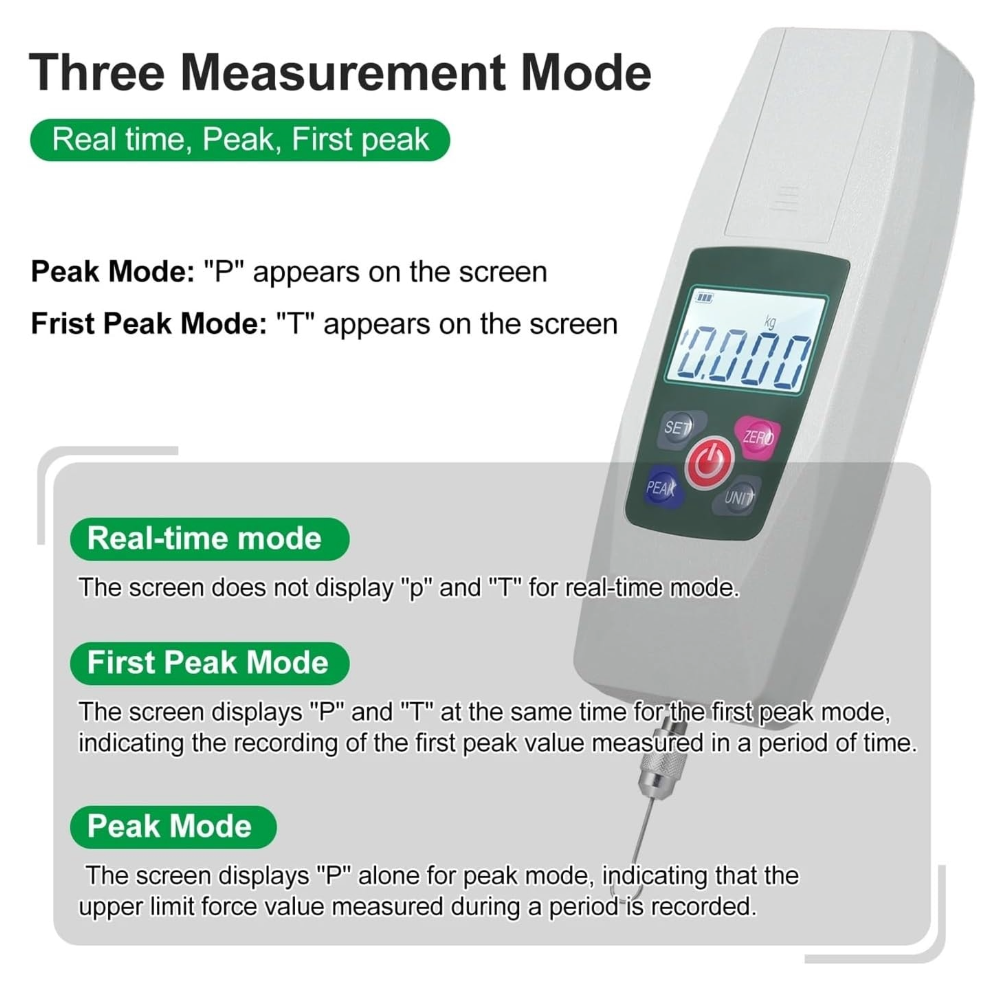

- Three Test Modes: Real-time, peak, and first-peak force detection.

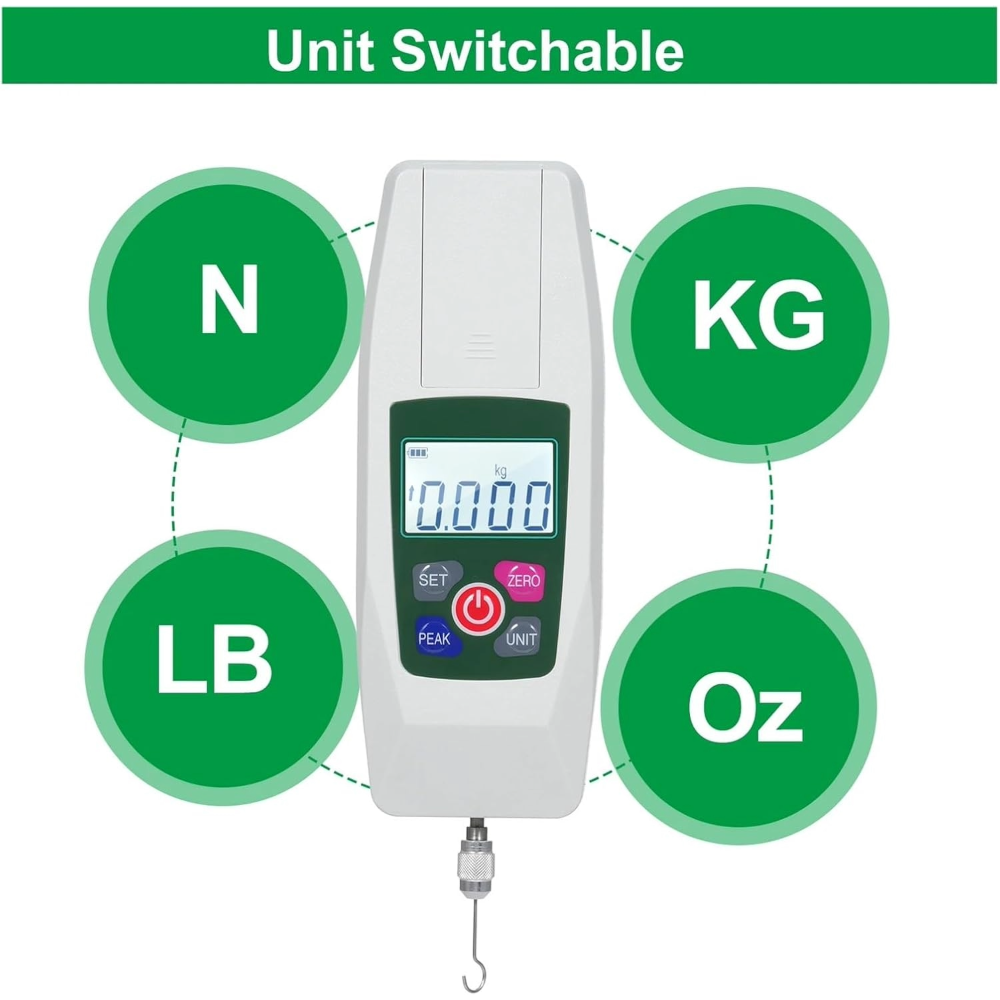

- Four Measurement Units: Switchable display between Newton (N), Kilogram (Kg), Pound (Lb), and Ounce (Oz).
- Acceleration Calibration: Manually input local acceleration value for enhanced accuracy.
- Upper/Lower Limit Alarm: Configurable buzzer alarm alerts when force values exceed defined thresholds.
- Minimum Force Shielding: Filter out minor readings below a specified force level.
- Auto Power-Off: Set auto shutoff time to conserve battery when idle.
- Backlit Display: Automatic backlight ensures visibility in all lighting conditions.
- Battery Powered: Operates on 2 x 1.5V AA batteries (not included).
SPECIFICATION
| Specification | Details |
|---|---|
| Model | KF-500 |
| Material | ABS + Steel |

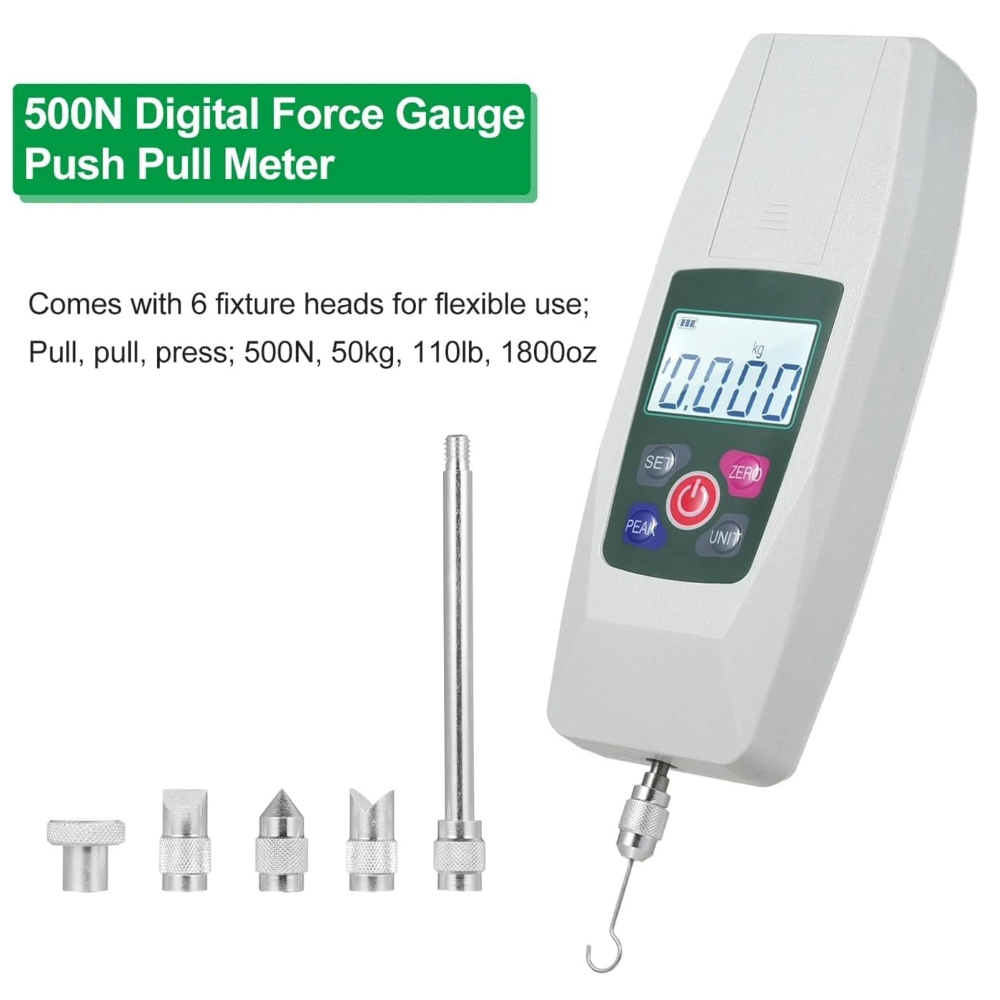

| Maximum Load Capacity | 500N / 110.2 lbs / 1800 oz |
| Resolution (Load Division) | 0.1N / 0.1lb / 1oz |
| Sensor Type | Internal Sensor |
| Accuracy | ±1% (from 10% to 100% of full scale) |
| Measurement Units | N, Kg, Lb, Oz |
| Measurement Modes | Real-time, Peak, First Peak |
| Power Supply | 2 x 1.5V AA Batteries (not included) |
|
Working Temperature Range Transportation Temperature Working Humidity |
5°C ~ 35°C -10°C ~ 60°C 15% ~ 80% RH |
| Backlight | Automatic |
| Alarm | Audible buzzer for limit alerts |
We are dedicatedly involved in providing an excellent quality array of Labart Measuring Instrument
TECHNICAL SPECIFICATIONS
| Load Cell Specifications | |
|---|---|
| Model | KF-500 |
| Material | ABS + Steel |
| Maximum Load Capacity | 500N / 110.2 lbs / 1800 oz |
| Resolution (Load Division) | 0.1N / 0.1lb / 1oz |
| Sensor Type | Internal Sensor |
| Accuracy | ±1% (from 10% to 100% of full scale) |
| Measurement Units | N, Kg, Lb, Oz |
| Measurement Modes | Real-time, Peak, First Peak |
| Power Supply | 2 x 1.5V AA Batteries (not included) |
| Working Temperature Range | 5°C – 35°C |
| Backlight | Automatic |
| Alarm | Audible buzzer for limit alerts |
