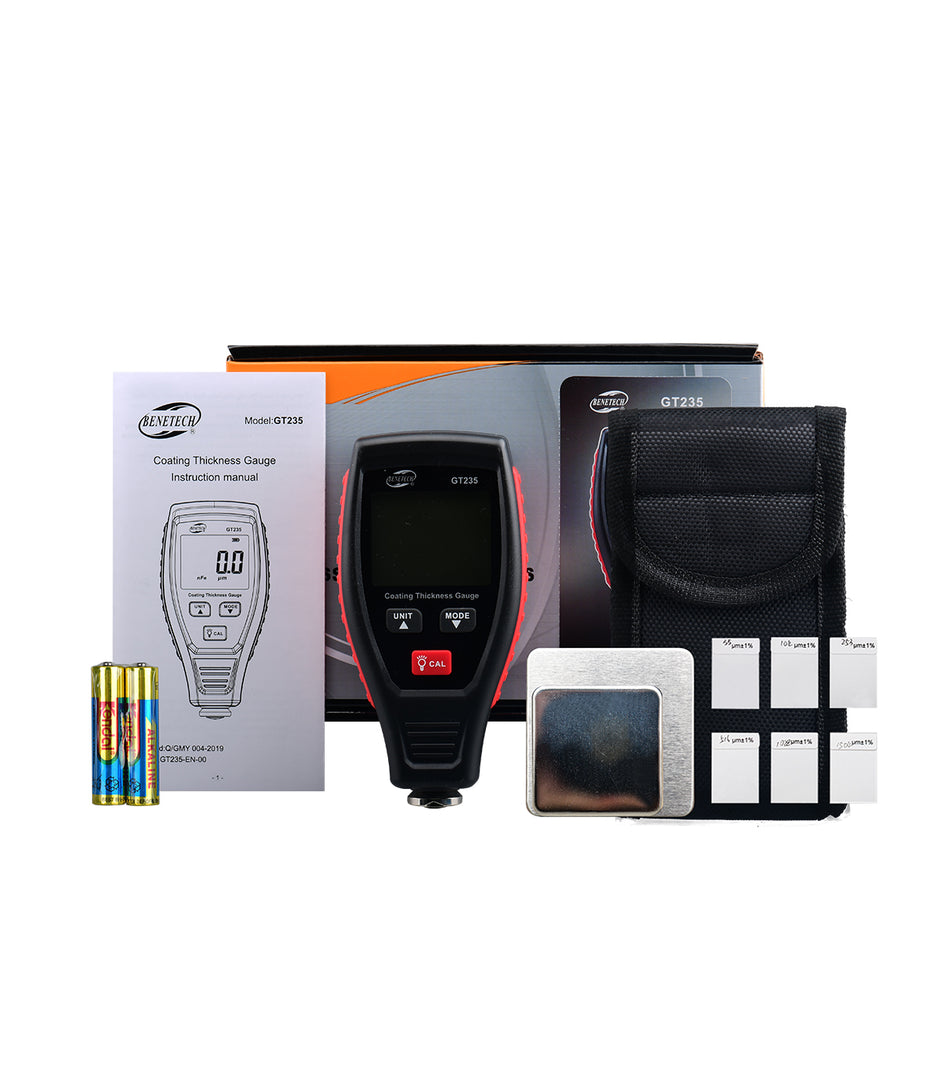

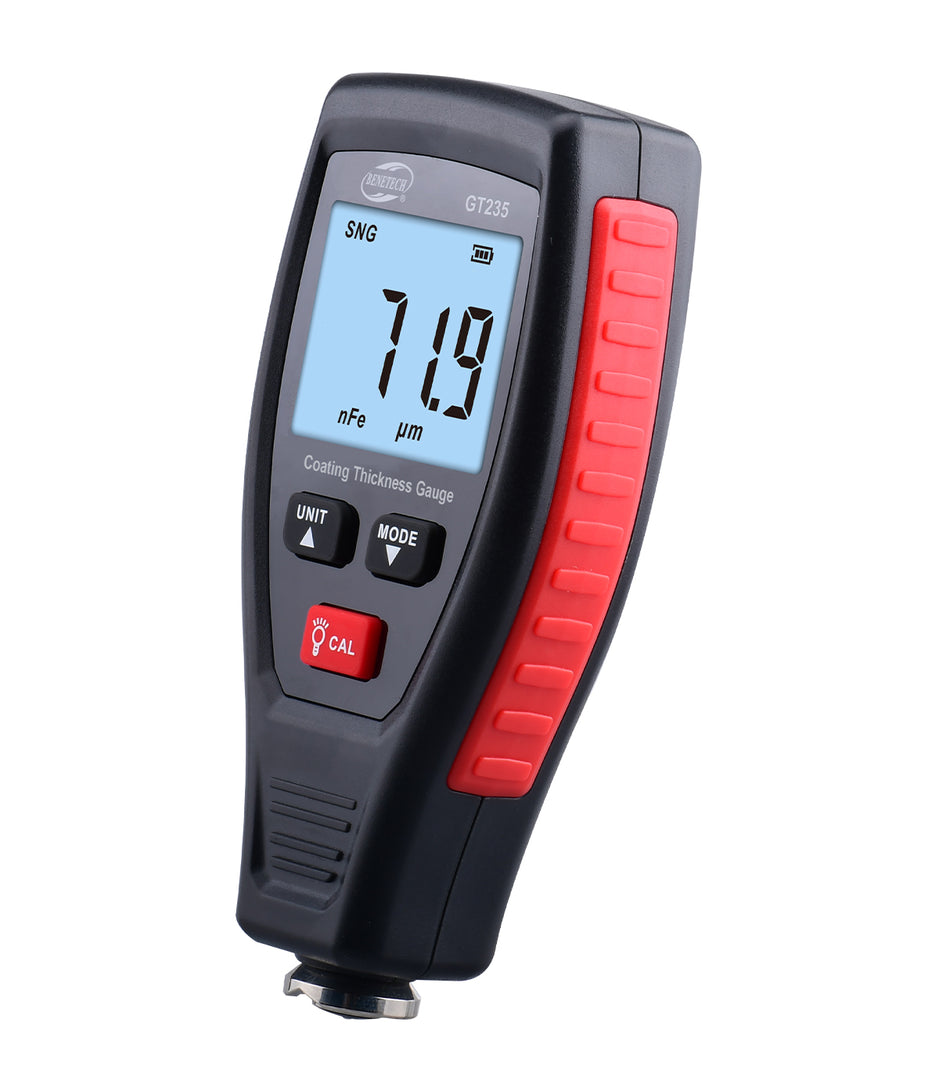

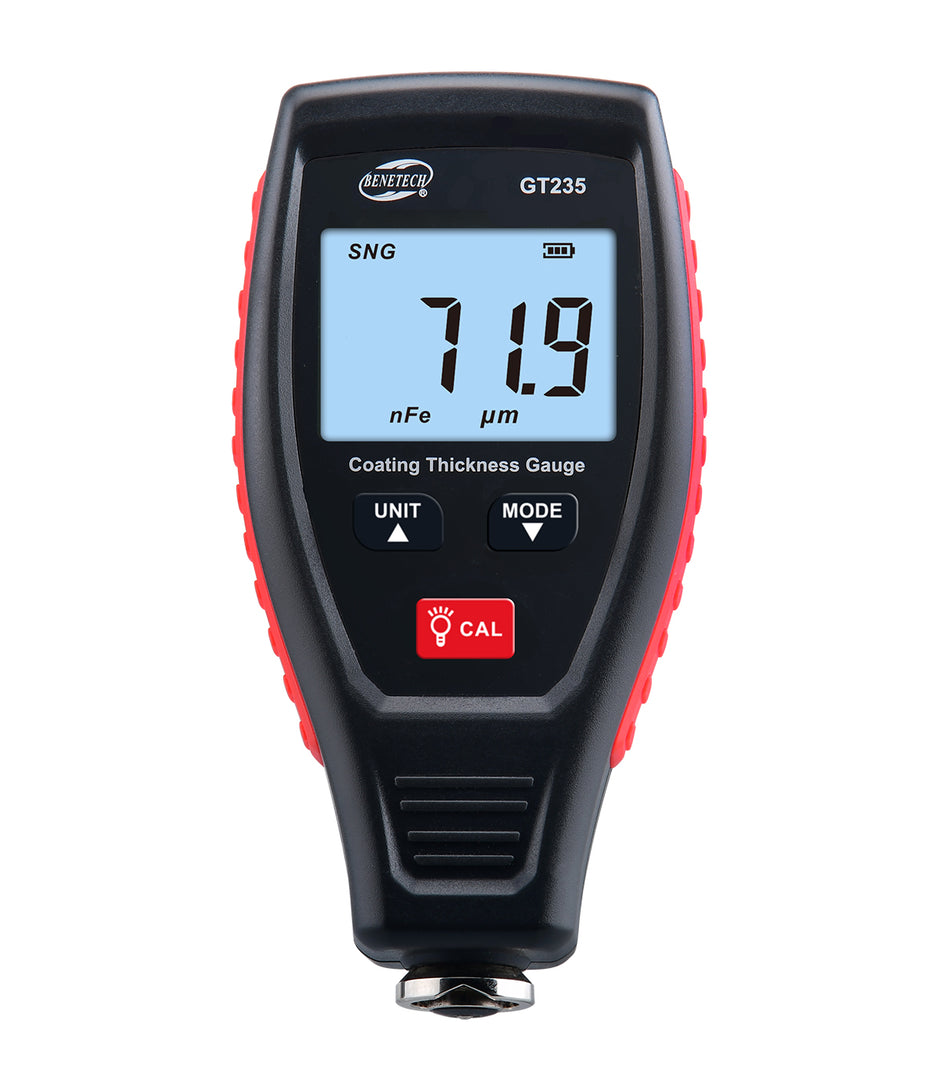

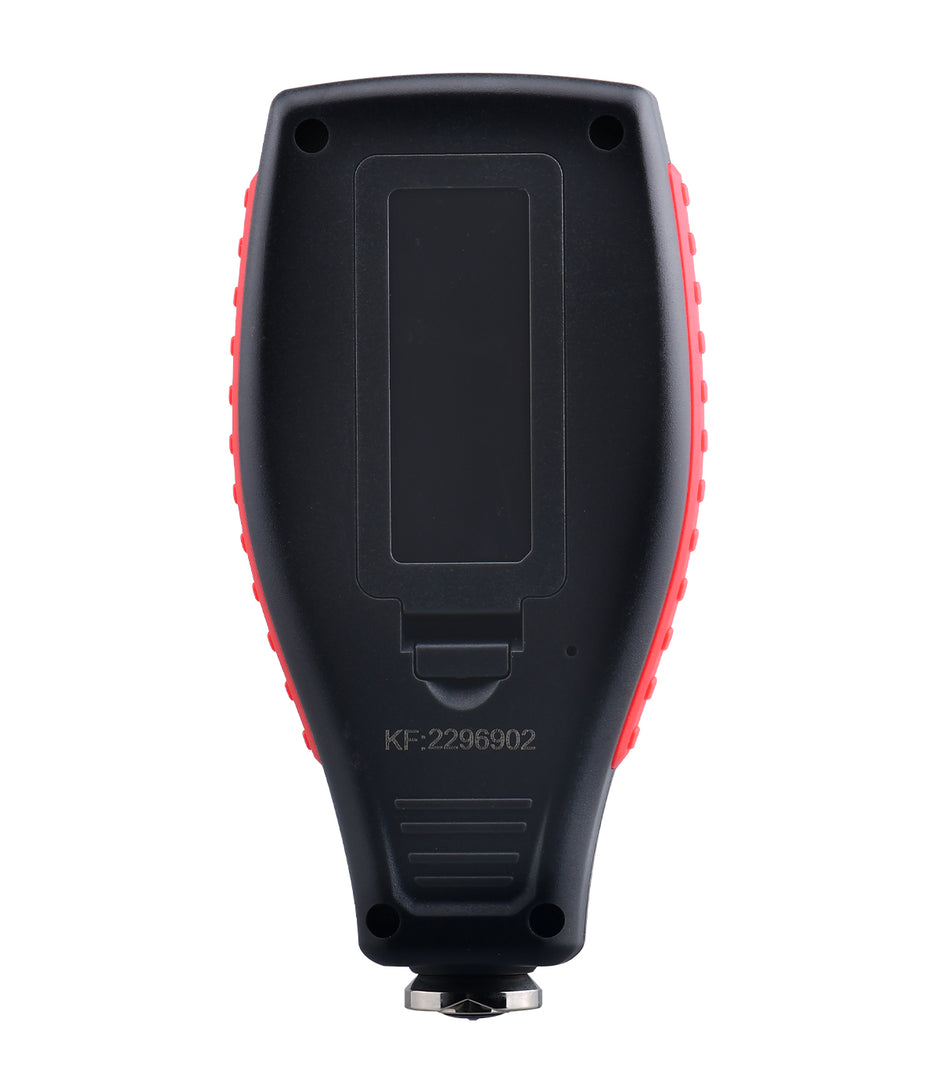

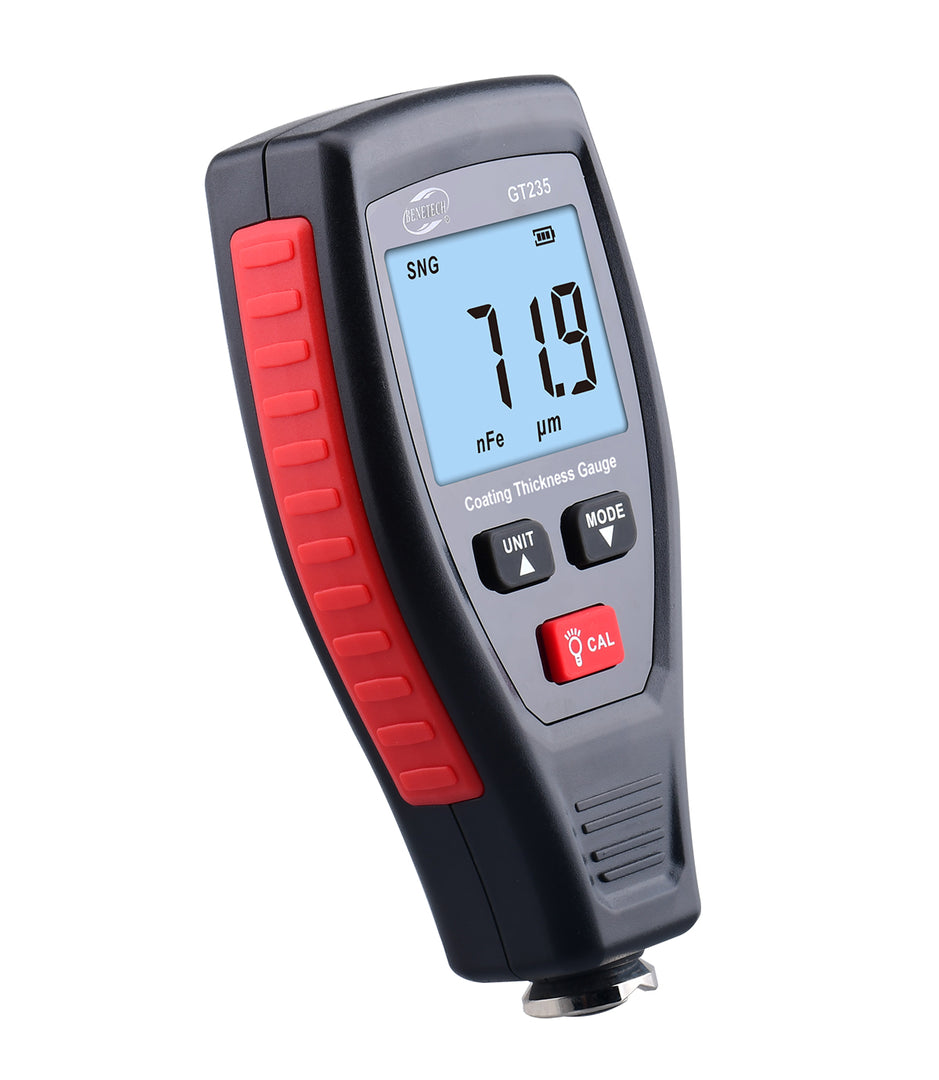

The LABART Digital Coating Thickness Gauge GT235 offers rapid and precise measurement of non-metallic coatings on non-magnetic metal substrates, as well as non-magnetic coatings on magnetic metal substrates. It features automatic identification of substrate types, ensuring accurate readings. This instrument is extensively utilized in sectors such as automotive manufacturing, metal fabrication, chemical processing, and quality control inspections.

FEATURE

• Measuring the thickness of non-magnetic coating on the magnetic metal substrate.
• Measuring the thickness of the non-metallic coating on the non-magnetic metal substrate.
• Automatically identifying the non-magnetic metal substrate and magnetic metal substrate.
• Single measurement, continuous measurement and differential measurement available.
• Zero-point calibration, Offset Calibration and basic calibration available.
• Metric and imperial units of measurement optional.
• LCD backlight.
•  Automatic shutdown.

SPECIFICATION

• Measurement ranges: 0 ~ 1800μm/70.8mil/1.8mm
• Resolution: (0.1μm(<100μm),1μm(≥100μm))/0.1mil/0.001mm
• Measuring error: ≤150μm， ±5μm >150 μm，±(3%H+1μm）
• Minimum diameter of magnetic substrate: 12mm
• Minimum thickness of magnetic substrate: 0.5mm
• Minimum curvature radius of convex magnetic substrate: 2mm
• Minimum curvature radius of concave magnetic substrate: 11mm
• Minimum diameter of non-magnetic substrate: 50mm
• Minimum thickness of non-magnetic substrate: 0. 5mm
• Operating temperature range: -20~40℃(It is recommended to calibrate it again when use in different environments, especially for large temperature difference)
• Operating humidity: 10~95%RH
• Power supply: 2*1.5V AAA batteries
