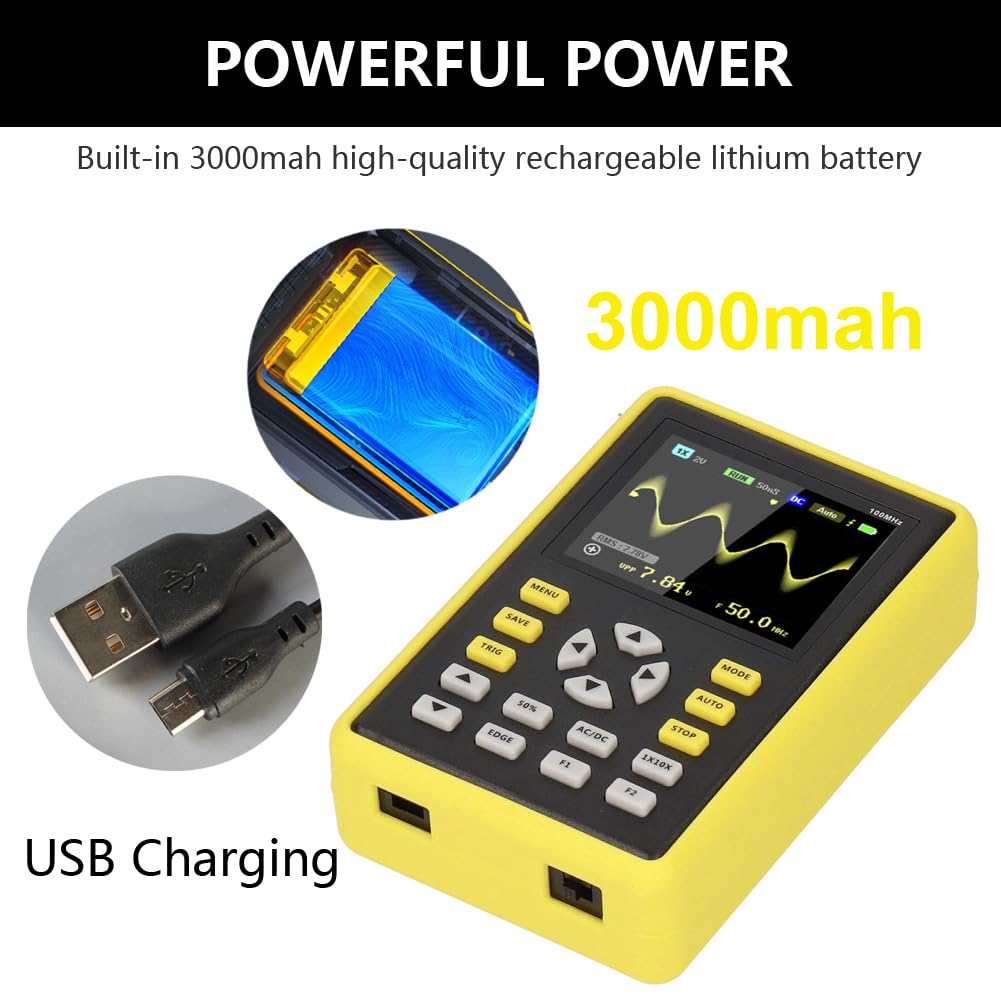

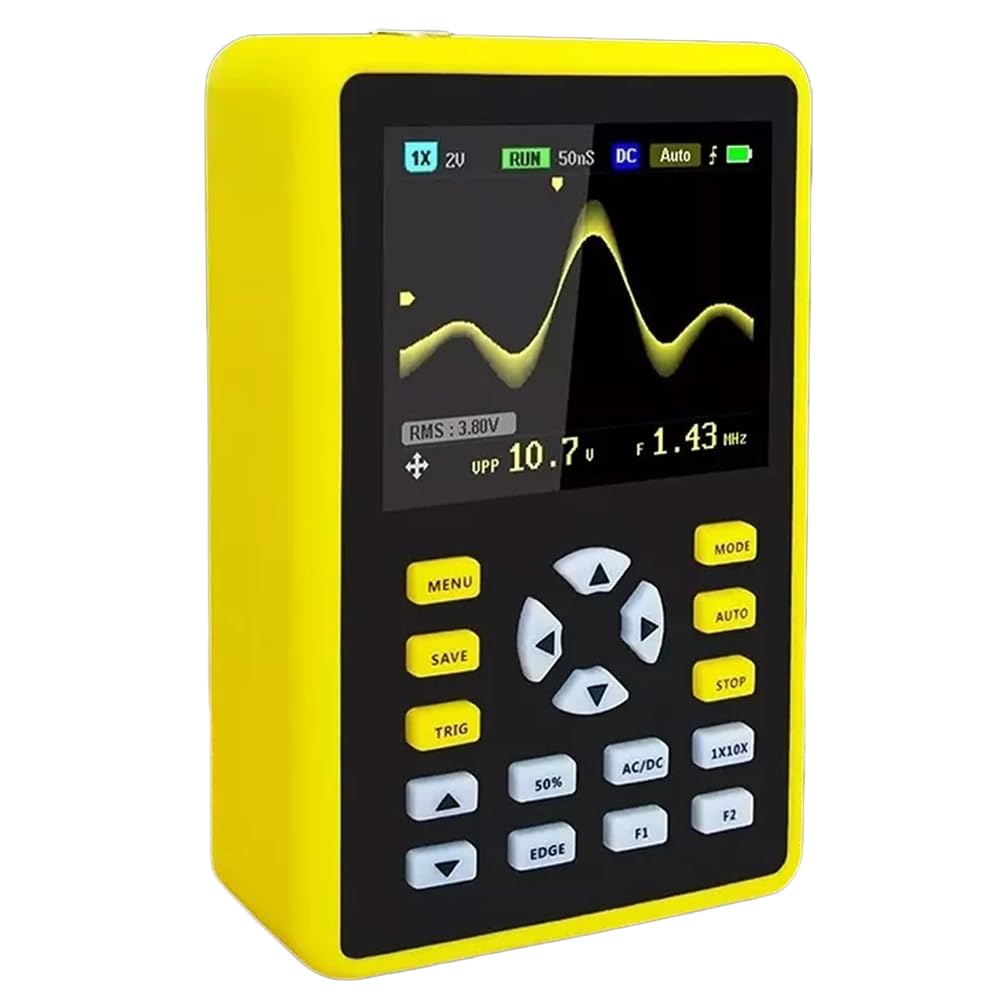

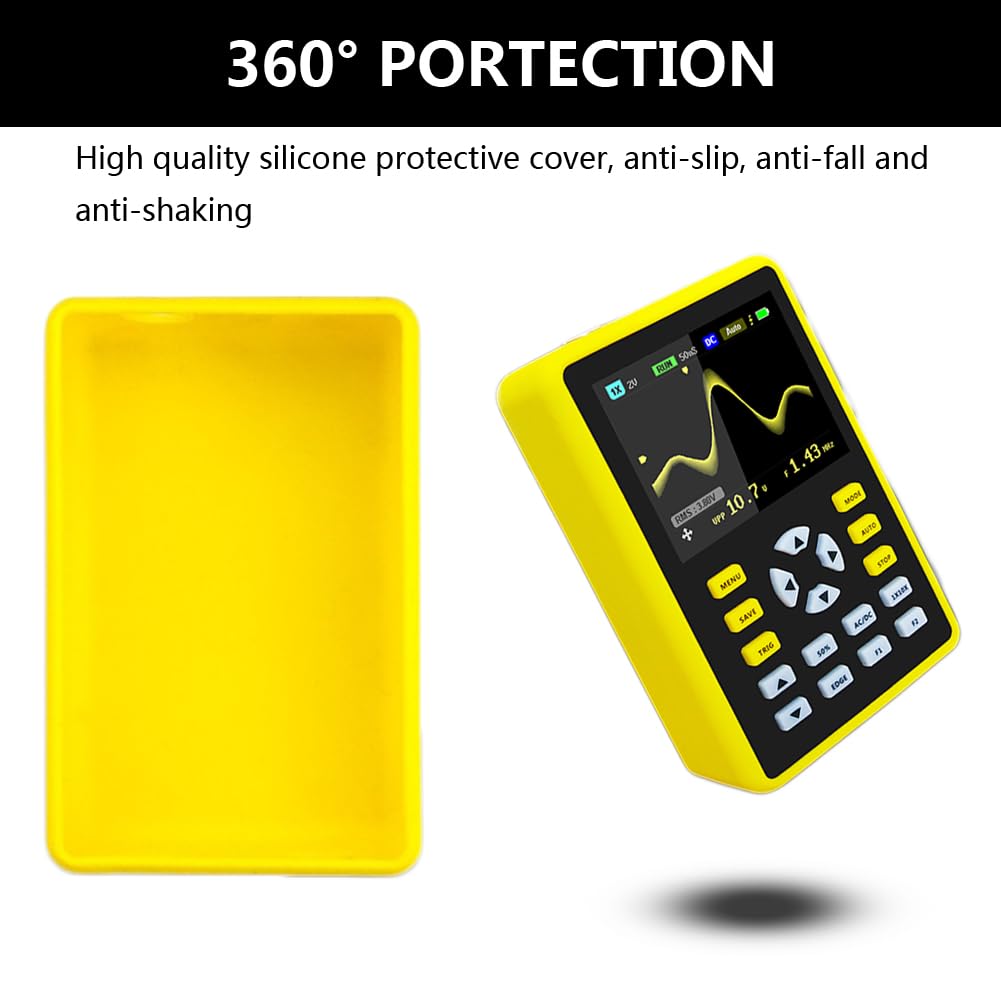

The LABART 5012H Handheld Digital Oscilloscope is a compact and portable test instrument designed for accurate waveform analysis and electrical diagnostics. Featuring a 100MHz bandwidth, 500MSa/s real-time sampling rate, 2.4-inch TFT color display, and built-in waveform storage, it delivers reliable performance for electronics repair, laboratory testing, circuit debugging, education, and field maintenance. Its lightweight design and rechargeable battery make it an ideal oscilloscope for professionals, students, and DIY users

FEATURE

• 100MHz Bandwidth: Accurate analysis of high-frequency electronic signals.
• 500MSa/s Sampling Rate: Captures fast-changing waveforms with high precision.
• 2.4-inch TFT Color Display: Bright, easy-to-read screen for clear waveform viewing.

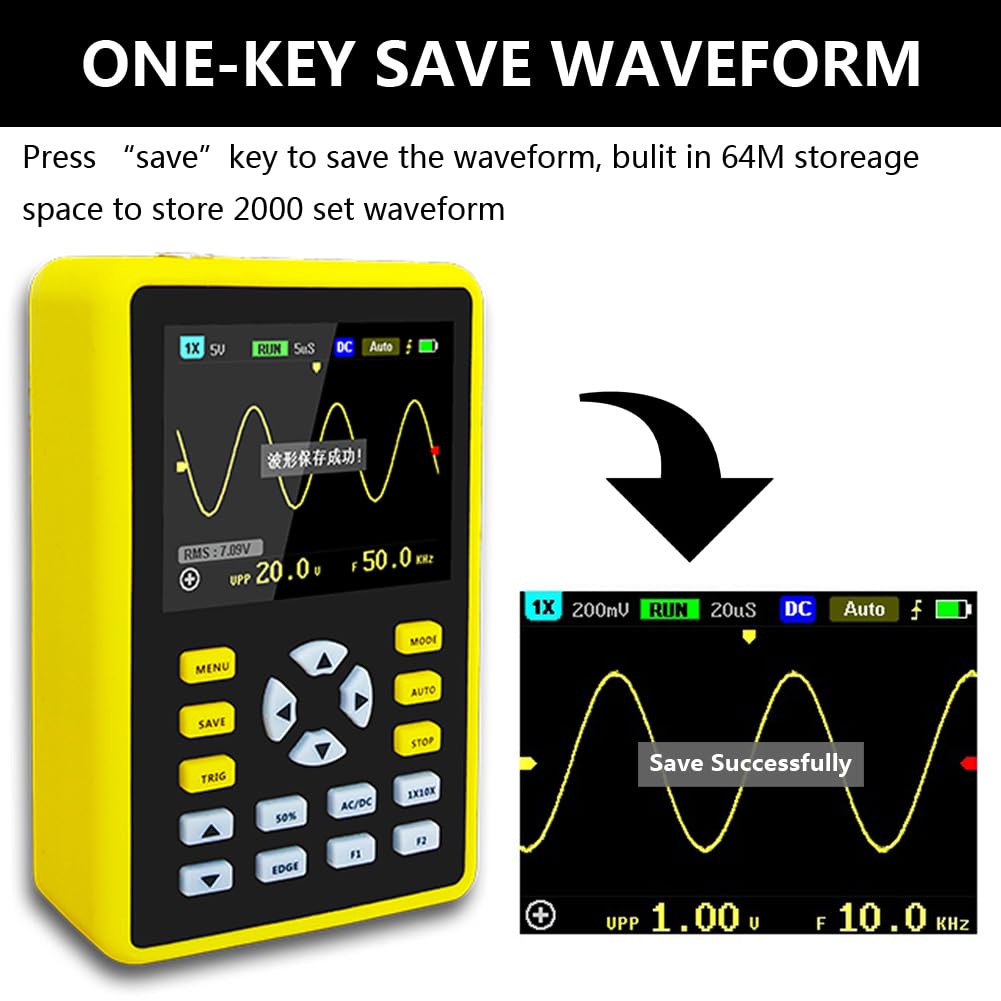

• One-Key Waveform Save: Stores up to 2000 waveform screenshots with built-in memory.

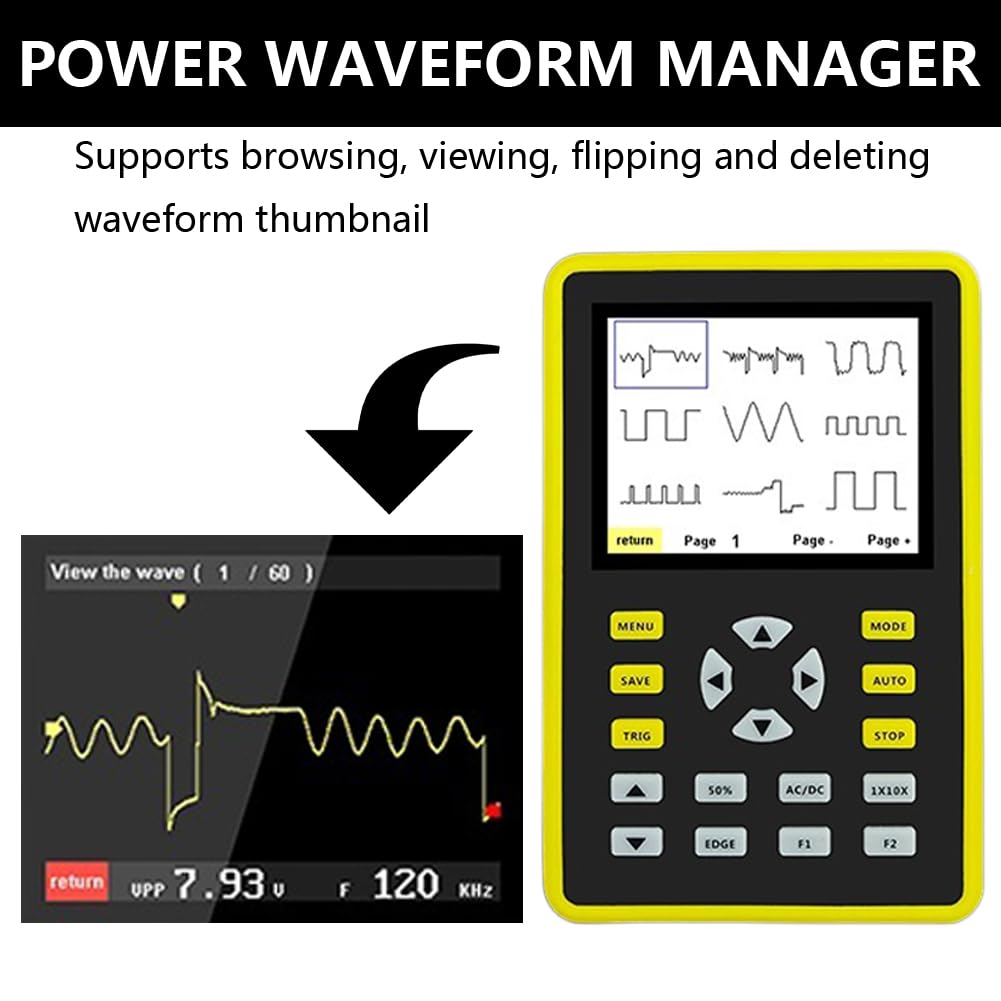

• Waveform Manager: Browse, view, delete, and manage saved waveforms easily.
• Multiple Automatic Measurements: Displays Vpp, Vmax, Vmin, Vrms, Frequency, Period, Duty Cycle, and more.
• Complete Trigger Functions: Supports Auto, Normal, and Single trigger modes for stable waveform capture.

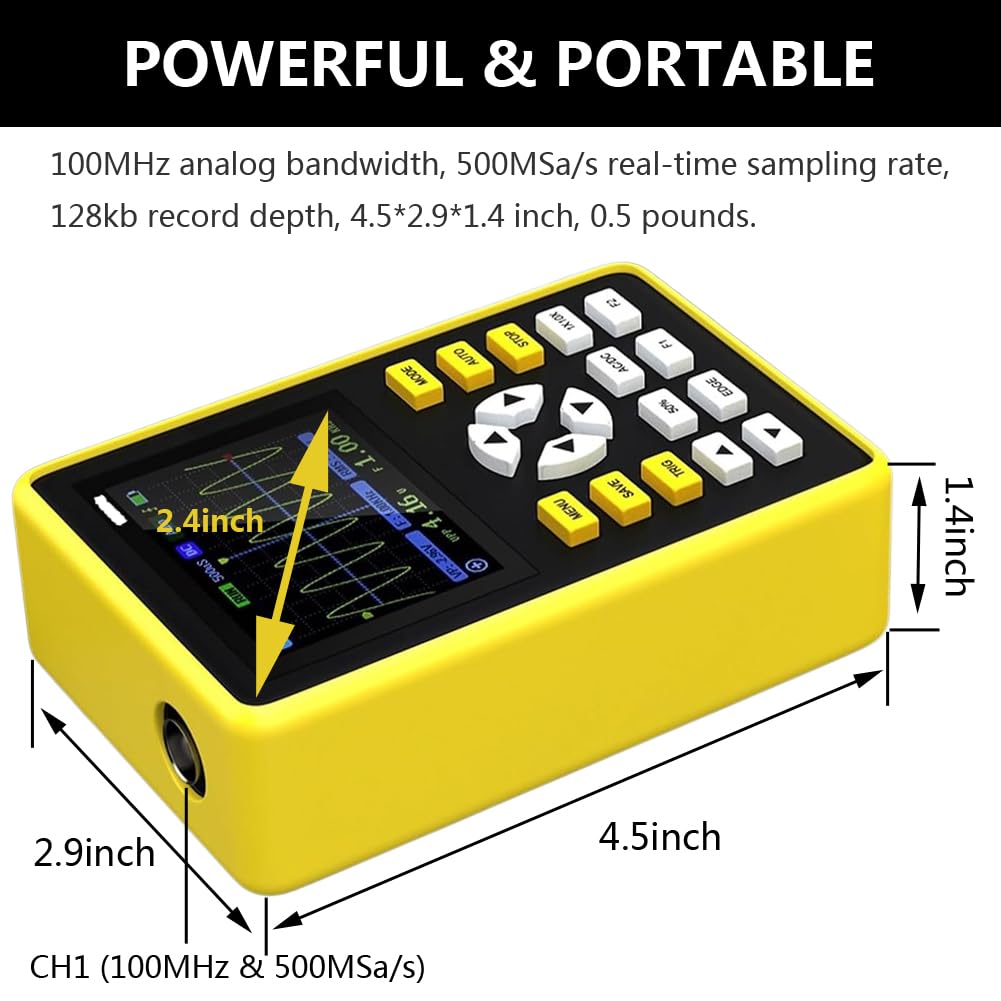

• Compact & Portable: Lightweight handheld design for convenient field and workshop use.
• High-Speed Data Acquisition: 128KB record depth for detailed waveform analysis.
• Wide Applications: Ideal for electronics repair, circuit analysis, laboratory testing, education, industrial maintenance, and DIY electronics.

SPECIFICATION

• Model: 5012H
• Product Type: Handheld Digital Oscilloscope
• Display: 2.4-inch TFT LCD Color Display
• Analog Bandwidth: 100MHz
• Real-Time Sampling Rate: 500MSa/s
• Record Depth: 128KB
• Waveform Storage: Up to 2000 Waveform Screenshots
• Trigger Modes: Auto / Normal / Single
• Automatic Measurements: Vpp, Vp, Vmax, Vmin, Vavg, Vrms, Frequency, Period, Duty Cycle, Time Parameters
• Waveform Manager: Supported
• One-Key Save: Supported
• Built-in Memory: 64MB Flash Storage
• Maximum Input Voltage: 80V (1X Probe), Higher Voltage with 10X Probe
• Design: Portable Handheld
• Applications: Electronics Repair, Circuit Analysis, Laboratory Testing, Industrial Maintenance, Education, DIY Electronics
