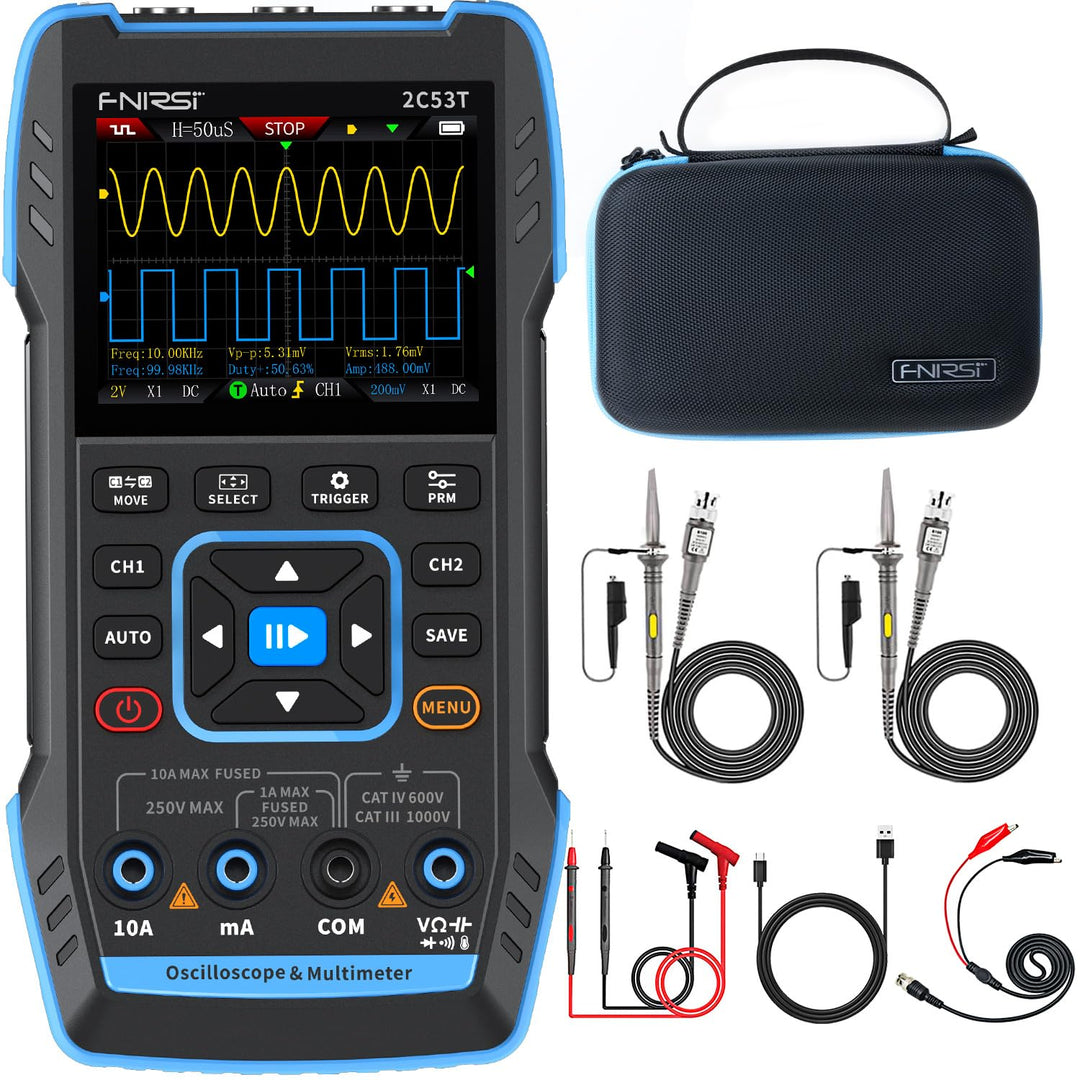

The LABART 2C53T is a multifunction handheld test instrument that combines a 2-channel 50MHz digital oscilloscope, 4.5-digit True RMS digital multimeter, and 50kHz signal generator in one compact device. Featuring a 2.8-inch color display, waveform storage, advanced math functions, XY mode, cursor measurement, and a rechargeable 3000mAh battery, it is ideal for electronics repair, circuit analysis, laboratory testing, education, and industrial maintenance.

FEATURE

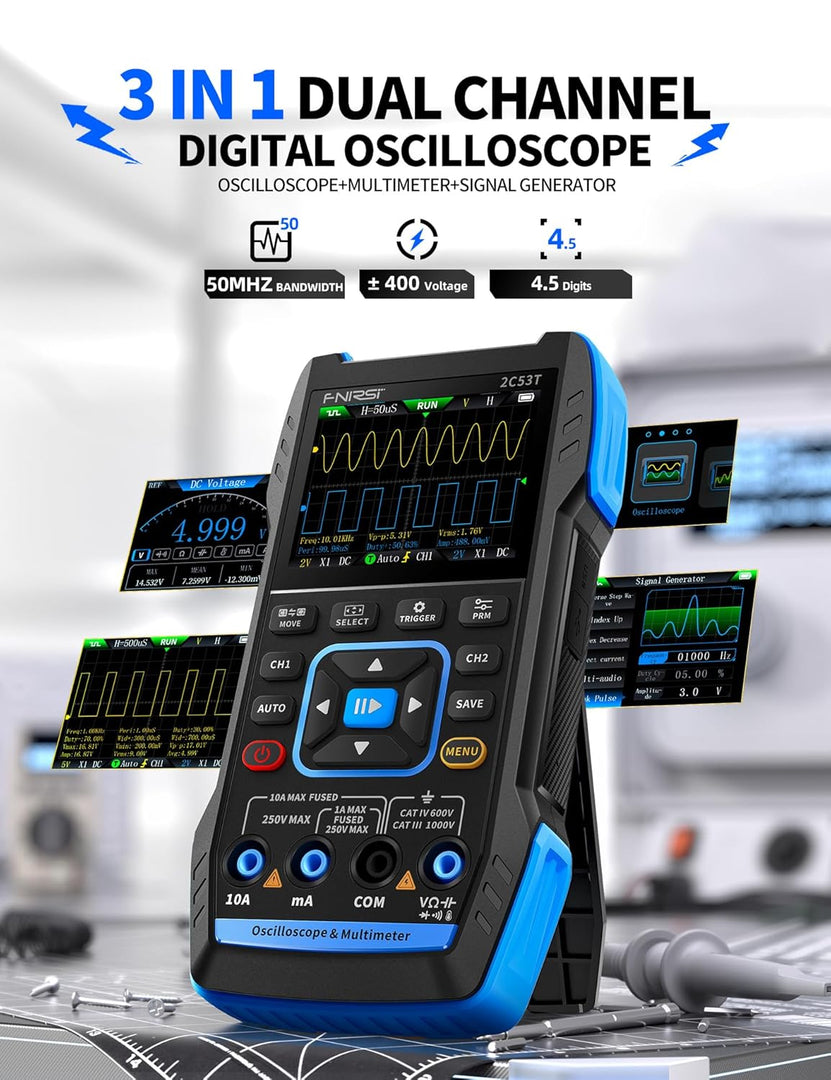

3-in-1 Multifunction Tester – Combines a 2-channel oscilloscope, digital multimeter, and signal generator.

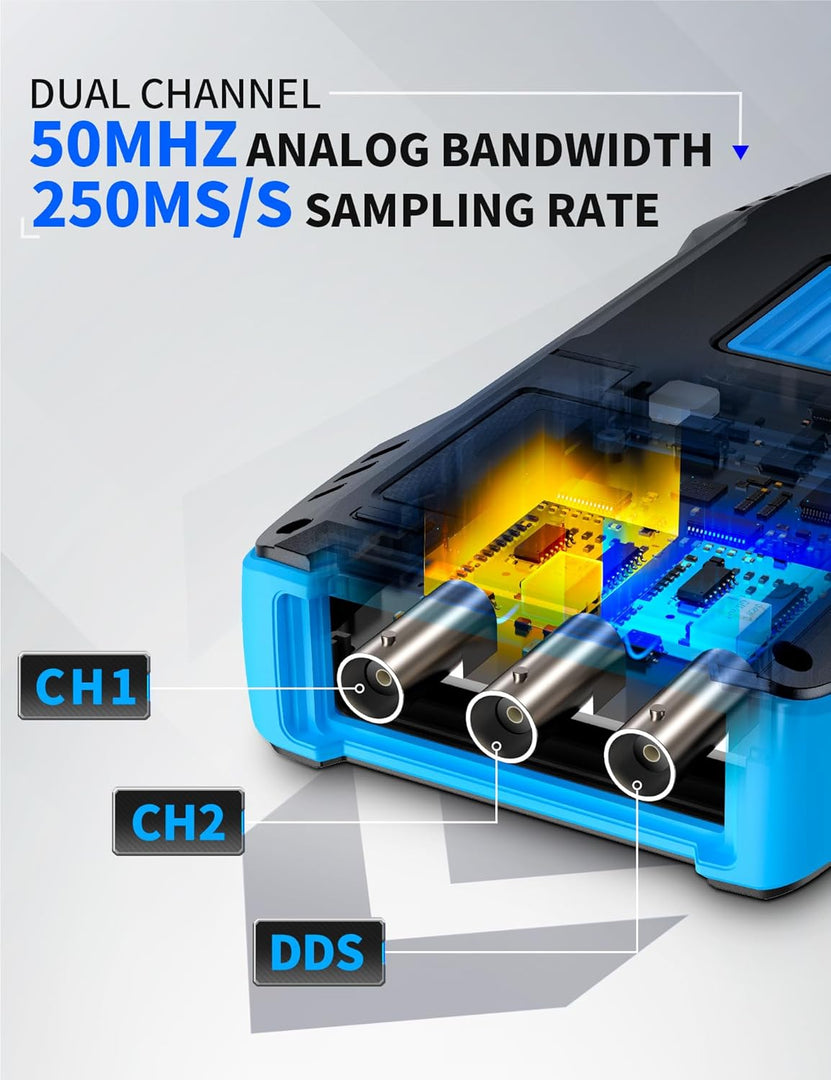

50MHz Dual-Channel Oscilloscope – 250MSa/s sampling rate with 1Kpts record depth for accurate waveform analysis.

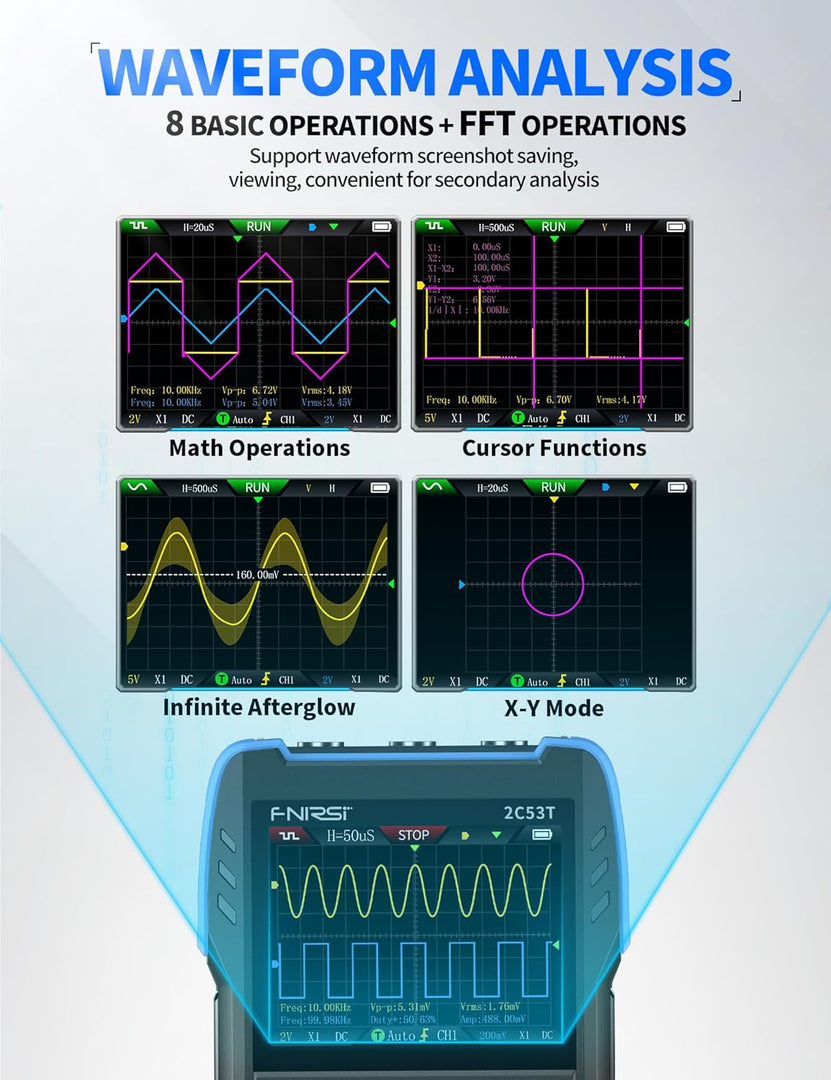

Advanced Oscilloscope Functions – Supports cursor measurement, math operations, persistence mode, XY mode, and automatic measurements.

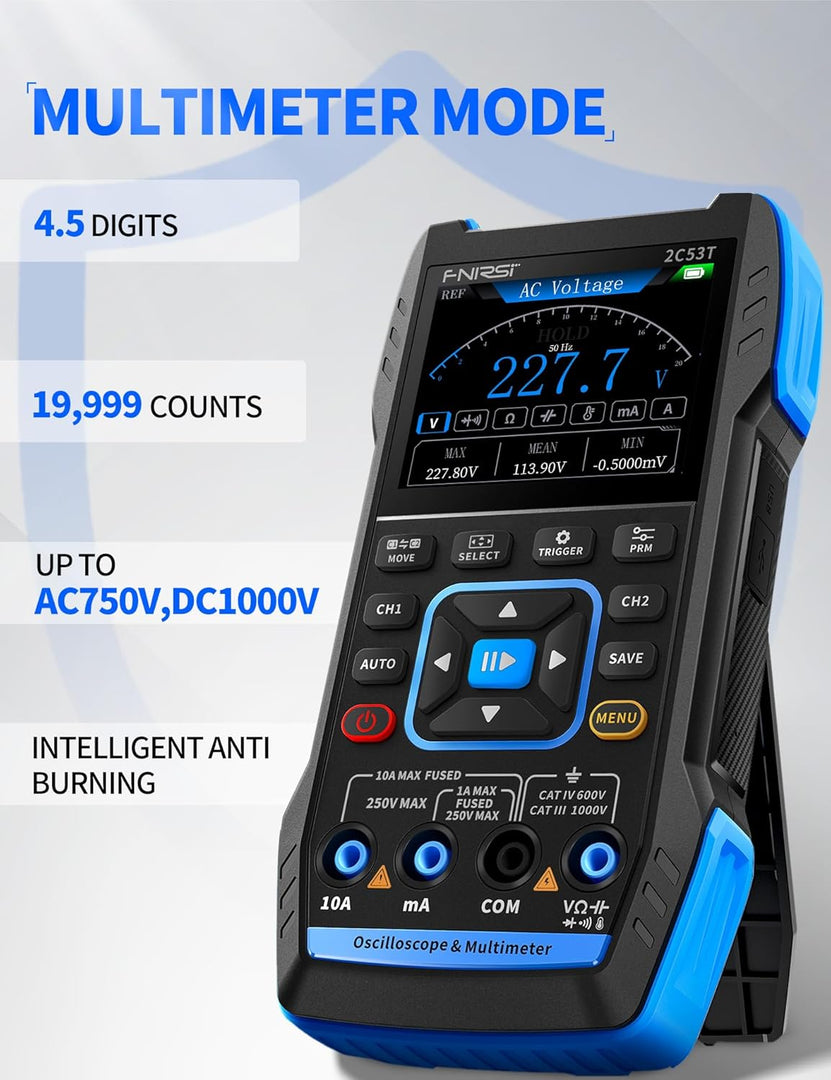

4.5-Digit Digital Multimeter – Measures AC/DC voltage, AC/DC current, resistance, capacitance, and continuity.

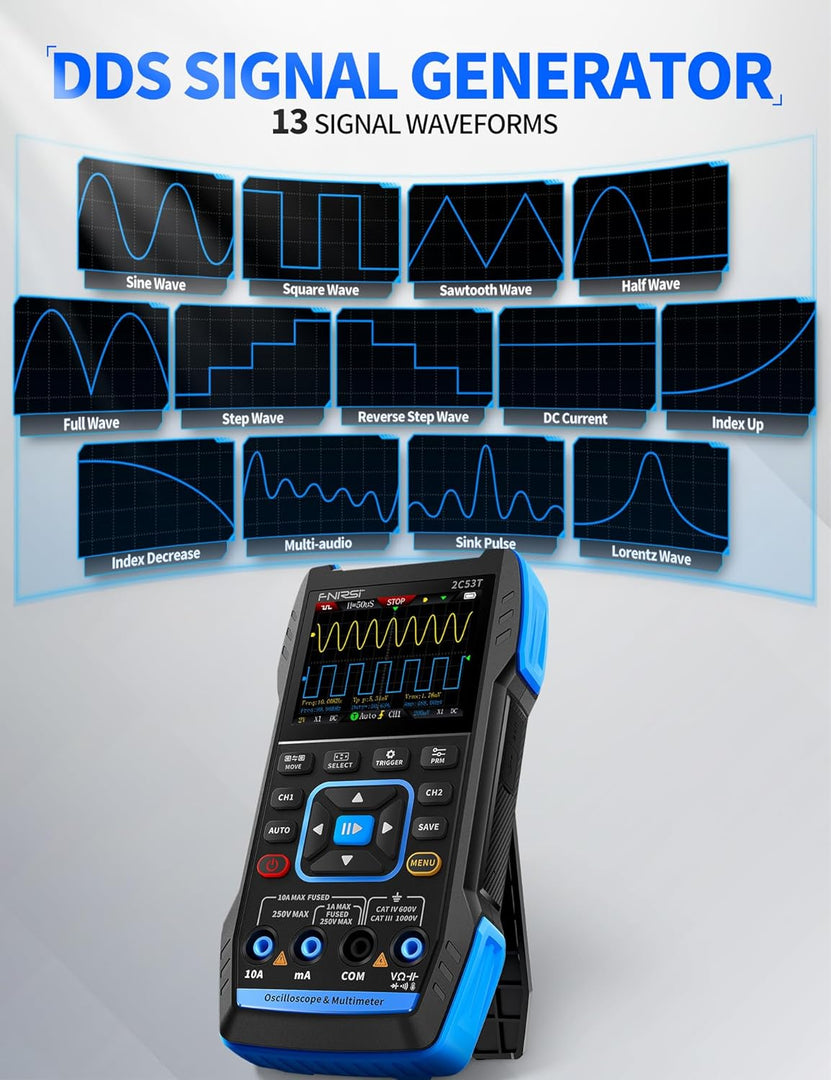

Built-in Signal Generator – Outputs up to 50kHz with 13 waveform types.
Waveform Storage & Export – Save screenshots and transfer data to a PC via USB Type-C.
2.8-inch Color LCD Display – Clear, high-resolution screen for easy viewing.
Rechargeable Battery – Built-in 3000mAh lithium battery with up to 6 hours of operation.
High-Voltage Protection – Enhanced safety for reliable measurements.
Wide Applications – Ideal for electronics repair, circuit debugging, education, laboratory work, and industrial maintenance.

SPECIFICATION

Model    2C53T
Product Type    Handheld Oscilloscope, Multimeter & Signal Generator
Oscilloscope Channels    2 Channels
Bandwidth    50MHz
Sampling Rate    250MSa/s
Record Length    1Kpts
Maximum Input Voltage    400V
Vertical Sensitivity    10mV/div – 10V/div
Multimeter Display    4.5-Digit, 19,999 Counts
DC Voltage    0–999.9V
AC Voltage    0–750V
DC/AC Current    0–9.999A
Resistance    0–19.99MΩ
Capacitance    0–99.99mF
Continuity Test    Supported
Signal Generator    Up to 50kHz
Waveforms    13 Built-in Waveforms
Display    2.8-inch Color LCD
Battery    3000mAh Rechargeable Lithium Battery
Battery Life    Up to 6 Hours
Charging Interface    USB Type-C (5V/1A)
Data Storage    Waveform & Screenshot Storage
Data Export    USB Type-C to PC
Additional Functions    Math Operations, Cursor Measurement, Persistence Mode, XY Mode, Automatic Measurements
Applications    Electronics Repair, Circuit Analysis, Laboratory Testing, Industrial Maintenance, Education
