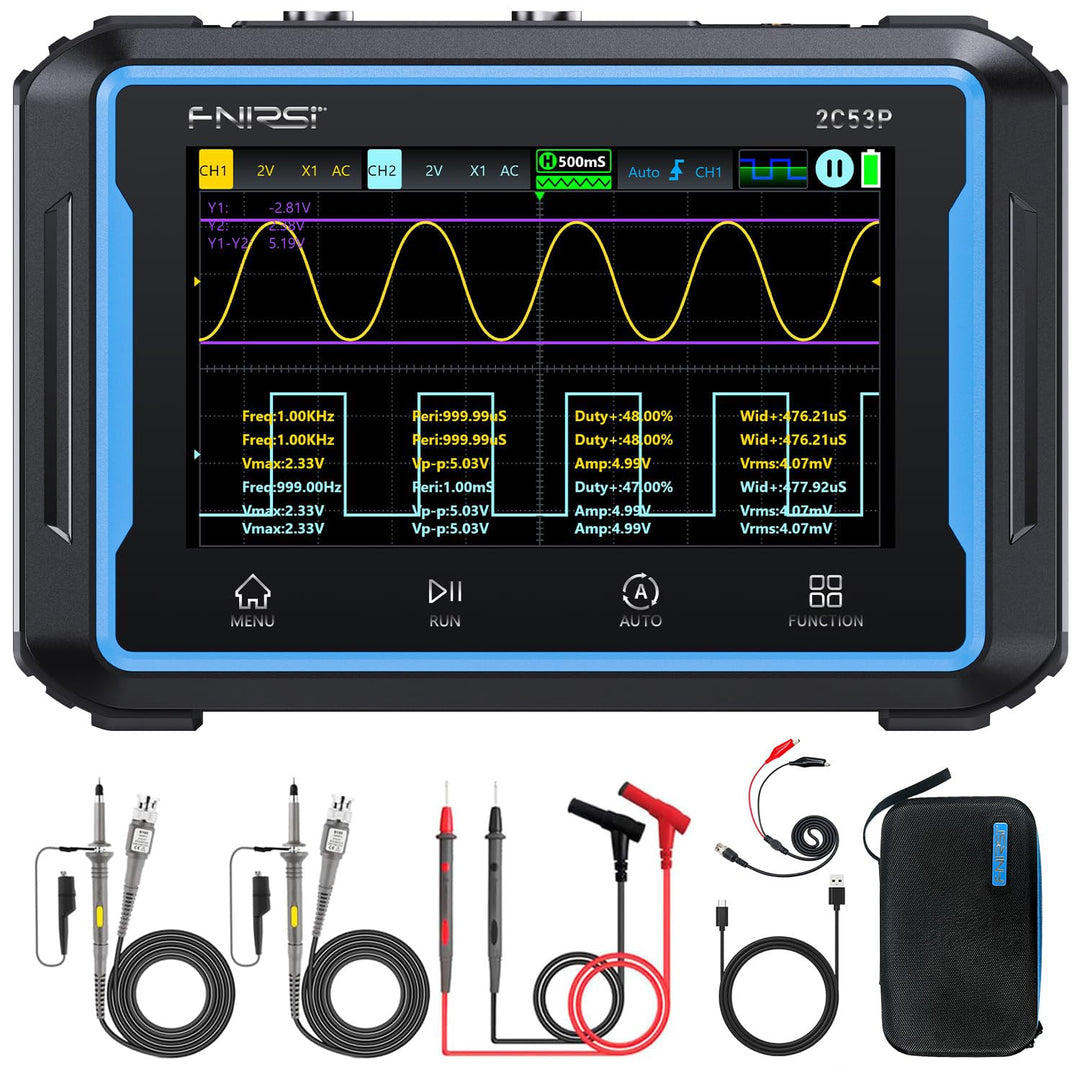

The LABART 2C53P is a professional handheld test instrument that combines a 2-channel 50MHz digital oscilloscope, 19,999-count digital multimeter, and 10MHz DDS signal generator in one compact device. Featuring a 4.3-inch IPS touchscreen, 250MSa/s sampling rate, FFT spectrum analysis, X-Y mode, waveform storage, and a 4000mAh rechargeable battery, it is ideal for electronics repair, automotive diagnostics, laboratory testing, education, and industrial maintenance.

FEATURE

• 3-in-1 Multifunction Tester: Combines a 2-channel oscilloscope, digital multimeter, and DDS signal generator.
• 50MHz Dual-Channel Oscilloscope: 250MSa/s sampling rate for accurate waveform analysis.

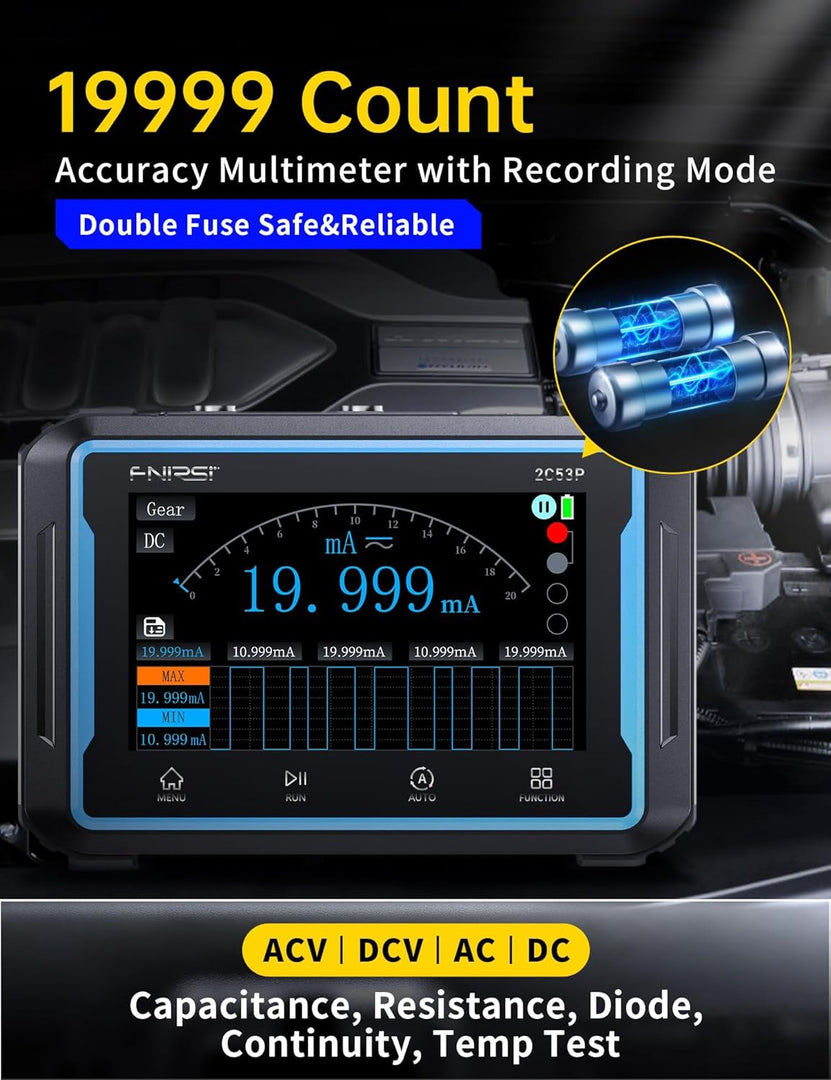

• 19,999-Count Digital Multimeter: Measures multiple electrical parameters with MAX/MIN display.

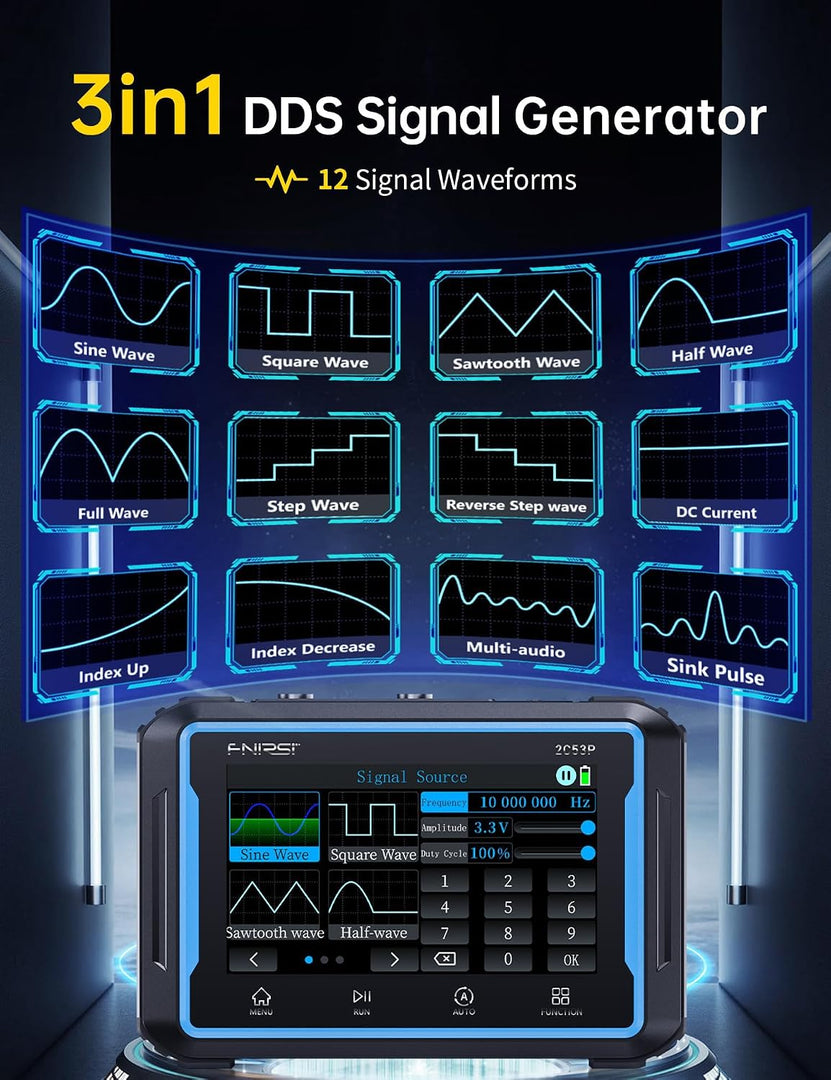

• 10MHz DDS Signal Generator: Outputs up to 12 waveform types for signal testing.

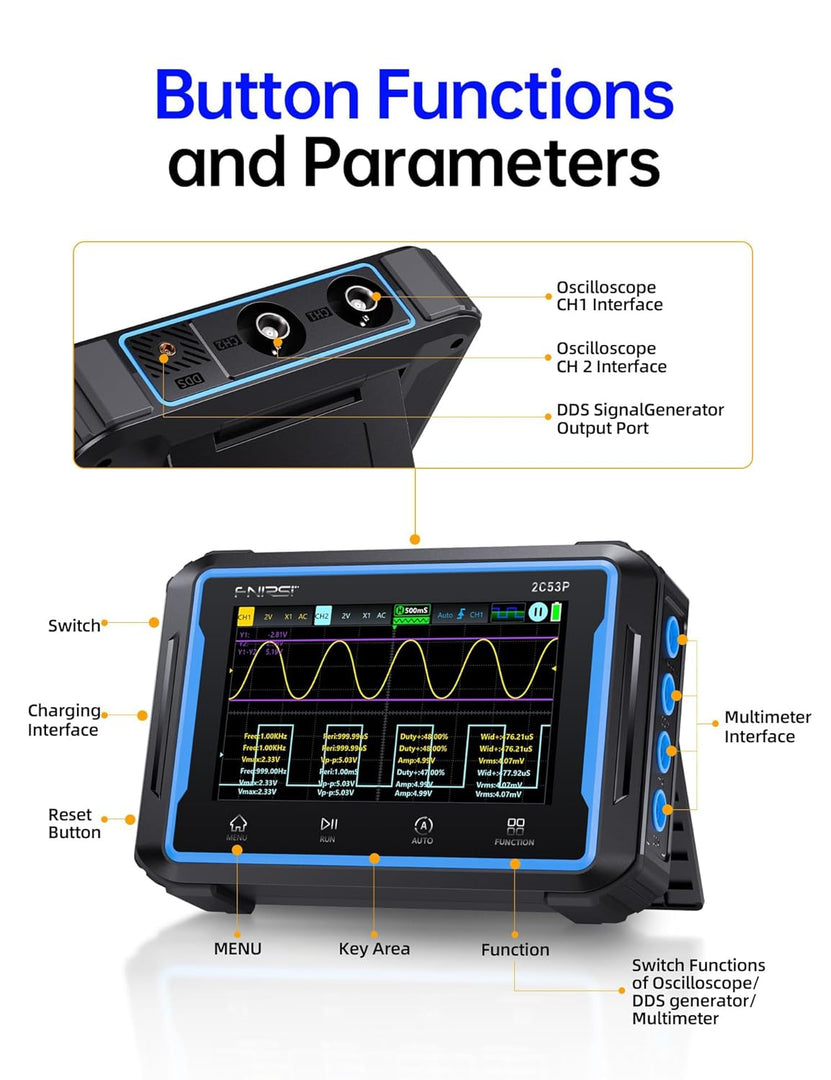

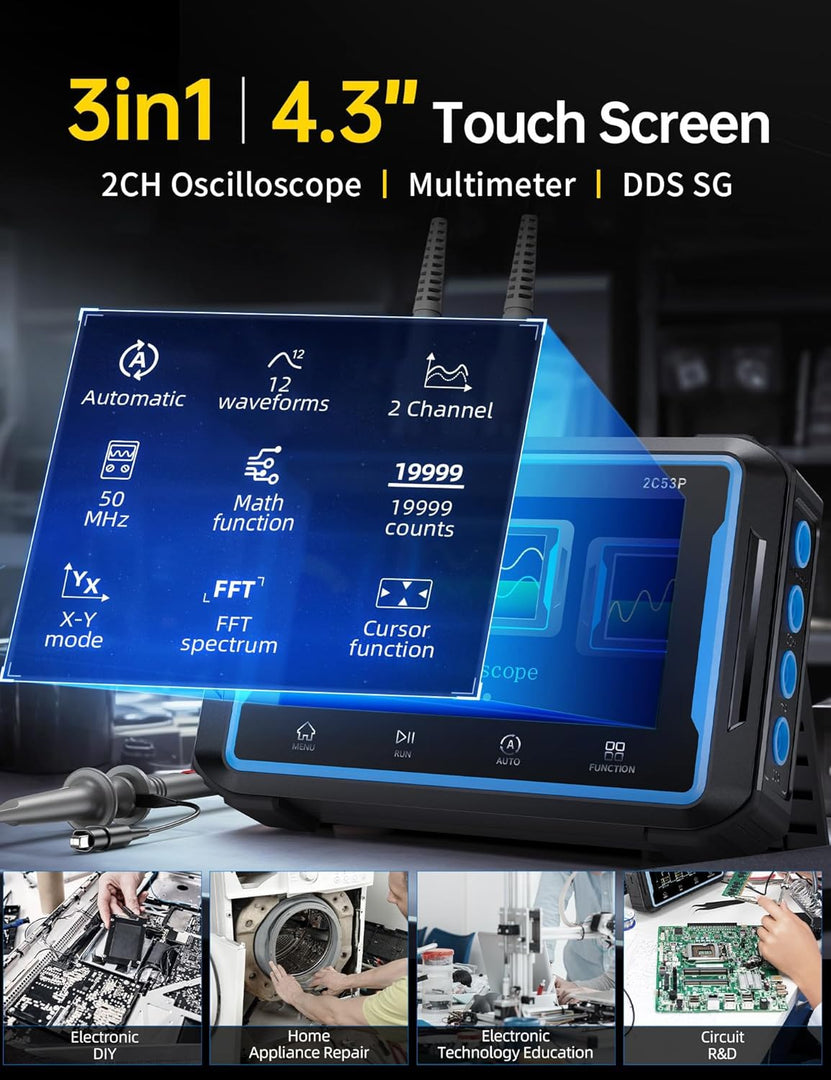

• 4.3-inch IPS Touchscreen: High-resolution 480 × 272 color display with touch operation.
• Advanced Analysis Functions: Supports FFT spectrum analysis, X-Y mode, and automatic measurements.
• Waveform Storage & Export: Save, view, and export waveforms for analysis.
• One-Key AUTO Function: Quickly captures and displays waveforms for faster troubleshooting.

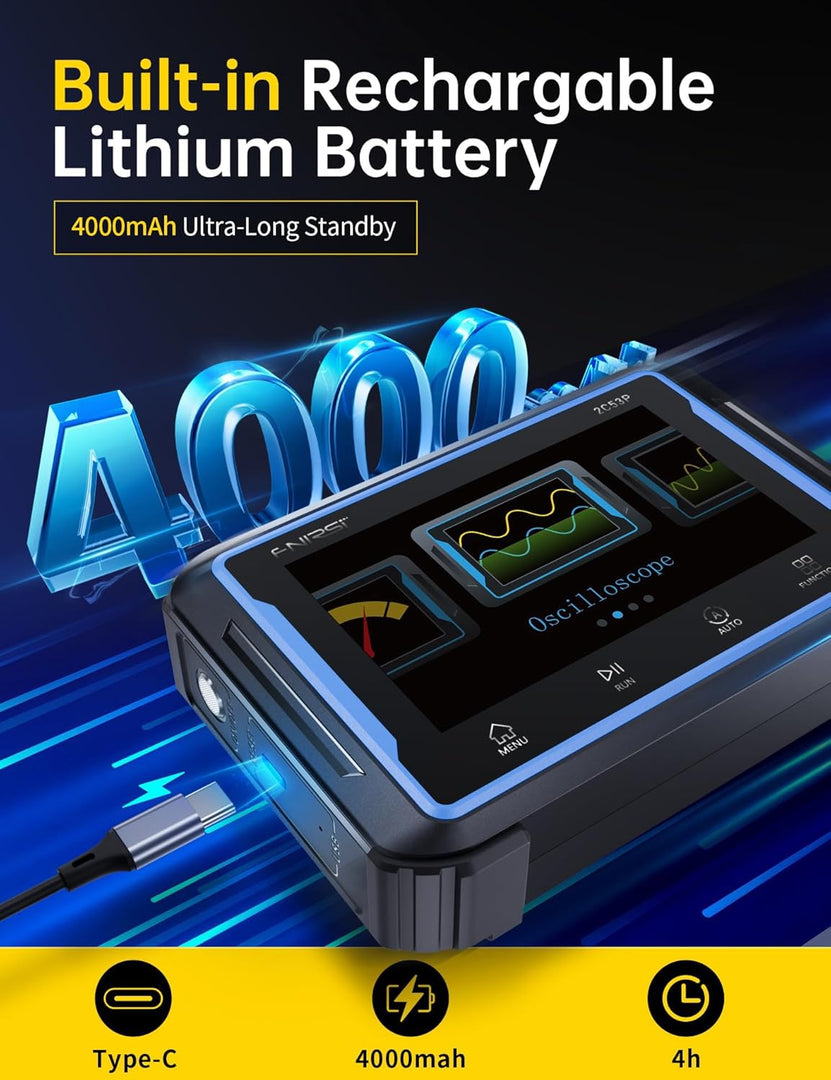

• Rechargeable Battery: Built-in 4000mAh lithium battery with up to 4 hours of operation and USB Type-C charging.
• Wide Applications: Ideal for electronics repair, automotive diagnostics, laboratory testing, circuit analysis, education, and industrial maintenance.

SPECIFICATION

• Model: 2C53P
• Product Type: Handheld Oscilloscope, Multimeter & DDS Signal Generator
• Oscilloscope Channels: 2 Channels
• Bandwidth: 50MHz
• Sampling Rate: 250MSa/s
• Display: 4.3-inch IPS Touchscreen
• Screen Resolution: 480 × 272 Pixels
• Multimeter Display: 19,999 Counts
• Signal Generator: DDS Signal Generator
• Maximum Signal Output: 10MHz
• Waveforms: 12 Built-in Waveforms
• Trigger Modes: Auto, Normal, Single
• Analysis Functions: FFT Spectrum Analysis, X-Y Mode, Automatic Measurement
• Waveform Storage: Supported
• Waveform Export: Supported
• Battery: 4000mAh Rechargeable Lithium Battery
• Battery Life: Up to 4 Hours
• Charging Interface: USB Type-C
• Applications: Electronics Repair, Automotive Diagnostics, Circuit Analysis, Laboratory Testing, Education, Industrial Maintenance
