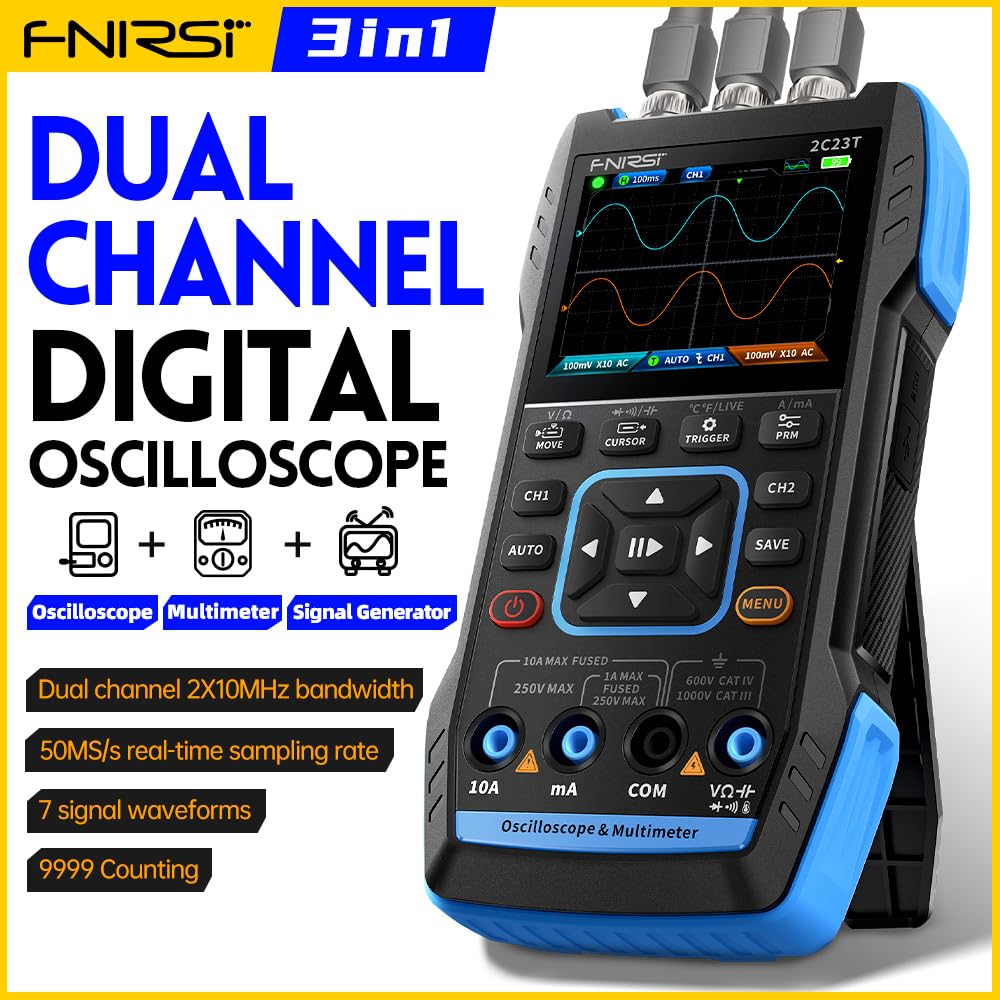

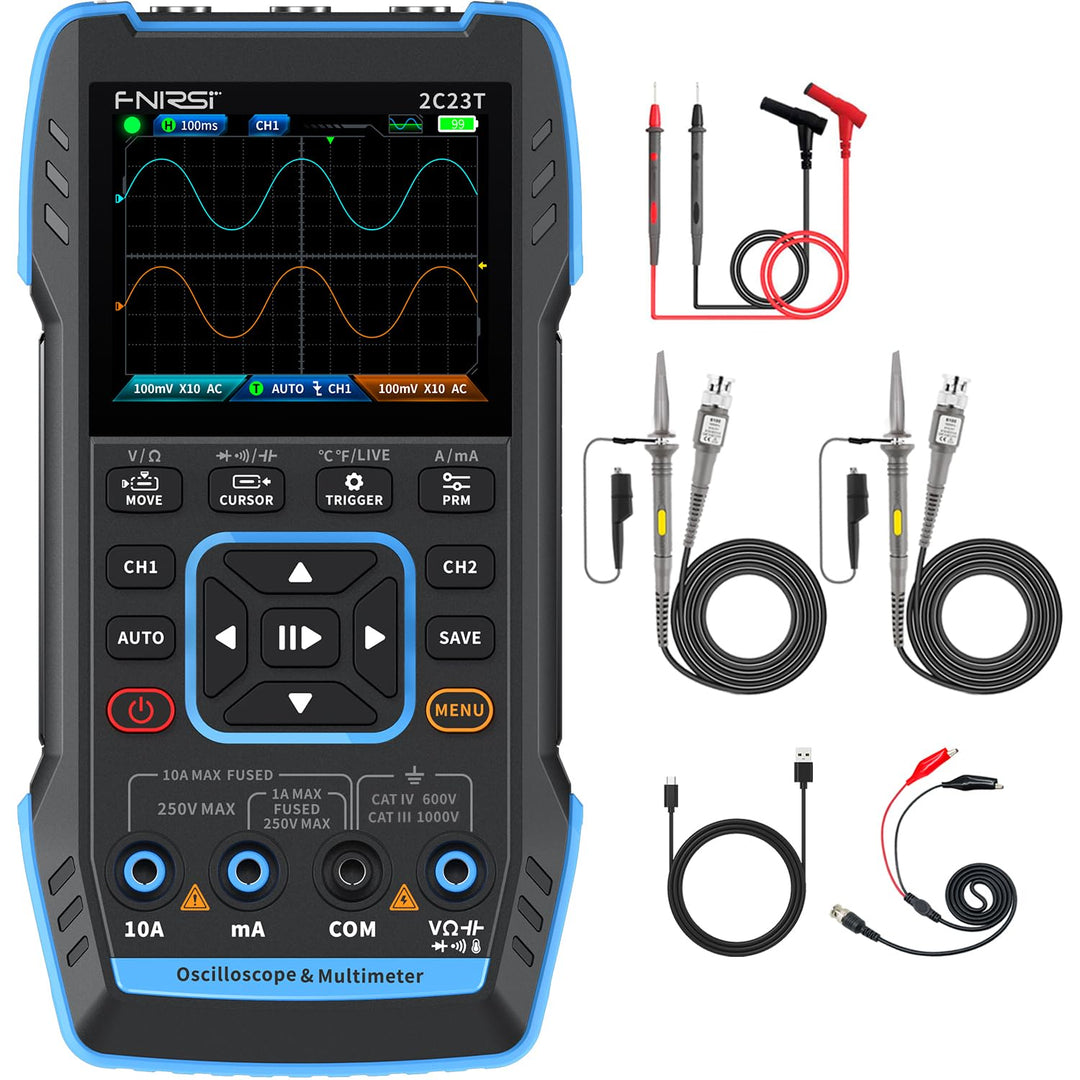

The LABART 2C23T is a versatile 3-in-1 handheld test instrument combining a dual-channel digital oscilloscope, True RMS multimeter, and DDS signal generator in one compact device. It features a 10MHz bandwidth, 50MSa/s sampling rate, waveform storage, and high-voltage protection for reliable circuit analysis and troubleshooting. The 10,000-count multimeter supports AC/DC voltage, current, resistance, capacitance, diode, and continuity testing, while the built-in signal generator provides 7 waveform types with frequencies up to 2MHz. Equipped with a 2.8-inch HD color display and 3000mAh rechargeable battery, the 2C23T is ideal for electronics repair, laboratory testing, education, development, and field maintenance.

FEATURES

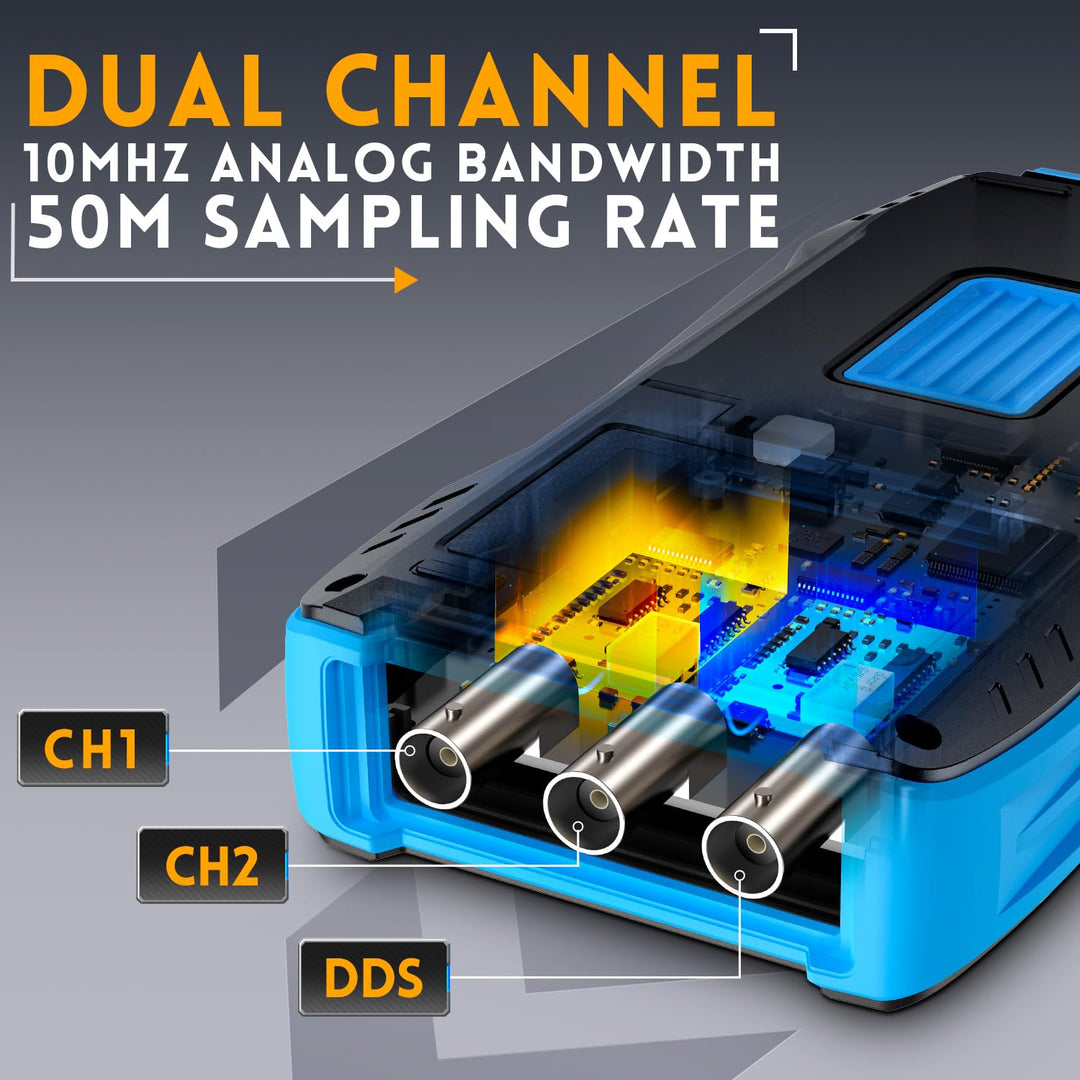

• Oscilloscope Mode: Dual-channel handheld oscilloscope with 10 MHz bandwidth, 50 MSa/s sampling rate, 32 kb record depth, automatic measurement, max voltage of 400 V, vertical sensitivity 200 mv/div-10 v/div, and waveform storage/export.
• Multimeter Mode: 4-digit 10,000 Counts. AC Voltage: 0-750 V, DC Voltage: 0-999.9 V, DC/AC Current: 0-9.999 A, Resistance: 0-99.99 MΩ, Capacitance: 0-99.99 mF, Continuity Measurement. Multi-function meter for professionals, schools and hobbyists.
• Signal Generator: The maximum waveform output frequency can reach 2 MHz and a step of 1 Hz, and can output seven waveforms including sine, square, triangle, full, half, noise, and DC.
• Save Function: One-click save, screening function. You can upload the saved image by connecting to PC via Type-C. You can easily compare the waveforms by displaying the reference waveform and the measured waveform on the same screen.

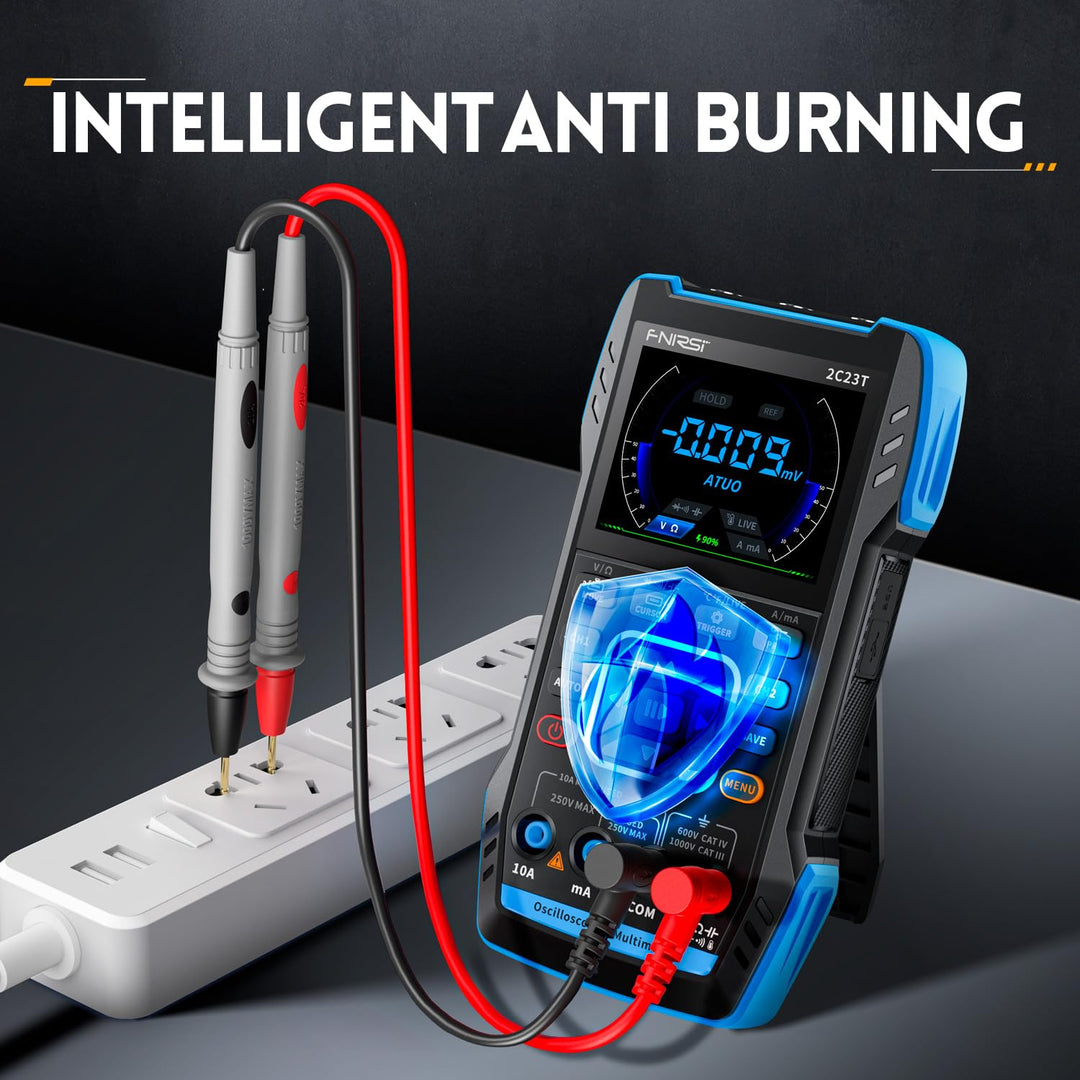

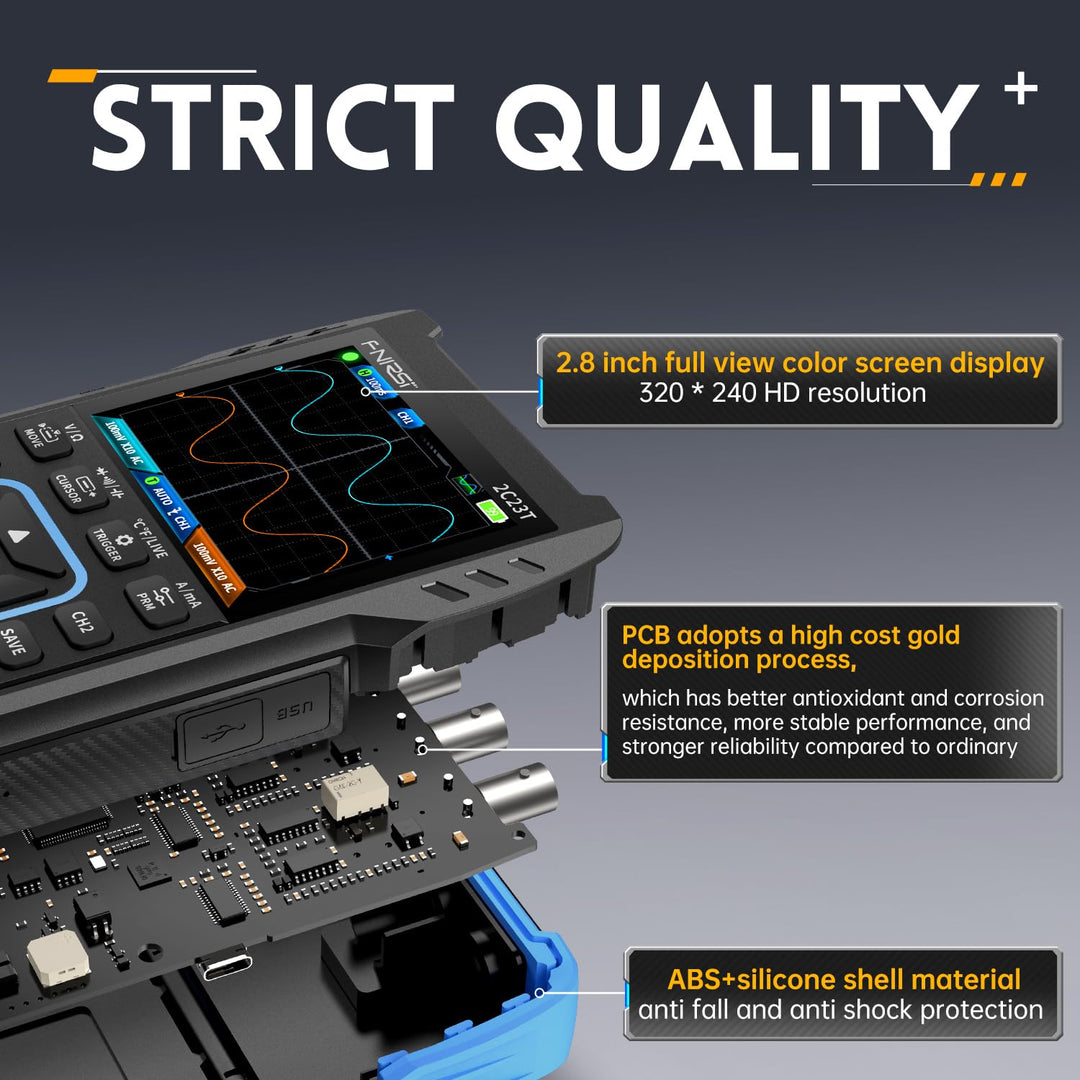

• Excellent Design: The Oscilloscope adopts FPGA + MCU + ADC hardware architecture, built-in high-voltage protection module, adopts 2.8 inch LCD display, built-in 3000mAh Li-ion battery, standby time up to 6H, Type-C interface supports 5V/1A charging.

SPECIFICATION

• Model: 2C23T
• Product Type: 3-in-1 Handheld Oscilloscope, Multimeter & Signal Generator
• Display: 2.8-inch HD Color Screen
• Display Resolution: 320 × 240 Pixels

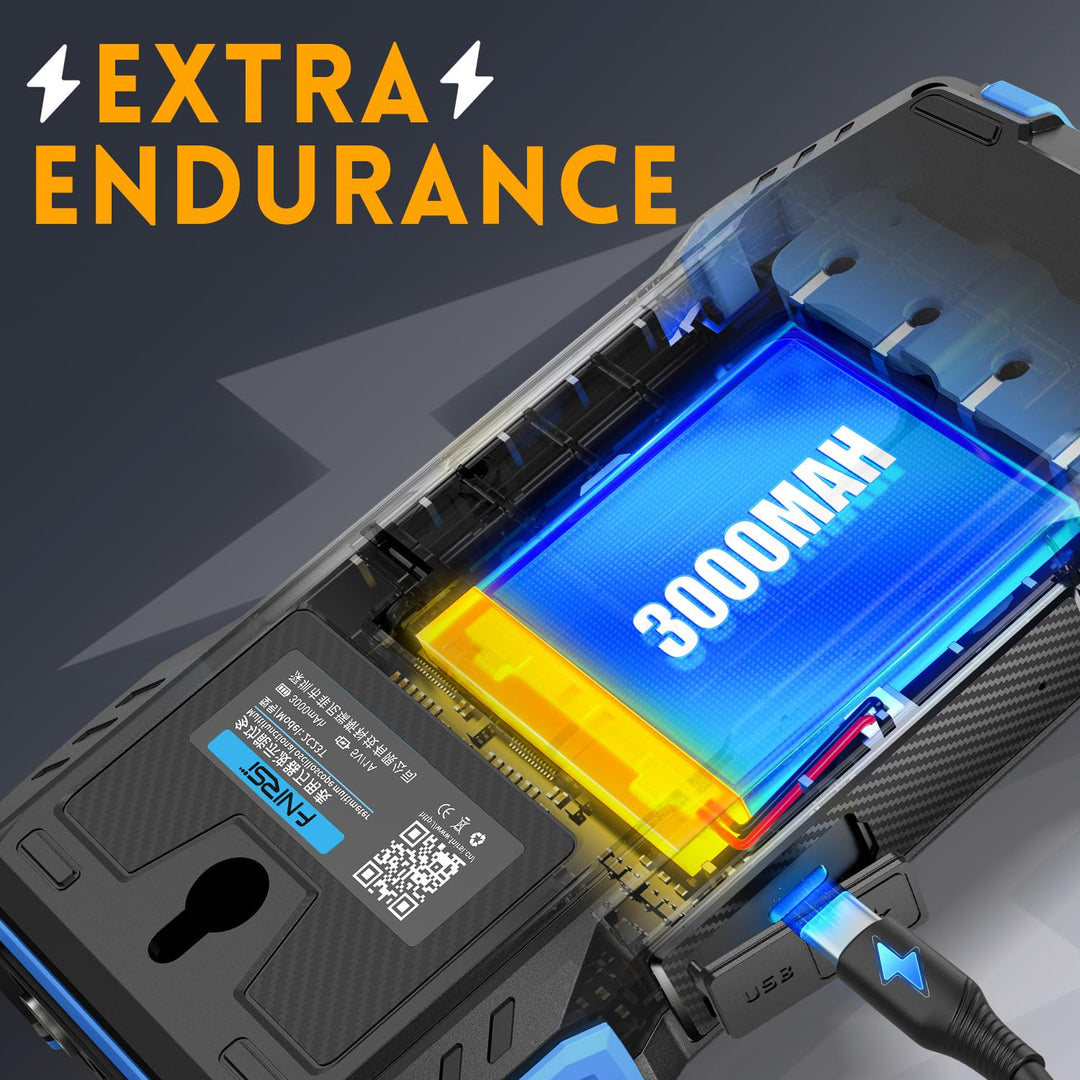

• Battery: 3000mAh Rechargeable Lithium Battery

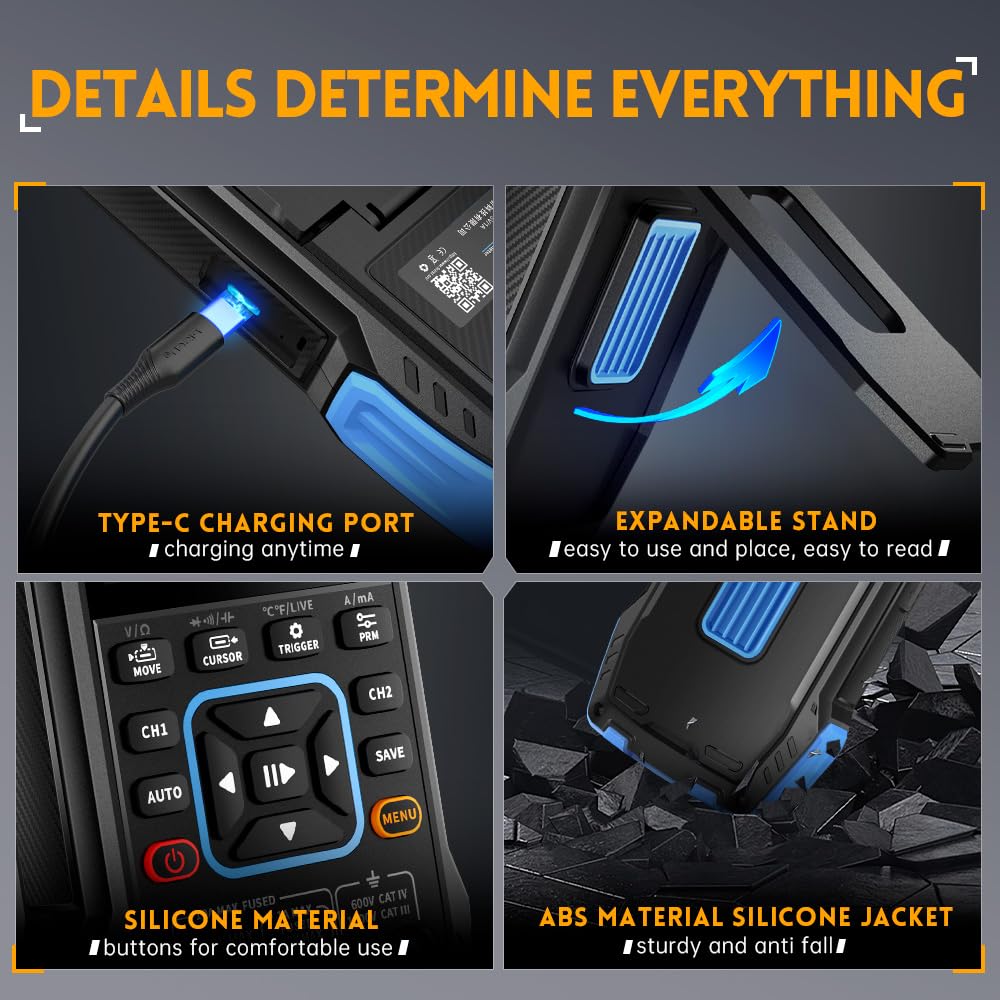

• Charging Interface: USB Type-C (5V/1A)
• Standby Time: Up to 6 Hours (Laboratory Theoretical Maximum)
• Language: English
• Product Dimensions: 167 × 89 × 35 mm
• Weight: Approx. 300 g
• Oscilloscope Channels: 2 Channels
• Sampling Rate: 50MSa/s
• Analog Bandwidth: 10MHz per Channel
• Storage Depth: 32KB
• Input Impedance: 1MΩ
• Time Base Range: 50ns – 10s
• Vertical Sensitivity: 20mV/div – 10V/div (X1)
• Maximum Measured Voltage: ±400V
• Trigger Modes: Auto / Normal / Single
• Trigger Type: Rising Edge / Falling Edge
• Display Modes: YT / Scroll
• Coupling Mode: AC / DC
• Waveform Screenshot: Supported
• Waveform Image Export: Supported
• DC Voltage: 9.999V / 99.99V / 999.9V
• DC Voltage Accuracy: ±(0.5% + 3)
• AC Voltage: 9.999V / 99.99V / 750.0V
• AC Voltage Accuracy: ±(1% + 3)
• DC Current: 9999µA / 99.99mA / 999.9mA / 9.999A
• DC Current Accuracy: ±(1.2% + 3)
• AC Current: 9999µA / 99.99mA / 999.9mA / 9.999A
• AC Current Accuracy: ±(1.5% + 3)
• Resistance: 999.9Ω – 99.99MΩ
• Resistance Accuracy: ±(0.5% + 3), ±(1.5% + 3) at 99.99MΩ
• Capacitance: 9.999nF – 99.99mF
• Capacitance Accuracy: ±(2.0% + 5), ±(5.0% + 20) for 9.99mF / 99.99mF
• Temperature Range: -55°C to 1300°C / -67°F to 2372°F
• Temperature Accuracy: ±(2.5% + 5)
• Diode Test: Supported
• Continuity Test: Supported
• Live Wire Detection: Supported
• Signal Generator Channels: 1 Channel
• Signal Generator Frequency: 1Hz – 2MHz
• Output Amplitude: 0.1V – 3.3V
• Duty Cycle: 0–100% Adjustable
• Output Waveforms: Sine, Square, Triangle, Full Wave, Half Wave, Noise, DC
• Applications: Electronics Repair, Circuit Analysis, Electrical Testing, Laboratory Testing, R&D, Education, Industrial Maintenance
