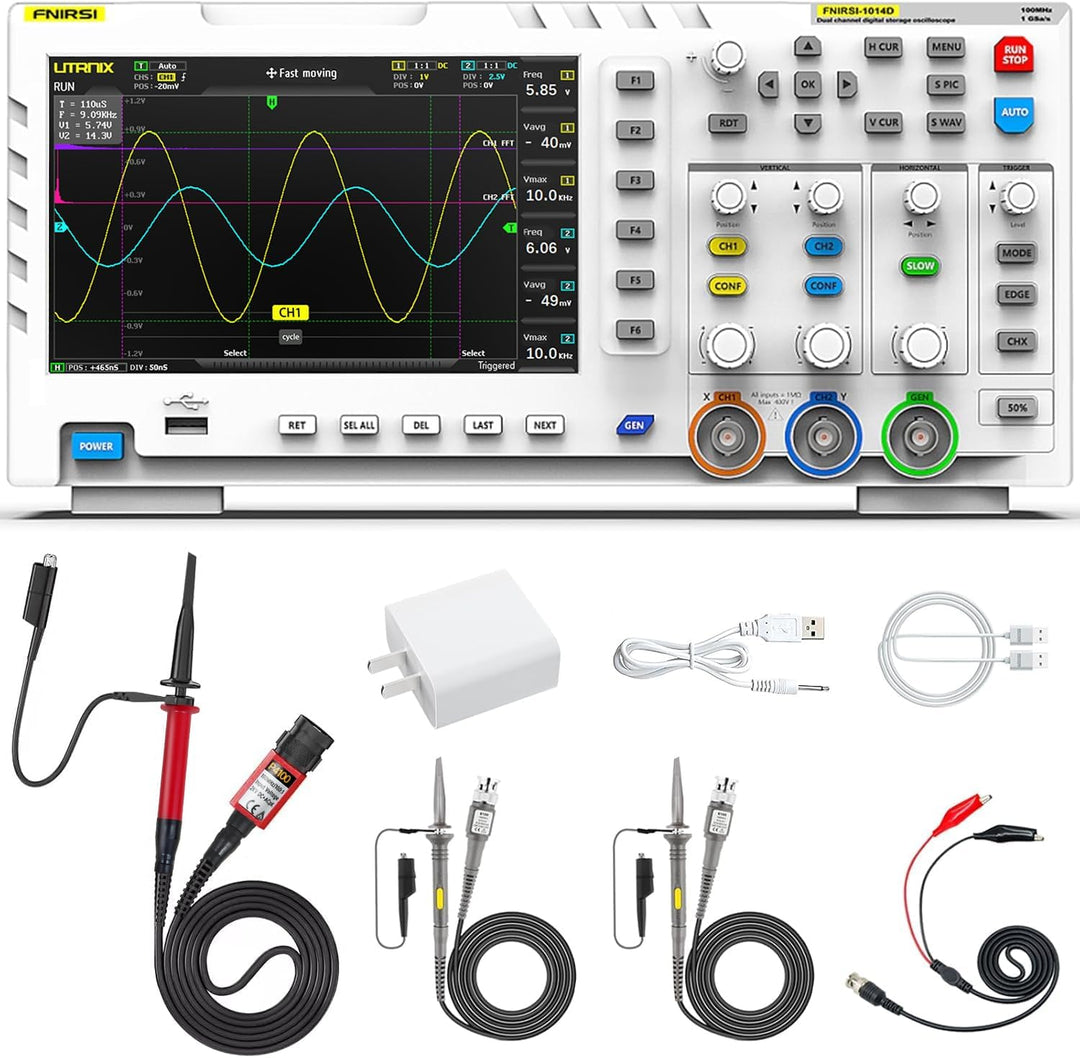

The 1014D Digital Oscilloscope is a versatile tool designed for both hobbyists and professionals in the electrical field. With a dual channel input and a 100MHz*2 analog bandwidth, this oscilloscope is capable of capturing signals with precision and clarity. The 1GSa/s real-time sampling rate ensures that even the fastest signals are captured without any loss of detail. The oscilloscope's trigger modes, including single, normal, and auto, allow for flexible triggering options, making it suitable for both periodic and aperiodic signals.

FEATURE

• Dual Channel

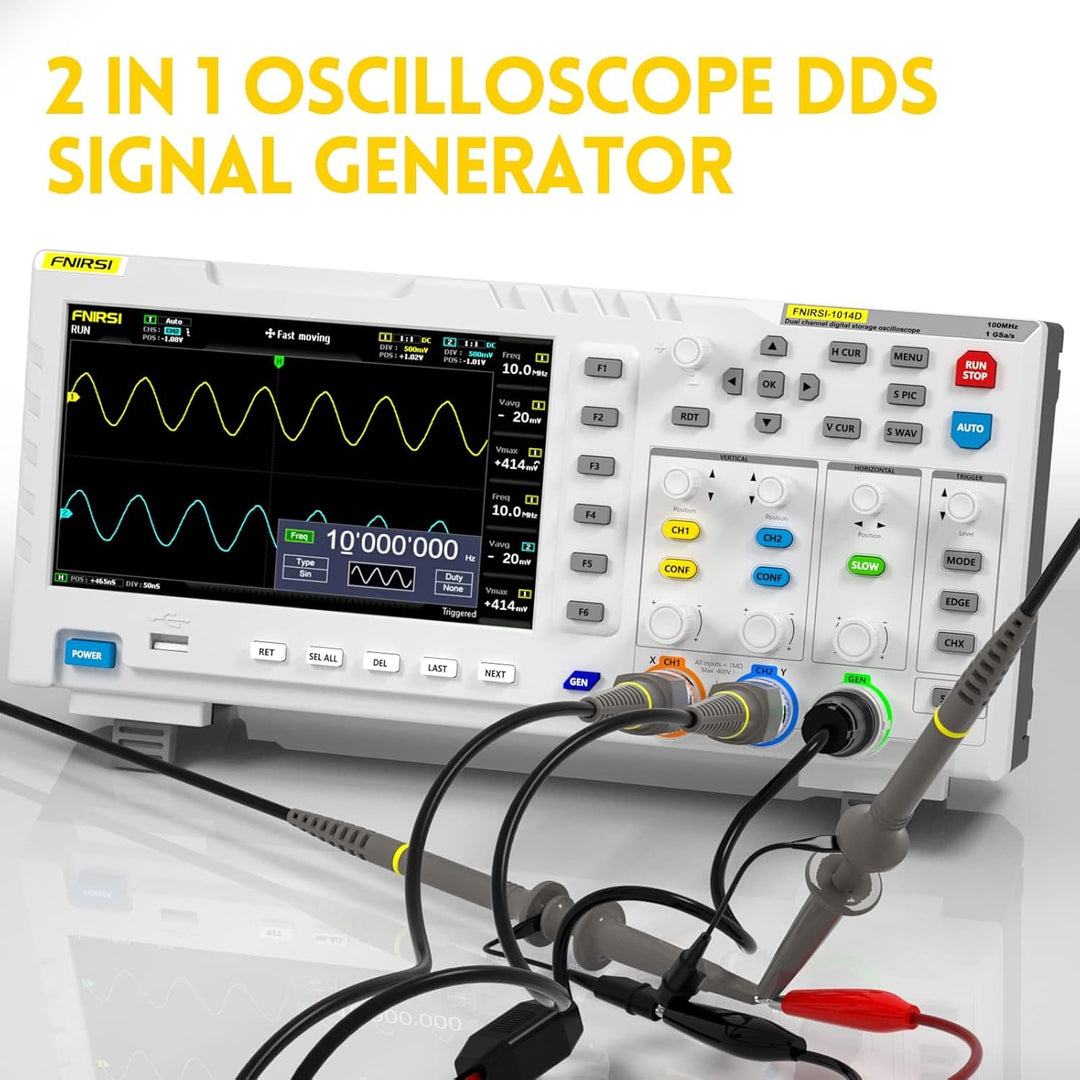

• 2 in 1: Digital Oscilloscope + DDS Function Signal Generator
• 1GSA/S sampling rate, 100MHz * 2 analog bandwidth.
• Complete trigger function (single/normal/automatic).
• Capable of storing up to 1000 customized chopping signals.
• High-voltage protection module.
• One-button AUTO and adaptive trigger (25%, 50%, 75%).

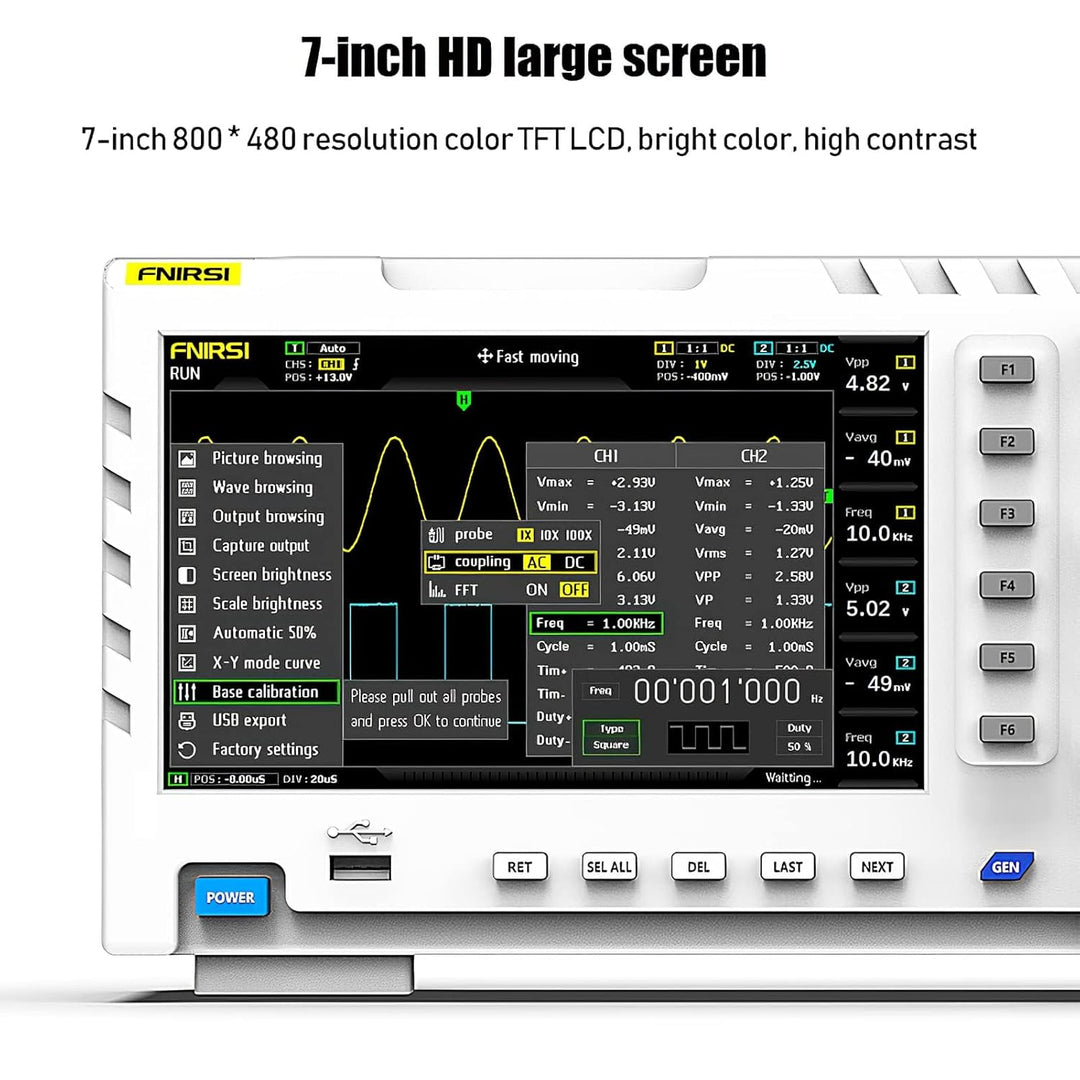

• 7-inch 800*480 resolution high-definition LCD screen.
• Powerful Waveform Picture Manager.
• One-key Screenshot and Saving.
• Cursor measurement function.
• USB Picture Export
• Lissajous Graphic Display & FFT Viewing.

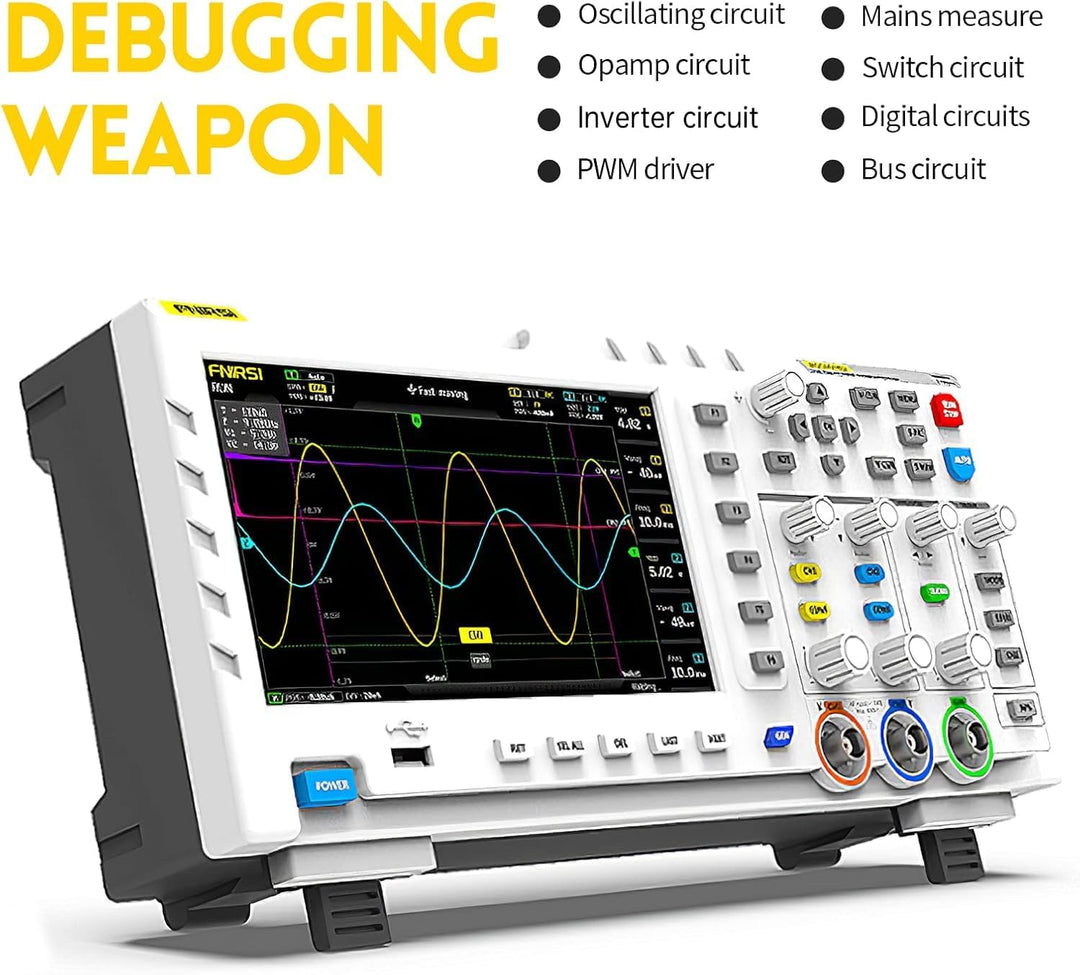

• Ideal for both periodic analog and aperiodic digital signals.

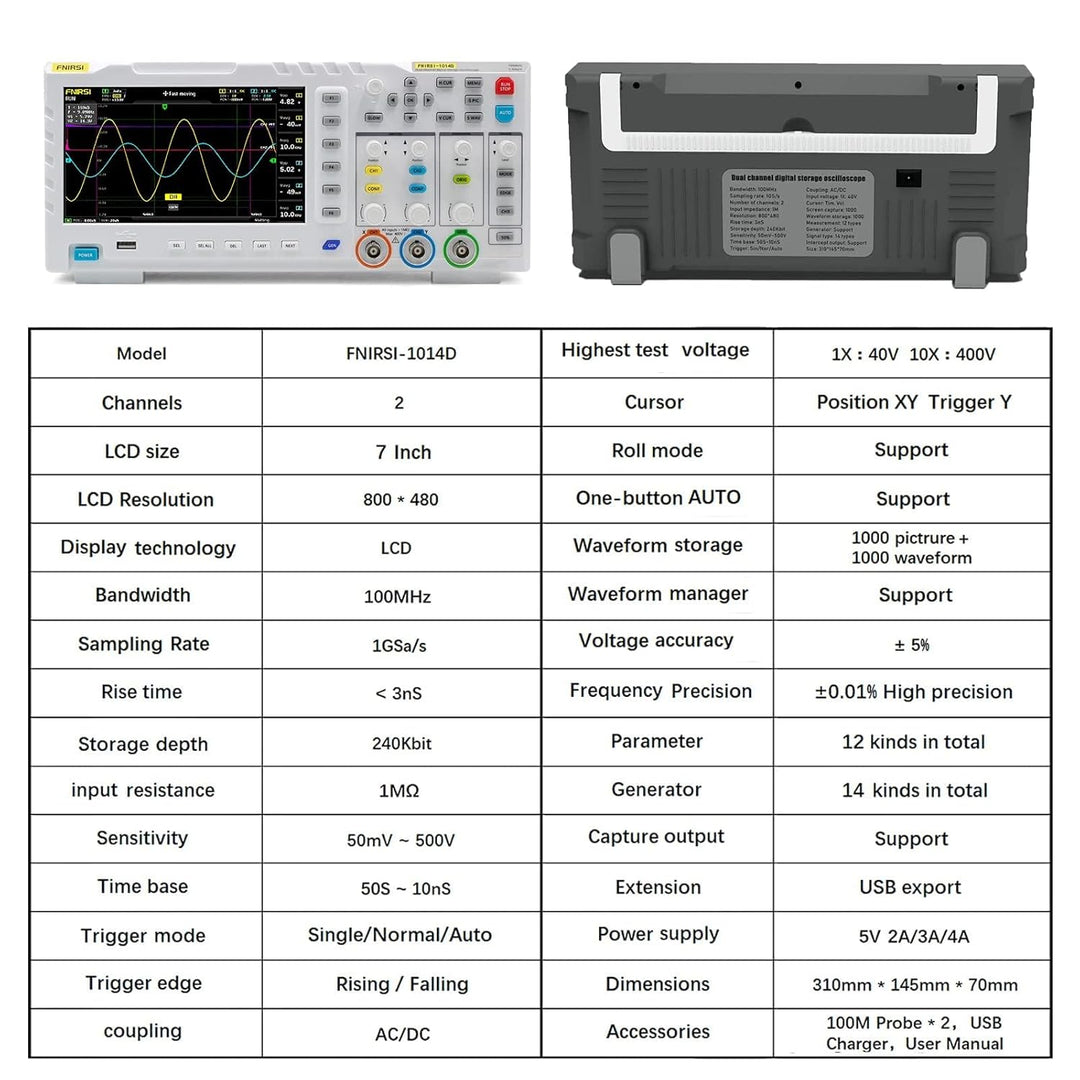

SPECIFICATION

• Model: 1014D
• Product Type: Handheld Digital Oscilloscope with Signal Generator
• Channels: 2 Oscilloscope Channels + 1 Signal Generator Channel
• Display: 7-inch TFT LCD (800 × 480 Resolution)
• Material: High-Quality ABS
• Analog Bandwidth: 100MHz × 2
• Real-Time Sampling Rate: 1GSa/s
• Vertical Sensitivity: 50mV/div – 500V/div
• Horizontal Time Base: 50s/div – 10ns/div
• Storage Depth: 240Kbit
• Input Resistance: 1MΩ
• ADC Resolution: 8-bit
• Rise Time: <3ns
• Coupling Mode: AC / DC
• Trigger Modes: Auto / Normal / Single
• Trigger Edge: Rising / Falling
• External Trigger Voltage: 0–40V
• Maximum Input Voltage: 40V (1X Probe), 400V (10X Probe)
• Waveform Manager: Up to 1000 Screenshots + 1000 Waveforms
• USB Export: Supported
• Capture Output: Supported
• Frequency Accuracy: ±0.01%
• Roll Mode: Supported
• One-Button AUTO: Supported
• Automatic Measurements: 12 Measurement Parameters
• Signal Generator Channels: 1
• Signal Generator Waveforms: 14 Standard Waveforms + 1 Custom Waveform
• Sine Wave Frequency: Up to 10MHz
• Other Waveform Frequency: Up to 2MHz
• Custom Waveform Frequency: Up to 1MHz
• Power Supply: 5V, 2A / 3A / 4A
• Product Dimensions: 310 × 145 × 70 mm

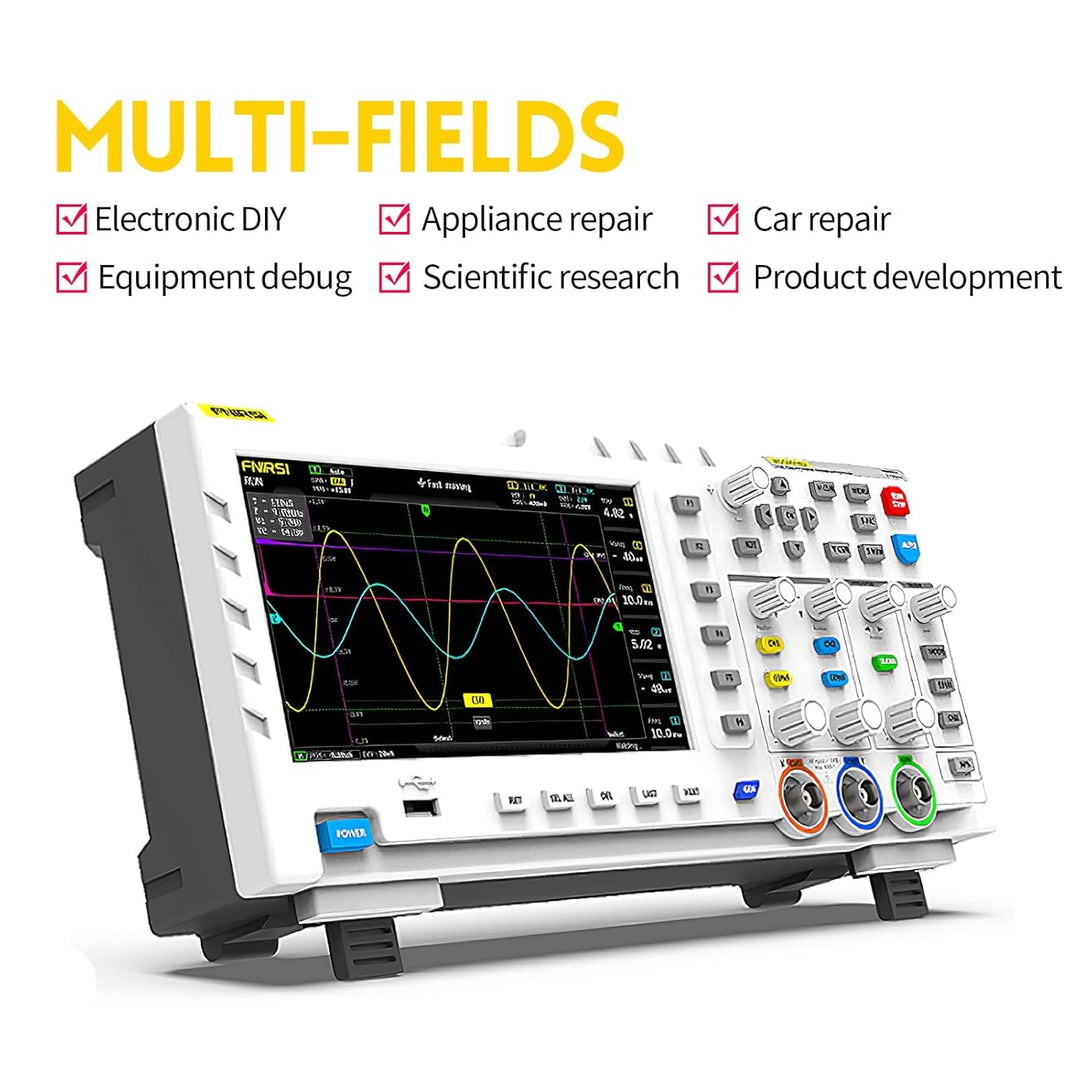

• Applications: Electronics Repair, Circuit Analysis, Signal Testing, Laboratory Testing, Industrial Maintenance, Education, R&D
