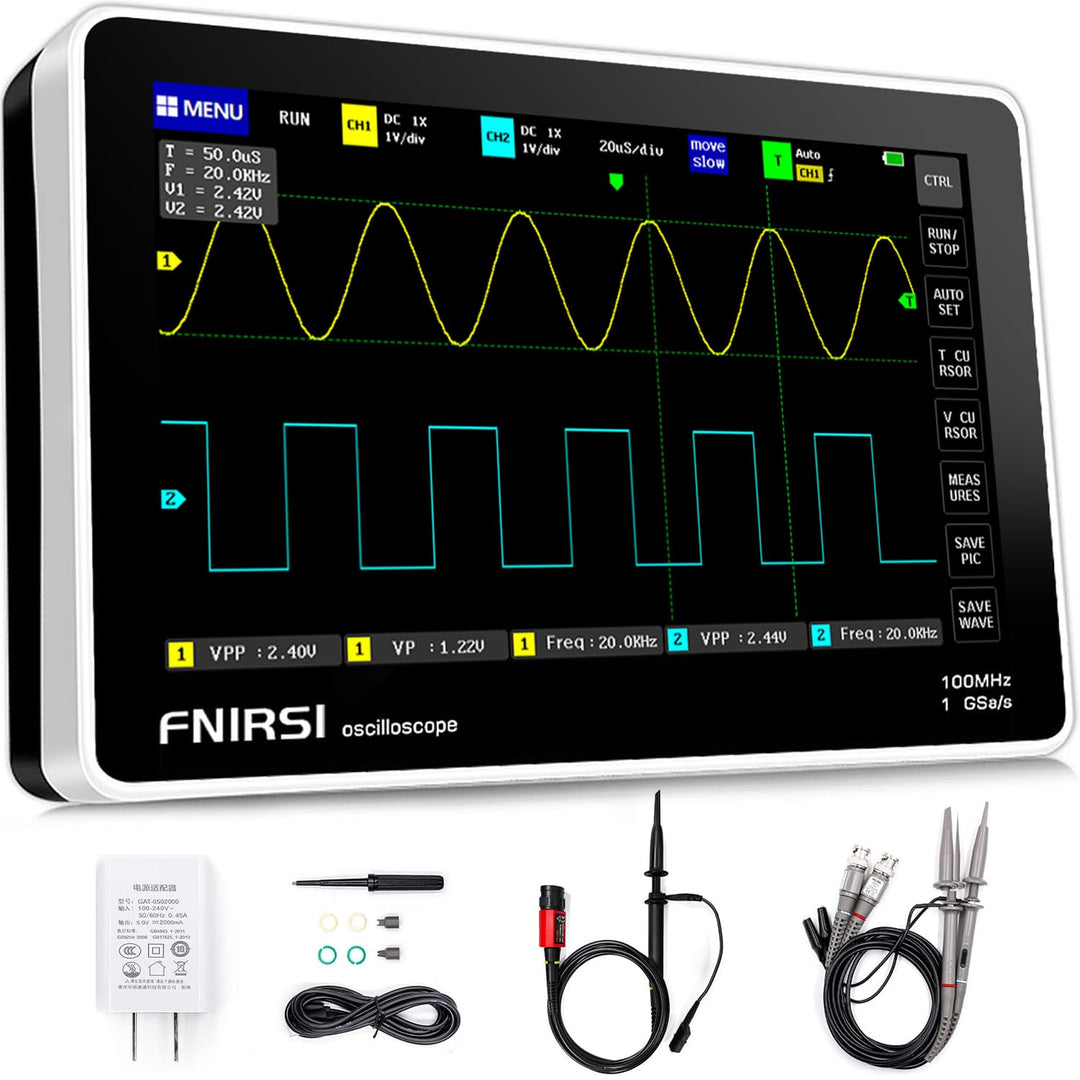

The 1013D is a dual-channel oscilloscope designed for R&D and maintenance, offering a 1GSa/s real-time sampling rate and 100MHz bandwidth per channel. It supports various trigger modes (single/normal/auto) and can handle up to 400V with built-in high-voltage protection. The 7-inch 800x480 touchscreen provides easy control with one-key AUTO function for quick waveform display. It includes convenient features like cursor measurements, peak detection, and built-in 1GB storage for up to 1000 screenshots and waveforms. The oscilloscope also supports USB connectivity for data sharing, and its 6000mAh battery lasts up to 4 hours on a single charge, usable even while charging.

FEATURE

• 2 Channels

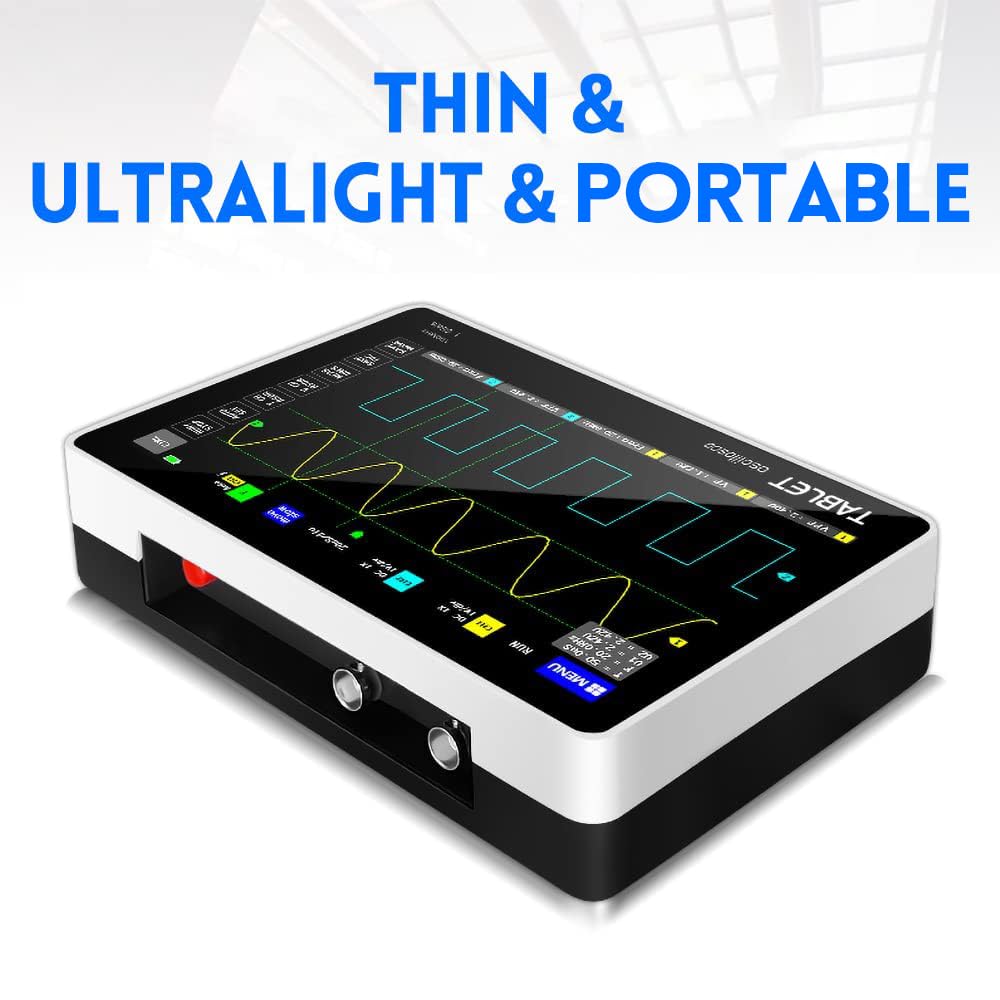

• Portable Handheld Tablet Oscilloscope
• 1GSa/s Sampling Rate (1X=5MHz,10X=100MHz)
• 100MHZ * 2analog bandwidth
• 7" TFT LCD Touch Screen
• Complete trigger function (single/normal/automatic).
• One-button AUTO and adaptive trigger (25%, 50%, 75%).
• Versatile usage for both periodic analog and aperiodic digital signals. high-voltage protection module.
• 1X can measure 0~40V, 10X can measure 0~400V,100X can measure 0~4000V
• Powerful Waveform Picture Manager.
• One-key Screenshot and Saving.
• Cursor measurement function.
• Powerful Waveform Picture Manager.
• Lissajous Graphic Display & FFT Viewing.
• USB Picture Export
• Ideal for both periodic analog and aperiodic digital signals.
• 6000mah battery, continuous usage for 4 hours

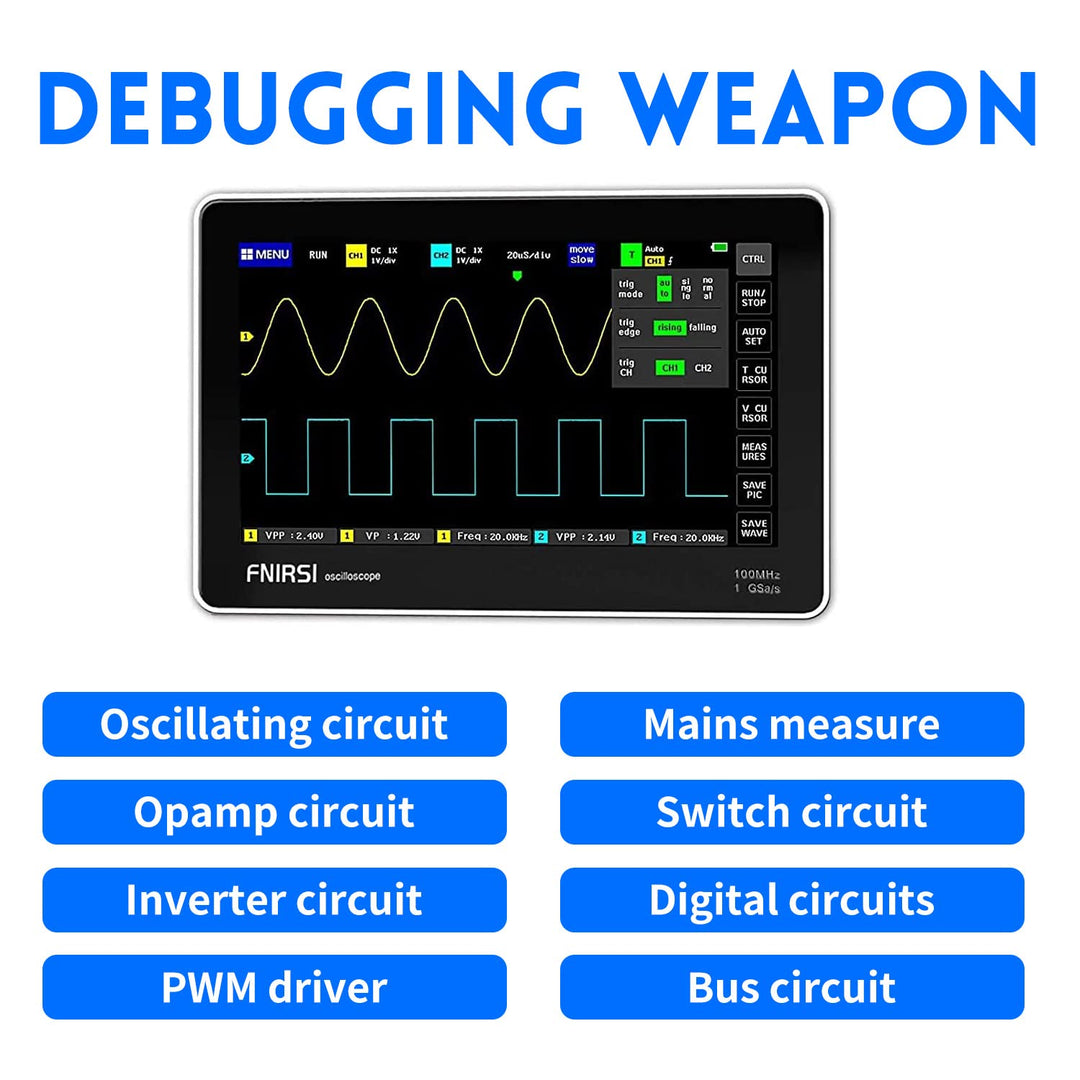

• Targeting the maintenance industry and the research and development industry.

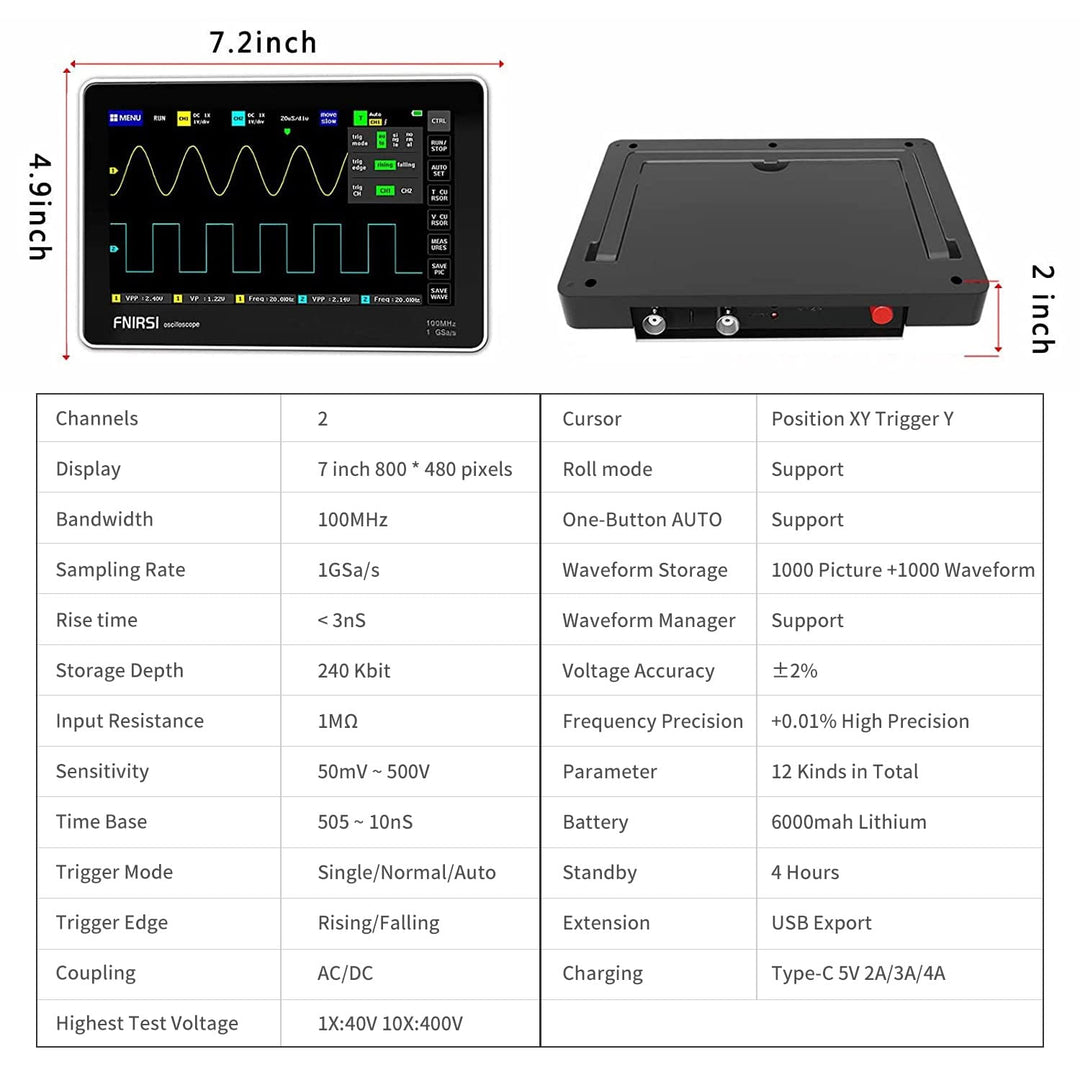

SPECIFICATION

• Model: 1013D
• Product Type: Handheld Digital Oscilloscope
• Channels: 2
• Display: 7-inch TFT LCD (800 × 480 Pixels)
• Bandwidth: 100MHz
• Real-Time Sampling Rate: 1GSa/s
• Rise Time: <3ns
• Storage Depth: 240Kbit
• Time Base: 50s – 10ns
• Vertical Sensitivity: 50mV/div – 500V/div
• Input Resistance: 1MΩ
• Coupling Mode: AC / DC
• Trigger Modes: Auto / Normal / Single
• Trigger Edge: Rising / Falling
• Maximum Input Voltage: 40V (1X Probe), 400V (10X Probe)
• Cursor Measurement: Position X/Y, Trigger Y
• Roll Mode: Supported
• One-Button AUTO: Supported
• Waveform Storage: Up to 1000 Screenshots + 1000 Waveforms
• Voltage Accuracy: ±2%
• Frequency Accuracy: ±0.01%
• Automatic Measurements: 12 Measurement Parameters
• Battery: 6000mAh Rechargeable Lithium Battery
• Battery Life: Up to 4 Hours
• Data Export: USB Export
• Charging Interface: USB Type-C (5V, 2A/3A/4A)

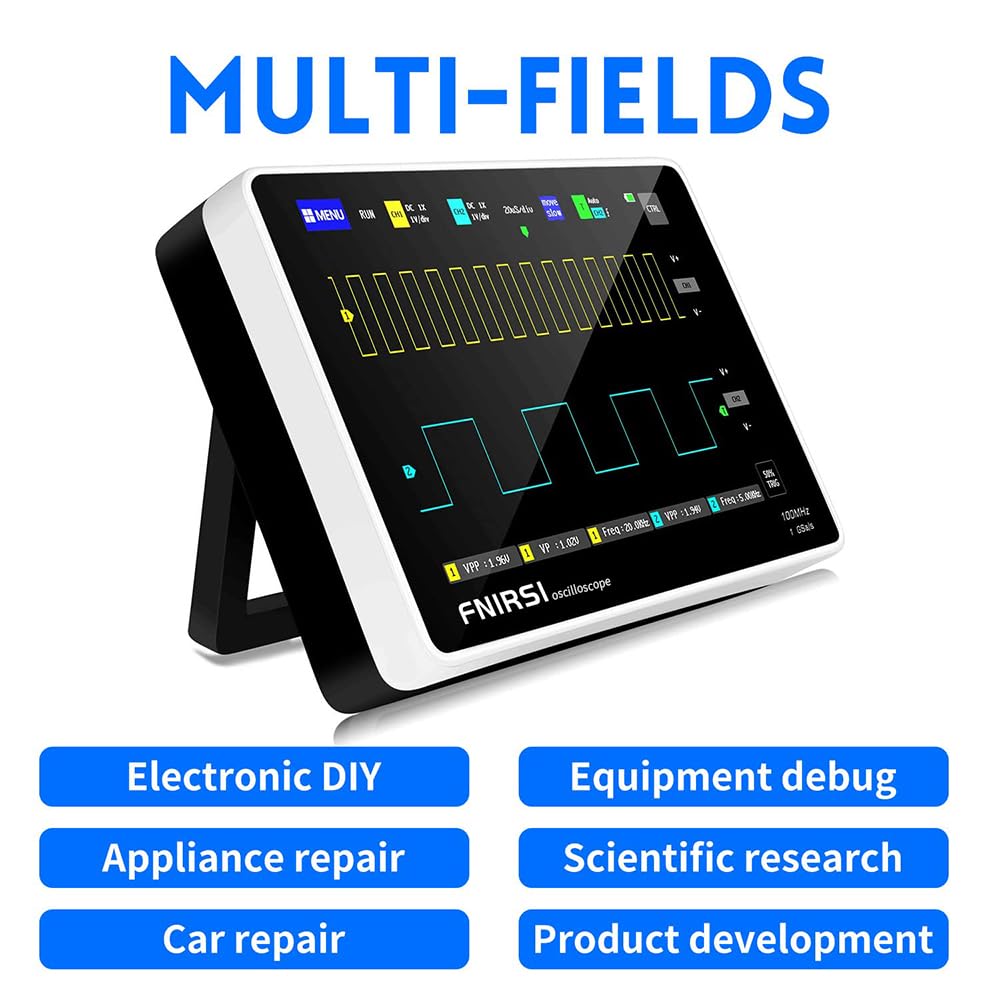

• Applications: Electronics Repair, Circuit Analysis, Laboratory Testing, Industrial Maintenance, Education, DIY Electronics
