• Order Code: LSP1Q-114
• Pathlength: 10mm, Volume: 3.5ml (3500ul)

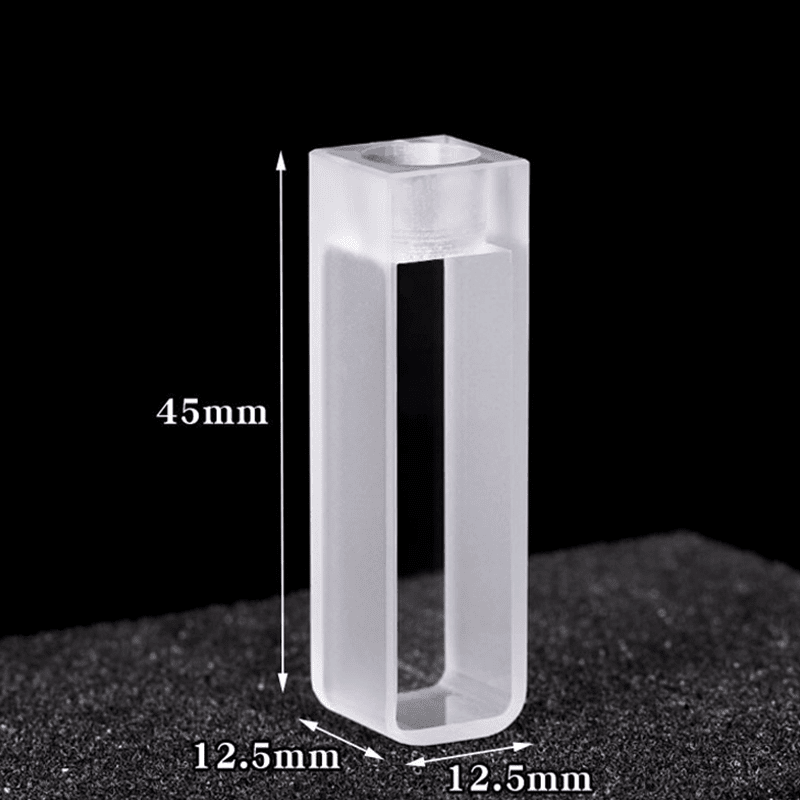

• Dimension: 12.5mmx12.5mmx45mm, Supplied in matched Pair certificate
• With a transmission range of 190-2500nm, this cuvette allows customers to use their cuvettes deep into the UV range.
• LABART now provides an optically fused 10 mm UV cuvette for use in extreme conditions with the most caustic of chemicals and temperatures.
• Two windows optically polished. Includes Stopper.

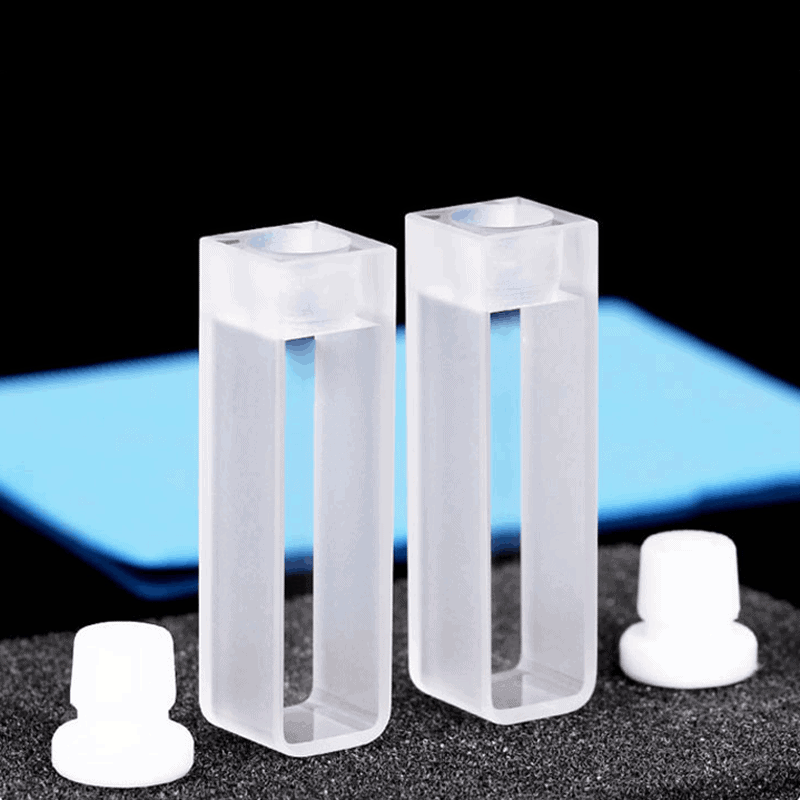

• Supplied in Matched Pair with Transmission certificate

SPECIFICATIONS

• Part No         :  LSP1Q-114
• Material        : Fused UV Quartz
• Cap Type      : PTFE Stopper
• Windows      : 2 Windows
• Transmission: 83% @190nm
• Inner Path     : 10mm
• Volume         : 35ml
• Dimension    : 12.5x 12.5 x 45mm
• Wavelength  : 190 – 2500nm
• Quantity       : Supplies in matched pair (2 Pcs)

IDEAL FOR ALL UV-VIS SPECTROMETERS

Accurate results for optical processing, UV-Vis-NIR absorbance and transmission. The unpolished two sides prevent slips from holding the cuvette during experiments. The efficient and high light transmission design allows light to easily travel and pass through the clear sides of the quartz cuvette. Measurement shows >83% light transmission from UV to near IR. It features a transparent and clear material surface for reliable results. If polished four sides, it can be used for fluorescent spectrometer.

DURABLE AND CONSISTENT

Each piece from the set is made of outstanding quality quartz glass for sustainable and durable built. Each piece is made with precise and uniform luster without leakage, bubbles, scratches and holes. LABART cuvettes are acid and alkali resistant with high temperature tolerance up to 600 degree Celsius.

WHAT DOES CUVETTE PATH LENGTH MEANS?

The optical path length of a cuvette is the distance light travels through the rectangular cuvette’s interior walls.

Example of Path Length ⇊
