Detect hidden thermal issues with the HT-H8 WIFI IR Handheld Thermal Imager. This professional-grade camera delivers 384×288 high-resolution thermal imaging to reveal what the naked eye cannot see. Identify water infiltration, insulation gaps, HVAC inefficiencies, electrical faults, and mechanical failures in buildings and systems. Real-time WIFI connectivity enables instant analysis and reporting. Essential for building inspections, maintenance diagnostics, and energy audits.

FEATURES

• Infrared Thermal Imaging Camera - This IR camera features a 3.5" full-view TFT screen that provides high-definition color clarity with maximum and minimum temperature ranges, current emissivity and other vital and measurable thermal data.

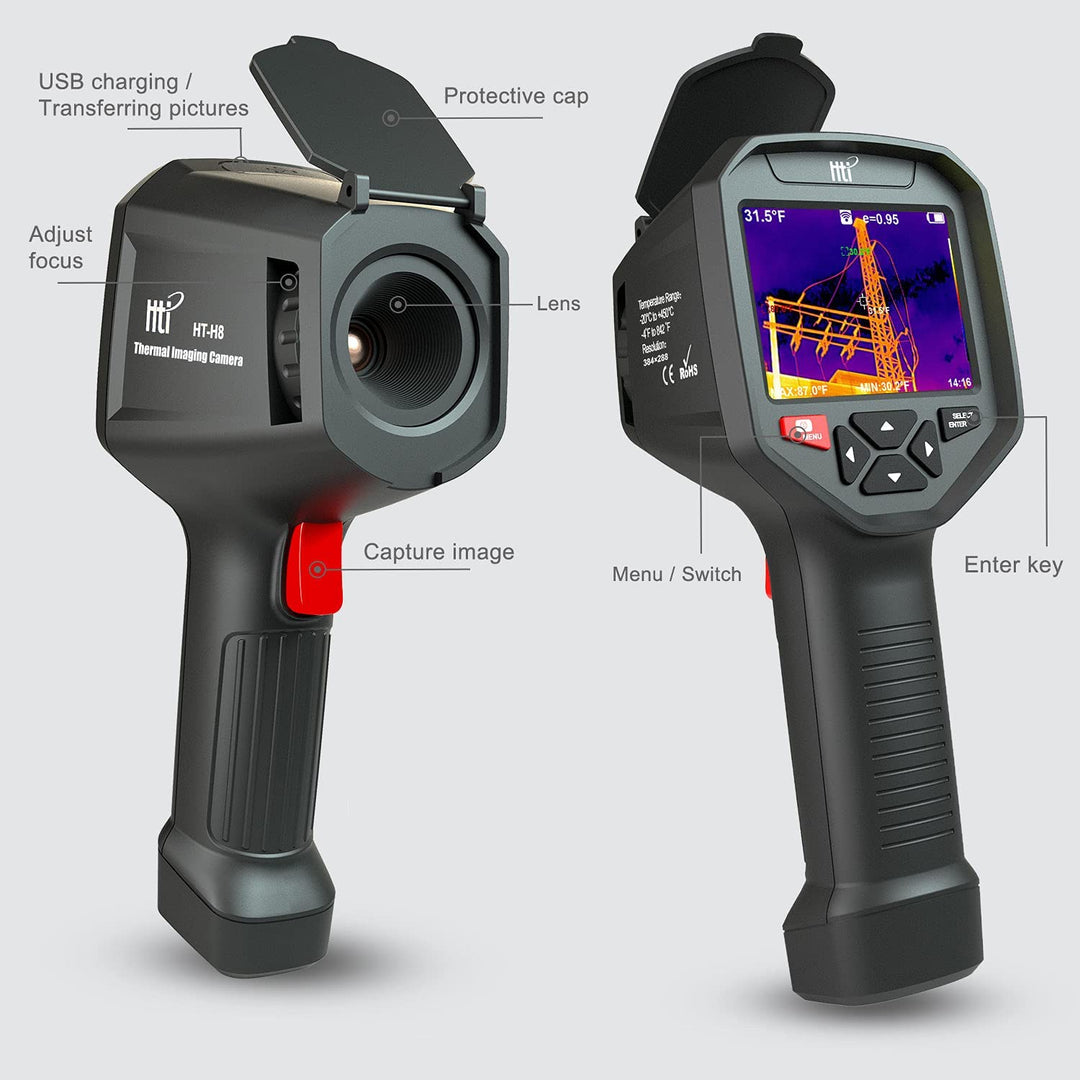

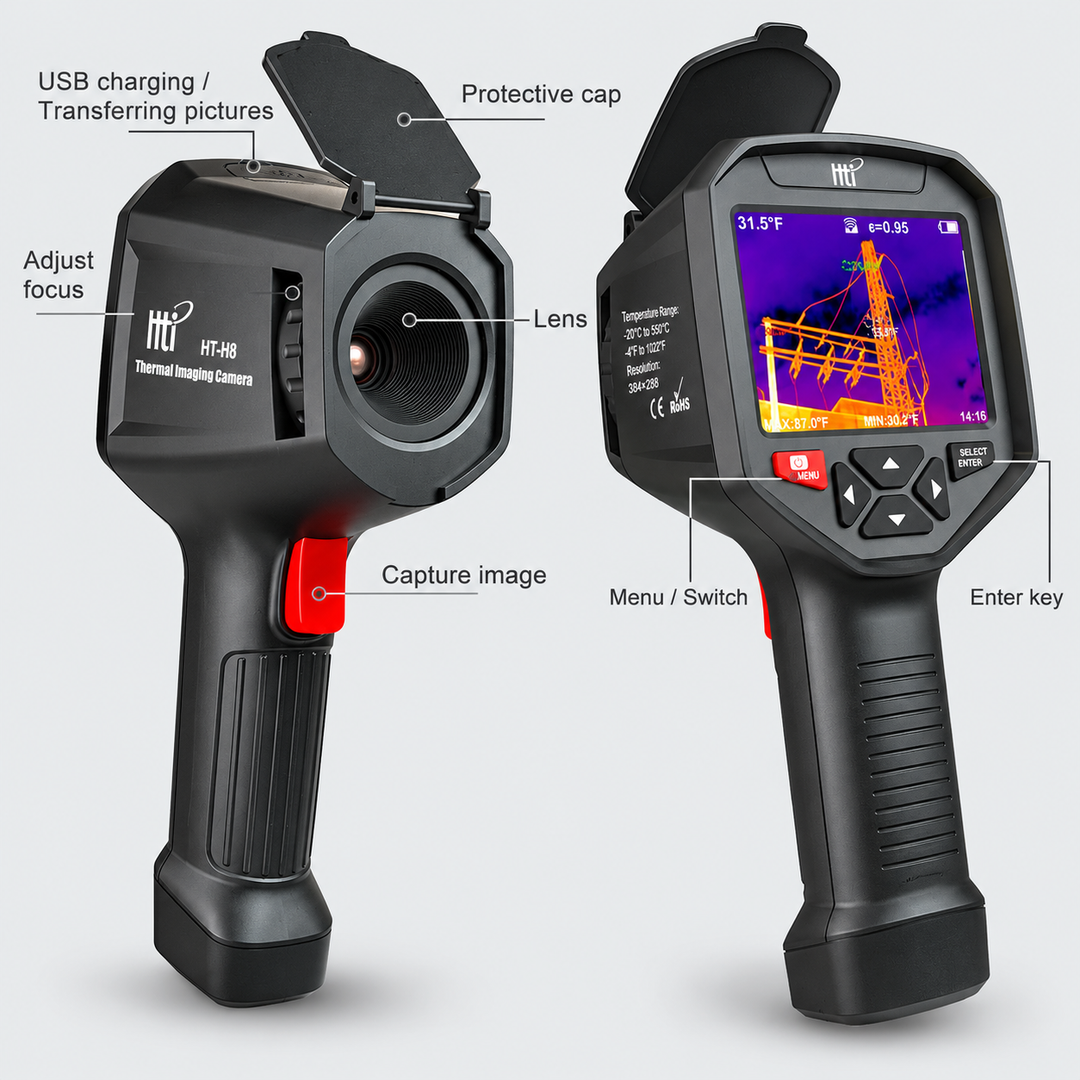

• Quick-Access Selection Key - The all-in-one design features an easy-to-grip handle and a key operation system right below the screen to help you capture images, select color palettes, measure temperature range conversion, and manage captured images.
• Residential and Industrial Use - With a measurement accuracy of ±3% this thermal imaging gun can be used in a variety of applications including HVAC heating and air, general electrician work, weather measurements, science and farming, and more.
• Superior Color Clarity and Accuracy - The HT-series Hti thermal imaging camera lets you quickly swap between rainbow, iron oxide red, cold color, white heat and black heat to give you more accurate data and thermal information.
• Note：To measure short-distance objects, and to measure long-distance objects, you must use different focal lengths, slowly rotate the lens, not too much in the same direction.


SPECIFICATION

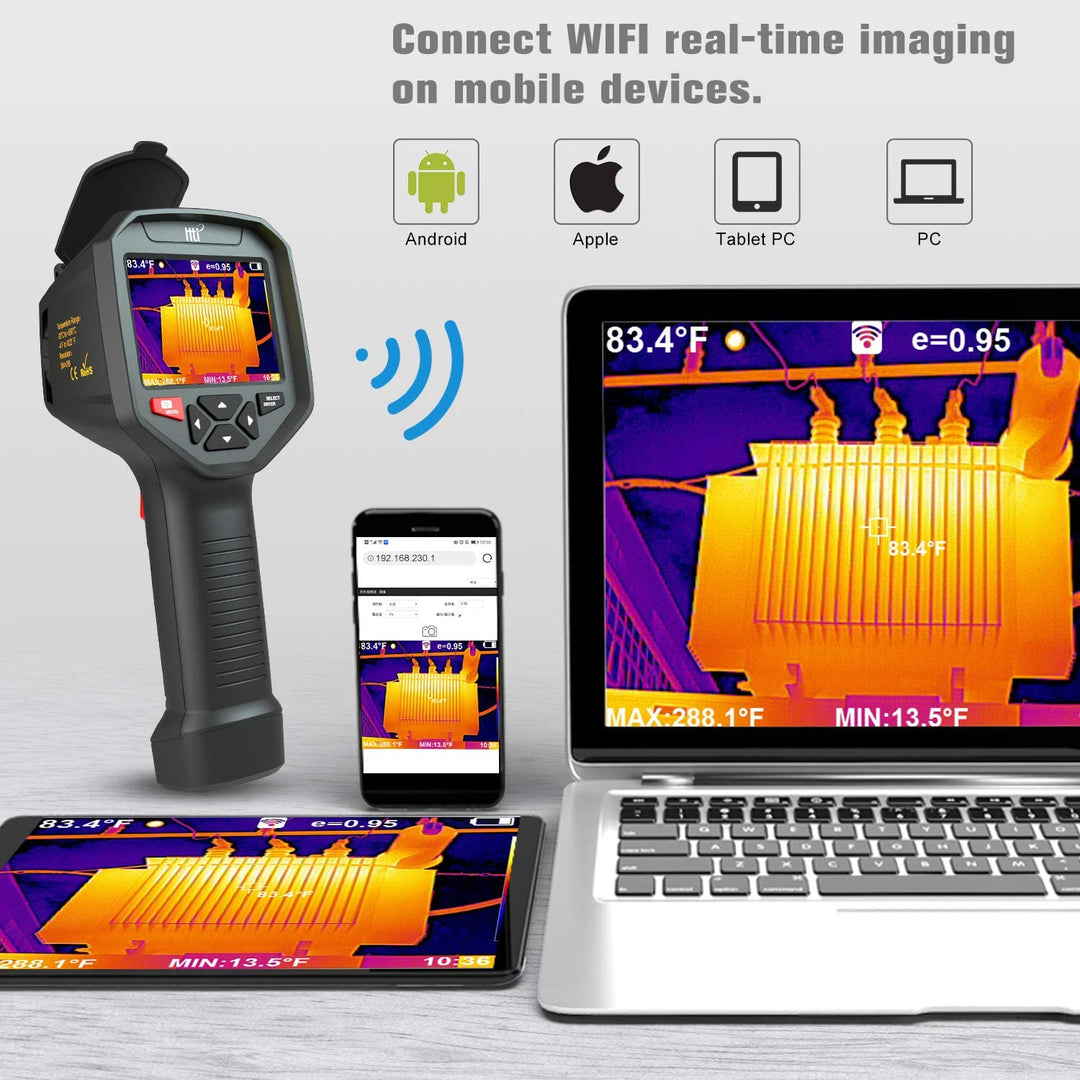

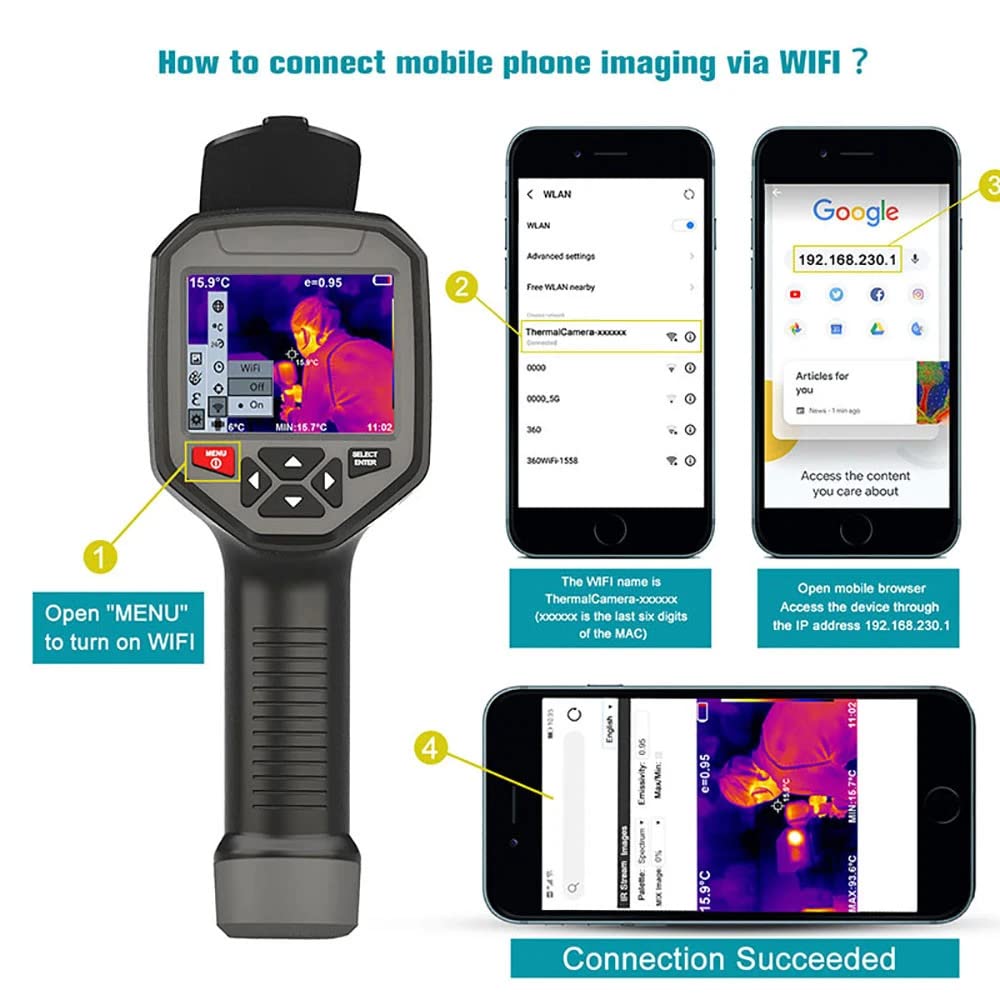

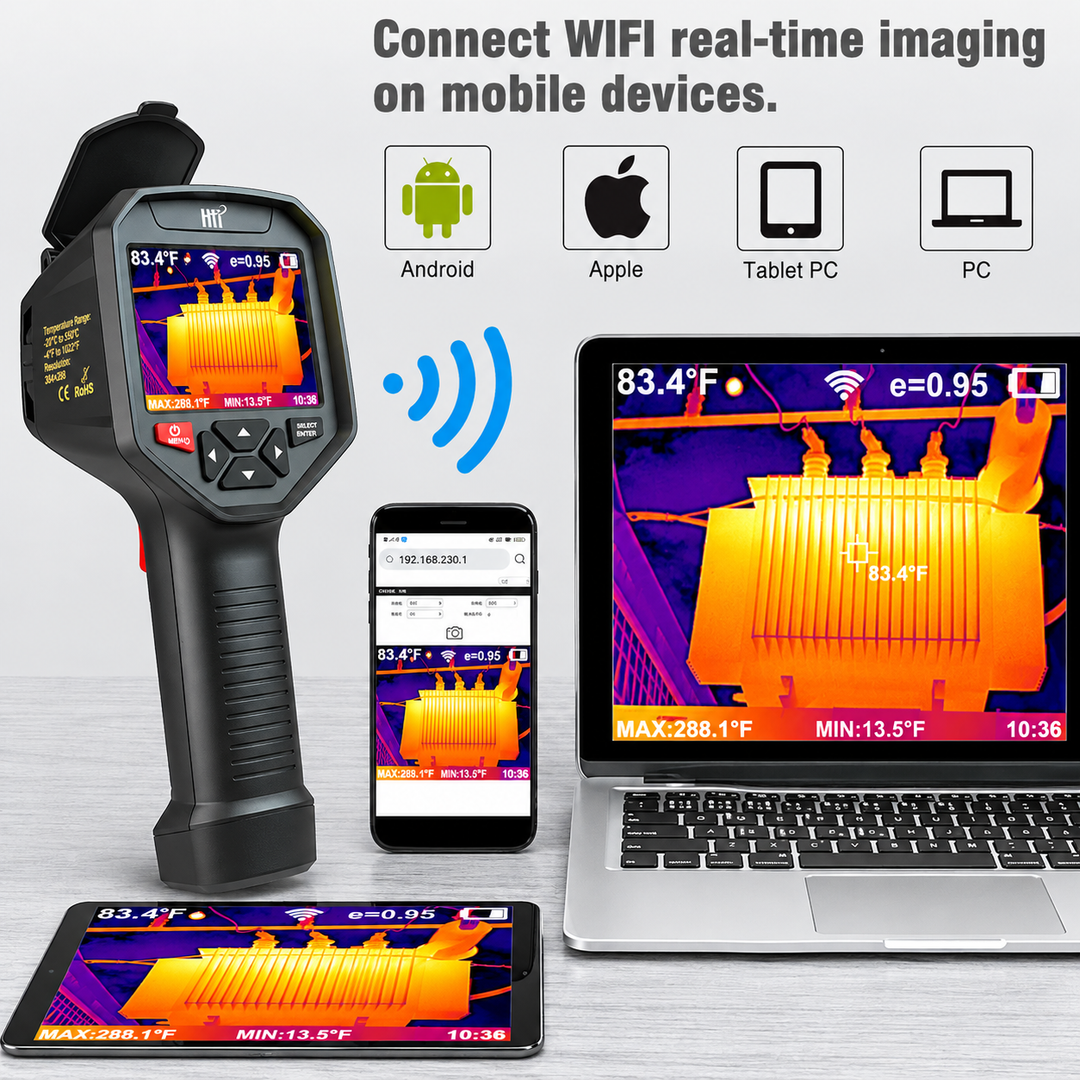

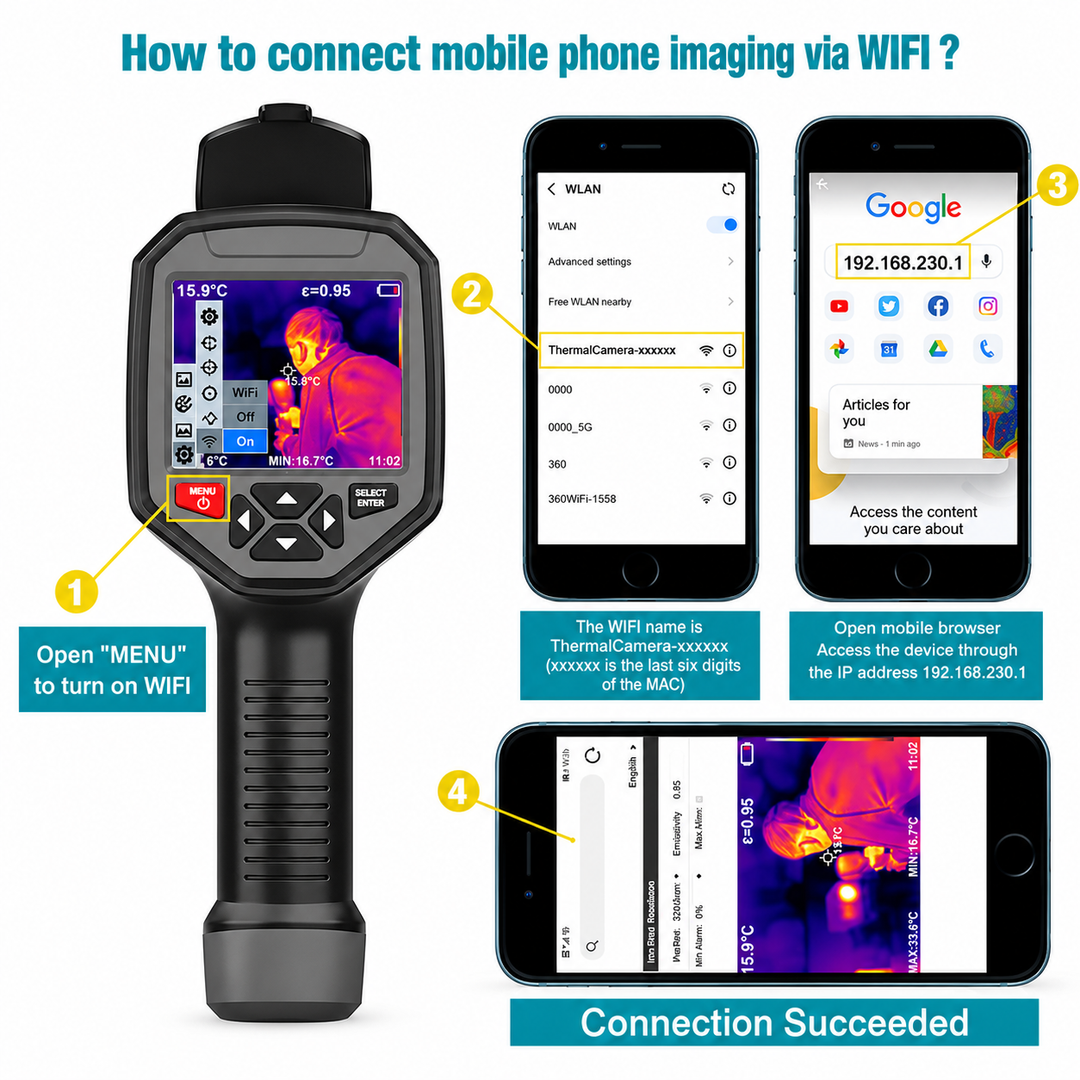

• Infrared image resolution：384×288 Connect wifi to the live image on the phone.
• Field angle/shortest focus length：28.4°×21.4°/0.19m

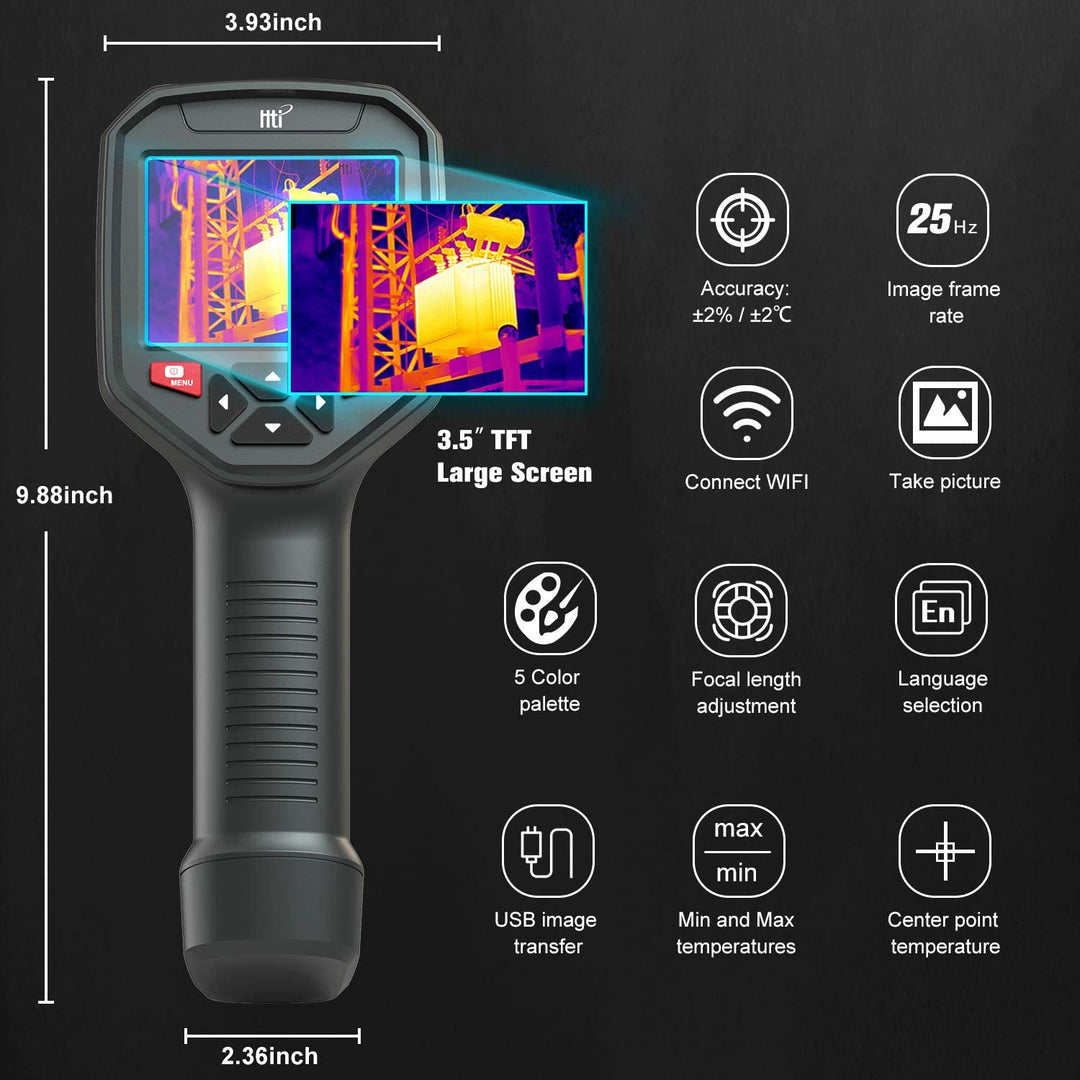

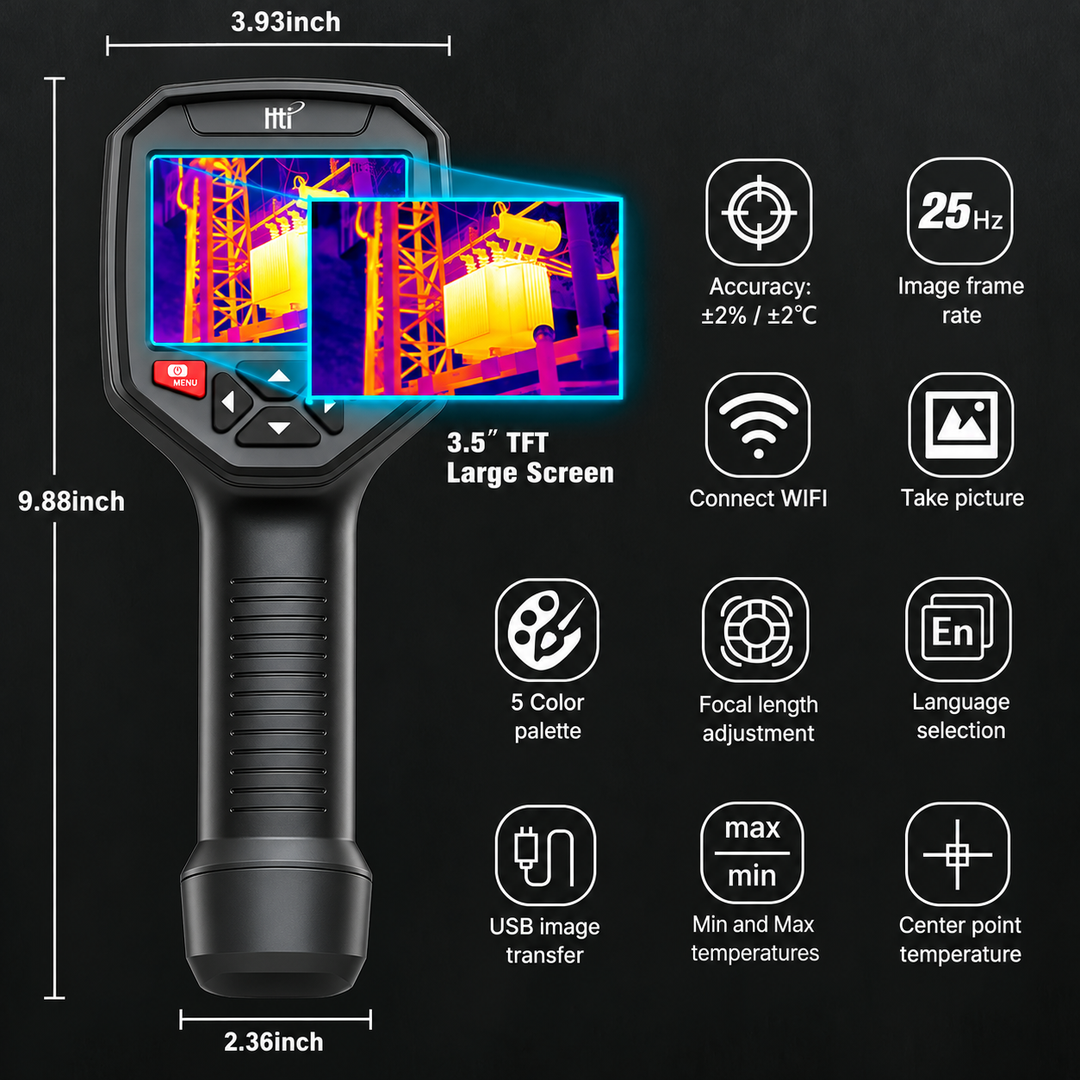

• Display screen：3.5 ″ full angle TFT display screen
• Display screen resolution：640*480
• Visible image resolution：300,000 pixel
• Thermal sensitivity：0.06℃
• Temperature measurement range：-20℃ to 550℃（-4°F to 1022°F）
• Measurement accuracy：±2% digital/±2℃
• Emissivity：Adjustable from 0.01 to 1.0
• Frame rate of thermal images：25Hz
• Wavelength coverage：8-14um
• Focus mode：Focal length adjustment
• Color palette：Rainbow, iron oxide red, cold color, black & white, white & black
• View option：The integration of thermal image with 25% step length and visible image.
• Storage medium：Built-in 3G (above 20 thousand image stored)
• File format：JPG
• USB：Micro USB 2.0
• Power supply：Built-in chargeable 26650 battery
• Automatic power-off time：Selectable: 5 minutes/20 minutes/ not power off automatically

• Work temperature：0℃to 45℃
• Storage temperature：-20℃ to 60℃
• Relative humidity：< 85%RH
