This instrument offers high accuracy, simple operation, and portability. It can be paired with a designated test stand for enhanced precision in measurements.

FEATURE

• High precision, high resolution.
• The three measurement modes can switch freely (real-time, peak, first peak value).
• Standard fruit hardness units in Kgf/cm2 are shown.
• The upper and lower limits can be set for statistical analysis, and the buzzer can be set beyond the limit for the alarm.
• Automatic shutdown function: can set automatic shutdown time, automatic shutdown without operation to achieve power saving effect.
• Power supply: 2pcs AAA battery (not included)
• Automatic backlight and buzzer alarm function.

SPECIFICATION

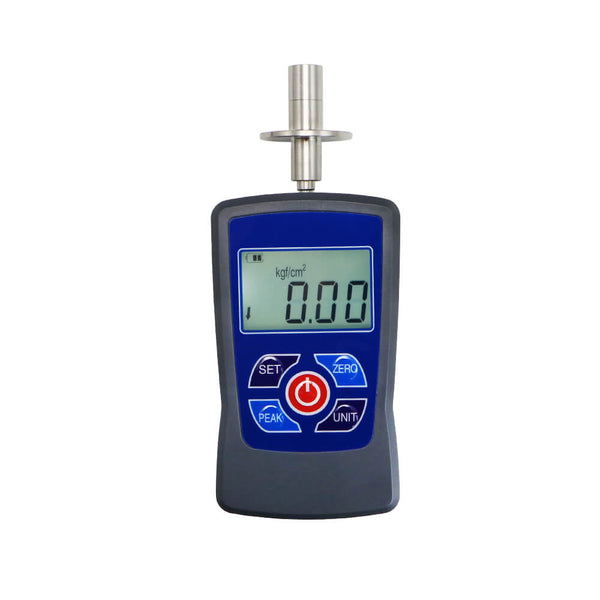

• Model: GY-M15
• Range: 0.2~15Kgf/cm² (x10^5 Pa)
• Pressure Head Diameter: Φ11.1mm
• Load Division Value: 0.01Kgf/cm²
• Accuracy: ±2%(10% to 100% of the full range)
• Insertion Depth of Indenter: 10mm
• Power Supply: 2 * 1.5V AAA Dry Battery(Not included)
• Working Temperature: 5℃-35℃
• Transportation Temperature: -10℃-60℃
• Relative Humidity: 15%~80%RH
• Work Environment: No focal source and corrosive media around
• Material: ABS
