LABART Digital Laser Non Contact Tachometer Photoelectric Speedometer DT-2234C+
Regular price
Rs. 2,500.00
Sale price
Rs. 1,311.00
(Incl. of all taxes)
Unit price
per
-
SPECIFICATION
-
TECHNICAL SPECIFICATIONS
-
RESOURCES
-
SHIPPING
-
REVIEW
SPECIFICATION

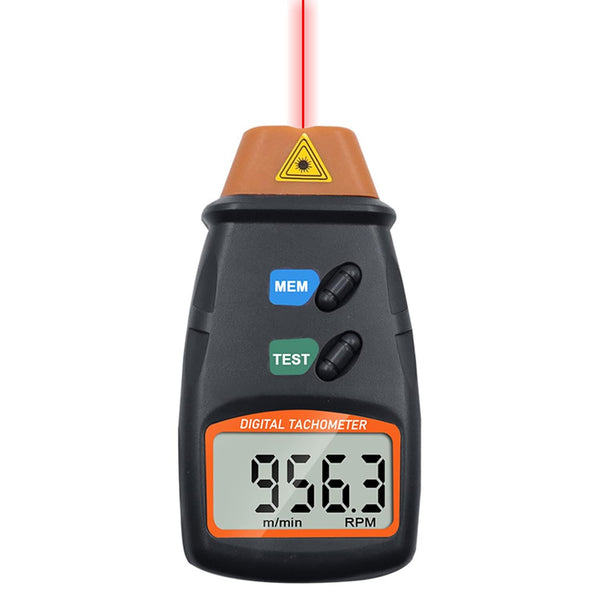

This tachometer is a high quality instrument to measure the Rotational Speed (RPM) with wide measuring range and high resolution.
Â
FEATURE
- This is a non-contact handheld digital photo tachometer with stable performance.
- Wide measuring range from 2.5RPM to 99999 RPM and high resolution of 0.1RPM or 1RPM.
- High sampling frequency, clear LCD display, high measuring accuracy.
- This tachometer can automatically record the max value, min value and last value.
- With auto range, low battery indication and other functions.
- Wide used in the field of motor, wheels, lathe, electrical fan, paper making, plastic industry, washing machines, car making, etc.
- Laser tachometer : Non Contact Tachometer measures the moving distance of an object to be measured within a certain time interval by laser emission, and calculates the moving speed of the object. Suitable for speed measurement of tires, motors, motors, gears, fans, washing machines
- Non-contact mode: RPM meters avoid contact between the instrument and the workpiece, laser rpm meter solve the problem of measuring the test piece with less torque or is easily deformed. Measuring distance: 50-500mm / 2-20in (50-500mm)
- Powerful performance : Range from 2.5RPM to 99999 RPM, high resolution 0.1RPM or 1RPM, 0.8 second sampling time. The maximum and minimum values ​​are automatically recorded. LCD backlights allow viewing of data even when there is insufficient light.
- Easy to use : Just stick the reflective sticker on the non contact rpm meter to be measured, and fix it after the laser is aligned with the reflective paper. Note: Reflective strips is required, 3 reflective strips is included in the package. If you have any questions, feel free to contact us and we are happy to give you support.
- Widely applications : The handheld tachometer is applicable for Laboratories, car repair workers, and machinery manufacturing entrepreneurs all like this laser tachometer. Because of the incorrect cutting length of a single or finished product, rework and waste can result in increased costs. Therefore, our laser tachometer is very practical and very popular.
Â
SPECIFICATION
- Test Range Selection: Automatic.
- Memory: Maximum value, Minimum value, and Last Measured value.
- Detecting Distance: 50 ~ 500 mm (2 ~ 20 inch) (Laser).
- Time base: Quartz Crystal.
- Circuit: Exclusive one-chip of microcomputer LSI circuit.
- Power: 9V PP3 Battery.
- Operating Temperature: 0 ~ 50 C (32°C ~ 122 °F).
- Dimension: approx. 131 (L) x 70 (W) x 29 (D) mm (5.16x 2.76 x 1.14inch).
Â
Â
Â
Â
Â
 We are dedicatedly involved in providing an excellent quality array of Labart Measuring Instrument
Â
Â
TECHNICAL SPECIFICATIONS
Test Range Selection | Automatic |
Memory | Maximum value, Minimum value, and Last Measured value. |
Detecting Distance | 50 ~ 500 mm (2 ~ 20 inches) (Laser). |
Time Base | Quartz Crystal |
Circuit | Exclusive one-chip of microcomputer LSI circuit. |
Power | 9V PP3 Battery. |
Operating Temperature | 0 ~ 50°C (32°F ~ 122°F). |
Dimension | Approx. 131 (L) x 70 (W) x 29 (D) mm (5.16 x 2.76 x 1.14 inches). |
