LABART Handheld Vane Anemometer with Telescopic Probe, CFM CMM Air Flow Meter, Backlit LCD Wind Meter,
Regular price
Rs. 9,200.00
Sale price
Rs. 7,072.00
(Incl. of all taxes)
Unit price
per
-
SPECIFICATION
-
TECHNICAL SPECIFICATIONS
-
RESOURCES
-
SHIPPING
-
REVIEW
SPECIFICATION

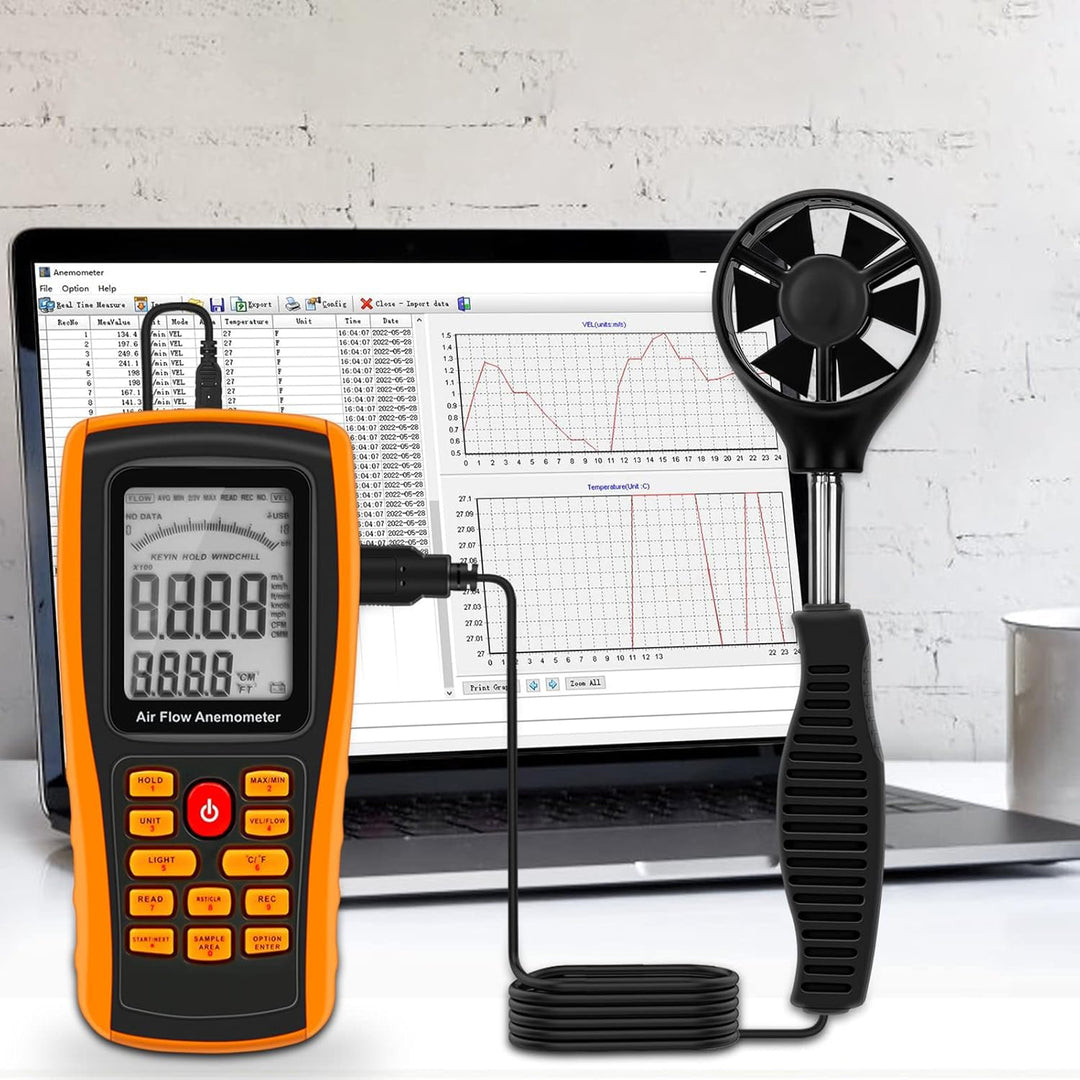

This high-end vane anemometer precisely calculates air speed, flow, and temperature, making it perfect for HVAC troubleshooting and industrial evaluations. It boasts various measurement options, a backlit LCD, and 500-group data storage, which can be easily exported via USB for further examination.
FEATURE
- Accurate Airflow & Velocity Measurement: Measures air velocity in ft/min, m/s, km/h, mph, or knots and airflow in CFM/CMM.
- Temperature Measurement: Reads air temperature in ℃/℉ for environmental monitoring.
- Backlit LCD Display: Enhances readability in low-light conditions.
- Multiple Measurement Modes: Includes chill factor, max, min, 2/3 max, and average velocity.
- Auto Power Off: Turns off after 10 minutes of inactivity to conserve battery life.
- Low Battery Indicator: Alerts when battery power is low.

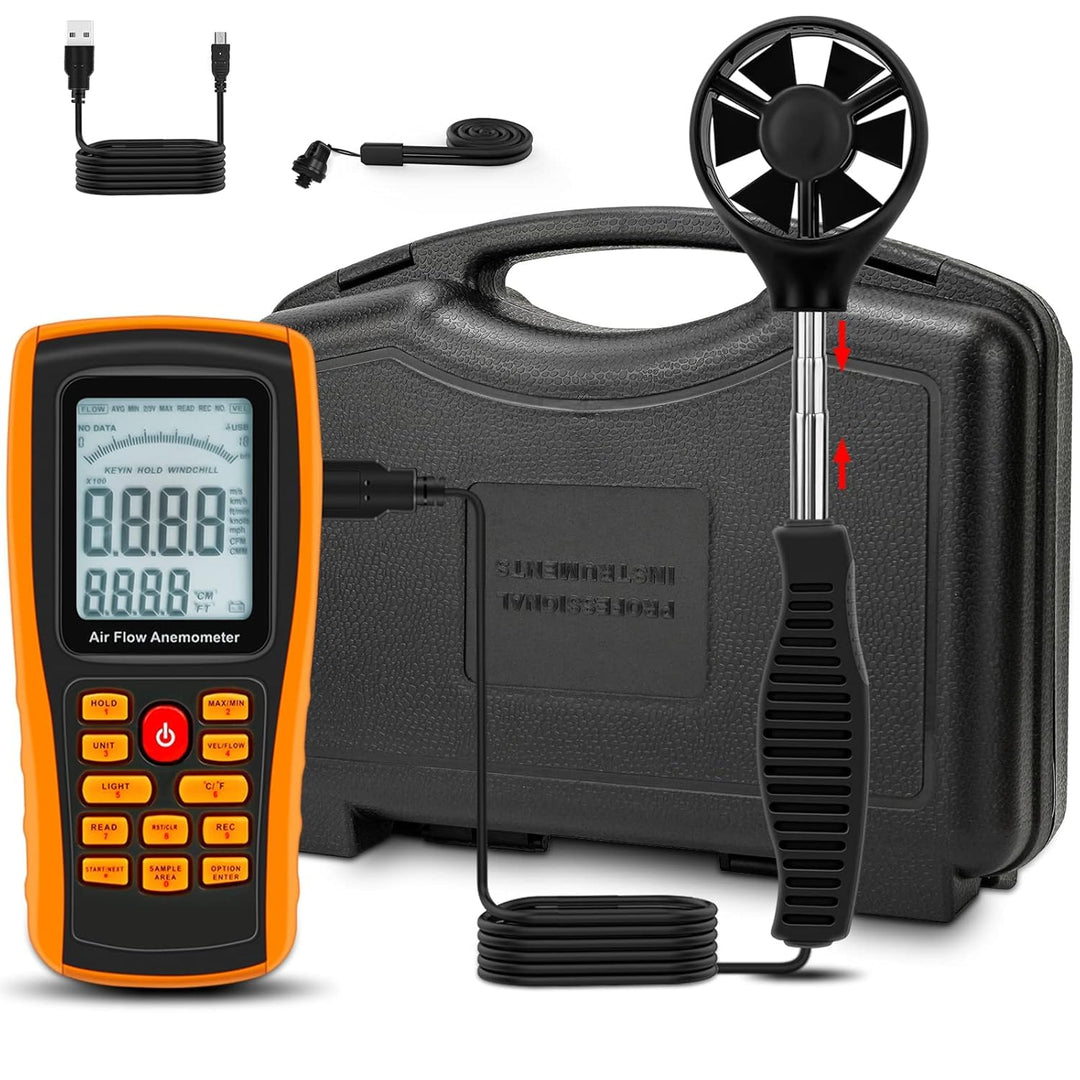

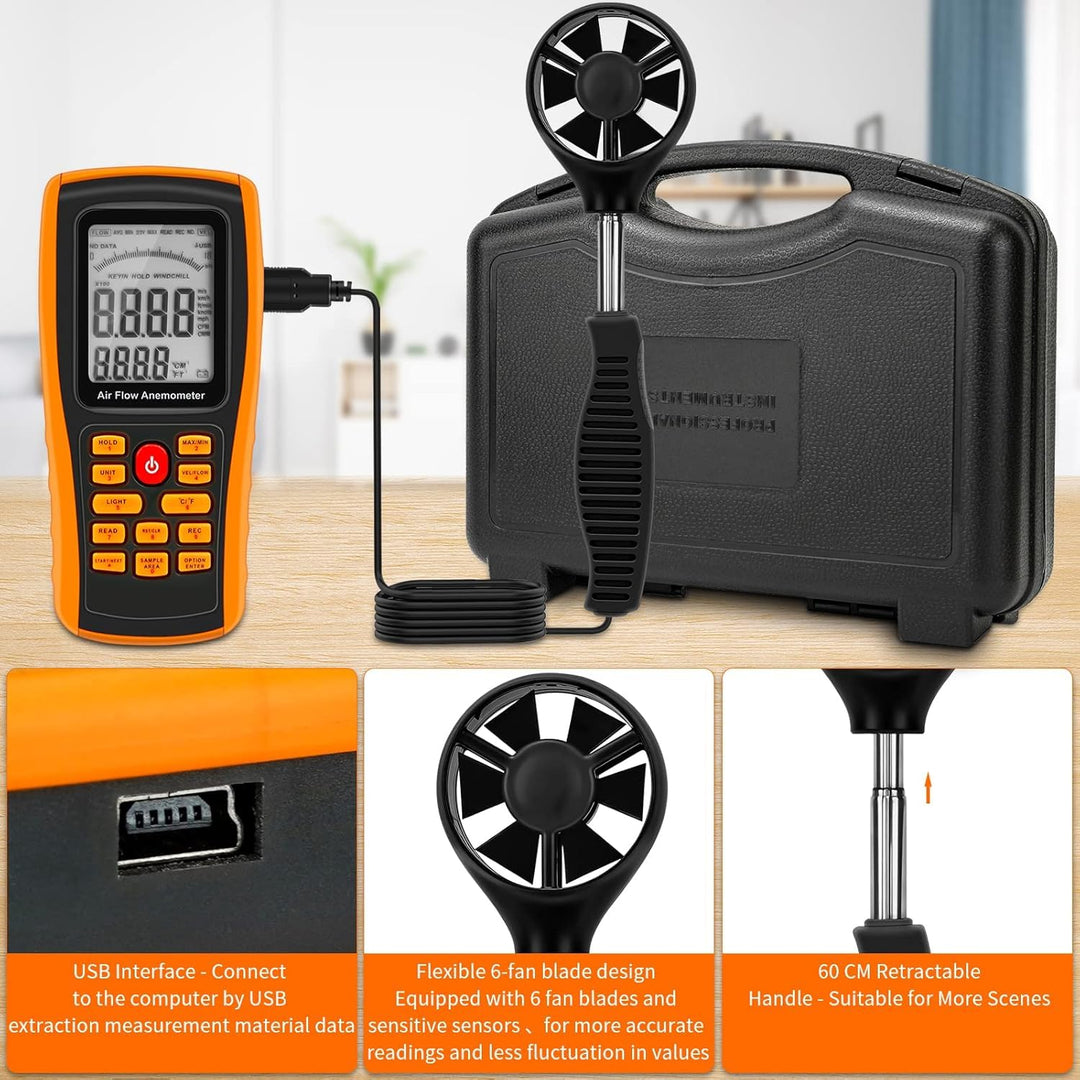

- Telescopic Probe & Long Cable: Includes a 0.5m telescopic rod and 1.0m probe cable for flexible use.
- 500 Data Storage & USB Export: Saves up to 500 sets of data, exportable via USB to PC (Win7/10/XP) for detailed analysis.
-
Versatile Applications: Ideal for HVAC systems, indoor air quality (IAQ) monitoring, ventilation assessments, ductwork inspections, energy audits, and industrial settings.
SPECIFICATION
- Wind Velocity Range:
|
Unit |
Wind Velocity |
Resolution |
Lowest Point of start value |
Accuracy |
| m/s |
0.0-45.0 |
0.001 |
0.3 | ±3%±0.1 |
| Ft/min |
0.0-8800 |
0.01/0.1/1 |
60 | ±3%±20 |
| Knots |
0.0-88.0 |
0.01/0.01 |
0.6 | ±3%±0.2 |
| Km/h |
0.0-140.0 |
0.001 |
1.0 | ±3%±0.4 |
| Mph |
0.0-100 |
0.001/0.01 |
0.7 | ±3%±0.2 |
-
Wind flow range ：
   CMM：0-999900m³ /min
   CFM：0-999900 ft³ /min
|
Unit |
Range |
Resolution |
Area |
| CFM(FT³ /MIN) |
0-999900 |
0.001-100 |
0.001-9999 |
| CMM(M³ /MIN) |
0-999900 |
0.001-100 |
0.001-9999 |
- Unit Conversation:
| m/s | Ft/min | Knots | Km/h       | ||
| 1m/s |
1 | 196.87 |
1.944 |
3.60 |
2.24 |
| 1ft/min |
0.00508 |
1 | 0.00987 |
0.01829 |
0.01138 |
| 1knots |
0.5144 |
101.27 |
1 |
1.8519 |
1.1523 |
| 1km/h |
0.2778 |
54.69 |
0.54 |
1 |
0.6222 |
| 1mph |
0.4464 |
87.89 |
0.8679 |
1.6071 |
1 |
-
Air Temperature Range :
  Wind Temperature
|
Unit |
Scale |
Resolution |
Accuracy |
| ℃ | 0.0-45.0 |
0.1 | ±1.0℃ |
| ℉ | 32.0-113.0 |
0.1 | ±1.8℉ |

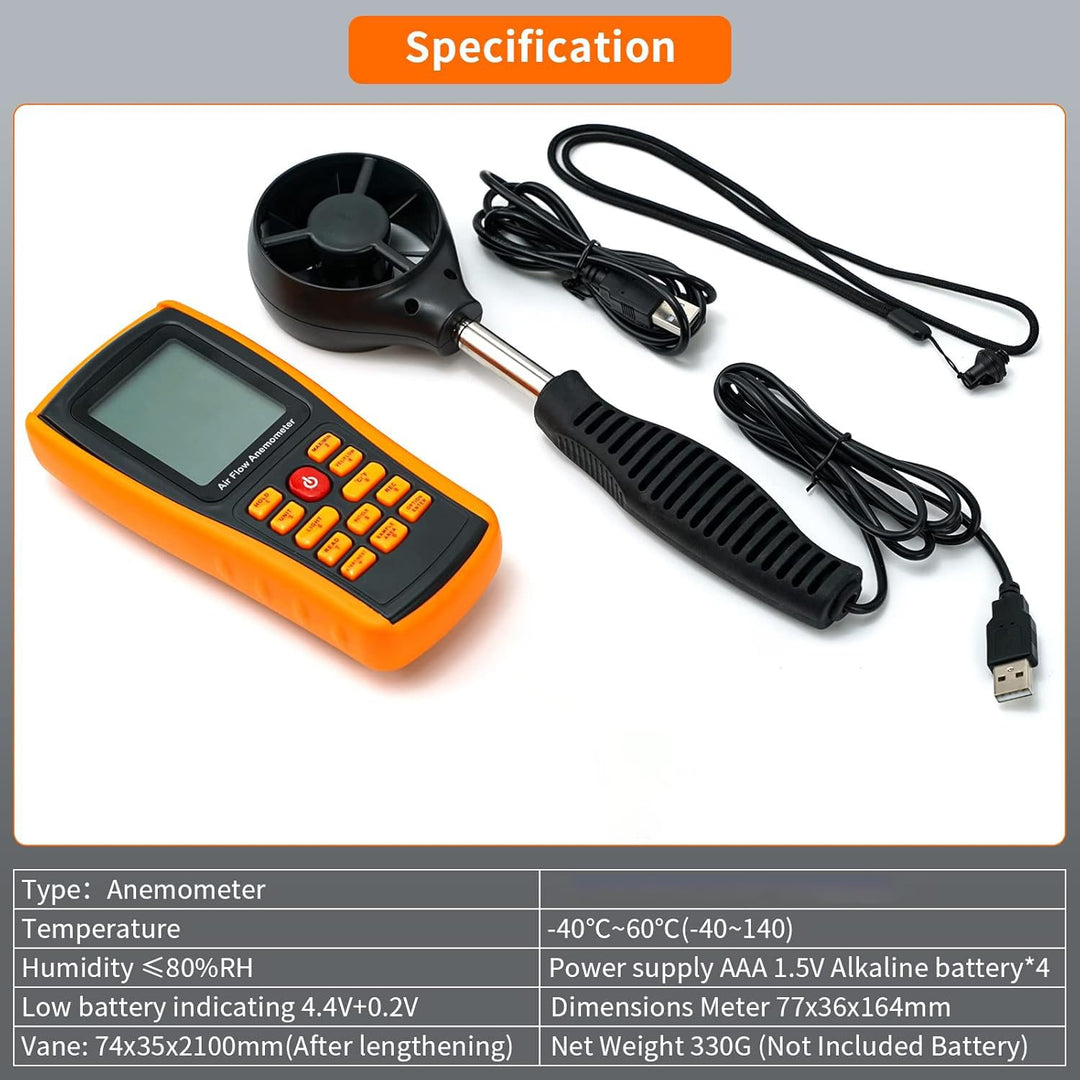

- Operation Conditions :
|
Temperature |
Resolution |
|||
| Host | 0-50℃ (32℉~122℉) |
≤80% RH | ||
| Fan |
|
≤80% RH |
- Storage Conditions:
|
Temperature |
-40℃~60℃ (-40℉~140℉) |
| Humidity |
≤80%RH |
- Power supply : AAA 1.5V Alkaline battery *4
- Low battery indicating : 4.4V±0.2V
- Stand by current: ≤2uA
- Operating Current: ≤18mA
- Battery use life :20H (Continuous Use )
Â
Â
We are dedicatedly involved in providing an excellent quality array of Labart Hygrometer
TECHNICAL SPECIFICATIONS
| Wind Velocity Range | |
|---|---|
| Unit | Wind Velocity | Resolution | Start Value | Accuracy |
| m/s | 0.0–45.0 | 0.001 | 0.3 | ±3% ±0.1 |
| ft/min | 0.0–8800 | 0.01/0.1/1 | 60 | ±3% ±20 |
| knots | 0.0–88.0 | 0.01 | 0.6 | ±3% ±0.2 |
| km/h | 0.0–140.0 | 0.001 | 1.0 | ±3% ±0.4 |
| mph | 0.0–100.0 | 0.001/0.01 | 0.7 | ±3% ±0.2 |
| Wind Flow Range | |
| CMM (m³/min) | 0–999900 | Resolution: 0.001–100 | Area: 0.001–9999 m² |
| CFM (ft³/min) | 0–999900 | Resolution: 0.001–100 | Area: 0.001–9999 ft² |
| Unit Conversion Table | |
| From | m/s | ft/min | knots | km/h | mph |
| 1 m/s | 1 | 196.87 | 1.944 | 3.60 | 2.24 |
| 1 ft/min | 0.00508 | 1 | 0.00987 | 0.01829 | 0.01138 |
| 1 knot | 0.5144 | 101.27 | 1 | 1.8519 | 1.1523 |
| 1 km/h | 0.2778 | 54.69 | 0.54 | 1 | 0.6222 |
| 1 mph | 0.4464 | 87.89 | 0.8679 | 1.6071 | 1 |
| Air Temperature Range | |
| ℃ | 0.0–45.0 | Resolution: 0.1 | Accuracy: ±1.0℃ |
| ℉ | 32.0–113.0 | Resolution: 0.1 | Accuracy: ±1.8℉ |
| Operating Conditions | |
| Host | 0–50℃ (32℉–122℉), ≤80% RH |
| Fan | 0–60℃ (32℉–140℉), ≤80% RH |
| Storage Conditions | |
| Temperature | -40℃–60℃ (-40℉–140℉) |
| Humidity | ≤80% RH |
| Power & Performance | |
| Power Supply | 4 × 1.5V AAA Alkaline Batteries |
| Low Battery Indication | 4.4V ± 0.2V |
| Standby Current | ≤2µA |
| Operating Current | ≤18mA |
| Battery Life | 20 hours (Continuous Use) |
