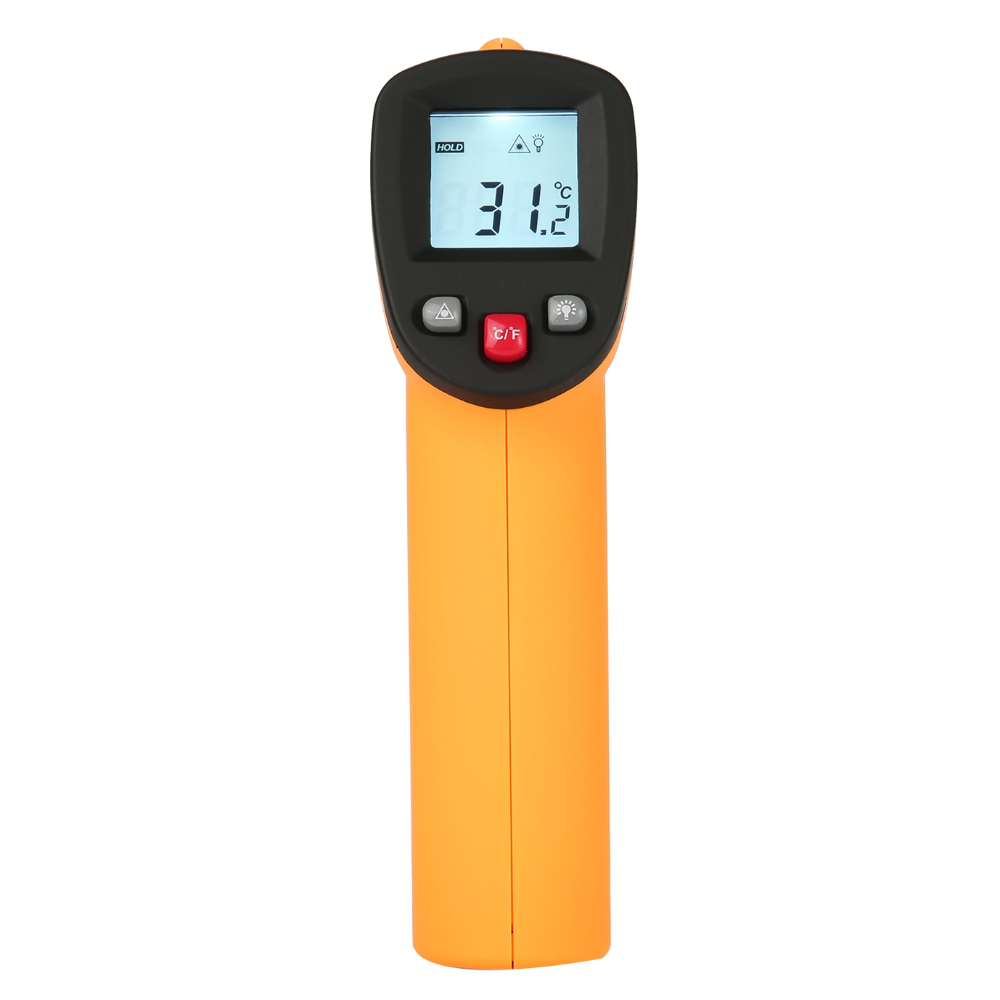

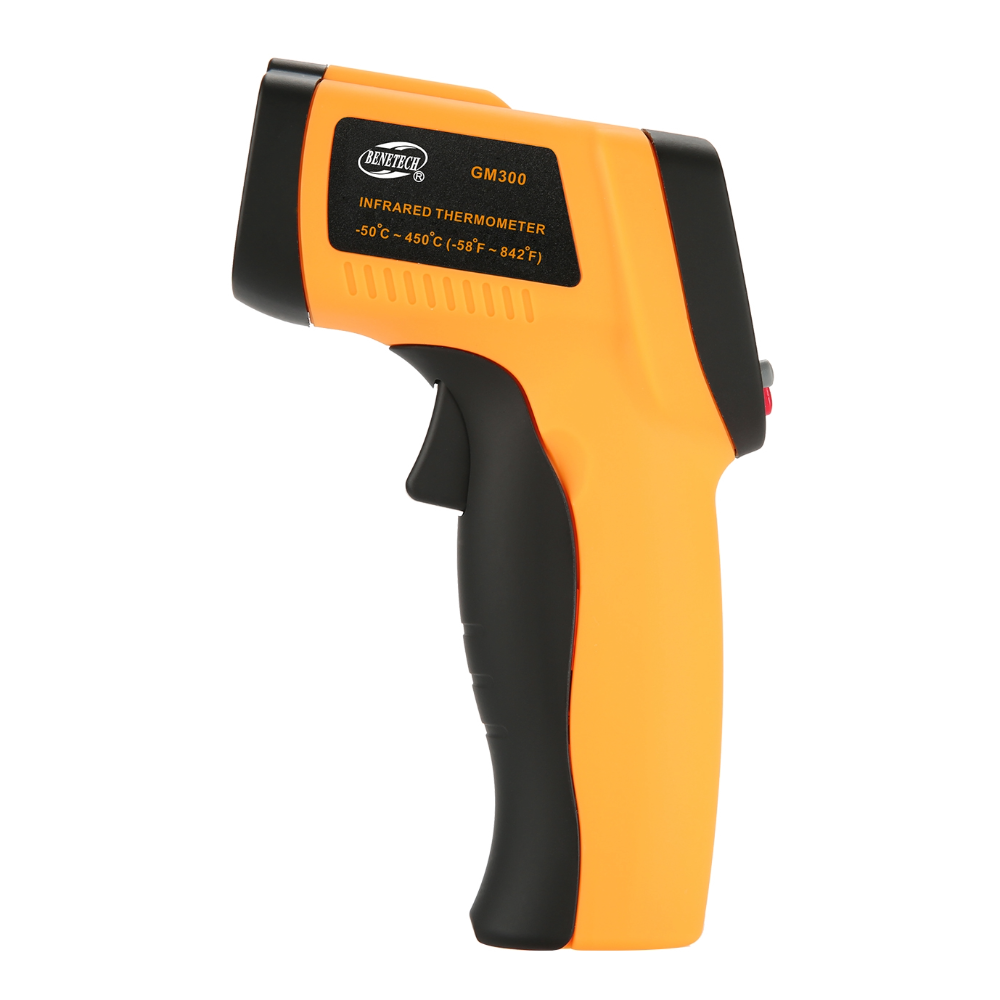

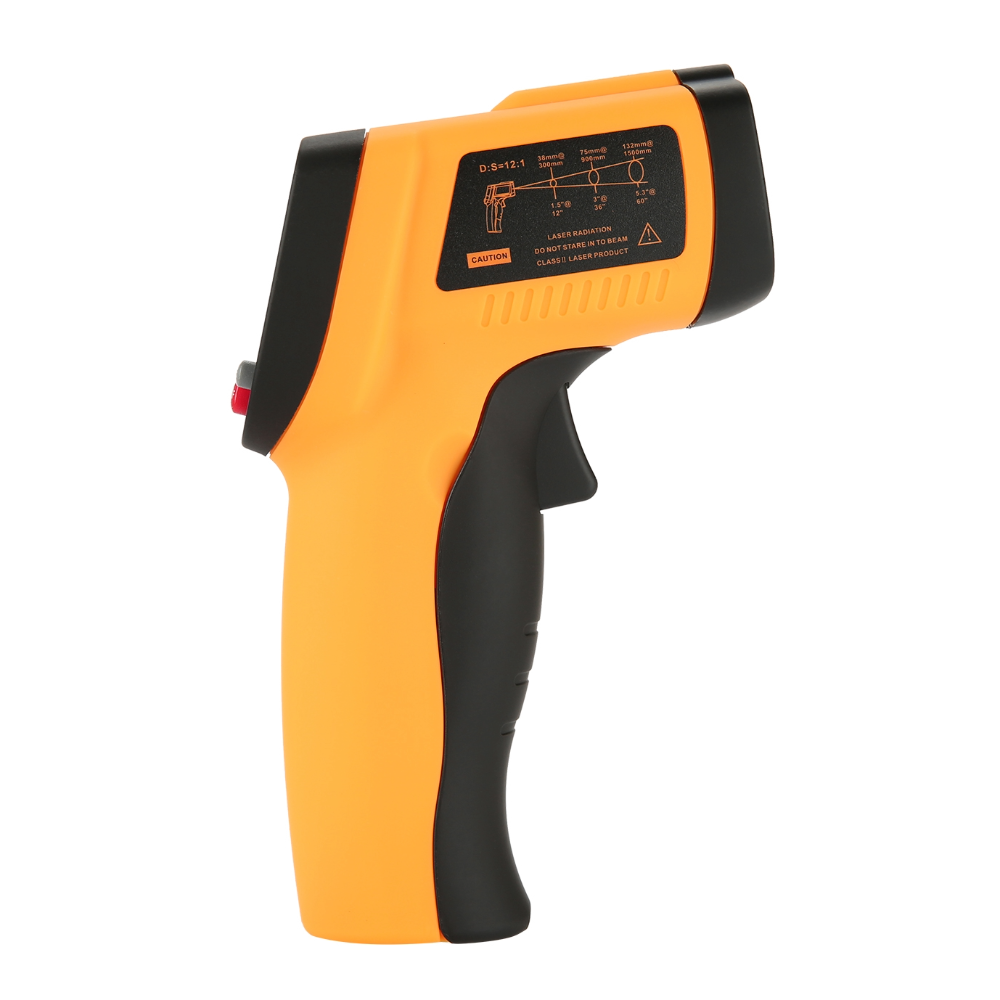

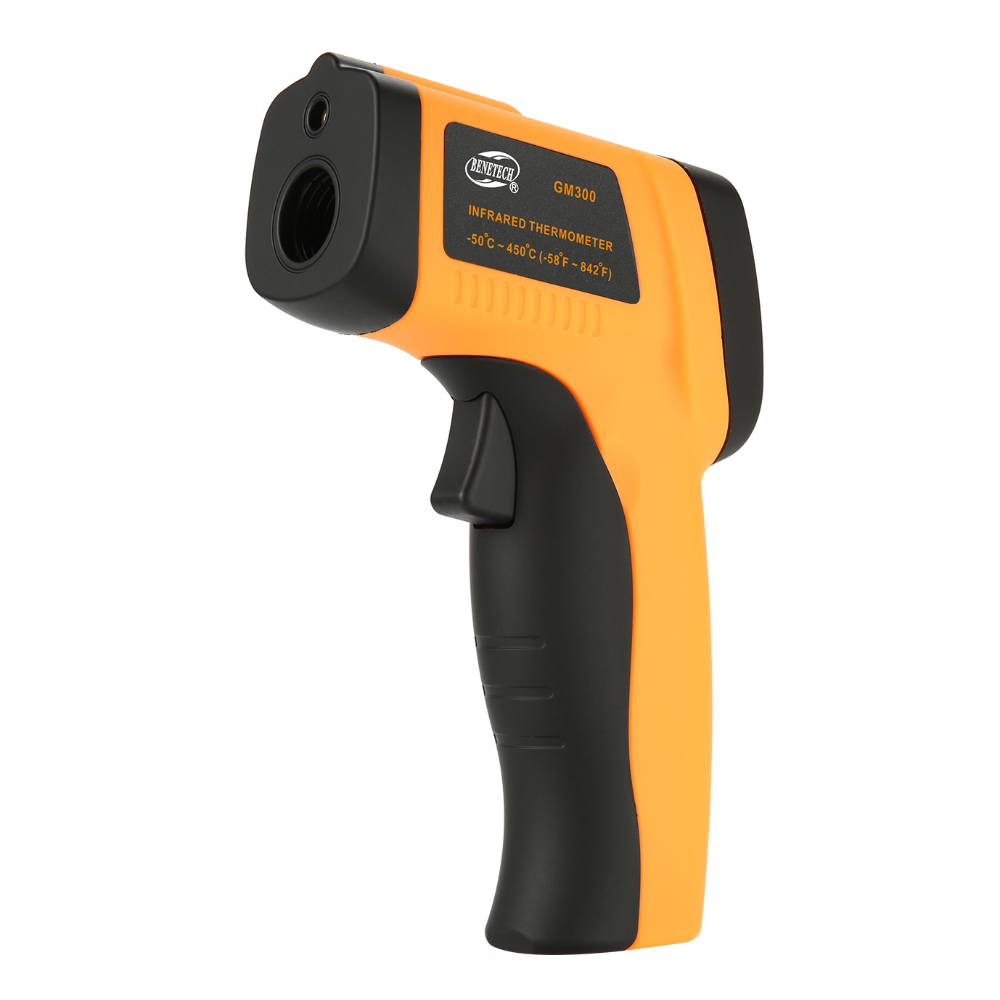

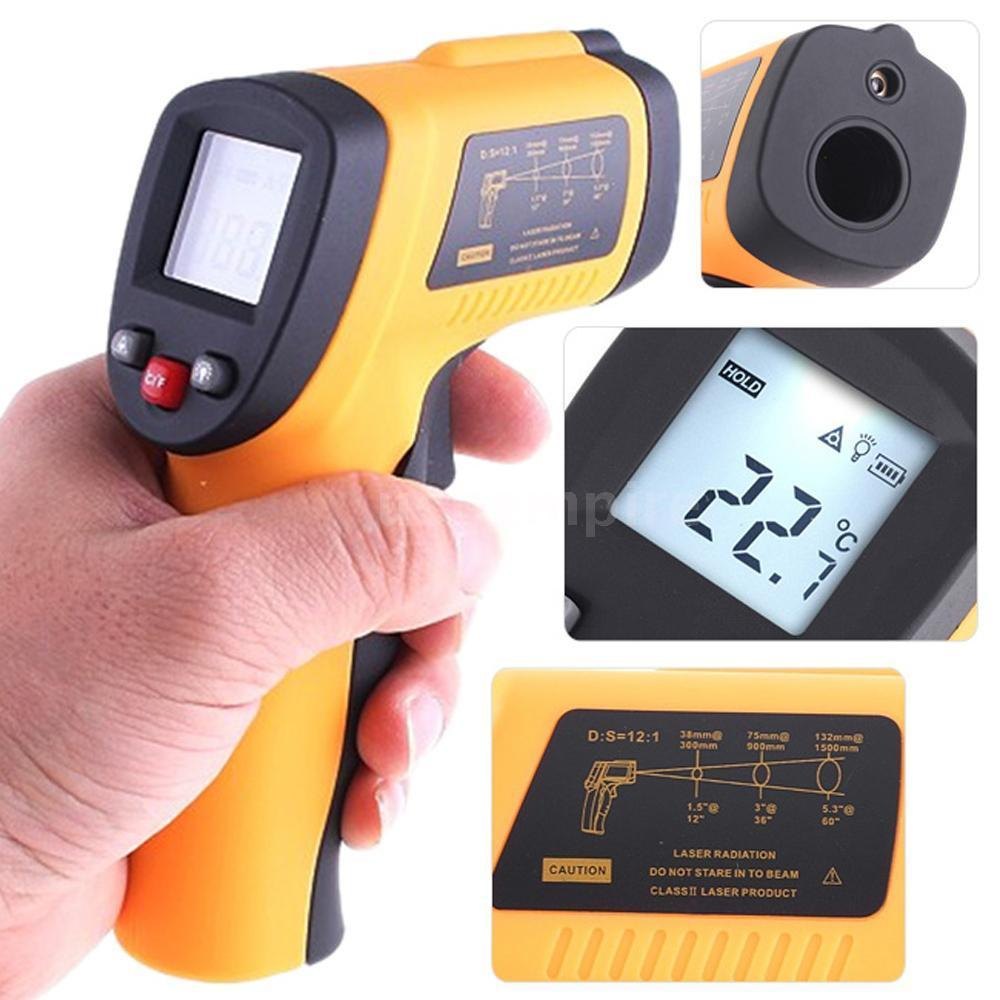

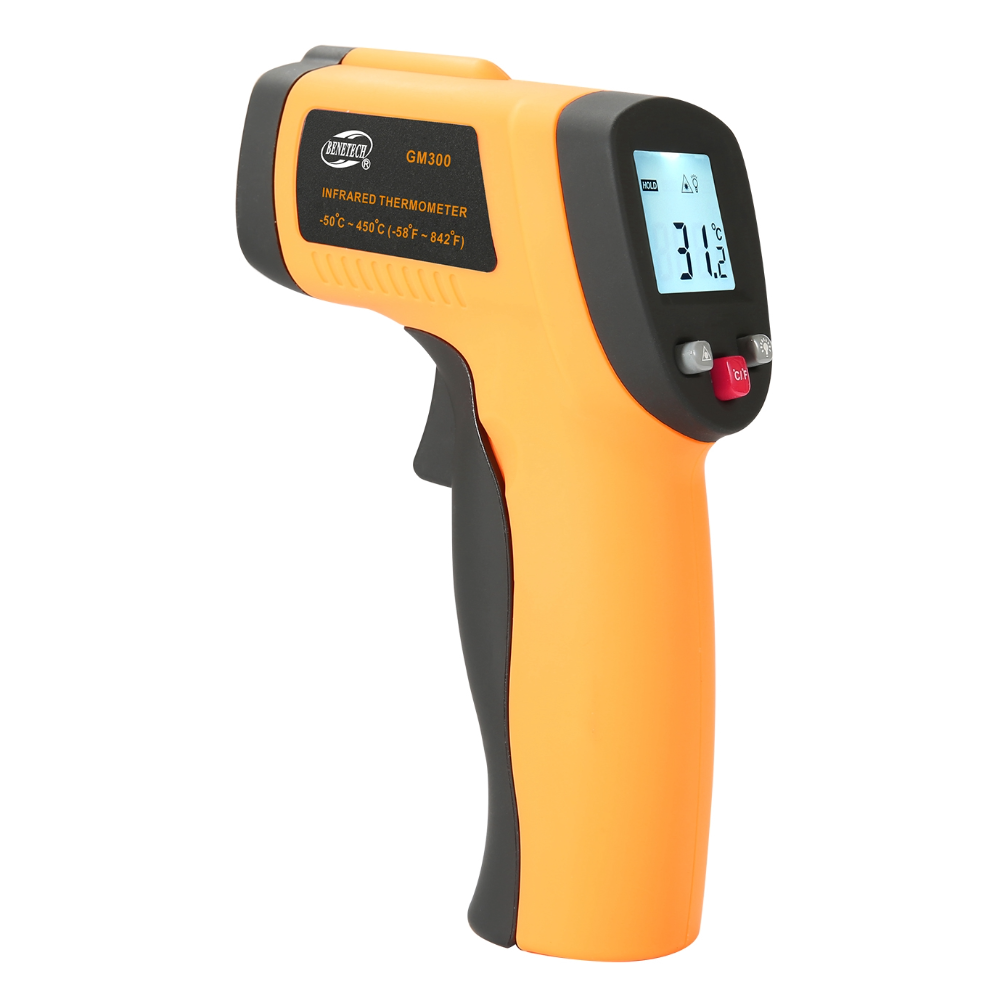

This product includes Optics, a Temperature Sensor, a Signal Amplifier, a Processing Circuit, and an LCD Display. The Optics collect infrared energy from an object and focus it onto the Sensor. The Sensor translates the energy into an electrical signal, which is then converted into digital format and displayed on the LCD after passing through the signal amplifier and processing circuit.

FEATURE

• ℃ / ℉ temperature unit conversion
• Data retention
• Positioning laser
• LCD backlight
• Automatic shut-down

SPECIFICATION

• Temperature range: -50 ~ 450℃ (-58 ~ 842℉)
• Accuracy: 0℃~450℃ (32℉~842℉) ：±1.5℃(±2.7℉)
                   or±1.5%
                  -50℃~0℃(-58℉~32℉)： ±3℃ (±5℉)
                   Whichever is greater
• Resolution: 0.1℃ or 0.1℉
• Repeatability: 1% of reading or 1℃
• Response time: 500 mSec, 95% response
• Spectral response: 5-14 um
• Emissivity: 0.95 Preset
• Distance to Spot size: 12:1
• Operating Temperature: 0 ~40℃ (32 ~ 104℉)
• Operating Humidity: 10~95%RH non-condensing，
                                       up to 30℃(86℉)
• Storage Temperature: -20 ~ 60℃ (-4~140℉)
• Power: 9V (6F22) battery
• Typical battery life: Non-laser mode: 22 hrs; Laser Models:12 hr
