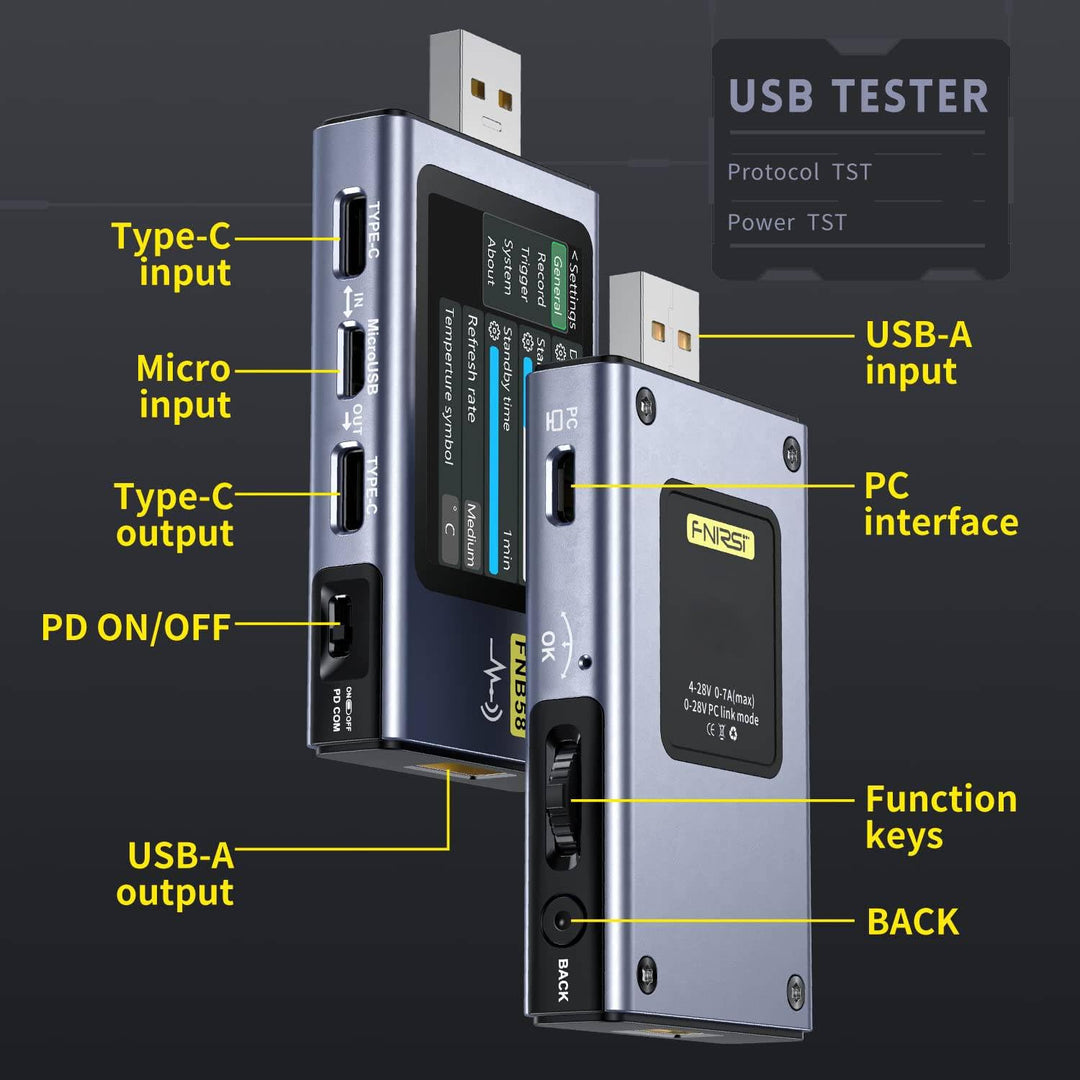

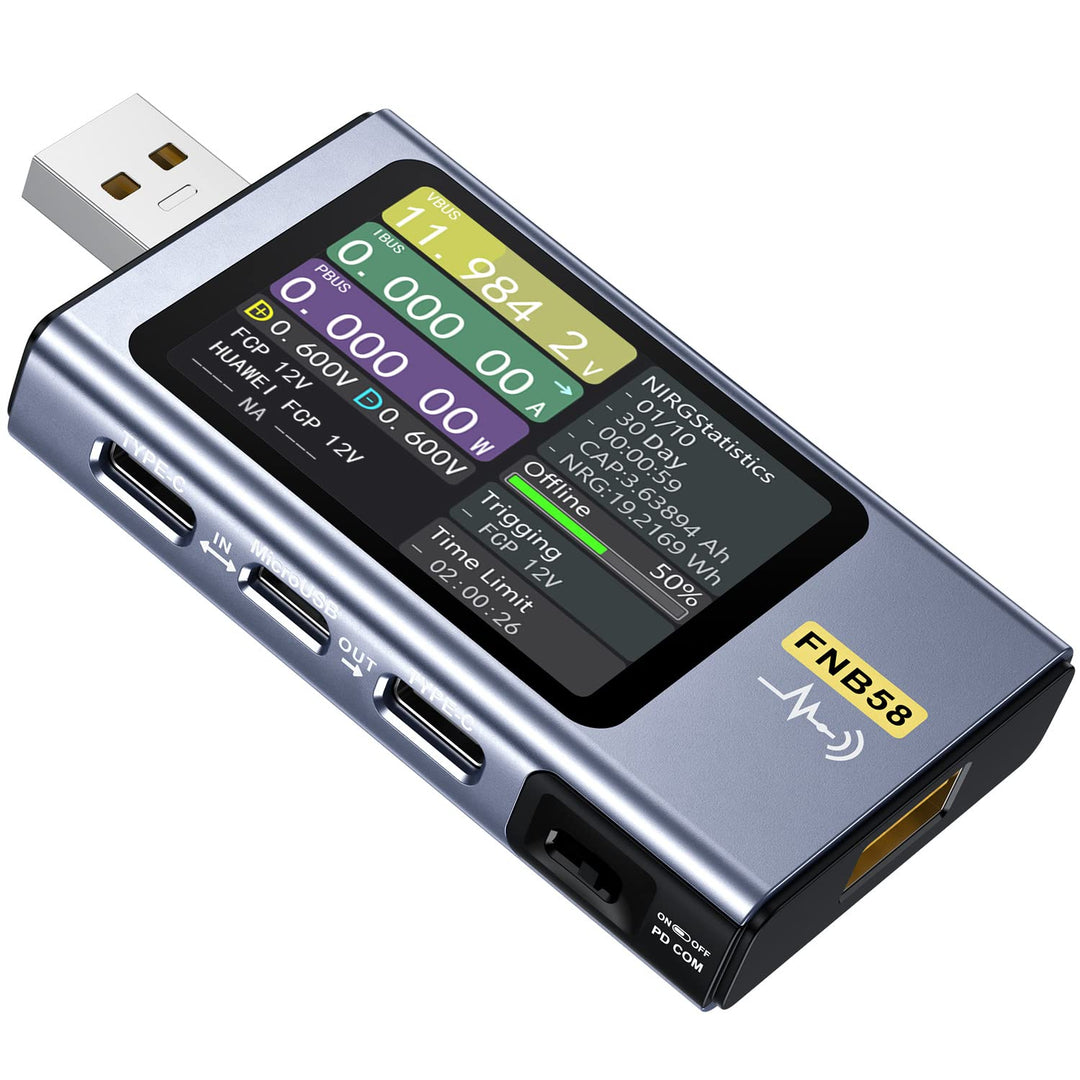

The LABART FNB58 USB Tester is a multifunction digital USB meter designed to measure voltage, current, power, capacity, energy, and charging protocols. Equipped with USB-A, Micro-USB, and USB Type-C ports, it supports fast charge protocol detection, cable testing, ripple measurement, and real-time data recording. Featuring a 2.0-inch TFT color display, Bluetooth app support, and multiple protocol compatibility, it is ideal for testing chargers, power banks, USB cables, mobile devices, and other USB-powered electronics.

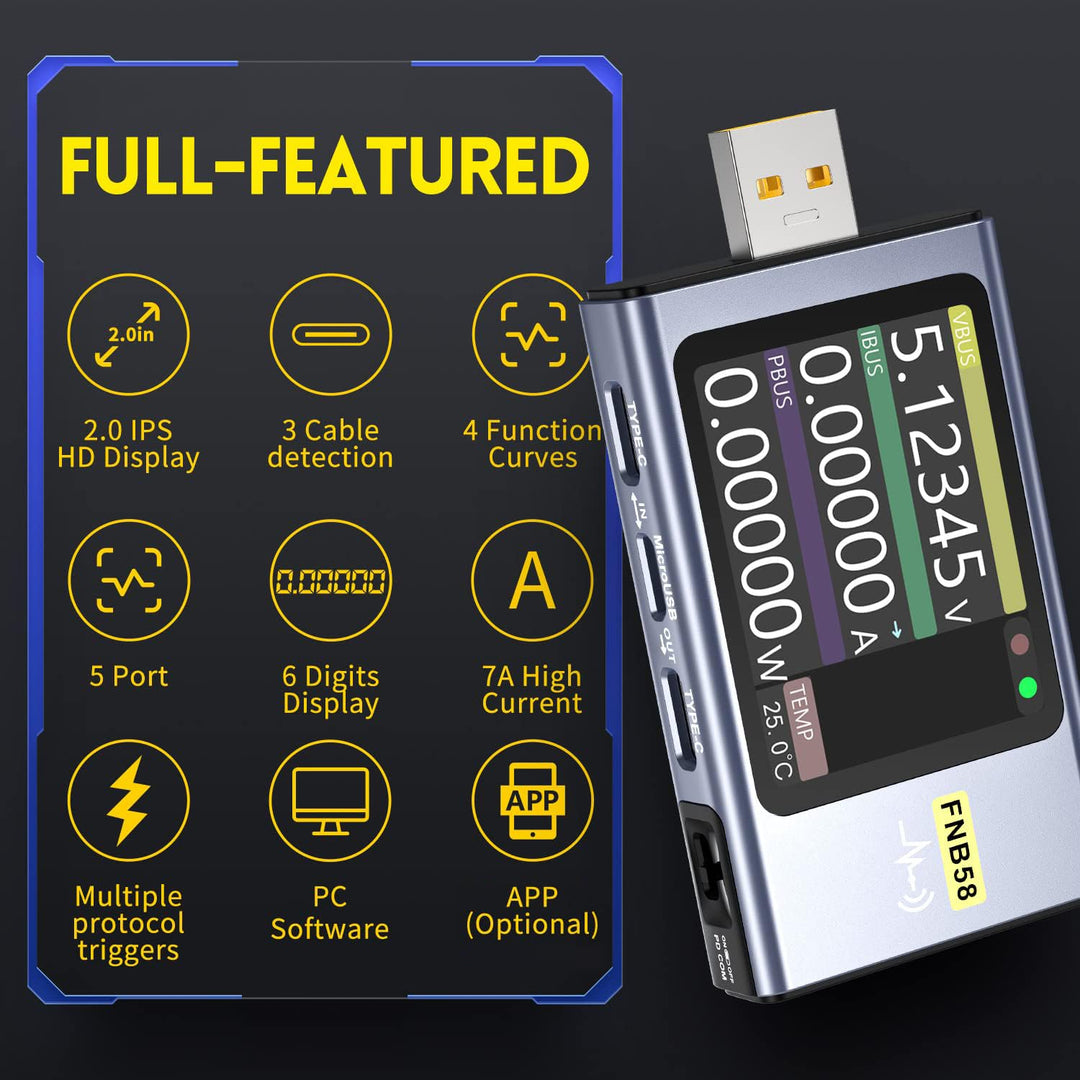

FEATURE

• Multi-Port USB Tester: Supports USB-A, Micro-USB, and USB Type-C interfaces.
• 2.0-inch TFT Color Display: Clear display for real-time measurement data.
• Comprehensive Measurements: Measures Voltage, Current, Power, Capacity, Energy, Resistance, D+/D- Voltage, and Temperature.

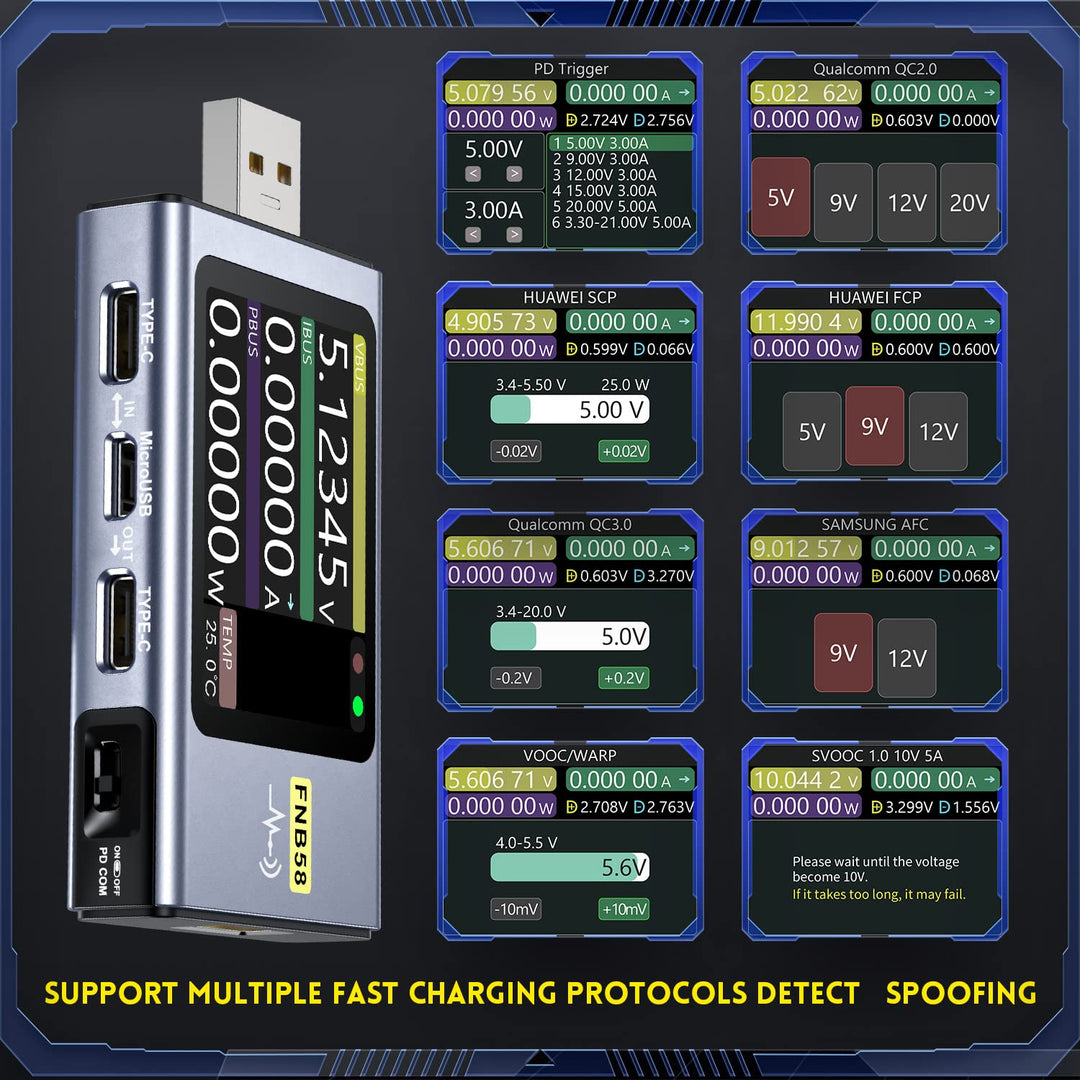

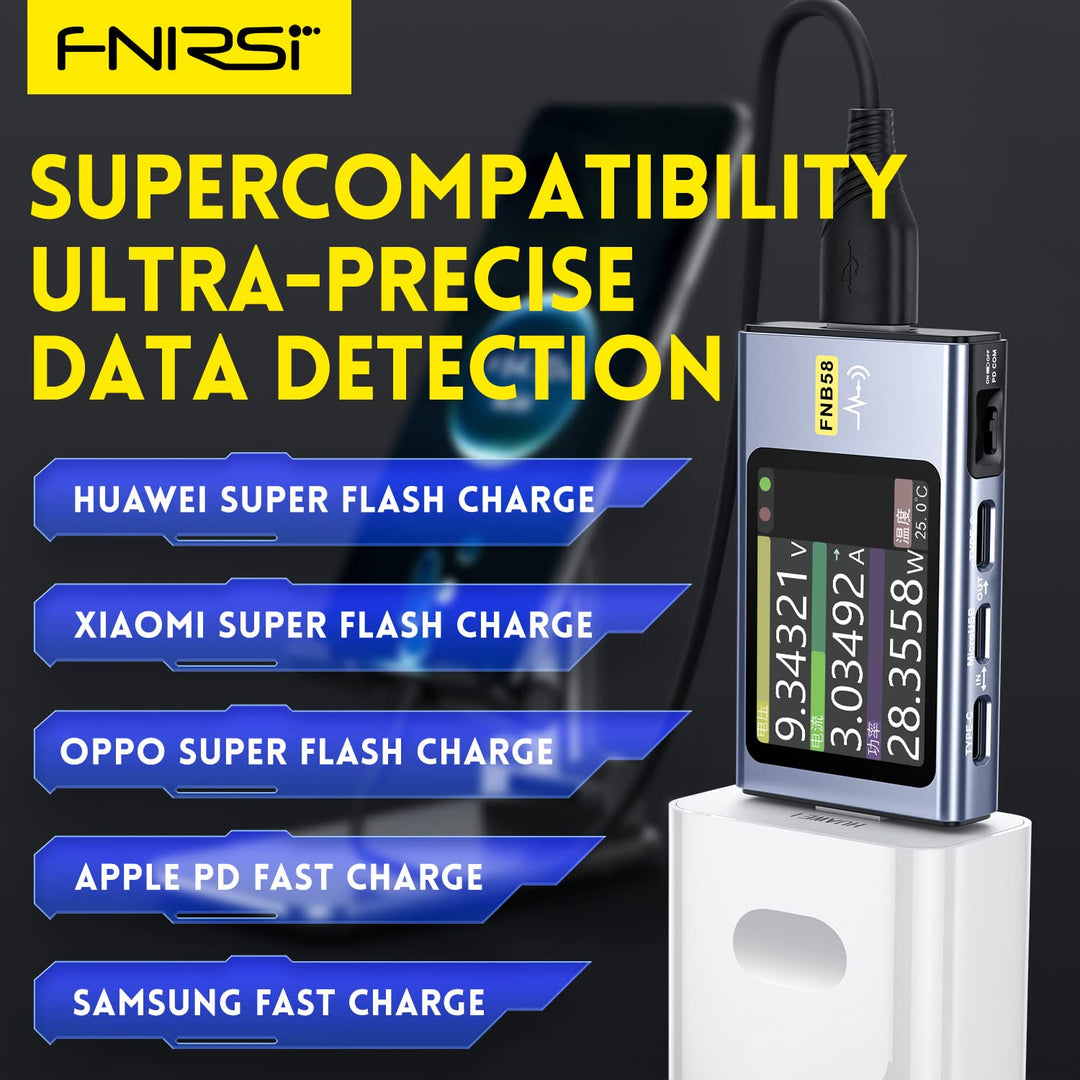

• Fast Charge Protocol Detection: Supports QC2.0, QC3.0, PD2.0/3.0, AFC, FCP, SCP, VOOC, Super VOOC, WARP, and MTK-PE.
• Fast Charge Trigger: Simulates and triggers supported fast charging protocols for charger testing.
• Data Recording & Waveform Analysis: Stores multiple test records and supports ripple and waveform measurement.
• Cable & E-Marker Detection: Reads E-Marker chip information and measures USB cable resistance.
• Bluetooth App Support: Connects with the mobile app for monitoring and data analysis.
• USB Type-C Rechargeable: Easy firmware upgrades and convenient operation.
• Ideal for USB Testing: Suitable for chargers, power banks, USB cables, mobile phones, tablets, and electronic repair.

SPECIFICATION

• Product Type: USB Fast Charging Tester

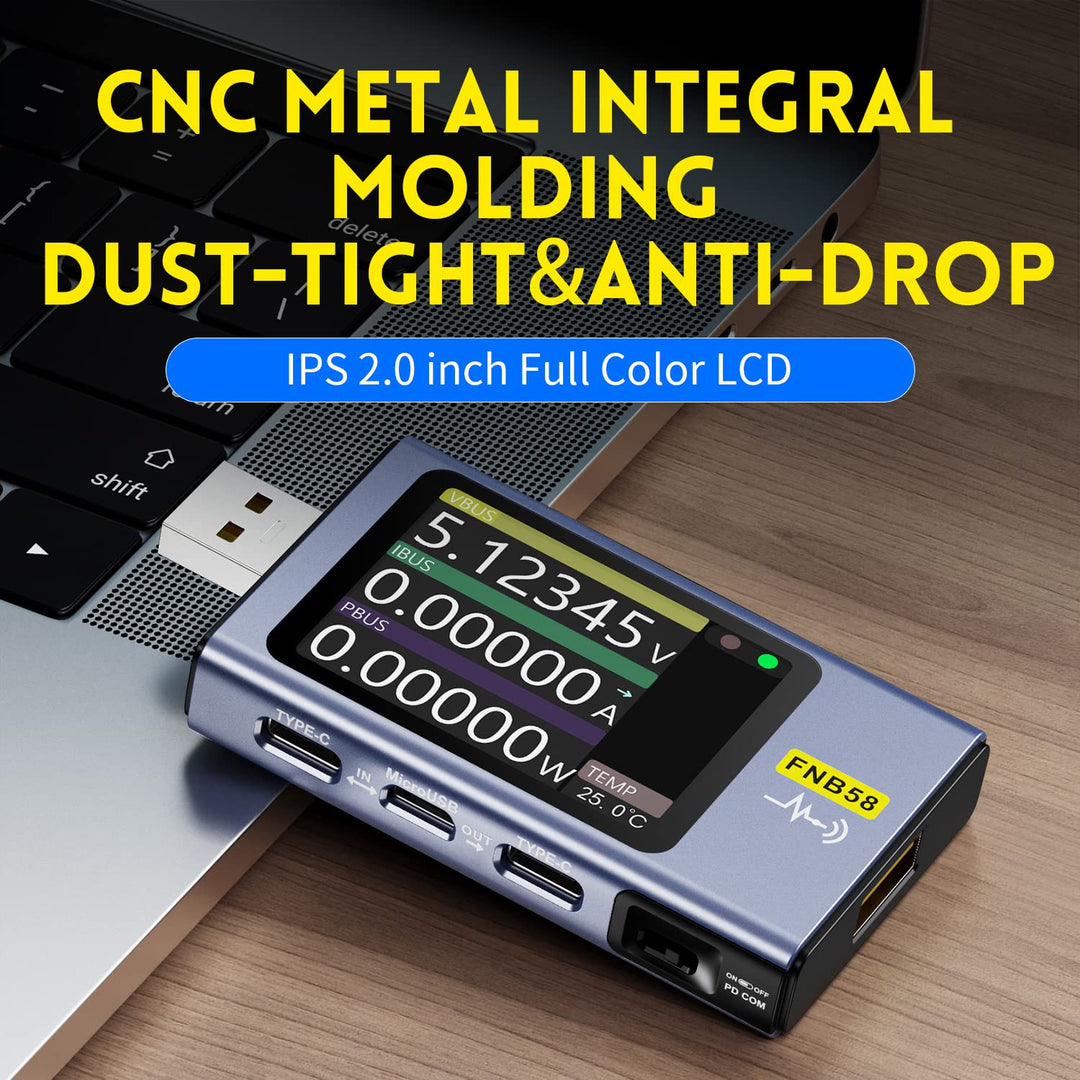

• Display: 2.0-inch TFT LCD Color Display
• Interfaces: USB-A, Micro-USB, USB Type-C
• Measured Parameters: Voltage, Current, Power, Capacity, Energy, Resistance, D+/D- Voltage, Temperature
• Fast Charge Protocols: QC2.0, QC3.0, PD2.0/3.0, AFC, FCP, SCP, VOOC, Super VOOC, WARP, MTK-PE
• Fast Charge Trigger: Supported
• Ripple Measurement: Supported
• Waveform Display: Supported
• Data Storage: 10 Sets
• Cable Resistance Test: Supported
• E-Marker Chip Reading: Supported
• DASH Cable Reading: Supported
• PD Monitoring: Supported
• Communication: Bluetooth App Support
• Firmware Upgrade: Supported
• Application: USB Chargers, Power Banks, USB Cables, Mobile Devices, Electronics Testing
