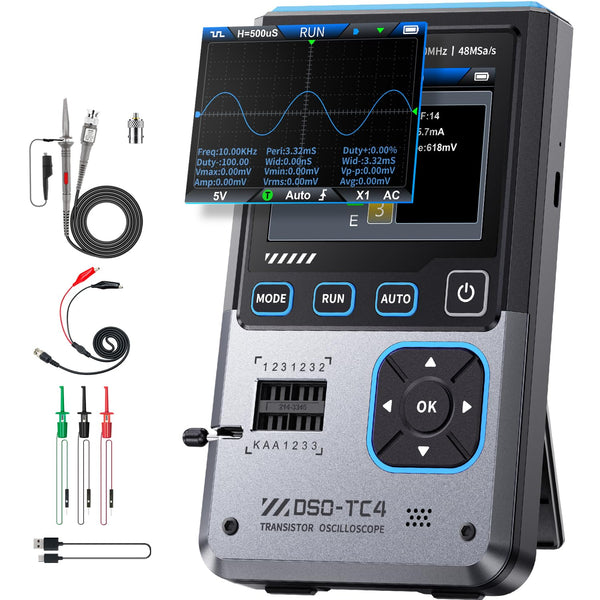

DSO-TC4 is a multifunctional transistor oscilloscope launched by FNIRSI, which is comprehensive and practical, and is designed for the maintenance and R&D industries. It integrates an oscilloscope, a signal generator, and a transistor.

FEATURE

• High-Performance Oscilloscope: 48MSa/s sampling rate with 10MHz bandwidth for accurate waveform analysis.
• Built-in Signal Generator: Supports 13 waveform types with adjustable frequency from 0–50kHz, output voltage from 0–3V, and adjustable duty cycle.
• Waveform Storage: Save and view screenshots for convenient analysis and record keeping.
• Automatic Transistor Detection: Automatically identifies transistors, diodes, triodes, FETs, and pin configuration for fast component testing.
• Semiconductor Component Testing: Tests and analyzes transistors, diodes, FETs, and other semiconductor devices.
• High Input Protection: Supports voltage measurement up to ±400V for safe testing.
• 2.8-inch TFT Color Display: Bright, clear screen for easy viewing of waveforms and test results.
• Rechargeable Battery: Built-in 1500mAh lithium battery with up to 4 hours of operation.
• Compact & Portable: Lightweight handheld design for field service, workshops, and laboratories.
• Wide Applications: Ideal for electronics repair, circuit analysis, transistor testing, laboratory work, education, and DIY electronics.


SPECIFICATION

• Model: DSO-TC4
• Product Type: Handheld Digital Oscilloscope, Signal Generator & Transistor Tester
• Display: 2.8-inch TFT Color Display
• Backlight: Adjustable Brightness
• Battery: 3.7V / 1500mAh Rechargeable Lithium Battery
• Charging Interface: USB Type-C (5V/1A)
• Languages: English, Chinese, German, Portuguese, Japanese, Spanish, Korean, Russian
• Product Dimensions: Approx. 90 × 142 × 27.5 mm
• Weight: Approx. 186 g
• Oscilloscope Channels: 1
• Real-Time Sampling Rate: 48MSa/s
• Analog Bandwidth: 10MHz
• Input Impedance: 1MΩ
• Coupling Mode: AC / DC
• Input Voltage Range: 80Vpp (1X Probe), 800Vpp (10X Probe)
• Vertical Sensitivity: 10mV/div – 10V/div (X1)
• Vertical Position: Adjustable
• Time Base Range: 50ns – 20s
• Trigger Modes: Auto / Normal / Single
• Trigger Type: Rising Edge / Falling Edge
• Trigger Level: Adjustable
• Waveform Hold: Supported
• Automatic Measurements: Max, Min, Average, RMS, Vpp, Frequency, Period, Duty Cycle
• Applications: Electronics Repair, Circuit Analysis, Transistor Testing, Laboratory Testing, Industrial Maintenance, Education
