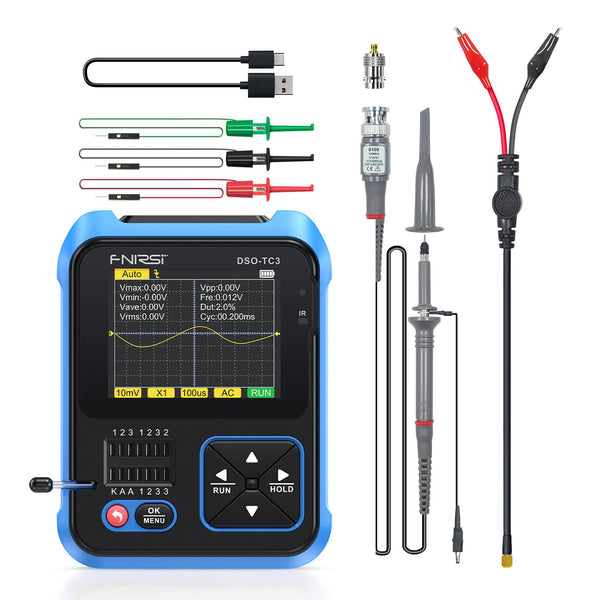

The LABART DSO-TC3 is a compact multifunction tester that combines a digital oscilloscope, electronic component tester, signal generator, continuity tester, voltage tester, temperature and humidity meter, and infrared decoder in one portable device. Featuring a 2.4-inch TFT color display, upgraded ESR capacitance testing, improved bandwidth and sampling rate, higher input voltage support, and a built-in rechargeable lithium battery, it is ideal for electronics repair, circuit diagnostics, component testing, and laboratory applications.

FEATURE

• 3-in-1 Multifunction Tester: Combines a digital oscilloscope, electronic component tester, and signal generator in one compact device.
• Digital Oscilloscope: 10MSa/s sampling rate with 500kHz bandwidth for basic waveform analysis.
• 2.4-inch TFT Color Display: Bright LED backlit screen for clear viewing of waveforms and test results.
• Electronic Component Tester: Automatically identifies NPN, PNP, MOSFETs, FETs, diodes, and other semiconductor components.
• Component Analysis: Detects pin configuration, component parameters, and NEC infrared protocol.
• Built-in Signal Generator: Generates sine, square, pulse, triangle, ramp, and DC waveforms for testing and debugging.
• Multiple Measurement Functions: Supports continuity testing, voltage measurement, PWM signal testing, and temperature sensing.
• Intelligent MOS Test Mode: Automatically recognizes different transistor and MOSFET types.
• Rechargeable Battery: Built-in lithium battery with convenient USB Type-C charging.
• Foldable Stand Design: Integrated kickstand for hands-free operation during testing.
• Compact & Portable: Lightweight handheld design for electronics repair, education, DIY projects, and laboratory use.

SPECIFICATION

• Model: DSO-TC3
• Product Type: 3-in-1 Handheld Oscilloscope, Component Tester & Signal Generator
• Display: 2.4-inch TFT Color Display
• Battery: Rechargeable Lithium Battery
• Charging Interface: USB Type-C (5V)
• Product Dimensions: 79 × 103 × 31 mm
• Stand: Integrated Foldable Stand
• Oscilloscope Channels: 1
• Real-Time Sampling Rate: 10MSa/s
• Analog Bandwidth: 500kHz
• Input Impedance: 1MΩ
• Coupling Mode: AC / DC
• Maximum Input Voltage: 400V
• Vertical Sensitivity: 10mV/div – 10V/div
• Time Base Range: 1µs – 10s
• Trigger Modes: Auto / Normal / Single
• Trigger Type: Rising Edge / Falling Edge
• Waveform Hold: Supported
• Automatic Measurements: Supported
• Signal Generator: Sine, Square, Pulse, Triangle, Ramp & DC Output
• Signal Generator Frequency: 1Hz – 100kHz
• Signal Generator Output Voltage: 0–3.3V
• Pulse Duty Cycle: 0–100% Adjustable
• Transistor Testing: NPN, PNP, MOSFET, JFET, IGBT, SCR, TRIAC
• Diode Testing: Supported
• Zener Diode Testing: 0.01–32V
• Capacitor Measurement: 25pF – 100mF
• Resistance Measurement: 0.01Ω – 50MΩ
• Inductance Measurement: 10µH – 1000mH
• Battery Voltage Test: 0.1V – 4.5V
• Input Voltage Test: 0–40V
• Temperature Sensor Support: DS18B20 (0–85°C)
• Temperature & Humidity Sensor Support: DHT11 (0–60°C, 5–95% RH)
