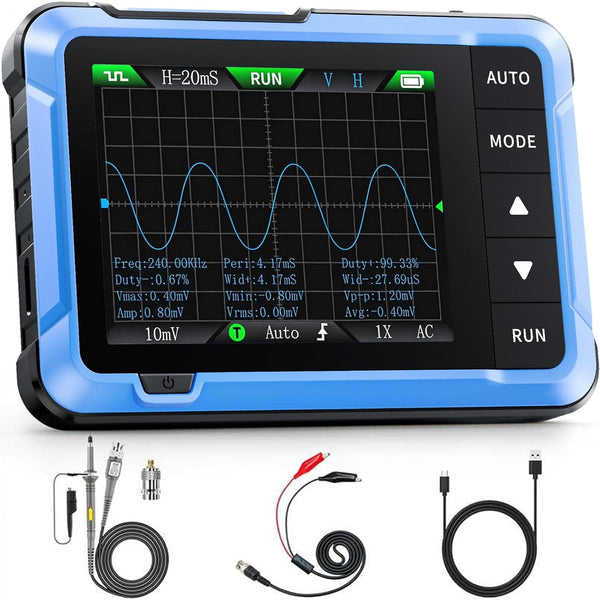

The LABART DSO510 is a compact handheld digital oscilloscope designed for electronics repair, testing, and education. It features a 10MHz bandwidth, 48MSa/s sampling rate, built-in 50kHz signal generator, 2.8-inch HD color display, and one-key AUTO function for fast waveform capture. With complete trigger modes, up to ±400V input measurement, and a 1000mAh rechargeable battery offering up to 4 hours of operation, it is ideal for circuit analysis, troubleshooting, and laboratory applications.

FEATURE

• Portable 2.8" TFT Handheld Oscilloscope for beginners, hobbyist
• DSO oscilloscope: 48MS/s, 10MHz bandwidth, ±400V voltage range.
• Signal Generator: 50KHz
• High-definition 320*240 LCD, Type-C interface.
• Finished assembly, lightweight, perfect for maintenance.
• Versatile trigger functions: single, normal, automatic.
• Signal Type Support: Periodic analog signals and non-periodic digital signals.
  2 languages: Chinese, English
• One-Click AUTO Mode: Displays waveforms instantly without complex adjustments.
• Battery Life: Built-in 1000mAh lithium battery with 4 hours of use per charge.
• Recommended Use: Ideal for advanced repairs, development, and education projects.

SPECIFICATION

• Model: DSO-510
• Product Type: Handheld Digital Oscilloscope with Signal Generator
• Display: 2.8-inch TFT LCD (320 × 240 Pixels)
• Battery: 1000mAh Rechargeable Lithium Battery
• Charging Interface: USB Type-C (5V/1A)
• Product Dimensions: 99 × 68.3 × 19.5 mm
• Weight: Approx. 104 g
• Channels: 1
• Sampling Rate: 48MSa/s
• Bandwidth: 10MHz
• Vertical Sensitivity: 10mV/div – 20V/div
• Time Base Range: 50ns/div – 20s/div
• Input Voltage Range: X1: ±40V (80Vpp), X10: ±400V (800Vpp)
• Trigger Modes: Auto / Normal / Single
• Trigger Edge: Rising / Falling Edge
• Coupling Mode: AC / DC
• Signal Generator Frequency: 0–50kHz
• Output Amplitude: 0.1V–3.0V
• Duty Cycle: 0–100% (Square & Sawtooth Wave)
• Built-in Waveforms: Sine, Square, Sawtooth, Half Wave, Full Wave, Step, Anti Step, Exponential Rise, Exponential Drop, DC, Multi-Tone, Sync Pulse, Lorentz
• Applications: Electronics Repair, Circuit Analysis, Signal Testing, Laboratory Testing, Industrial Maintenance, Education
